MasterCool freezer

F 2413 Vi

For high-end design and technology on a large scale.


sale price£8,829.00



Product details

  • Push2openfor convenient door-opening assistance
  • Light floods the interior thanks to LED elements –BrilliantLight
  • Fresh ice cubes from theIceMakerwith mains water connection
  • Convenient control thanks to colour touch displayMasterSensor

Downloads

UK declaration of conformity
PDF
Downloads
UK declaration of conformity
PDF
Downloads
Product sheet
PDF
Downloads
Operating instructions/Installation instructions
PDF
Downloads
fbx
ZIP
Downloads
dwg
ZIP
Downloads
rfa
ZIP
Downloads
rvt
ZIP
Downloads
ifc
ZIP
Downloads
Energy label
PDF
Downloads
Product fiche
PDF
Downloads

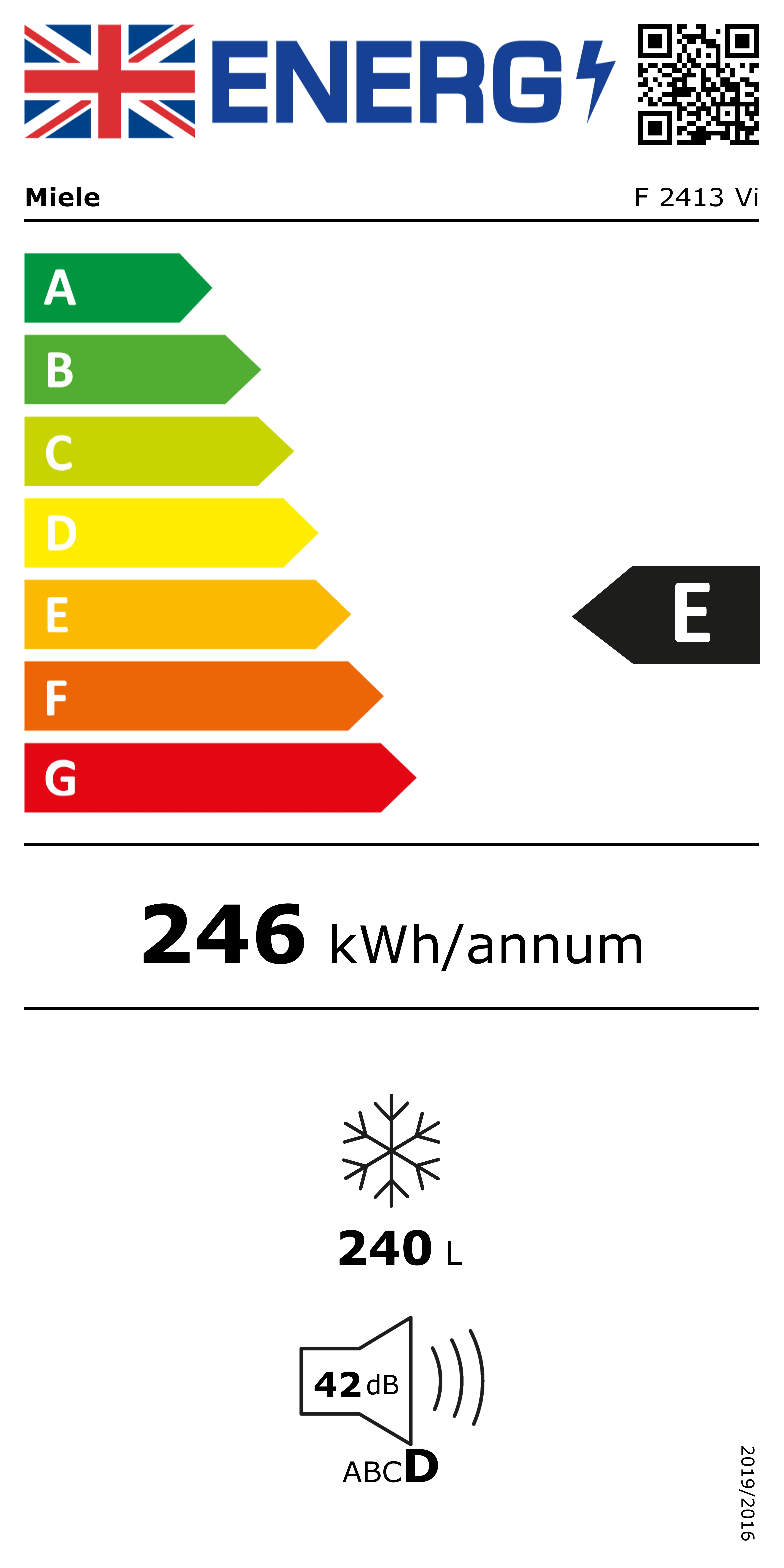

Energy label
PNG
Downloads

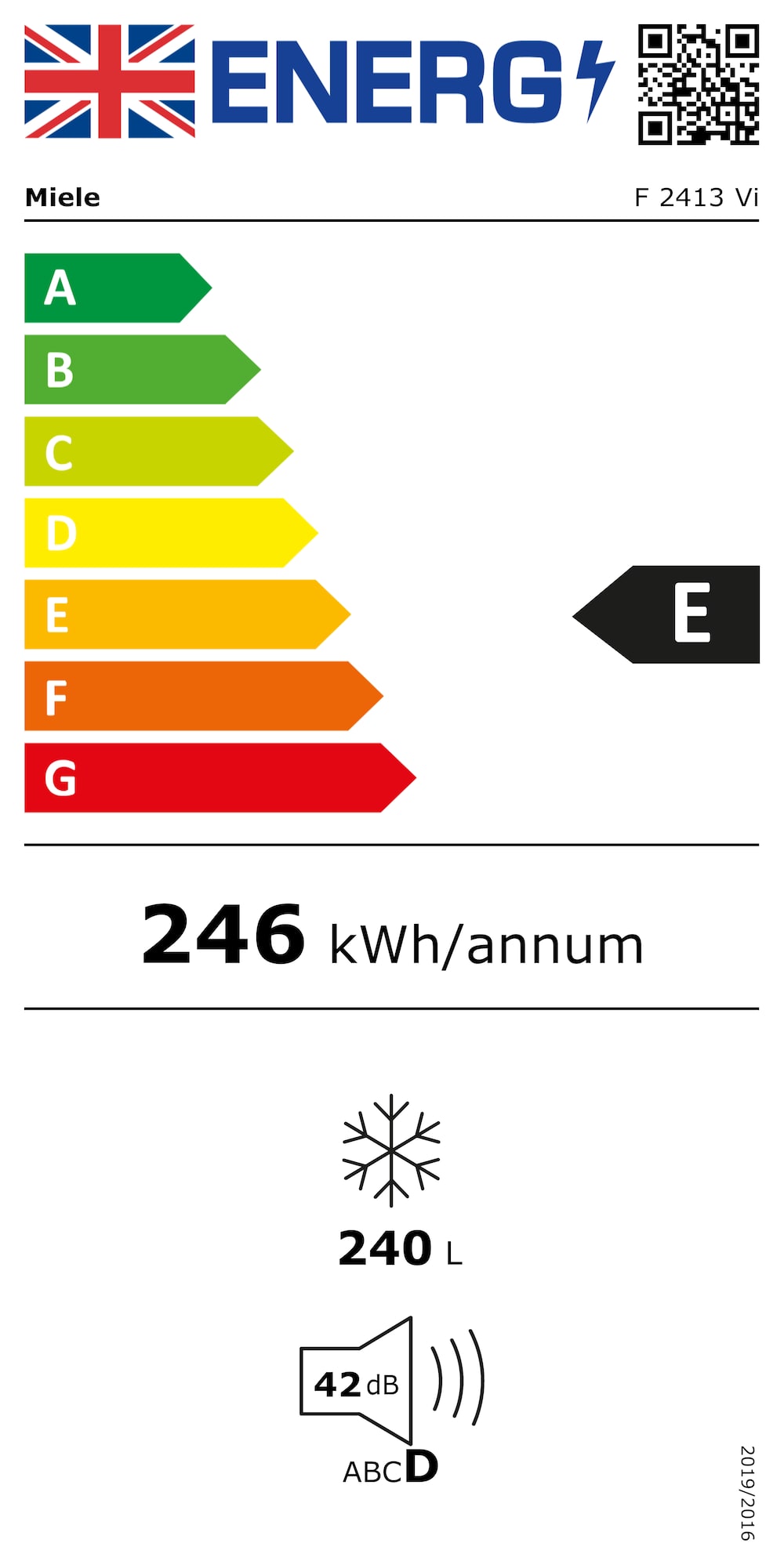

Energy label
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/images/2000015/200001516/20000151620.png
Descriptions
F2413Vi, F2412Vi, F2411Vi, MasterCool, inner space, installation drawings
Installation drawings
Downloads
https://media.miele.com/images/2000006/200000657/20000065730.png
Descriptions
Side-by-side, MasterCool, without partition wall, with heating mat (Sketch) (with footnote)
1) Heating mat KSK 2001 (EU, AUS, CN) or KSK 2002 (US, CA, MX, BR)
Downloads
https://media.miele.com/images/2000016/200001617/20000161754.png
Descriptions
Sideview, MasterCool, Sketch
Installation drawings
Downloads
https://media.miele.com/images/2000016/200001632/20000163254.png
Descriptions
F2413Vi, F2471Vi, F2471SF, F2461Vi, F2411Vi, F2411SF, installation, MasterCool, installation drawings
1. View from the front, 2. Mains Connection cable, L = 3000 mm (118 inch), 3. Water inlet positon, L = 2000 mm (not for KON USA), 4. No water/ELT conections permitted in this area
Downloads
https://media.miele.com/images/2000016/200001623/20000162322.png
Descriptions
Example for diminsioning Side-by-side-Combination MasterCool (Sketch) (*footnote) (only for EUROPE)
*Niche height, 1 = Side-by-side fitting kit including pre-installed side wall heating KSK 200x, 2 = Furniture plinth height 102 - 132 mm (the appliance feet can be adjusted up to 30 mm high), 3 = Total appliance niche width 1220 mm (458 mm + 762 mm)
Downloads
https://media.miele.com/images/2000016/200001626/20000162600.png
Descriptions
Side-by-Side, MasterCool, footnote, installation drawings
1. KSK 2001/2002, 2. Device A, 3. Device B, A = niche device A, B = niche device B
Downloads
https://media.miele.com/images/2000016/200001632/20000163243.png
Descriptions
KFP1805ed/cs, KFP1804ed/cs, Front panel, Front dimensions, MasterCool, installation drawings
Installation drawings
Downloads
https://media.miele.com/images/2000018/200001842/20000184290.png
Descriptions
Opening angle 90°/115°, right side stop, MasterCool (Sketch) with footnote
A) Appliance door , F 2411 Vi: 525 mm (20 2/3 inch);, F 2412 Vi, F 2412 SF, F 2413Vi, F 2472 Vi, F 2472 SF: 525 mm (20 2/3 inch);, F 2671 Vi: 677 mm (26 2/3 inch); , F 2672 Vi, F 2672 SF: 677 mm (26 2/3 inch);, F 2812 SF, F 2812 Vi, F 2813 Vi: 829 mm (32 2/3 inch);, F 2912 Vi, F 2912 SF: 982 mm (38 2/3 inch);, B) Furniture front (max. 38 mm) (1 1/2 inch), C) Door handle, D) Distance from the door to the wall (without furniture front and door handle): , F 2411 Vi: 237 mm (9 1/3 inch);, F 2412 Vi, F 2412 SF, F 2472 Vi, F 2472 SF: 237 mm (9 1/3 inch);, F 2672 Vi, F 2672 SF: 296 mm (11 2/3 inch);, F 2811 Vi: 363 mm (14 1/3 inch);, F 2812 SF, F 2812 Vi: 363 mm (14 1/3 inch);, F 2912 Vi, F 2912 SF: 428 mm (16 7/8 inch);, E) ONLY valid for SF versions: A + 25 mm (1 inch)
Downloads
Open Source Licence
PDF
Downloads
  • 1.
  • 2.Additional digital offer from Miele & Cie. KG. All smart applications are made possible with the Miele@home system. The range of functions can vary depending on the model and the country.

We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
