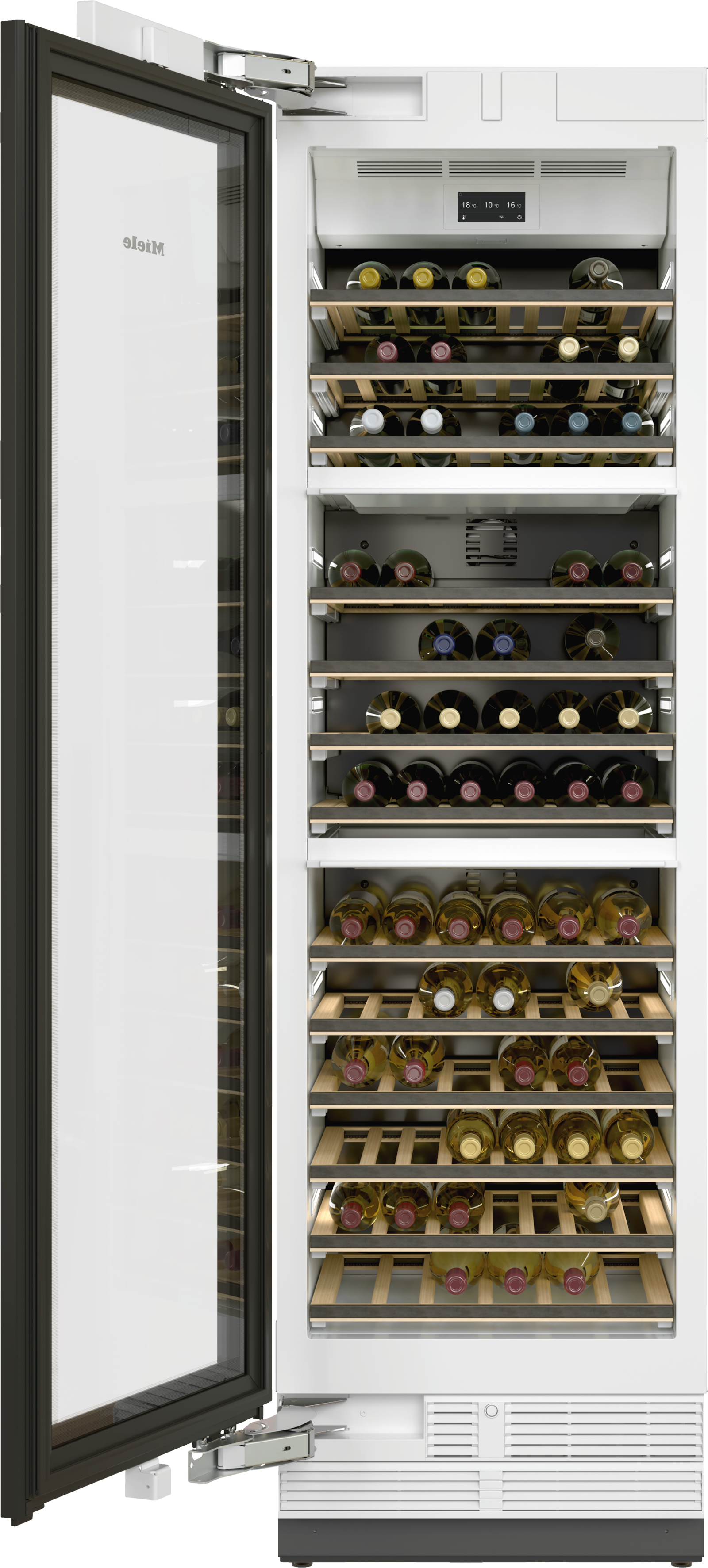

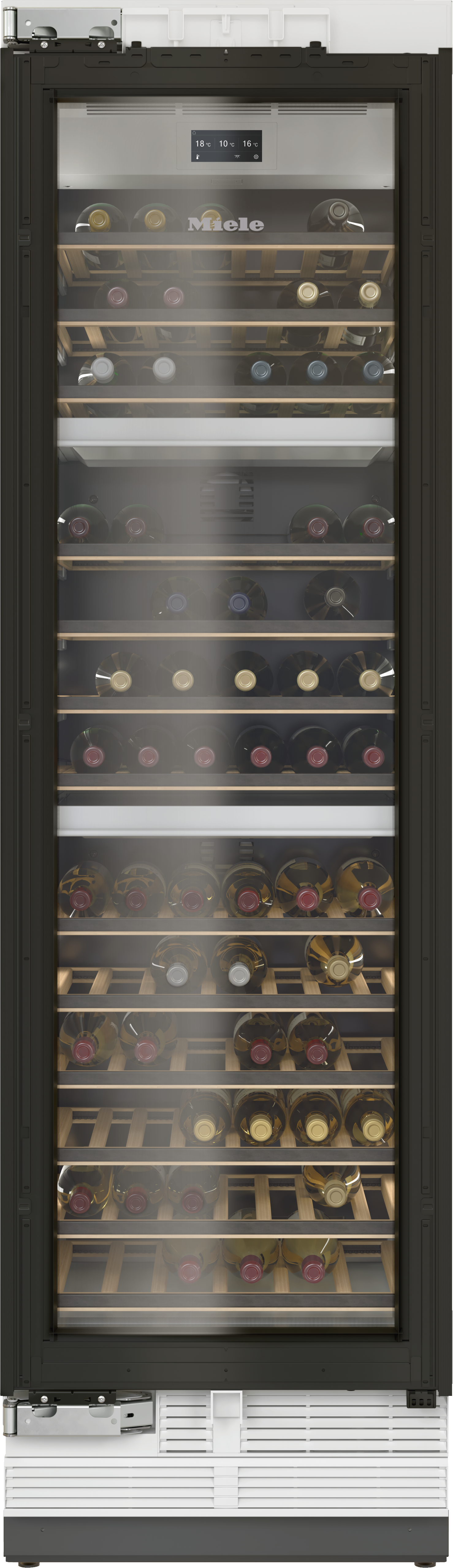

MasterCool wine conditioning unitDIAMOND
KWT 2612 Vi
For high-end design and technology on a large scale.sale price£12,199.00
Product details
- Push2openfor convenient door-opening assistanceLoading...

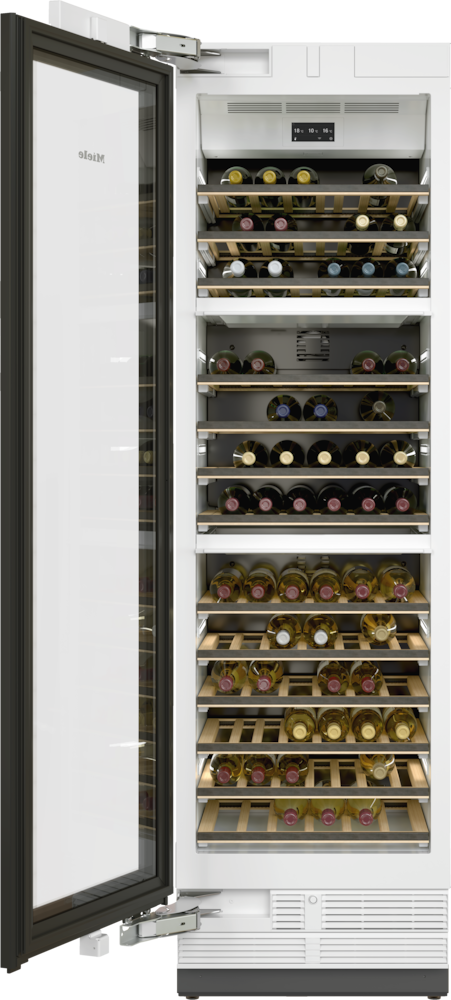

- Various wines at the perfect temperature – 3 temperature zones
- Flexible storage of large wine bottles thanks toFlexiFrameLoading...
- Light floods the interior thanks to LED elements –BrilliantLightLoading...
- Communication with appliances couldn't be easier –WiFiConn@ctLoading...
- View manufacturer details:
- You will find more information about product data and your rights under the EU Data Acthere
- Safety Information
Wine conditioning unit
Built-in appliance
Integrated appliance
Door hinge Left
Convertible door hinging
Side-by-side enabled
Loading...
Lighting BrilliantLight
Loading...
Networking with Miele@home
Loading...
DynaCool
Loading...
SoftClose
Loading...
Push2open
Loading...
MaxLoad hinge
Loading...
FlexiFrame
Loading...
Number of FlexiFrame wooden racks 13
Rack material Beech
NoteBoard

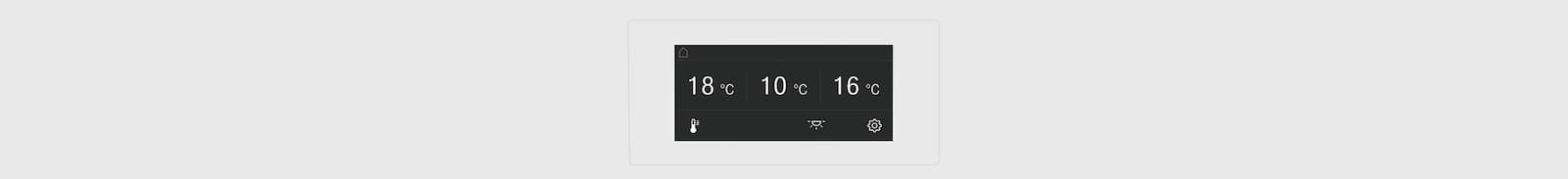

Operating concept MasterSensor
Loading...
No. of temperature zones 3
Loading...
Min. temperature setting range in °C 5
Max. temperature setting range in °C 20
Sabbath mode

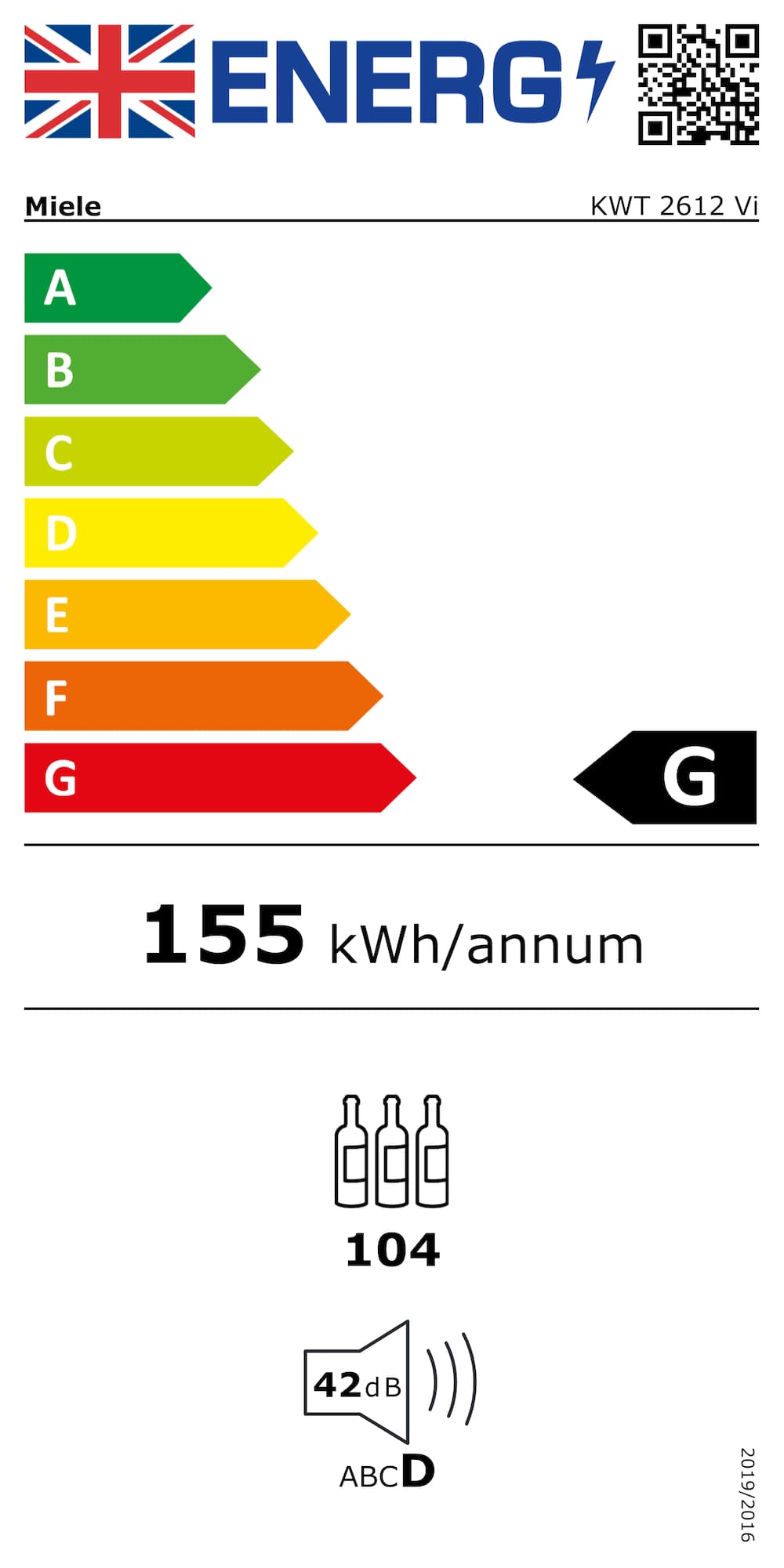

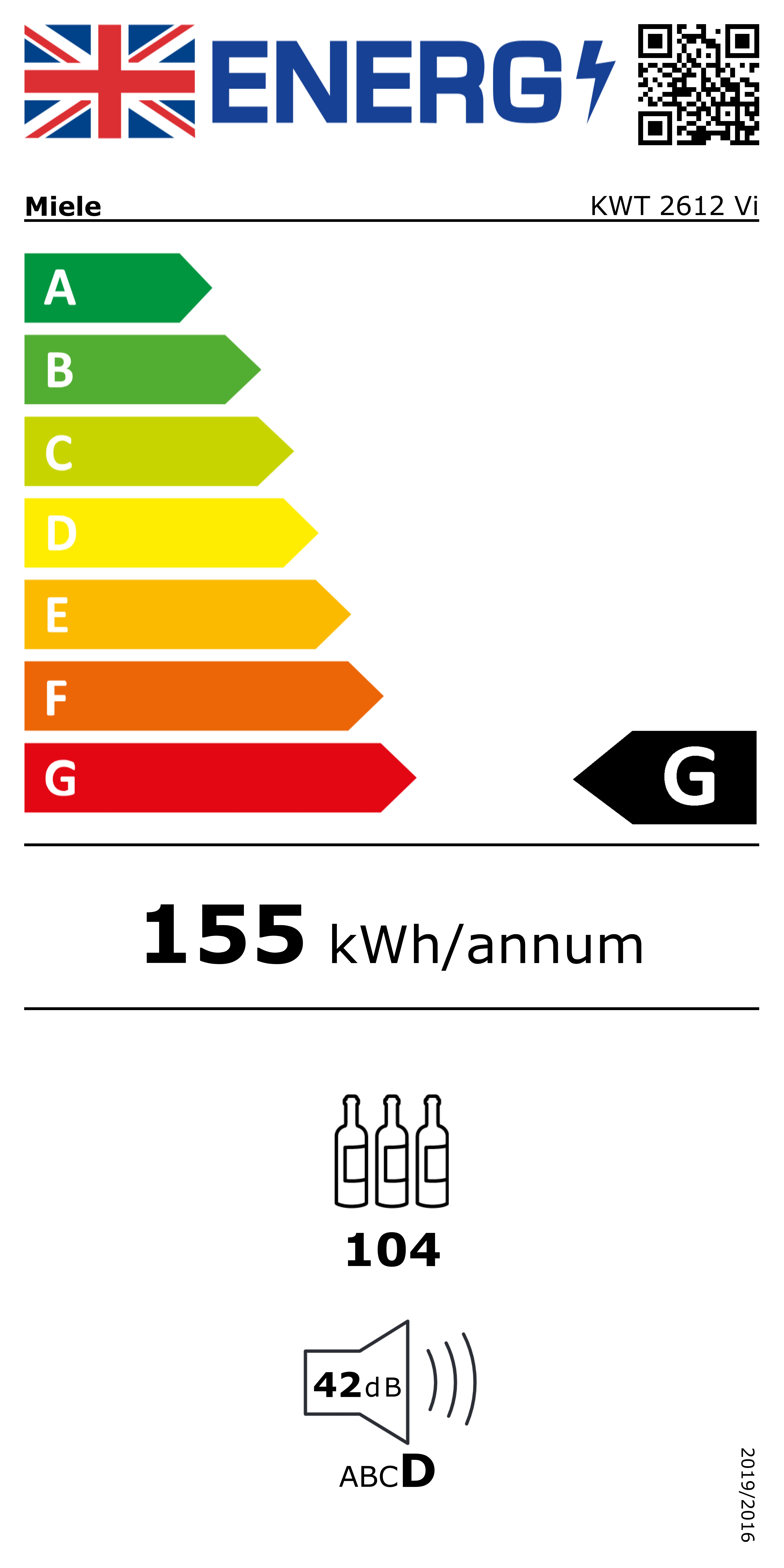

Annual energy consumption in kWh 155.13
Energy consumption in 24 h in kWh 0.425
Lock function
Acoustic door alarm
Acoustic temperature alarm
Optical door alarm
Optical temperature alarm
Niche width in mm min. 610
Niche width in mm max. 613
Niche height in mm min. 2134
Niche height in mm max. 2164
Niche depth in mm 629
Appliance dimensions (W x H x D) in mm 603 x 2127 x 610
Appliance width in mm 603
Appliance height in mm 2127
Appliance depth in mm 610
Weight in kg 151
Door hinge technology Fixed door
Max. door front weight – refrigerator, in kg 73
Climate class SN-T
Refrigerator compartment in l 370
Total usable capacity in l 441
0.75 l Bordeaux bottle capacity (no. of bottles) 104 bottles
Acoustic airborne noise emission class (A–D) D
Sound emissions in dB(A) re 1 pW 42
Current consumption (mA) 3000
Voltage in V 220-240
Fuse rating in A 13
Number of phases 1
Frequency in Hz 50-60
Length of supply lead in m 3
Available display languages via MultiLingua [
"한국어",
"english",
"português",
"deutsch",
"română",
"日本語",
"français (FR)",
"norsk",
"hrvatski",
"srpski",
"latviesu",
"bahasa malaysia",
"繁體中文",
"ελληνιкά",
"polski",
"slovenščina",
"čeština",
"yкраїнська",
"dansk",
"العربية",
"nederlands",
"français (CA)",
"eesti",
"english (CA)",
"english (GB)",
"magyar",
"italiano",
"français",
"suomi",
"español",
"svenska",
"lietuviu",
"türkçe",
"english (AU)",
"pусский",
"english (US)",
"slovenčina",
"中文"
]
EAN 4002516336747
Cleverly networked
Miele@home1,
Make your life smart: thanks to Miele@home, you can cleverly network your domestic appliances – for more options.

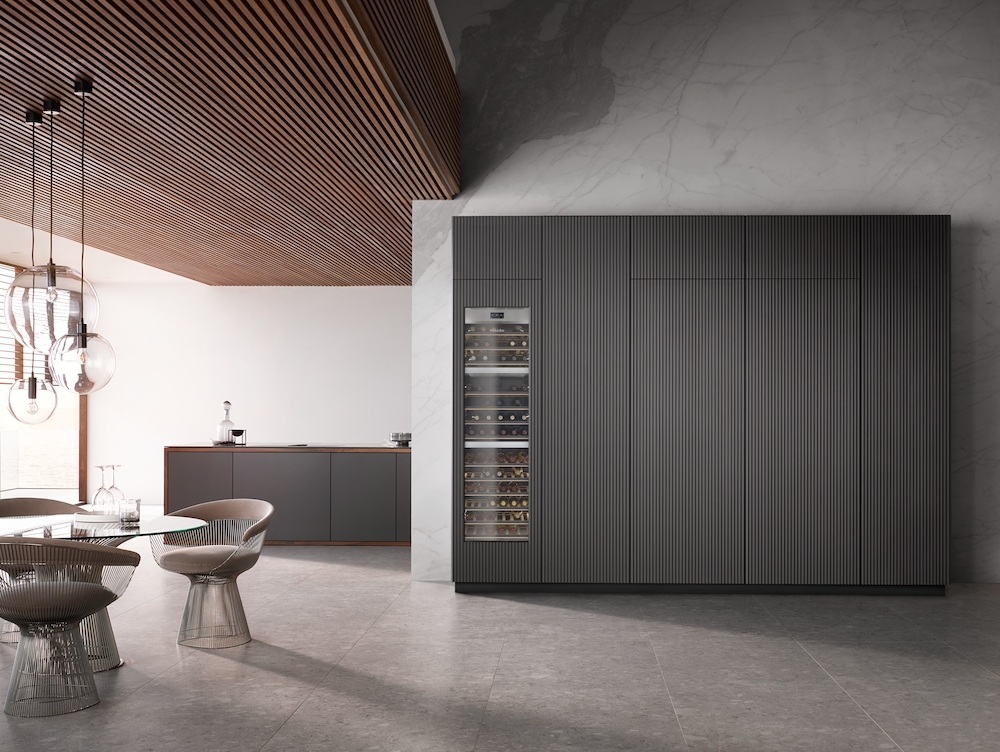

The perfect solution for a handleless design
MasterCool – Push2open
Unique: this appliance integrates perfectly into handless kitchens; the door opens when you press the front.
Miele@home1,
Make your life smart: thanks to Miele@home, you can cleverly network your domestic appliances – for more options.
MasterCool – DynaCool
Storage freedom: a fan ensures a uniform temperature throughout the entire unit.

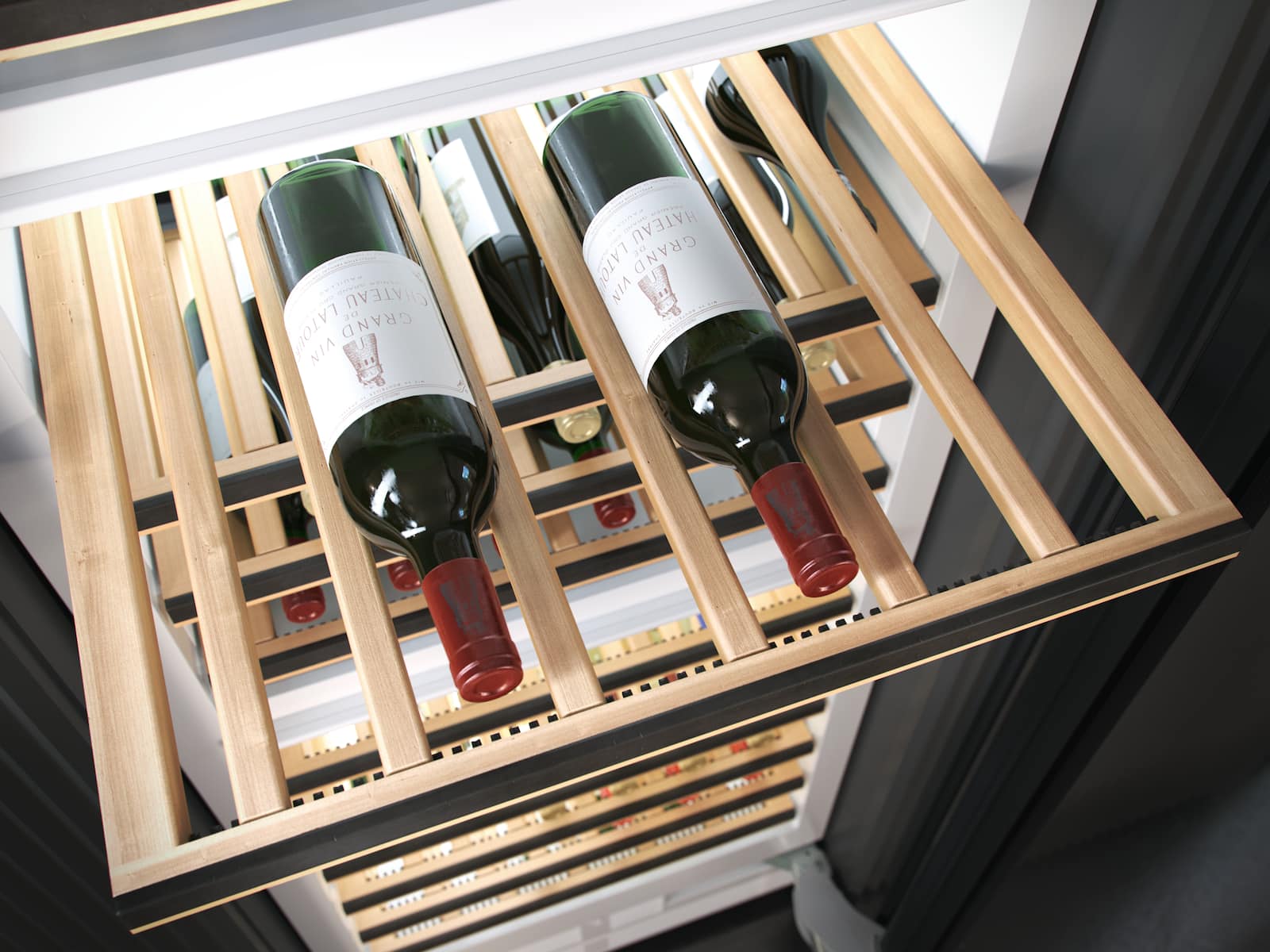

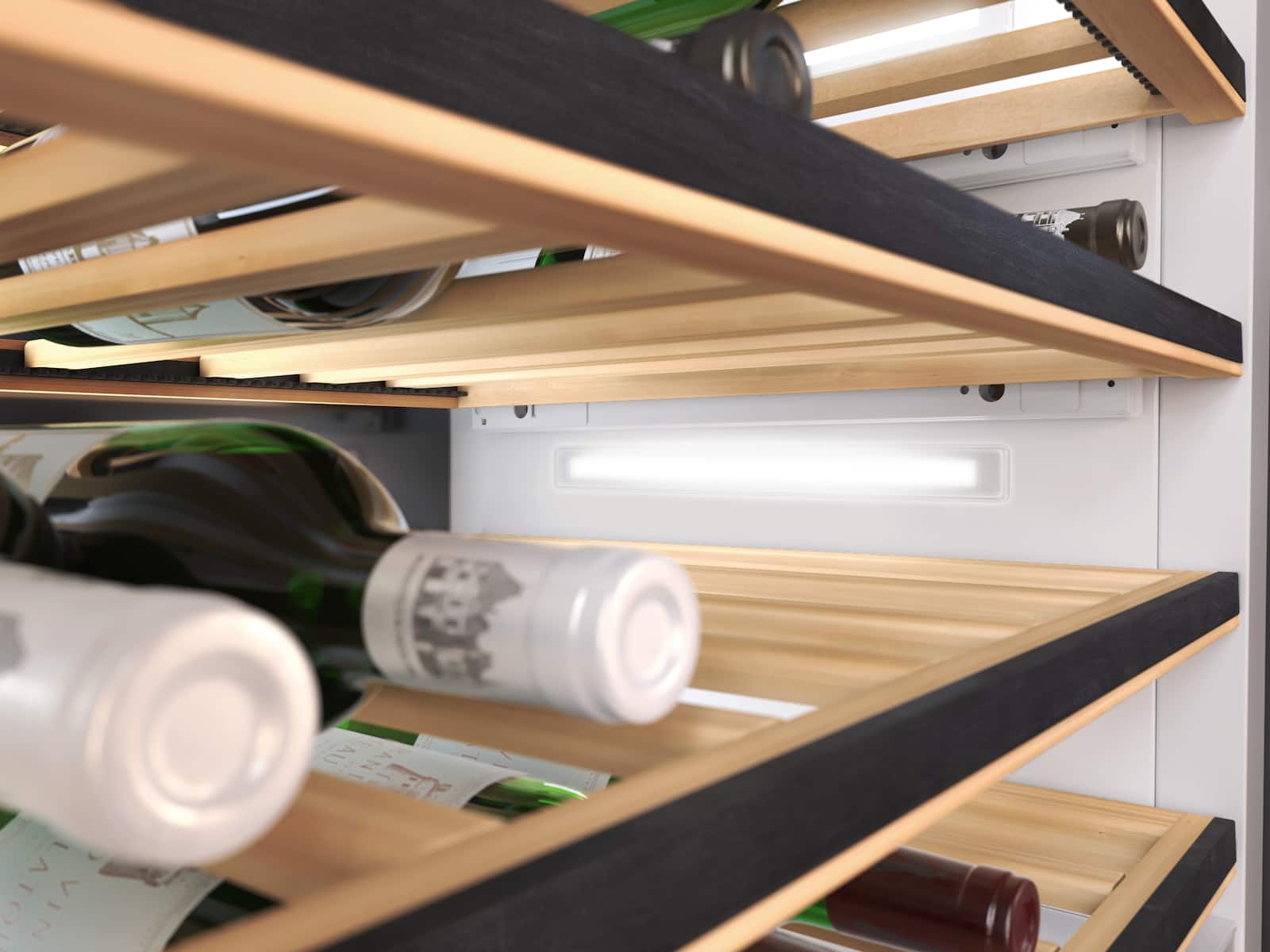

MasterCool – FlexiFrame wooden racks
Just one movement: move individual slats so that large wine bottles are easy to store.MasterCool – Push2open
Unique: this appliance integrates perfectly into handless kitchens; the door opens when you press the front.
MasterCool – BrilliantLight
Soft and attractive: high-quality LED strips offer perfect illumination and a beautiful lighting mood.

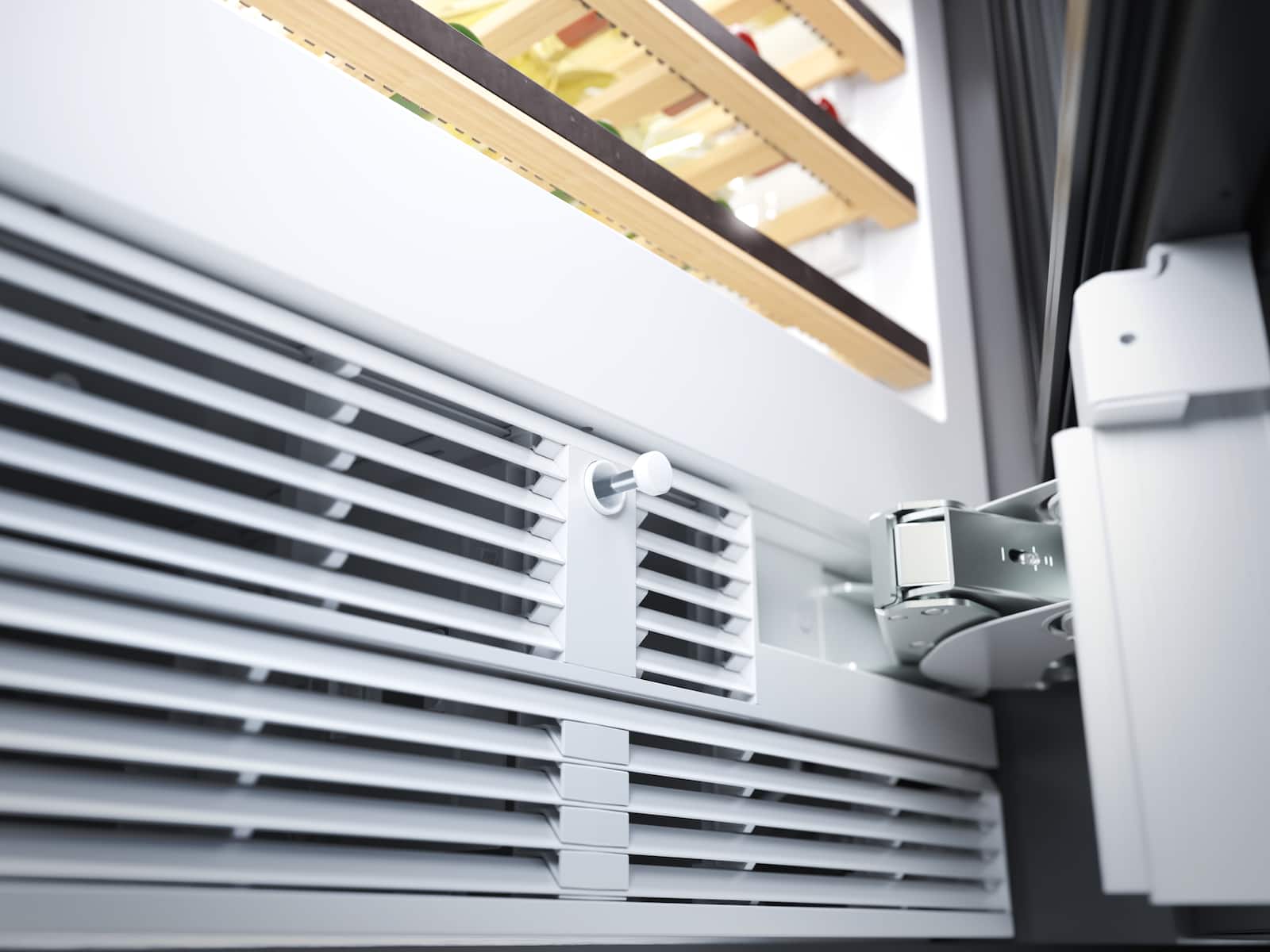

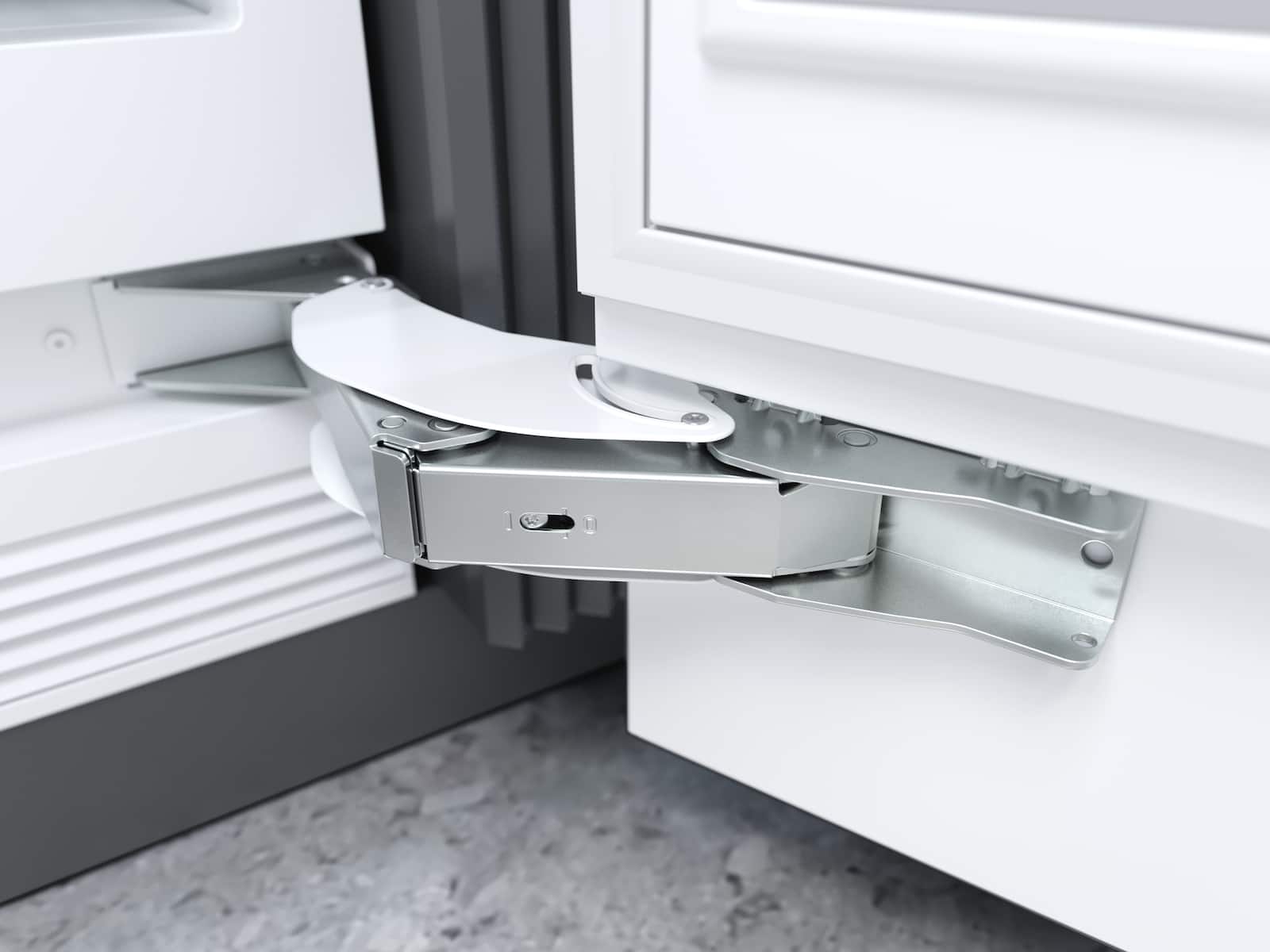

MasterCool – MaxLoad hinges
Strong and robust: the door hinges are able to withstand high loads and make it easy to open large doors.Matching products and accessories
Downloads
Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!
Descriptions
A) Appliance door , K 2611 Vi, KWT 2611 Vi, KWT 2611 SF, KWT 2671 ViS: 677 mm (26 2/3 inch); , K 2612 Vi, KWT 2612 Vi, KWT 2612 SF, KWT 2672 ViS: 677 mm (26 2/3 inch);, K 2811 Vi, K 2811 SF, KF 2811 Vi, KF 2811 SF: 829 mm (32 2/3 inch);, K 2812 Vi, K 2812 SF, KF 2812 Vi, KF 2812 SF: 829 mm (32 2/3 inch);, K 2911 Vi, K 2911 SF, KF 2911 Vi, KF 2911 SF: 982 mm (38 2/3 inch);, K 2912 Vi, K 2912 SF, KF 2912 Vi, KF 2912 SF: 982 mm (38 2/3 inch);, B) Furniture front (max. 38 mm) (1 1/2 inch), C) Door handle, D) Distance from the door to the wall (without furniture front and door handle): , K 2611 Vi, KWT 2611 Vi, KWT 2611 SF, KWT 2671 ViS: 296 mm (11 2/3 inch);, K 2612 Vi, KWT 2612 Vi, KWT 2612 SF, KWT 2672 ViS: 296 mm (11 2/3 inch);, K 2811 Vi, K 2811 SF, KF 2811 Vi, KF 2811 SF: 363 mm (14 1/3 inch);, K 2812 Vi, K 2812 SF, KF 2812 Vi, KF 2812 SF: 363 mm (14 1/3 inch);, K 2911 Vi, K 2911 SF, KF 2911 Vi, KF 2911 SF: 428 mm (16 7/8 inch);, K
A) Appliance door , K 2611 Vi, KWT 2611 Vi, KWT 2611 SF, KWT 2671 ViS: 677 mm (26 2/3 inch); , K 2612 Vi, KWT 2612 Vi, KWT 2612 SF, KWT 2672 ViS: 677 mm (26 2/3 inch);, K 2811 Vi, K 2811 SF, KF 2811 Vi, KF 2811 SF: 829 mm (32 2/3 inch);, K 2812 Vi, K 2812 SF, KF 2812 Vi, KF 2812 SF: 829 mm (32 2/3 inch);, K 2911 Vi, K 2911 SF, KF 2911 Vi, KF 2911 SF: 982 mm (38 2/3 inch);, K 2912 Vi, K 2912 SF, KF 2912 Vi, KF 2912 SF: 982 mm (38 2/3 inch);, B) Furniture front (max. 38 mm) (1 1/2 inch), C) Door handle, D) Distance from the door to the wall (without furniture front and door handle): , K 2611 Vi, KWT 2611 Vi, KWT 2611 SF, KWT 2671 ViS: 296 mm (11 2/3 inch);, K 2612 Vi, KWT 2612 Vi, KWT 2612 SF, KWT 2672 ViS: 296 mm (11 2/3 inch);, K 2811 Vi, K 2811 SF, KF 2811 Vi, KF 2811 SF: 363 mm (14 1/3 inch);, K 2812 Vi, K 2812 SF, KF 2812 Vi, KF 2812 SF: 363 mm (14 1/3 inch);, K 2911 Vi, K 2911 SF, KF 2911 Vi, KF 2911 SF: 428 mm (16 7/8 inch);, K 2912 Vi, K 2912 SF, KF 2912 Vi, KF 2912 SF: 428 mm (16 7/8 inch);, E) ONLY valid for SF versions: A + 25 mm (1 inch) POSTSCRIPT
Descriptions

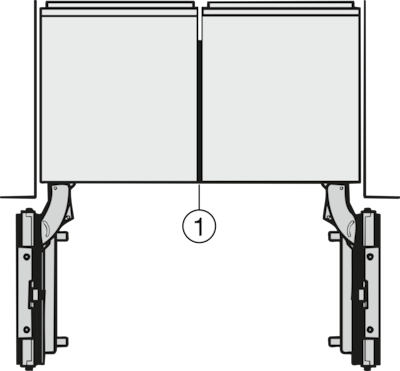

Side-by-side, MasterCool, without partition wall, with heating mat (Sketch) (with footnote)
1) Heating mat KSK 2001 (EU, AUS, CN) or KSK 2002 (US, CA, MX, BR) POSTSCRIPT
Descriptions
KWT2611Vi, KWT2671ViS, KWT2601Vi, KWT2661ViS, installation, MasterCool, installation drawings
KWT2611Vi, KWT2671ViS, KWT2601Vi, KWT2661ViS, installation, MasterCool, installation drawings POSTSCRIPT
Descriptions
Side-by-Side, MasterCool, footnote, installation drawings

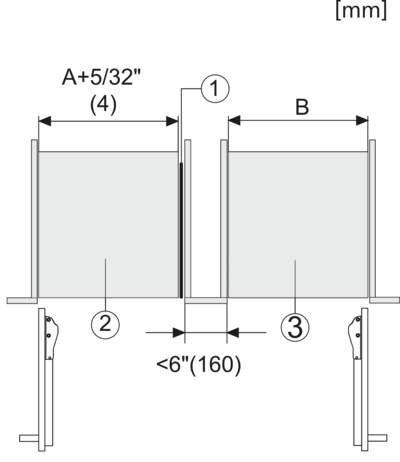

1. KSK 2001/2002, 2. Device A, 3. Device B, A = niche device A, B = niche device B POSTSCRIPT
Descriptions
KFP2455ed/cs, KFP2454ed/cs, front panel, front dimensions, MasterCool, installation drawings
KFP2455ed/cs, KFP2454ed/cs, front panel, front dimensions, MasterCool, installation drawings POSTSCRIPT
Descriptions
1. View from the front, 2. Mains connection cable, L = 3000 mm (118 inch), 3. No water/ELT connections permitted in this area
1. View from the front, 2. Mains connection cable, L = 3000 mm (118 inch), 3. No water/ELT connections permitted in this area POSTSCRIPT
Descriptions
KWT2602Vi/SF, KWT2612Vi/SF, KWT2601Vi/SF, KWT2611Vi/SF, inner space, MasterCool, installation drawings
KWT2602Vi/SF, KWT2612Vi/SF, KWT2601Vi/SF, KWT2611Vi/SF, inner space, MasterCool, installation drawings POSTSCRIPT
Descriptions
*Niche height, 1 = Side-by-side fitting kit including pre-installed side wall heating KSK 200x, 2 = Furniture plinth height 102 - 132 mm (the appliance feet can be adjusted up to 30 mm high), 3 = Total appliance niche width 1366 mm (604 mm + 762 mm)
*Niche height, 1 = Side-by-side fitting kit including pre-installed side wall heating KSK 200x, 2 = Furniture plinth height 102 - 132 mm (the appliance feet can be adjusted up to 30 mm high), 3 = Total appliance niche width 1366 mm (604 mm + 762 mm) POSTSCRIPT
