Built-under wine conditioning unit

KWTUS 7074 F Obsidian Black glass

with separate temperature zones, FlexiFrame and ActiveHumidity in a compact


Colour:Obsidian Black glass

sale price£3,049.00

Buy now. Pay with Klarna. Learn more

Installation and recycling options available at checkout. For installation of built-in appliances please call 0330 160 6630



Product details

  • Perfect drinking and storage temperatures thanks to separatetemperature zones
  • Storage of all bottle sizes/shapes thanks to
    FlexiFrame
  • Perfect regulation of humidity withActiveHumidity
  • Writing on the wooden shelves on the NoteBoard
  • #UV-resistant insulated glass# perfectly protects your wineCO_15870995
  • Manufactured with great care by
  • Safety Information

Product data sheet

Wine conditioning unit
Built-in appliance
Integrated appliance
Undercounter appliance
Door hinge right
Convertible door hinging
Side-by-side enabled
Casing colour black
Wine compartment lighting continuously dimmable LED
Networking with Miele@home
DynaCool
Concealed door opener FrontOpen
Total number of shelves 5
Number of shelves 4
Shelf material Beechwood
Number of FlexiFrame racks
3
Number of shelves for crosswise storage 1
SelfClose FlexiFrame
NoteBoard
Low-vibration storage
Operating concept FreshTouch
No. of temperature zones
2
Min. temperature setting range in °C 5
Max. temperature setting range in °C 20
Sabbath mode
Dry back wall grey
ActiveHumidity

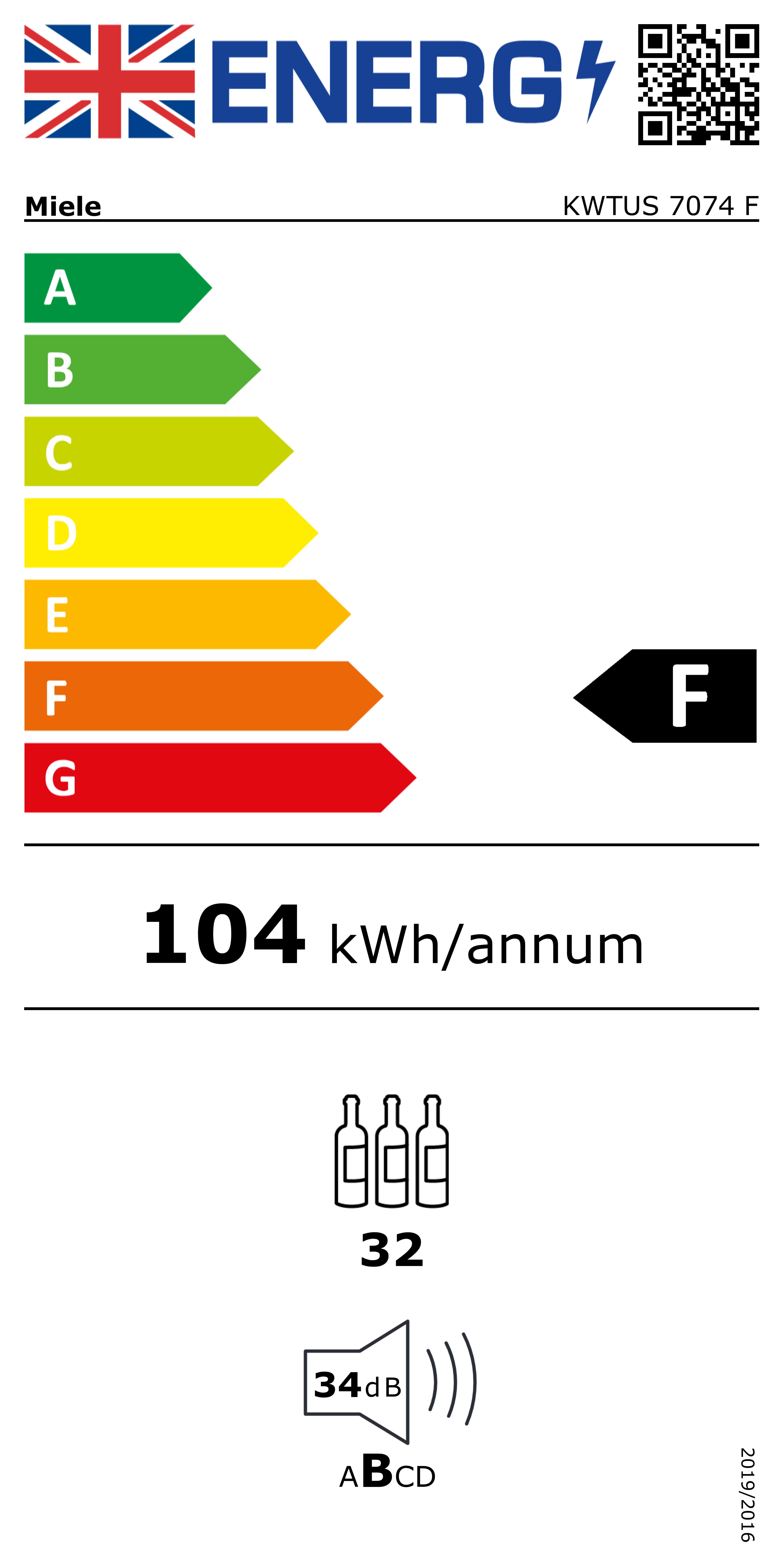

Energy efficiency class (A–G) F
Annual energy consumption in kWh 104
Energy consumption in 24 h in kWh 0.284
Lock function
Acoustic door alarm
Acoustic temperature alarm
Optical door alarm
Optical temperature alarm
Niche width in mm min. 600
Niche width in mm max. 600
Niche height in mm min. 820
Niche height in mm max. 880
Niche depth in mm 580
Appliance width in mm 597
Appliance height in mm 819
Appliance depth in mm 563
Weight in kg 44
Climate class SN-ST
Refrigerator compartment in l 92
Total usable capacity in l 92
0.75 l Bordeaux bottle capacity (no. of bottles) 32 bottles
Acoustic airborne noise emission class (A–D) B
Sound emissions in dB(A) re 1 pW 34
Current consumption (mA) 1500
Voltage in V 220-240
Fuse rating in A 13
Number of phases 1
Frequency in Hz 50-60
Length of supply lead in m 2.2
Active AirClean filter
White chalk pen
EAN 4002516861942

What's included

Active AirClean filter
White chalk pen

User convenience

Cleverly networked
Miele@home2,

Make your life smart: thanks to Miele@home, you can cleverly network your domestic appliances – for more options.


Beautiful and protects precious wines
UV protection

The best protection for valuable wine: glass door with integrated UV filter.


Customisable humidity
ActiveHumidity

Ideal conditions: customise the humidity for perfect wine storage.


Customise each rack with strips you can write on
NoteBoard

For individual labelling: every bottle rack features a removable, magnetic strip for labelling bottles on the rack.


Quality

Specially developed for storage in the wine unit
Storage with low vibration

Low vibration: The compressor is uncoupled and cushioned against vibration.


Downloads

User manual
PDF
Downloads
UK declaration of conformity
PDF
Downloads
Product sheet
PDF
Downloads
ifc
ZIP
Downloads
fbx
ZIP
Downloads
dwg
ZIP
Downloads
rfa
ZIP
Downloads
rvt
ZIP
Downloads
Energy label
PDF
Downloads
Product fiche
PDF
Downloads
Energy label
PNG
Downloads
Energy label
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/images/2000022/200002217/20000221704.png
Descriptions
KWTUS7074F, interior dimensions (installation drawings)
Installation drawings
Downloads
https://media.miele.com/images/2000021/200002182/20000218212.png
Descriptions
KWTUS7054F, KWTUS7055F, KWTUS7074F, KWTUS7096E, KWTUS7196E, Built-under, side view (*footnote) (installation drawings)
*1. View from the front, 2. Mains connection cable, L = 2200 mm, 3. No connection in this area
Downloads
https://media.miele.com/images/2000021/200002182/20000218206.png
Descriptions
KWTUS7054F, KWTUS7055F, KWTUS7074F, Built-under, side view (installation drawings)
Installation drawings
Downloads
https://media.miele.com/images/2000021/200002182/20000218201.png
Descriptions
KWTUS7054F, KWTUS7055F, KWTUS7074F, Built-under, top view (installation drawings)
Installation drawings
Downloads
https://media.miele.com/images/2000021/200002181/20000218181.png
Descriptions
KWTUS7054F, KWTUS7055F, KWTUS7074F, KWTUS7096E, Built-under, Einbauskizze, Nischenmaß (installation drawings)
Installation drawings
Downloads
