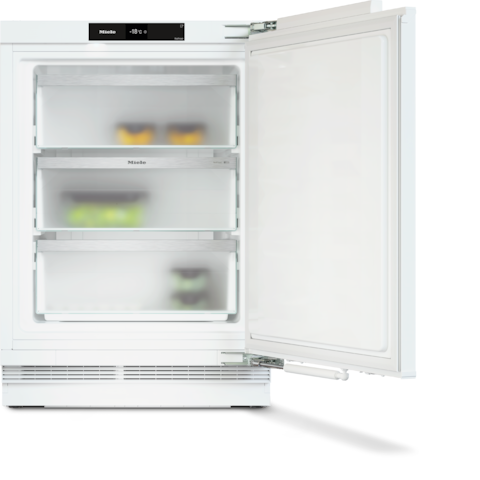

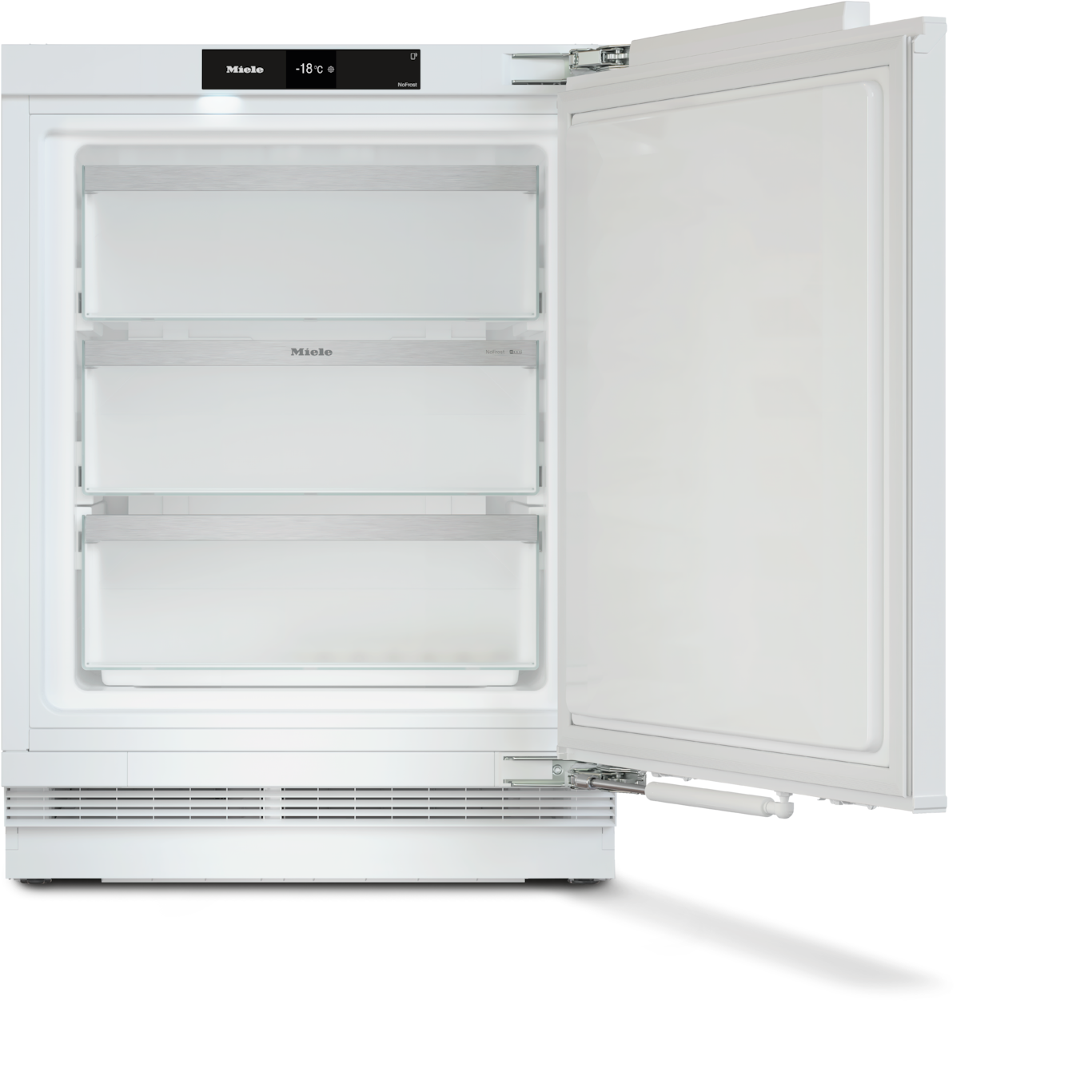

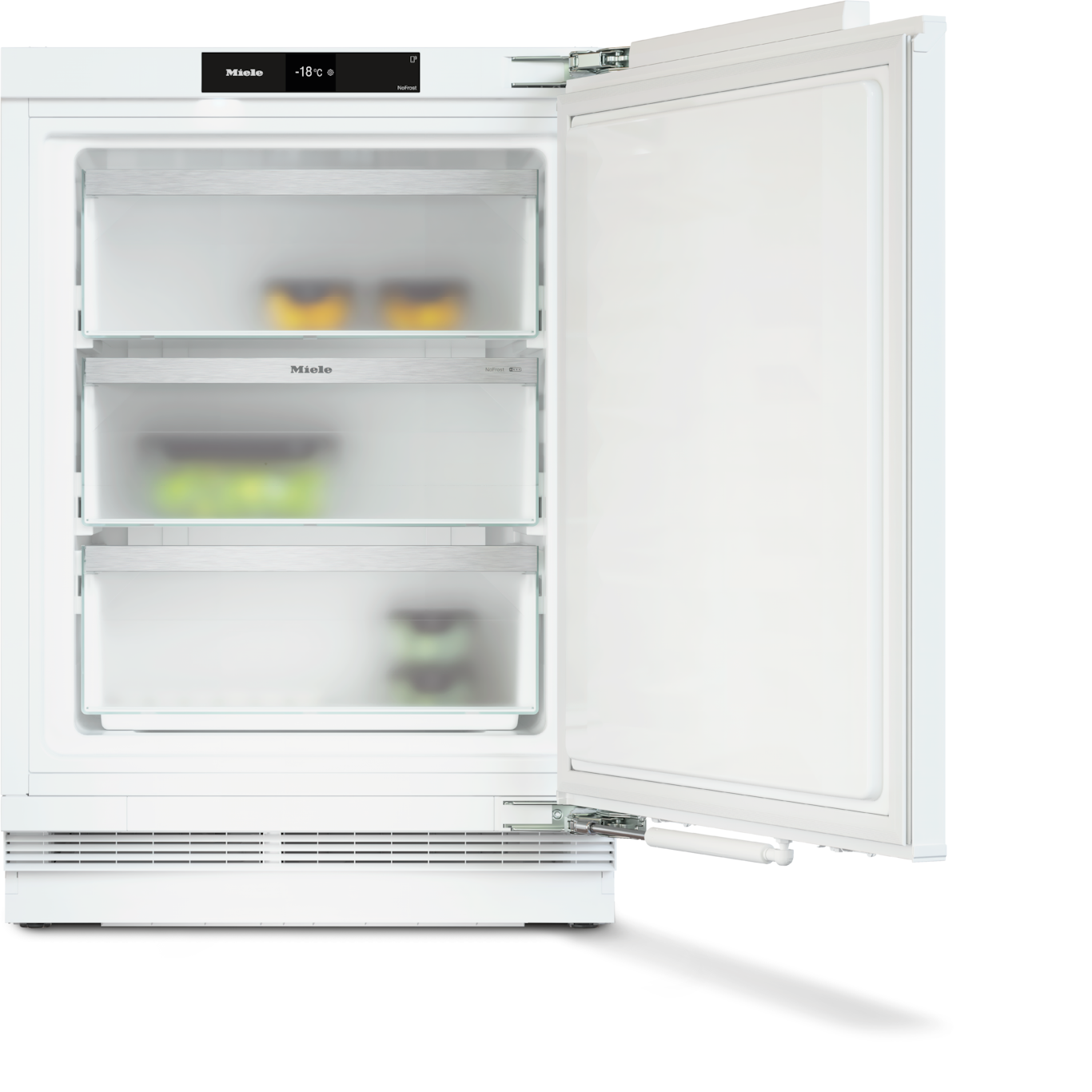

Built-under freezer, 82–88 cm niche heightGOLD

FNUS 7040 D

with NoFrost, SoftClose and SuperFreeze in a compact design. Requires kitchen fronts with a minimum height of 72 cm.
Product data sheet
sale price£1,679.00
1
Installation and recycling options available at checkout. For installation of built-in appliances please call 0330 160 6630




Product details

  • No icing up of food and no need to defrost thanks to
    NoFrost
  • Soft closing of the door with
    SoftClose
  • Food is frozen quickly and gently –
    SuperFreeze
  • Flexible increase in freezer volume –
    VarioRoom
  • View manufacturer details:
  • You will find more information about product data and your rights under the EU Data Acthere
  • Safety Information

Product data sheet

Model identifier FNUS 7040 D
Manufacturer material number 12519380
EAN number 4002516779322
Marketing class
Gold
Freezer
Integrated appliance
Undercounter appliance
Door hinge right
Convertible door hinging
Side-by-side enabled
Freezer compartment lighting LED
Networking with Miele@home
NoFrost
VarioRoom
SoftClose
Operating concept FreshTouch
SuperFreeze
No. of temperature zones 1
Sabbath mode
Holiday mode
Number of freezer drawers 3
Energy efficiency class (A–G) D
Annual energy consumption in kWh 149.70
Energy consumption in 24 h in kWh 0.411
Lock function
Acoustic door alarm
Acoustic temperature alarm
Optical door alarm
Optical temperature alarm
Power cut indication for freezer section
Niche width in mm min. 600
Niche width in mm max. 600
Niche height in mm min. 820
Niche height in mm max. 880
Niche depth in mm 560
Appliance dimensions (W x H x D) in mm 597 x 818 x 550
Appliance width in mm 597
Appliance height in mm 818
Appliance depth in mm 550
Weight in kg 36
Door hinge technology Fixed door
Max. door front weight – refrigerator, in kg 10
Climate class SN-T
4* freezer compartment in l 74
Total usable capacity in l 74
Storage time in case of fault in h 12
Freezer capacity in kg/24 h 8.20
Acoustic airborne noise emission class (A–D) B
Sound emissions in dB(A) re 1 pW 32
Current consumption (mA) 2000
Voltage in V 220-240
Fuse rating in A 10
Number of phases 1
Frequency in Hz 50-60
Length of supply lead in m 2.2
Ice cube tray
EAN 4002516779322

What's included

Ice cube tray
  • Cleverly networked

    Cleverly networked

    Miele@home2,

    Make your life smart: thanks to Miele@home, you can cleverly network your domestic appliances – for more options.

User convenience

Cleverly networked
Cleverly networked

Miele@home2,

Make your life smart: thanks to Miele@home, you can cleverly network your domestic appliances – for more options.
Appliance door closes softly
Appliance door closes softly

SoftClose

Quiet and reliable closing: the gently self-closing doors prevent items from falling out.
