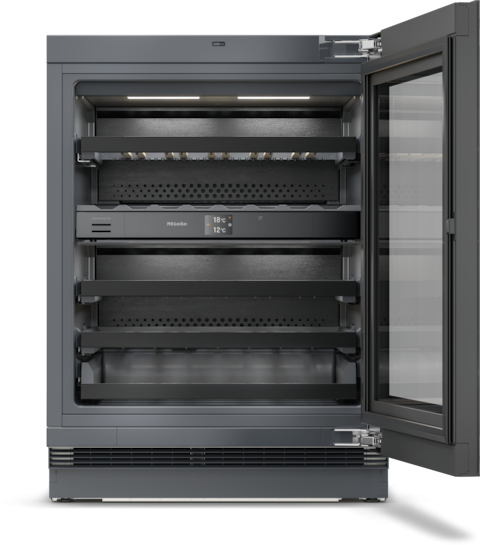

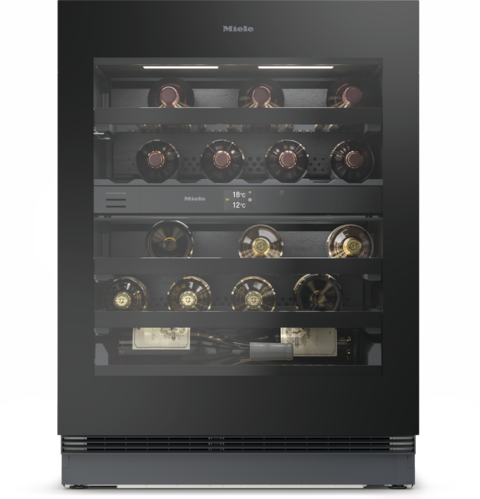

Built-under wine conditioning unit, 82–88 cm niche heightDiamond

KWTUS 7096 E Obsidian Black glass

with separate temperature zones, FlexiFrame and Push2open in a compact design.
Colour:Obsidian Black glass
Product data sheet
sale price£3,999.00
1
Installation and recycling options available at checkout. For installation of built-in appliances please call 0330 160 6630




Product details

  • Perfect drinking and storage temperatures thanks to separate
    temperature zones
  • Storage of all bottle sizes/shapes thanks to
    FlexiFrame
  • Perfect regulation of humidity with
    ActiveHumidity
  • Writing on the wooden shelves on the NoteBoard
  • UV-resistant insulated glass
    perfectly protects your wine
  • View manufacturer details:
  • Safety Information

Product data sheet

Model identifier
KWTUS 7096 E
Manufacturer material number
12519560
EAN number
4002516779438
Marketing class
Diamond
Wine conditioning unit
Built-in appliance
Integrated appliance
Undercounter appliance
Door hinge
right
Convertible door hinging
Side-by-side enabled
Casing colour
black
Tinted glass door
Front colour
Obsidian Black glass
Feature lighting
Wine compartment lighting
continuously dimmable LED
Networking with Miele@home
DynaCool
SoftClose
Active AirClean Filter
Concealed door opener
Push2open
Total number of shelves
5
Number of shelves
4
Shelf material
Beechwood
Number of FlexiFrame racks
3
Number of shelves for crosswise storage
1
SelfClose FlexiFrame
NoteBoard
Low-vibration storage
Wine Storage Guide
Cooling modes
Feature lighting
Push notifications
ActiveHumidity
RemoteUpdate
Smart Home Integration
Operating concept
FreshTouch
No. of temperature zones
2
Min. temperature setting range in °C
5
Max. temperature setting range in °C
20
Sabbath mode
Dry back wall
BlackSteel
ActiveHumidity
Energy efficiency class (A–G)
E
Annual energy consumption in kWh
82.90
Energy consumption in 24 h in kWh
0.227
Lock function
Acoustic door alarm
Acoustic temperature alarm
Optical door alarm
Optical temperature alarm
Niche width in mm min.
600
Niche width in mm max.
604
Niche height in mm min.
820
Niche height in mm max.
880
Niche depth in mm
565
Appliance dimensions (W x H x D) in mm
597 x 819 x 579
Appliance width in mm
597
Appliance height in mm
819
Appliance depth in mm
579
Weight in kg
52.2
Climate class
SN-ST
Refrigerator compartment in l
95
Wine compartment in l
95
Total usable capacity in l
95
0.75 l Bordeaux bottle capacity (no. of bottles)
32 bottles
Acoustic airborne noise emission class (A–D)
B
Sound emissions in dB(A) re 1 pW
32
Current consumption (mA)
1500
Voltage in V
220 - 240
Fuse rating in A
10
Number of phases
1
Frequency in Hz
50 - 60
Length of supply lead in m
2.2
Active AirClean filter
White chalk pen
EAN
4002516779438

What's included

Active AirClean filter
White chalk pen
Active AirClean Filter
  • *This is a separate digital offer from Miele & Cie. KG. The range of functions can vary depending on the model and the country. Acceptance of the Terms and Conditions and Privacy Policy for Miele digital products and services in the Miele app required. Miele reserves the right to change or discontinue the digital offer at any time.
  • Customise each rack with strips you can write on
    Customise each rack with strips you can write on

    NoteBoard

    For individual labelling: every bottle rack features a removable, magnetic strip for labelling bottles on the rack.

  • Cleverly networked
    Cleverly networked

    Miele@home2,

    Make your life smart: thanks to Miele@home, you can cleverly network your domestic appliances – for more options.

User convenience

Customisable humidity
Customisable humidity

ActiveHumidity

Ideal conditions: customise the humidity for perfect wine storage.
Beautiful and protects precious wines
Beautiful and protects precious wines

UV protection

The best protection for valuable wine: glass door with integrated UV filter.
Customise each rack with strips you can write on
Customise each rack with strips you can write on

NoteBoard

For individual labelling: every bottle rack features a removable, magnetic strip for labelling bottles on the rack.
Cleverly networked
Cleverly networked

Miele@home2,

Make your life smart: thanks to Miele@home, you can cleverly network your domestic appliances – for more options.

Quality

Specially developed for storage in the wine unit
Specially developed for storage in the wine unit

Storage with low vibration

Low vibration: The compressor is uncoupled and cushioned against vibration.

Smart Extras

  • Always up to date with software updates
    Always up to date with software updates

    RemoteUpdate2,

    Bringing new functions directly to your appliance.

  • Flexible storage for any occasion
    Flexible storage for any occasion

    Cooling Modes2,

    Quickly adapt your cooling settings to any situation with preset options.

  • Showcase your wine
    Showcase your wine

    Feature lighting2,

    Put your wine bottles in their best light with just a few taps in the Miele App.

  • Seamless networking throughout your home
    Seamless networking throughout your home

    Smart Home Integration2,

    Intelligent integration of Miele appliances into a Smart Home system.

  • Ideal wine storage
    Ideal wine storage

    Wine Storage Guide2,

    Discover the right conditions for your favourite wine bottles with our Wine Storage Guide.

  • Smart alerts keep you informed
    Smart alerts keep you informed

    Push notifications2,

    Maintain optimal cooling and ideal conditions with push notifications alerting you to changes.

  • The right conditions for your bottles
    The right conditions for your bottles

    ActiveHumidity2,

    Choose the perfect humidity settings for your wines using the Miele App.

Downloads

UK declaration of conformity
PDF
Download
Fitting Instructions
PDF
Download
Fitting Instructions
PDF
Download
Product sheet
PDF
Download
User manual
PDF
Download
Energy label
PDF
Download
Energy label
PNG
Download
Product fiche
PDF
Download
Energy label
PDF
Download

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/dam/ab654a52-fe35-44b0-92c3-b3bb00943349/20000218181_HighresDigitalRGB.png
Descriptions
KWTUS7054F, KWTUS7055F, KWTUS7074F, KWTUS7096E, Built-under, niche dimensions
KWTUS7054F, KWTUS7055F, KWTUS7074F, KWTUS7096E, Built-under, niche dimensions
POSTSCRIPT
Download
https://media.miele.com/dam/836e4b79-ada9-4f32-be8b-b3bb0094d257/20000218202_HighresDigitalRGB.png
Descriptions
KWTUS7196E, KWTUS7096E, Built-under, top view
KWTUS7196E, KWTUS7096E, Built-under, top view
POSTSCRIPT
Download
https://media.miele.com/dam/bbc1ee2c-6aef-4c9c-8741-b3bb0094c918/20000218207_HighresDigitalRGB.png
Descriptions
KWTUS7096E, Built-under, side view
KWTUS7096E, Built-under, side view
POSTSCRIPT
Download
https://media.miele.com/dam/eb9d2344-bf55-4699-8226-b3bb0094bae2/20000218212_HighresDigitalRGB.png
Descriptions
KWTUS7054F, KWTUS7055F, KWTUS7074F, KWTUS7096E, KWTUS7196E, Built-under, side view (*footnote)
1. View from the front, 2. Mains connection cable, L = 2200 mm, 3. No connection in this area
POSTSCRIPT
Download
https://media.miele.com/dam/0f61590e-a7aa-45e9-9327-b3b10141cce6/20000221705_HighresDigitalRGB.png
Descriptions
KWTUS7096E, interior dimensions
KWTUS7096E, interior dimensions
POSTSCRIPT
Download
https://media.miele.com/dam/90daec3b-be7b-4ccb-b0d7-b41a0111b2d1/20000225599_HighresDigitalRGB.png
Descriptions
KWTUS7096E, Built-under, side view
KWTUS7096E, Built-under, side view
POSTSCRIPT
Download
  • 1.Installation and recycling options available at checkout. For installation of built-in appliances please call 0330 160 6630
  • 2.This is a separate digital offer from Miele & Cie. KG. The range of functions can vary depending on the model and the country. Acceptance of the Terms and Conditions and Privacy Policy for Miele digital products and services in the Miele app required. Miele reserves the right to change or discontinue the digital offer at any time.

We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
