Ceiling extractor

DA 2808 Brilliant white

with energy-efficient LED lighting and light-touch switches for easy use.
Product data sheet
Colour:Brilliant white
sale price£2,829.00

Buy now. Pay with Klarna. Learn more

Installation and recycling options available at checkout. For installation of built-in appliances please call 0330 160 6630



Product details

  • Elegant design - harmonious in the kitchen environment
  • Unique user convenience –
    Con@ctivity
  • Powerful – 725 m3/h in Booster level
  • Energy-efficient and quiet - powerful
    ECO motor
  • Efficient filtration-
    10-ply stainless-steel grease filter
  • Manufactured with great care by
  • Safety Information

Product data sheet

Ceiling extractor
Type of air guide Can be retrofitted
Recirculation conversion kit (order separately) DUU 2900
Active charcoal filter (order separately) DKF 20-P
Colour Brilliant white
Edge extraction
Miele@home
Automatic function Con@ctivity
Electronic controls
Controls Light-touch switches with LEDs
Miele@mobile app
Power levels (number without Booster level) 3
Booster levels 1
Run-on time 5/15 min.
Grease filter saturation indicator
Active charcoal filter saturation indicator
Easy-to-clean canopy interior – CleanCover

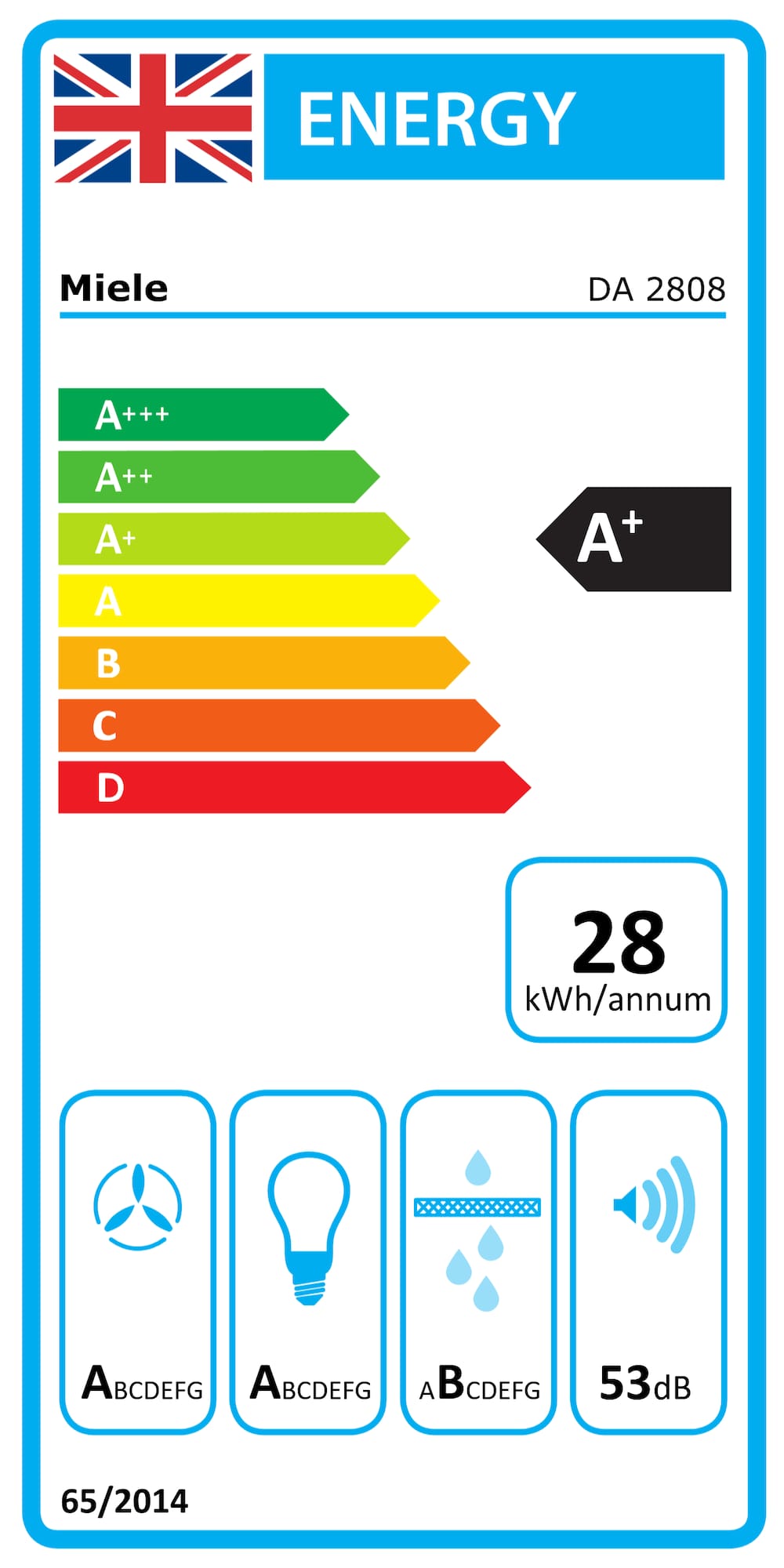

Energy efficiency class (A+++ to D) A+
Annual energy consumption in kWh/year 27.6
Fluid dynamic efficiency class A
Lighting efficiency class A
Grease filtering efficiency class B
ECO motor (DC motor)
PowerManagement system
Easy-to-clean canopy interior – CleanCover
Number of dishwasher-safe stainless steel grease filters (10-ply) 2
Number x W 4 x 3 W
Light intensity in Lx 720 lx
Colour temperature in K 3500 Kelvin
Dimmer function
Dual-action blower
DC motor
Air throughput in Level 1 (m³/h) according to EN 61591 200
Air throughput in Level 2 (m³/h) according to EN 61591 310
Air throughput in Level 3 (m³/h) according to EN 61591 450
Air throughput in Booster level 1 (m³/h) according to EN 61591 725
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 35
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 44
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3 53
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3 65
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 20
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 30
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13 38
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13 50
Air throughput in Level 1 (m³/h) according to EN 61591 115
Air throughput in Level 2 (m³/h) according to EN 61591 215
Air throughput in Level 3 (m³/h) according to EN 61591 335
Air throughput in Booster level 1 (m³/h) according to EN 61591 535
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 43
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 53
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3 62
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3 72
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 28
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 39
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13 47
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13 57
Safety shut-off
Overall hood height for extraction mode and external in mm 339
Overall height for recirculation mode cooker hoods in mm 339
Overall height for vented and external in in. (mm) 339
Overall height for extraction mode and external mode cooker hoods in mm 339
Overall height for recirculation in in. (mm) 339
Overall height for recirculation mode cooker hoods in mm 339
Canopy width in in. (mm) 880
Canopy height in in. (mm) 342
Depth of hood canopy in in. (mm) 500
Minimum height above electric hobs in mm 450
Minimum safety distance above gas hobs (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm 650
Net weight in kg 17
Length of supply lead in m 1.5
Standard plug fitted
Total rated load in kW 0.117
Voltage in V 230
Fuse rating in A 10
Frequency in Hz 50
Number of phases 1
Extraction ducting connection at top
Extraction ducting connection on side
Extraction ducting connection at top, rear, and si
Diameter of extraction ducting connection in mm 150
Combination with WiFi-enabled Miele hob required
Non-return flap
EAN 4002516003465

What's included

Non-return flap
Easy to use and effective against grease
Stainless steel grease filters (10-layer)

Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.

Convenience and safety in detail
Miele CleanCover

Protection and easy cleaning: the sealed, smooth surface prevents contact with cables and the motor.

The heart of every cooker hood
ECO motor

Powerful and economical: the DC motor saves up to 50 % electricity compared with conventional motors.

Automatic operation for intelligent fan control
Con@ctivity

Innovative convenience: the cooker hood reacts automatically to settings on the hob.

User convenience

Automatic fan run-on
Run-on function

Odour-free room air: after cooking, the fan can be set to switch off automatically after a 5 or 15 minute run-on period.

Countdown time conveniently in view
Filter indicator

Easy filter replacement: a red light lets you know when the grease and/or active charcoal filter is saturated.

Automatic operation for intelligent fan control
Con@ctivity

Innovative convenience: the cooker hood reacts automatically to settings on the hob.

Features

Easy to use and effective against grease
Stainless steel grease filters (10-layer)

Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.

Convenience and safety in detail
Miele CleanCover

Protection and easy cleaning: the sealed, smooth surface prevents contact with cables and the motor.

Decorative panels instead of metal grease filters
Edge extraction

Efficient and good-looking: with edge extraction, the grease filters are covered by a panel.

Efficiency and sustainability

The heart of every cooker hood
ECO motor

Powerful and economical: the DC motor saves up to 50 % electricity compared with conventional motors.

Safety

Always on the safe side
Safety switch-off

Sensible, even in case of operating errors: the cooker hood switches off automatically after 10 hours.
