DAR 3000
1 . All product prices include 20% VAT

DAR 3000

Drop-down frame for full integration of DA 336x/brDA 34xx.
  • Option to fully integrate DA 336x/ DA 34xx
  • The cooker hood is not visible in the wall cabinet
  • Installing DA 3496 in cabinet (W: 60 cm) not possible w. DAR 3000


Downloads, CAD & Apps
Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

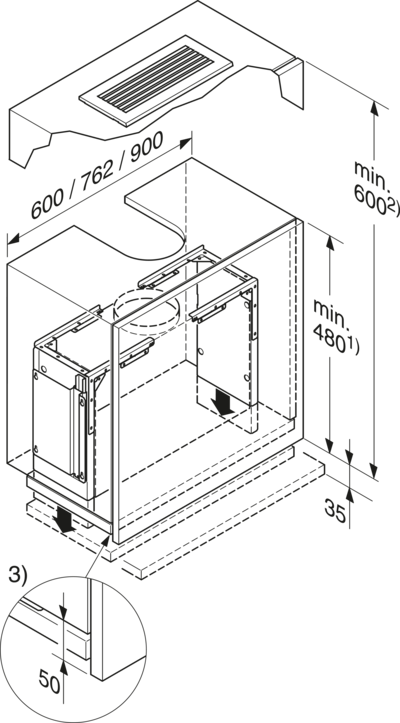

DAR 3000 (Installation drawing)

1. Vented

2. Recirculation with conversion kit DUU 151

3. Cabinet korpus has to be shorten 50 mm compared to the cabinet door.

For all other cabinets

details in DA 3360


2380 and 3490 dimensioned drawings apply.

A housing unit base is not required.

Installing a DA 3490 in a 60 cm wide housing unit is not possible with the drop-down frame.

Safe distance to cook top has to be kept by deepen cooker hoods
