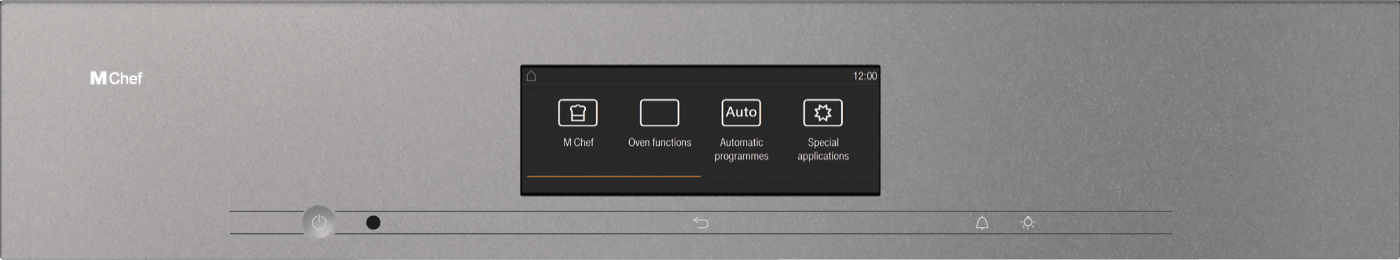

DO 7860
Dialog oven - from designer-level kitchen to star rated kitchen.
- Subject to technical changes; no liability accepted for the accuracy of the information given. See General Terms and Conditions in footer for additional details.
Your exclusive advantages
Exclusive to Miele
M Chef
The latest innovation in cooking
A new dimension in the culinary world: excellent results faster and with no compromise on quality.
Exclusive to Miele
Gourmet Pro
Customised cooking
Set all parameters to suit your needs and your dishes will be cooked exactly as you like them.
Exclusive to Miele
Gourmet Assistant
Expert advice
Advice from an expert: the Gourmet Assistant suggests appropriate settings for cooking your food.
Exclusive to Miele
M Chef menu
Unique and unbeatable
A menu at the touch of a button: different foods can be cooked together in the same step.
Exclusive to Miele
MobileControl
Control and monitor things on the go
Anytime, anywhere: transfer data on the go or monitor/stop a cooking process using your smartphone.
Exclusive to Miele
Gentle defrosting
Perfect defrosting
Even and fast: defrost food gently, with no compromise on quality and in no time at all.
Domestic appliance networking with Miele@home*
Cleverly networked
Make your life smart: thanks to Miele@home, you can cleverly network your domestic appliances – for more options.
Features depend on model – images are only examples and used for explanation purposes
Setup/function (3)
Touch-cool front
The only thing that gets hot is the food
Protection against burns: the appliance remains relatively cool – even on the outside of the door.
Clock synchronisation
Convenient time settings
Make your settings just once: the clocks on all networked Miele appliances are synchronised.
AirClean catalyser
Reduce cooking odours
Better air quality: almost all grease and odours are removed from the cooking vapours.
User convenience (4)
Exclusive to Miele
MobileControl
Control and monitor things on the go
Anytime, anywhere: transfer data on the go or monitor/stop a cooking process using your smartphone.
Programmable settings
Configure your appliance to suit you
Suits you: you can individually configure the language, buzzers and display brightness.
Timer functions
Leave time management to the Dialog oven
Always on time: programme the start time, finish time and duration of the cooking process or the minute minder.
Domestic appliance networking with Miele@home*
Cleverly networked
Make your life smart: thanks to Miele@home, you can cleverly network your domestic appliances – for more options.
Oven cabinets (1)
Exclusive to Miele
BrilliantLight
Outstanding illumination
A perfect view of your food: two LED light tubes illuminate your oven compartment evenly.
Efficiency and sustainability (1)
Residual heat utilisation
Intelligent energy management
You benefit from environmentally friendly residual heat utilisation, which ensures intelligent energy management.
Special features (9)
Exclusive to Miele
M Chef
The latest innovation in cooking
A new dimension in the culinary world: excellent results faster and with no compromise on quality.
Exclusive to Miele
Gourmet Pro
Customised cooking
Set all parameters to suit your needs and your dishes will be cooked exactly as you like them.
Exclusive to Miele
Gourmet Assistant
Expert advice
Advice from an expert: the Gourmet Assistant suggests appropriate settings for cooking your food.
Exclusive to Miele
M Chef menu
Unique and unbeatable
A menu at the touch of a button: different foods can be cooked together in the same step.
Exclusive to Miele
Gentle defrosting
Perfect defrosting
Even and fast: defrost food gently, with no compromise on quality and in no time at all.
Exclusive to Miele
M Chef with Moisture plus
Added moisture
Light dough, crispy crusts: additional moisture gives you incredible baking and roasting results.
Exclusive to Miele
Food probe
Perfectly cooked without supervision
For perfectly cooked meat or fish: the food probe will tell you when the required temperature is reached.
Exclusive to Miele
Special applications
Tailored to specific requirements
Making the extraordinary easy: special programmes such as gentle defrosting produce outstanding results.
Exclusive to Miele
Crisp function
Makes food crispy
Perfect for quiche or tarts: dry heat achieves a crispy, golden finish.
Safety (1)
Safety functions
Maximum safety in any situation
Safety guaranteed: safety lock and safety switch-off provide reliable protection.
Operating modes (22)
Gentle defrosting
Your frozen food is evenly defrosted and meets the same standards of quality as fresh ingredients.
M Chef + Fan plus
Perfectly soft and light: ideal for even quicker and more gentle baking, roasting and cooking.
M Chef + Conventional heat
For the classics: traditional baking and roasting recipes, perfectly cooked in no time at all.
M Chef + Intensive bake
Ideal for moist toppings: pizza, quiche or fresh fruit flans – crispy base, moist on top.
M Chef + Moisture plus
Unparalleled delights thanks to additional moisture: crusts browned to perfection and succulently tender fish.
M Chef + Auto roast
Cook meat quickly and succulently: the meat is seared at a high temperature, then roasted at a set temperature.
M Chef + Full grill
For intense flavour: time-saving grilling of larger quantities of sausages, kebabs, vegetables, etc.
M Chef + Fan grill
Crisp outside, succulent inside: ideal for rolled meat, poultry and many other meat dishes; reduced cooking time.
Fan plus
Perfectly soft and light: ideal for gentle baking and roasting on up to two levels.
Auto roast
Meat remains tender and succulent: meat is seared at a high temperature, then roasted at a selected temperature.
Full grill
Versatile function: perfect for grilling larger quantities of steaks, sausages, kebabs and more.
Economy grill
Designed for small quantities: ideal for small amounts of food such as steaks and sausages.
Intensive bake
Crispy bases, delicious toppings: pizza, quiche or fresh fruit flans – crispy base, moist on top.
Low temperature cooking
Tender and succulent: meat is cooked incredibly evenly at low temperatures without drying out on the outside.
Conventional heat
Multi-purpose, classic function: perfect results for all types of traditional baked and roasted dishes.
Top heat
Finishing touch for the eye and palate: perfect results when cooking gratins, baking toppings and browning food.
Bottom heat
Individual requirements: for cooking food in a bain-marie or for browning from underneath.
Fan grill
Crisp outside, succulent inside: ideal for chicken, duck, pork knuckle, rolled meat and many other meat dishes.
Moisture plus
As if fresh from the bakery: moisture ensures an incredibly light dough and a nicely browned crust.
Automatic programmes
Conjure up over 100 dishes with ease: be it bread, cakes or poultry – food is cooked fully automatically.
Special applications
Making the extraordinary easy: special programmes such as the drying programme produce outstanding results.
Sabbath programmes
The oven stays on for 72 hours: the Sabbath programme allows you to cook during periods of religious observance.
Product data sheet
Construction type and design
| Dialog cooker | • |
| Appliance Colour | Graphite grey |
| Back-lit M Chef logo | • |
Convenience features
| M Chef cooking innovation | • |
| Private Dining | • |
| Gourmet Profi | • |
| Gourmet Assistent | • |
| Pre-heating | • |
| Food probe | • |
| Keeping warm | • |
| Crisp function | • |
Operating modes
| M Chef + Fan plus | • |
| M Chef + Conventional heat | • |
| M Chef + Intensive bake | • |
| M Chef + Moisture plus | • |
| M Chef + Auto roast | • |
| M Chef + Full grill | • |
| M Chef + Fan grill | • |
| Extremely gentle defrosting | • |
| Automatic programmes | More than 100 |
| M Chef menu | • |
| Auto roast | • |
| Grill | • |
| Economy grill | • |
| Fan plus | • |
| Intensive bake | • |
| Moisture plus | • |
| Moisture plus with Fan plus | • |
| Moisture plus with Conventional heat | • |
| Moisture plus with Intensive bake | • |
| Moisture plus with Conventional heat | • |
| Low temperature cooking | • |
| Conventional heat | • |
| Top heat | • |
| Bottom heat | • |
| Fan grill | • |
| Special applications | • |
User convenience
| Networking with Miele@home | • |
| Display | M Touch |
| SoftOpen | • |
| MultiLingua | • |
| MyMiele | • |
| Help function | • |
| Timed steam bursts programmable | • |
| Polyphonic buzzers | • |
| Timer functions | • |
| Time of day display | • |
| Clock synchronisation | • |
| Date display | • |
| Minute minder | • |
| Programmable start of cooking duration | • |
| Programmable cooking duration | • |
| Actual temperature display | • |
| Target temperature display | • |
| Buzzer when desired temperature is reached | • |
| Suggested Gourmet units | • |
| Recommended temperature | • |
| Sabbath programme | • |
| Individual settings | • |
Efficiency and sustainability
| Residual heat utilisation | • |
Cleaning convenience
| Pyrolytic self-cleaning | • |
| Heated catalyser | • |
Safety
| Appliance cooling system and touch-cool front | • |
| Safety switch-off | • |
| System lock | • |
| Door lock during pyrolytic cleaning | • |
| Sensor lock | • |
Technical data
| Oven compartment volume in l | 50 |
| No. of shelf levels | 4 |
| Oven light | BrilliantLight |
| Electronic temperature regulation min. in °C | 30 |
| Electronic temperature regulation max. in °C | 300 |
| Niche width min. in mm | 560 |
| Niche width max. in mm | 568 |
| Niche height min. in mm | 590 |
| Niche height max. in mm | 595 |
| Niche depth in mm | 550 |
| Appliance width in mm | 595 |
| Appliance height in mm | 596 |
| Appliance depth in mm | 568 |
| Weight in kg | 60.80 |
| Total rated load in kW | 3,70 |
| Voltage in V | 220-240 |
| Frequency in Hz | 50 |
| Number of phases | 1 |
| Fuse rating in A | 16 |
| Mains cable | • |
| Length of supply lead in m | 2.00 |
| Replacing lamps | Kundendienst |
Available display languages
| Available display languages via MultiLingua | bahasa malaysia,dansk,deutsch,english,español,français,hrvatski,italiano,magyar,nederlands,norsk,polski,português,pусский,română,slovenčina,slovenščina,srpski,suomi,svenska,türkçe,yкраїнська,čeština,ελληνιкά,中文,日本語,繁體中文,한국어 |
What’s included
- Baking tray with PerfectClean (1)
- Universal tray with PerfectClean (1)
- Baking and roasting rack PyroFit (1)
- Descaling tablets (2)
Supplementary products and accessories
Downloads, CAD & Apps
- Product sheetPDF
- Operating instructions/Installation instructionsPDF
- Warranty conditionsPDF
- Warranty conditionsPDF
- EU declaration of conformityPDF
- dwgZIP
- ifcZIP
- fbxZIP
- rvtZIP
- rfaZIP
Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!
Descriptions
DG2840, DG7x40, DGC7x4x, DG7x6x, DGC7x6x, DGD7635, DGM7x4x, DO7, H28B/BP, H7x4xB/BM/BP, H7x6xB/BP, installation drawing
1) 400 mm
2) 360 mm
3) 47 mm
4) 24 mm
5) 32.5 mm
Descriptions
DO7860, installation drawings
22 mm - glass
23
3 mm - metal
Descriptions
DO7860, installation drawings
1) Mains Connection cable
L = 1500 mm
2) No connection in this area
3) Lüftungsausschnitt min. 150 cm²
Descriptions
DO7860, DO7860 C (CN), installation drawings, GB, AUS, CN
22 mm - glass
23.3 mm - metal
Descriptions
DO7860, DO7860 C (CN), installation drawings, GB, AUS, CN
1) Mains connection cable
L = 1500 mm
2) No connection in this area
3) Lüftungsausschnitt min. 150 cm²
Descriptions
DO7860, DO7860C (CN), installation drawings
Descriptions
DO7860, DO7860C (CN), installation drawings
Descriptions
DG7x40, DGC7x4x, DGC7x6x, DG7635, DGM7x4x, DO7, H2860B/BP, H7240BM, H7x40BM, H7x4xB/BP, H7x6xB/BP, installation drawings
1) 400 mm
2) 360 mm
3) 47 mm
4) 27 mm
5) 32.5 mm
