Built-in refrigerator

K 7797 C R

with ActiveDoor, PerfectFresh Active and FlexiLight 2.0 for maximum convenience.
Product data sheet
sale price£3,499.00

Buy now. Pay with Klarna. Learn more

Installation and recycling options available at checkout. For installation of built-in appliances please call 0330 160 6630



Product details

  • Fresh 5x longer with active humidification –
    PerfectFresh Active
  • Automatic opening and closing of the appliance door –ActiveDoor
  • Individually adjustable glass shelf lighting with
    FlexiLight 2.0
  • Uniform temperature distribution inside the appliance –
    DynaCool
  • Manufactured with great care by
  • Safety Information

Product data sheet

Refrigerator
Built-in appliance
Integrated appliance
Door hinge right
Refrigeration section lighting
FlexiLight 2.0
Fan lighting
Freshness system lighting
Networking with Miele@home
Freshness system
PerfectFresh Active
Fine adjustment inner door
ComfortClean
DynaCool
ComfortSize
SoftClose
SelfClose
Concealed door opener
ActiveDoor
Operating concept FreshTouch
Fridge compartment can be switched off No
SuperCool
No. of temperature zones 2
Sabbath mode
Party mode
Holiday mode
No. of shelves 4
of which illuminated 3
Chrome-plated metal bottle rack
No. of crisper drawers 3
Dry back wall CleanSteel
CompactCase
FlexiTray
Number of inner door racks for tinned food 3
Door rack for bottles 2
Door shelves 5

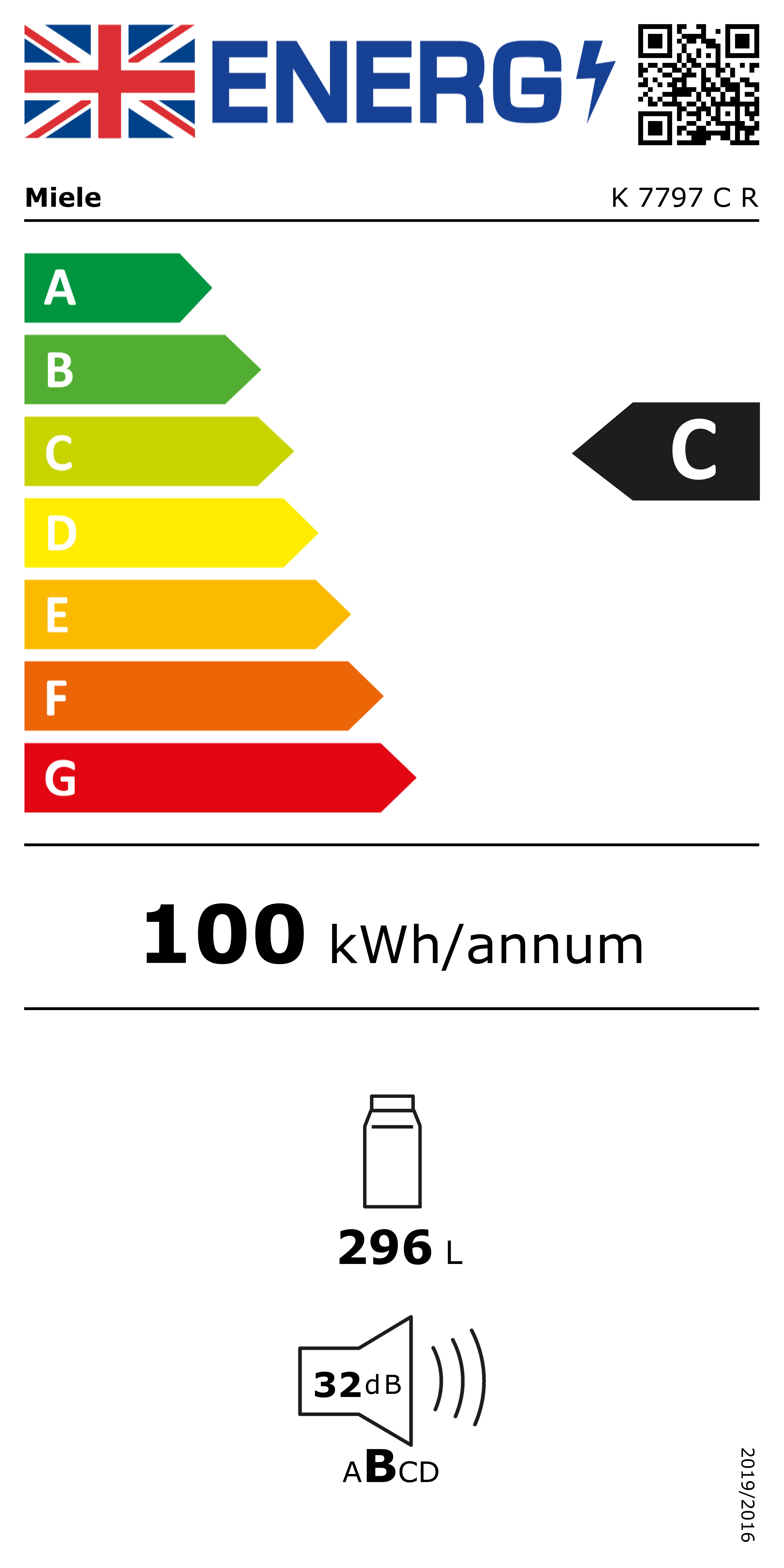

Energy efficiency class (A–G) C
Annual energy consumption in kWh 99.65
Energy consumption in 24 h in kWh 0.274
Lock function
Acoustic door alarm
Optical door alarm
Niche width in mm min. 560
Niche width in mm max. 570
Niche height in mm min. 1777
Niche height in mm max. 1793
Niche depth in mm 550
Appliance width in mm 559
Appliance height in mm 1770
Appliance depth in mm 546
Weight in kg 71.5
Door hinge technology Fixed door
Max. door front weight – refrigerator, in kg 26
Climate class SN-T
Refrigerator compartment in l 296
including PerfectFresh zone in l 98
Pantry compartment in l 296
Total usable capacity in l 296
Acoustic airborne noise emission class (A–D) B
Sound emissions in dB(A) re 1 pW 32
Current consumption (mA) 1200
Voltage in V 220-240
Fuse rating in A 10
Number of phases 1
Frequency in Hz 50-60
Length of supply lead in m 2.2
Replacing lamps Service
Egg tray
PerfectFresh organisation box
EAN 4002516748045

What's included

Egg tray
PerfectFresh organisation box
A new approach from Miele to keep your food fresh!
PerfectFresh Active

An ideal climate: active humidification and the perfect temperature keep food fresh up to 5 times longer.

A perfect view of your food
FlexiLight 2.0

Entirely glare-free: the illuminated shelves can be custom-positioned in the refrigerator for maximum flexibility.

Cleverly networked
Miele@home2,

Make your life smart: thanks to Miele@home, you can cleverly network your domestic appliances – for more options.

Ultimate user convenience
ActiveDoor

Flexible and convenient: open and close your appliance door automatically via voice commands or by knocking.

Overview of food; easy to remove items
FlexiTray pivotable glass shelf

Maximum convenience: the pivotable glass shelf allows items to be removed easily, even from a full refrigerator.

Maximum flexibility
Fine adjustment on inner door

Adaptable: the position of the inner door shelves can be adjusted to make the best use of space.

User convenience

A perfect view of your food
FlexiLight 2.0

Entirely glare-free: the illuminated shelves can be custom-positioned in the refrigerator for maximum flexibility.

Cleverly networked
Miele@home2,

Make your life smart: thanks to Miele@home, you can cleverly network your domestic appliances – for more options.

Ultimate user convenience
ActiveDoor

Flexible and convenient: open and close your appliance door automatically via voice commands or by knocking.

Overview of food; easy to remove items
FlexiTray pivotable glass shelf

Maximum convenience: the pivotable glass shelf allows items to be removed easily, even from a full refrigerator.

Maximum flexibility
Fine adjustment on inner door

Adaptable: the position of the inner door shelves can be adjusted to make the best use of space.

Ideal storage conditions for food and wine
DynaCool

Even temperature distribution: a fan ensures excellent circulation and distribution of the cold air.

Dishwasher-safe door shelves
ComfortClean

Easy to clean: the high-quality door shelves can be cleaned easily in the dishwasher.

Appliance door closes softly
SoftClose

Quiet and reliable closing: the gently self-closing doors prevent items from falling out.

Convenient food storage
ComfortSize

Practical storage: the extensive depth makes it possible to place a whole baking tray on the bottom drawer level.

Special features

A new approach from Miele to keep your food fresh!
PerfectFresh Active

An ideal climate: active humidification and the perfect temperature keep food fresh up to 5 times longer.

Matching products and accessories

Built-in freezer
FNS 7794 D L

Built-in freezer

with ActiveDoor, IceMaker, NoFrost and 8 freezer drawers for max. convenience.

£3,499.00
Odour-absorbing Active AirClean filter
KKF-RF

Odour-absorbing Active AirClean filter

prevents unpleasant odours in the refrigerator.

£45.29
Starter set for Active AirClean filter.
KKF-FS

Starter set for Active AirClean filter.

prevents unpleasant odours in the refrigerator.

£54.99
PerfectFresh organisation box
KSB 70

PerfectFresh organisation box

for orderly storage of food in the refrigerator.

£21.99
Gourmet Box set (3 pieces)
GaLa-Set

Gourmet Box set (3 pieces)

for cooking, storing and cleverly organising food.

£42.99
Gourmet Box S
GaLa-S

Gourmet Box S

for cooking, storing and cleverly organising food.

£10.99
Bottle rack
KFR 7000

Bottle rack

for safe, space-saving storage of bottles in the refrigerator.

£66.29
Gourmet Box L
GaLa-L

Gourmet Box L

for cooking, storing and cleverly organising food.

£20.99
Gourmet Box M
GaLa-M

Gourmet Box M

for cooking, storing and cleverly organising food.

£16.99
Multi-purpose microfibre cloth, qty 1
GP MI X 0011 W

Multi-purpose microfibre cloth, qty 1

For best cleaning results and safe use.

£8.49
MicroCloth kit, 3 pieces
GP MI S 0031 W

MicroCloth kit, 3 pieces

For best cleaning results and safe use.

£16.99

Downloads

UK declaration of conformity
PDF
Downloads
Fitting Instructions
PDF
Downloads
User manual
PDF
Downloads
Product sheet
PDF
Downloads
rvt
ZIP
Downloads
ifc
ZIP
Downloads
rfa
ZIP
Downloads
dwg
ZIP
Downloads
fbx
ZIP
Downloads
Product fiche
PDF
Downloads
Energy label
PNG
Downloads
Energy label
PDF
Downloads
Energy label
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/images/2000020/200002022/20000202271.png
Descriptions
K7797C L, K7797C R, K7797C R, K7798C L, K7798C R, installation (footnote*) (installation drawings)
*1. View from the front, 2. Mains connection cable, L = 2100 mm, 3. Ventilation cut-out min. 200 cm², 4. Ventilation, 5. No connections permitted in this area
Downloads
https://media.miele.com/images/2000020/200002022/20000202270.png
Descriptions
FNS7794D L, FNS7794D R, K7797C L, K7797C R, K7798C L, side view (installation drawings)
Installation drawings
Downloads
https://media.miele.com/images/2000020/200002022/20000202269.png
Descriptions
FNS7794D L, FNS7794D R, K7797C L, K7797C R, K7798C L, built-in (installation (*footnote) (installation drawings)
*The declared energy consumption was calculated in a 560 mm deep niche. The appliance is fully functional in a 550 mm niche but the energy consumption will be slightly higher.
Downloads
  • 1.Installation and recycling options available at checkout. For installation of built-in appliances please call 0330 160 6630
  • 2.This is a separate digital offer from Miele & Cie. KG. The range of functions can vary depending on the model and the country. Acceptance of the General Terms and Conditions and Privacy Policy for Miele digital products and services in the Miele app required. Miele reserves the right to change or discontinue the digital offers at any time.

We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
