Built-in wine conditioning unit, 88 cm niche heightDiamond

KWT 6422 iG-1 Obsidian Black glass

(1 review) with FlexiFrame and Push2open for the most demanding wine connoisseurs.
Colour:Obsidian Black glass
Product data sheet
sale price£3,729.00
1
Installation and recycling options available at checkout. For installation of built-in appliances please call 0330 160 6630




Product details

  • Flexible storage of larger wine bottles thanks to FlexiFrame
  • Perfect design for handleless kitchens -
    Push2open
  • Simultaneous wine storage in separate
    temperature zones
  • Odourless refrigeration section thanks to
    Active AirClean filters
  • Present your wine in the perfect light -
    LED lighting
  • View manufacturer details:
  • Safety Information

Product data sheet

Model identifier
KWT 6422 iG-1
Manufacturer material number
12364280
EAN number
4002516712312
Marketing class
Diamond
Wine conditioning unit
Built-in appliance
Integrated appliance
Door hinge
right
Convertible door hinging
Side-by-side enabled
Tinted glass door
Front colour
Obsidian Black glass
Feature lighting
Wine compartment lighting
LED illumination
Networking with Miele@home
Accessories required
XKS 3130 W
DynaCool
SoftClose
Active AirClean Filter
Concealed door opener
Push2open
Silence system
Total number of shelves
4
Number of shelves
2
Shelf material
Beechwood
Number of FlexiFrame racks
2
NoteBoard
3 D bottle presenter
Low-vibration storage
Wine Storage Guide
Cooling modes
Feature lighting
Push notifications
RemoteUpdate
Smart Home Integration
Operating concept
TouchControl
No. of temperature zones
2
Min. temperature setting range in °C
5

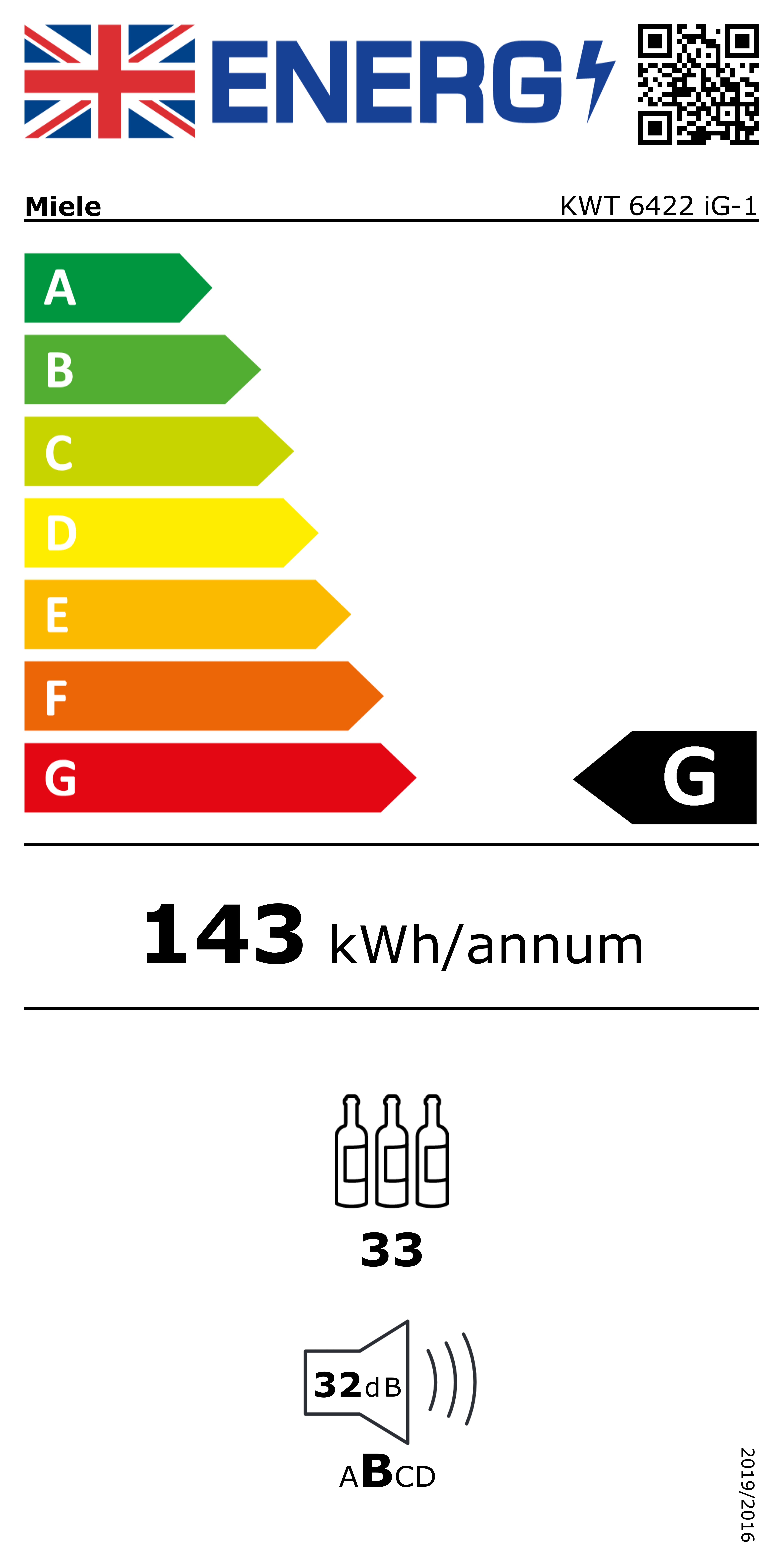

Energy efficiency class (A–G)
G
Annual energy consumption in kWh
143
Energy consumption in 24 h in kWh
0.391
Lock function
Acoustic door alarm
Acoustic temperature alarm
Optical door alarm
Optical temperature alarm
Niche width in mm min.
560
Niche width in mm max.
570
Niche height in mm min.
874
Niche height in mm max.
890
Niche depth in mm
550
Appliance dimensions (W x H x D) in mm
595 x 906 x 572
Appliance width in mm
595
Appliance height in mm
906
Appliance depth in mm
572
Weight in kg
57.1
Climate class
SN
Wine compartment in l
104
Total usable capacity in l
104
0.75 l Bordeaux bottle capacity (no. of bottles)
33 bottles
Acoustic airborne noise emission class (A–D)
B
Sound emissions in dB(A) re 1 pW
32
Current consumption (mA)
1500
Voltage in V
220 - 240
Fuse rating in A
10
Number of phases
1
Frequency in Hz
50 - 60
Length of supply lead in m
2
Active AirClean filter
EAN
4002516712312

What's included

Active AirClean filter
Active AirClean Filter
  • *This is a separate digital offer from Miele & Cie. KG. The range of functions can vary depending on the model and the country. Acceptance of the Terms and Conditions and Privacy Policy for Miele digital products and services in the Miele app required. Miele reserves the right to change or discontinue the digital offer at any time.
  • Customise each rack with strips you can write on
    Customise each rack with strips you can write on

    NoteBoard

    For individual labelling: every bottle rack features a removable, magnetic strip for labelling bottles on the rack.

  • Several temperature zones in one appliance
    Several temperature zones in one appliance

    Temperature zones

    Separate controls: up to three different types of wine can be stored at the same time at different temperatures.

  • Holds bottles of all sizes securely
    Holds bottles of all sizes securely

    FlexiFrame

    Just one movement: move individual slats so that large wine bottles are easy to store.

  • Cleverly networked
    Cleverly networked

    Miele@home2,

    Make your life smart: thanks to Miele@home, you can cleverly network your domestic appliances – for more options.

User convenience

Beautiful and protects precious wines
Beautiful and protects precious wines

UV protection

The best protection for valuable wine: glass door with integrated UV filter.
Customise each rack with strips you can write on
Customise each rack with strips you can write on

NoteBoard

For individual labelling: every bottle rack features a removable, magnetic strip for labelling bottles on the rack.
Appliance door closes softly
Appliance door closes softly

SoftClose

Quiet and safe: the doors close quietly, gently and as if of their own accord for storage without any vibrations.
Perfect storage conditions for food and wine
Perfect storage conditions for food and wine

DynaCool (dynamic cooling)

Uniform distribution of temperature: a ventilator ensures excellent circulation and distribution of cold air.
Holds bottles of all sizes securely
Holds bottles of all sizes securely

FlexiFrame

Just one movement: move individual slats so that large wine bottles are easy to store.
Cleverly networked
Cleverly networked

Miele@home2,

Make your life smart: thanks to Miele@home, you can cleverly network your domestic appliances – for more options.
Optimum sound insulation
Optimum sound insulation

Silence system

Barely audible: our Silence system with optimised cooling system and sound insulation.

Quality

Specially developed for storage in the wine unit
Specially developed for storage in the wine unit

Storage with low vibration

Low vibration: The compressor is uncoupled and cushioned against vibration.

Convenience features

Several temperature zones in one appliance
Several temperature zones in one appliance

Temperature zones

Separate controls: up to three different types of wine can be stored at the same time at different temperatures.

Smart Extras

  • Always up to date with software updates
    Always up to date with software updates

    RemoteUpdate2,

    Bringing new functions directly to your appliance.

  • Flexible storage for any occasion
    Flexible storage for any occasion

    Cooling Modes2,

    Quickly adapt your cooling settings to any situation with preset options.

  • Showcase your wine
    Showcase your wine

    Feature lighting2,

    Put your wine bottles in their best light with just a few taps in the Miele App.

  • Seamless networking throughout your home
    Seamless networking throughout your home

    Smart Home Integration2,

    Intelligent integration of Miele appliances into a Smart Home system.

  • Ideal wine storage
    Ideal wine storage

    Wine Storage Guide2,

    Discover the right conditions for your favourite wine bottles with our Wine Storage Guide.

  • Smart alerts keep you informed
    Smart alerts keep you informed

    Push notifications2,

    Maintain optimal cooling and ideal conditions with push notifications alerting you to changes.

What our customers say

(1 review)
5 stars
1 review
4 stars
0 reviews
3 stars
0 reviews
2 stars
0 reviews
1 star
0 reviews

Most recent local reviews

Downloads

Operating instructions/Installation instructions
PDF
Download
Product sheet
PDF
Download
dwg
ZIP
Download
fbx
ZIP
Download
ifc
ZIP
Download
rfa
ZIP
Download
rvt
ZIP
Download
Energy label
PDF
Download
Energy label
PNG
Download
Product fiche
PDF
Download
Energy label
PDF
Download

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/dam/bb05b9d9-b363-4af7-bea1-b3bd00756aed/20000136543_HighresDigitalRGB.png
Descriptions
KWT6422iG, KWT6422iG-1, Installation draw
KWT6422iG, KWT6422iG-1, Installation draw
POSTSCRIPT
Download
https://media.miele.com/dam/2eb28a2a-3a03-4404-9797-b3bd00756638/20000136545_HighresDigitalRGB.png
Descriptions
KWT6422iG, KWT6422iG-1, Installation draw, side view
KWT6422iG, KWT6422iG-1, Installation draw, side view
POSTSCRIPT
Download
https://media.miele.com/dam/4eaf9335-8628-499e-a0d5-b3bd00755cbf/20000136546_HighresDigitalRGB.png
Descriptions
KWT6422iG, KWT6422iG-1, Installation draw
KWT6422iG, KWT6422iG-1, Installation draw
POSTSCRIPT
Download
https://media.miele.com/dam/348ac2c9-5878-4c19-80aa-b3bd007581d0/20000136557_HighresDigitalRGB.png
Descriptions
KWT6422iG, KWT6422iG-1, Installation draw, side view
KWT6422iG, KWT6422iG-1, Installation draw, side view
POSTSCRIPT
Download
https://media.miele.com/dam/95d335d4-8418-45ed-b102-b3bd009f1dc4/20000141286_HighresDigitalRGB.png
Descriptions
ENB1060, combination 2x45er + KWT6422iG, Installation draw
ENB1060, combination 2x45er + KWT6422iG, Installation draw
POSTSCRIPT
Download
https://media.miele.com/dam/d262c2c6-8b5b-44f6-9e1e-b3c2017f905c/20000155343_HighresDigitalRGB.png
Descriptions
KWT6422iG, KWT6422iG-1, Interior dimensions (Installation drawings)
KWT6422iG, KWT6422iG-1, Interior dimensions (Installation drawings)
POSTSCRIPT
Download
https://media.miele.com/dam/e64a8353-41e1-4194-9771-b3c300a2a3e3/20000176001_HighresDigitalRGB.png
Descriptions
ENB1060, combination 60er & 32er ESW + 2x45er + KWT6422iG, Installation draw
ENB1060, combination 60er & 32er ESW + 2x45er + KWT6422iG, Installation draw
POSTSCRIPT
Download
https://media.miele.com/dam/a3813d05-8750-4e8e-a301-b3c300a29df4/20000176002_HighresDigitalRGB.png
Descriptions
ENB1060, combination 45er & 60er + KWT 6422 iG & 14er EVS, Installation draw
ENB1060, combination 45er & 60er + KWT 6422 iG & 14er EVS, Installation draw
POSTSCRIPT
Download
  • 1.Installation and recycling options available at checkout. For installation of built-in appliances please call 0330 160 6630
  • 2.This is a separate digital offer from Miele & Cie. KG. The range of functions can vary depending on the model and the country. Acceptance of the Terms and Conditions and Privacy Policy for Miele digital products and services in the Miele app required. Miele reserves the right to change or discontinue the digital offer at any time.

We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
