Oven seamless design with food probe and LED lighting.
What’s included
- Baking tray with PerfectClean (1)
- Universal tray with PerfectClean (1)
- Baking and roasting rack PyroFit (1)
- PyroFit FlexiClip runners (1)
- Removable PyroFit side runners (pair) (1)
- Descaling tablets (2)
- Anti-splash insert with PerfectClean (1)
H 7464 BP
Oven seamless design with food probe and LED lighting.
- Subject to technical changes; no liability accepted for the accuracy of the information given. See General Terms and Conditions in footer for additional details.
Oven seamless design with food probe and LED lighting.
What’s included
- Baking tray with PerfectClean (1)
- Universal tray with PerfectClean (1)
- Baking and roasting rack PyroFit (1)
- PyroFit FlexiClip runners (1)
- Removable PyroFit side runners (pair) (1)
- Descaling tablets (2)
- Anti-splash insert with PerfectClean (1)
Your exclusive advantages
Exclusive to Miele
Moisture plus
Optimum results with additional moisture
Better roasting and baking results: moisture ensures an incredibly light dough and nicely browned crusts.
Exclusive to Miele
TasteControl
Only carries on cooking if you want it to.
The automatic rapid cool-down prevents food from continuing to cook and can, if desired, keep the food warm.
Domestic appliance networking with Miele@home*
Cleverly networked
Make your life smart: thanks to Miele@home, you can cleverly network your domestic appliances – for more options.
Automatic programmes
Stress-free cooking with success guaranteed
Cooking delicious dishes with ease: cakes, fish or meat – fully automatic cooking.
Features depend on model – images are only examples and used for explanation purposes
User convenience (5)
Domestic appliance networking with Miele@home*
Cleverly networked
Make your life smart: thanks to Miele@home, you can cleverly network your domestic appliances – for more options.
Exclusive to Miele
FlexiClip runners
Optimised access to your food
Ergonomic and convenient: with fully telescopic runners, you can reach the food inside the oven easily and safely.
SoftOpen and SoftClose
Gentle door movement
Refined and elegant: the door opens and closes with a gentle movement from beginning to end.
Timer functions
Leave time management to your oven
Always on time: programme the start time, finish time and duration of the cooking process or the minute minder.
MultiLingua
Easy to understand
The controls can be shown in numerous languages so users can operate the appliance in a language they understand.
Maintenance (3)
Pyrolytic cleaning and PyroFit accessories
Effortless cleaning
The oven compartment and (depending on the model) some accessories are automatically cleaned at high temperatures.
CleanSteel
Finish for flawless stainless steel surfaces
No fingerprints on stainless steel: the surface is protected and no special cleaning agents are required.
AirClean catalyser
Reduce cooking odours
Better air quality: almost all grease and odours are removed from the cooking vapours.
Efficiency and sustainability (1)
Energy efficiency
Exceptional energy efficiency
Good for the environment and your wallet: almost all of our appliances correspond to energy efficiency class A+.
Special features (4)
Exclusive to Miele
Moisture plus
Optimum results with additional moisture
Better roasting and baking results: moisture ensures an incredibly light dough and nicely browned crusts.
Exclusive to Miele
TasteControl
Only carries on cooking if you want it to.
The automatic rapid cool-down prevents food from continuing to cook and can, if desired, keep the food warm.
Exclusive to Miele
Crisp function
Makes food crispy
Perfect for pizza or chips: moisture is reduced for crispy results and perfect browning.
Automatic programmes
Stress-free cooking with success guaranteed
Cooking delicious dishes with ease: cakes, fish or meat – fully automatic cooking.
Safety (2)
Touch-cool front
The only thing that gets hot is the food
Protection against burns: the appliance remains relatively cool – even on the outside of the door.
Safety functions
Maximum safety in any situation
Safety guaranteed: safety lock and safety switch-off provide reliable protection.
Operating modes (16)
Fan plus
Perfectly soft and light: ideal for gentle baking and roasting on up to two levels.
Defrosting
Gentle on frozen food: frozen food is gently defrosted under ideal conditions using cool air.
Auto roast
Meat remains tender and succulent: meat is seared at a high temperature, then roasted at a selected temperature.
Eco fan heat
Extremely energy-efficient: succulent roasts or incredible bakes are cooked to perfection.
Full grill
Versatile function: perfect for grilling larger quantities of steaks, sausages, kebabs and more.
Intensive bake
Crispy bases, delicious toppings: pizza, quiche or fresh fruit flans – crispy base, moist on top.
Conventional heat
Multi-purpose, classic function: perfect results for all types of traditional baked and roasted dishes.
Bottom heat
Individual requirements: for cooking food in a bain-marie or for browning from underneath.
Fan grill
Crisp outside, succulent inside: ideal for chicken, duck, pork knuckle, rolled meat and many other meat dishes.
Moisture plus
As if fresh from the bakery: moisture ensures an incredibly light dough and a nicely browned crust.
Moisture plus with Auto roast
Perfect roasts: meat is seared at high temperature, then roasted at a customised temperature with added moisture.
Moisture plus with Fan plus
Perfectly soft and light: ideal for baking and roasting with added moisture on up to three levels.
Moisture plus with Intensive bake
Pizza, quiche or fresh fruit flans: added moisture makes bases crispy, while toppings stay moist.
Moisture plus with Conventional heat
Classic function: added moisture provides perfect results for all types of traditional baked and roasted dishes.
Booster
For those who lead a busy life: if there’s not much time for cooking, you will really appreciate this function.
User programmes
For your favourite dishes: simply set the function, temperature and programme duration for future use.
Product data sheet
Construction type and design
| Built-in oven | • |
| PureLine | • |
| Appliance Colour | Stainless steel/Clean Steel |
Convenience features
| TasteControl | • |
| Rapid heat-up | • |
| Pre-heating | • |
| Keeping warm | • |
| Crisp function | • |
Operating modes
| Defrosting | • |
| Automatic programmes | Yes |
| Country-specific automatic programmes | • |
| Auto roast | • |
| Eco fan heat | • |
| Grill operating modes | • |
| Grill | • |
| Fan plus | • |
| Intensive bake | • |
| Moisture plus | • |
| Moisture plus with Fan plus | • |
| Moisture plus with Conventional heat | • |
| Moisture plus with Intensive bake | • |
| Moisture plus with Conventional heat | • |
| Conventional heat | • |
| Bottom heat | • |
| Fan grill | • |
User convenience
| Networking with Miele@home | • |
| Display | DirectSensor |
| SoftOpen | • |
| SoftClose | • |
| MultiLingua | • |
| Programmable timed steam injection | • |
| Timer functions | • |
| Time of day display | • |
| Clock synchronisation | • |
| Date display | • |
| Minute minder | • |
| Programmable start of cooking duration | • |
| Programmable end of cooking duration | • |
| Programmable cooking duration | • |
| Actual temperature display | • |
| Target temperature display | • |
| Buzzer when desired temperature is reached | • |
| Recommended temperature | • |
| User programmes | • |
| Individual settings | • |
Efficiency and sustainability
| Energy efficiency class (A+++ - D) | A+ |
| Residual heat utilisation | • |
| Power rating in off mode in W | 0.50 |
| Power rating in standby mode in W | 1.00 |
| Power rating in networked standby in W | 2.00 |
| Time until automatic switch to standby in min | 20 |
| Time until automatic switch to networked standby in min | 20 |
| Time until automatic switch to off mode in min | 20 |
Cleaning convenience
| Stainless steel/CleanSteel finish | • |
| Pyrolytic self-cleaning | • |
| Catalyser | • |
| Hinged grill element | • |
| CleanGlass door | • |
Safety
| Appliance cooling system and touch-cool front | • |
| Safety switch-off | • |
| System lock | • |
| Door lock during pyrolytic cleaning | • |
| Sensor lock | • |
Technical data
| Oven compartment volume in l | 76 |
| No. of shelf levels | 5 |
| Number of shelf levels oven compartment 1 | 5 |
| Number of shelf levels oven compartment 2 | 5 |
| Numbered shelf levels | • |
| Oven light | 1 LED spot |
| Electronic temperature regulation min. in °C | 30 |
| Electronic temperature regulation max. in °C | 300 |
| Niche width min. in mm | 560 |
| Niche width max. in mm | 568 |
| Niche height min. in mm | 590 |
| Niche height max. in mm | 595 |
| Niche depth in mm | 550 |
| Appliance width in mm | 595 |
| Appliance height in mm | 596 |
| Appliance depth in mm | 569 |
| Weight in kg | 47.00 |
| Total rated load in kW | 3,60 |
| Voltage in V | 220-240 |
| Frequency in Hz | 50 |
| Number of phases | 1 |
| Fuse rating in A | 16 |
| Mains cable | • |
| Length of supply lead in m | 1.50 |
| Replacing lamps | Kundendienst |
Available display languages
| Available display languages via MultiLingua | bahasa malaysia,dansk,deutsch,english,español,français,hrvatski,italiano,magyar,nederlands,norsk,polski,português,pусский,română,slovenčina,slovenščina,srpski,suomi,svenska,türkçe,yкраїнська,čeština,ελληνιкά,العربية,中文,日本語,繁體中文,한국어 |
Supplementary products and accessories
Downloads, CAD & Apps
- Product sheetPDF
- Operating instructions/Installation instructionsPDF
- Warranty conditionsPDF
- EU declaration of conformityPDF
- fbxZIP
- dwgZIP
- ifcZIP
- rvtZIP
- rfaZIP
- Energy labelPNG
- Energy labelPDF
- Product fichePDF
- Energy label
Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!
Descriptions

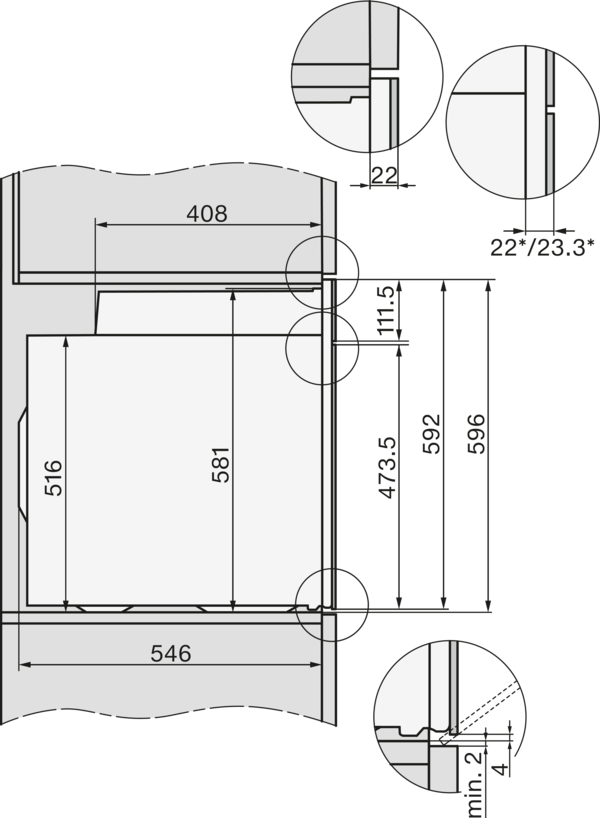

H226x-1B/BP/E/EP/I/IP, H2x6xB/BP, H7x6xB/BP/BPX, installation drawings
If the oven is to be installed under a hob
follow the instructions for installing the hob and the height of the hob.
Descriptions
H2x6x-1B/BP/E/EP/I/IP, H2850BP, H7x6xB/BP/BPX, H2x6xB, installation drawings, GB, AUS
1) Mains connection cable
L=2000 mm
2) No connection in this area
3) Lüftungsausschnitt min. 150 cm²
Descriptions
DG2840, DG7x40, DGC7x4x, DG7x6x, DGC7x6x, DGD7635, DGM7x4x, DO7, H28B/BP, H7x4xB/BM/BP, H7x6xB/BP, installation drawing
1) 400 mm
2) 360 mm
3) 47 mm
4) 24 mm
5) 32.5 mm
Descriptions
H2760B/BP, H28x0B/BP, H7x6xB/BP/BPX, installation drawings
22 mm - glass
23
3 mm - metal
Descriptions
H2760B/BP, H28x0B/BP, H7x6xB/BP/BPX, installation drawings
22 mm - glass
23.3 mm - metal
Descriptions
H226x-1B/BP/E/EP/I/IP, H2760B/BP, H28x0B/BP, H7x6xB/BP/BPX, installation drawings
Descriptions
H2760B/BP, H28x0B/BP, H7x6xB/BP/BPX, installation drawings
22 mm - glass
23.3 mm - metal
Descriptions
H2xxx-1 B/BP/E/I/IP, H7xxx B/BP/BM/BMX, installation drawings
22 mm - glass
23
3 mm - metal
Descriptions
H2xxx-1 B/BP/E/I/IP, H7xxx B/BP/BM/BMX, installation drawings
22 mm - glass
23
3 mm - metal
