Name: KM 3010
Brand: Miele
SKU: 9101190
Price: 1279 GBP
Availability: InStock

Free delivery on orders over £50 on Vacuums and Cleaning Products | Klarna available at checkout

01 / 02

Colour:Stainless steel

£1,279.00

Installation and recycling options available at checkout. For installation of built-in appliances please call 0330 160 6630

Product data sheet

Model identifier: KM 3010
Manufacturer material number: 09101190
EAN number: 4002515055830
Marketing class: Silver

Heating type: Gas

Independent of cooker

Ceramic surface colour: Black
Cast iron pot rests (matt black enamelled)
Miele logo embossed in stainless steel

Number of cooking zones: 4

Small burner in kW: 1
Medium burner in kW: 1.70
Large burner in kW: 2.70

Position: front left
Type: High-speed burner

Position: rear left
Type: Economy burner

Position: rear right
Type: Standard burner

Position: front right
Type: Standard burner

Operation via knobs
Electronic ignition with single-hand operation

Dishwasher-proof pot rests

GasStop
GasStop & ReStart

Dimensions (H x W x D) in mm: 54 x 626 x 526
Dimensions (W x D) in mm: 626 x 54 x 526
Dimensions in mm (width): 626
Dimensions in mm (height): 54
Dimensions in mm (depth): 526
Cut-out dimensions (W x D) with surface-mounted installation in mm: 600 mm x 500 mm
Casing height incl. connection box in mm: 63
Cutout dimensions in mm (width) with surface-mounted installation: 600 mm
Cutout dimensions in mm (depth) with surface-mounted installation: 500 mm
Weight in kg: 17
Total rated load in kW: 7.100
Position of gas connection: Hinten links
Voltage in V: 220 - 240
Frequency in Hz: 50 - 60
Length of supply lead in m: 1.4

EAN: 4002515055830

Efficiently protects and makes cleaning easier
ComfortClean pot rests
Fast cleaning: Remove the pot rests and wash in the dishwasher. Keeps gas hobs looking good for longer.
Automatic reignition for extra safety
GasStop & ReStart
Safe cooking: Automatic re-ignition for flame failure Should this prove unsuccessful, the gas supply is turned off immediately.
The innovative
Gas hobs with electronic controls
More safety and convenience: Intelligent features make cooking with gas a great choice.

Features

The innovative

Gas hobs with electronic controls

More safety and convenience: Intelligent features make cooking with gas a great choice.

User convenience

Comfortably reignite the flame

Electronic ignition and single-handed controls

No need for matches or lighters: automatic ignition of burners thanks to intelligent technology.

Everything under control

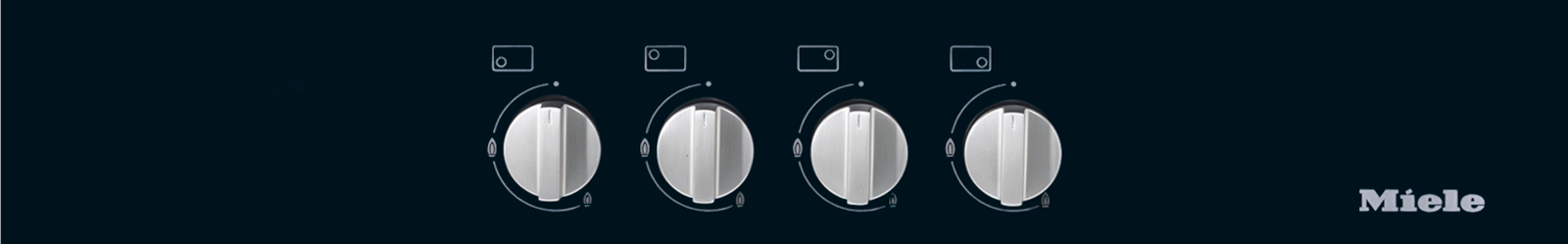

Front knob controls

Easy controls to regulate: Convenient power level control via plastic or metal knobs.

Maintenance

Efficiently protects and makes cleaning easier

ComfortClean pot rests

Fast cleaning: Remove the pot rests and wash in the dishwasher. Keeps gas hobs looking good for longer.

High quality features for a long life

Enamelled pot rests and burner parts

Nothing lasts longer and is easier to clean: enamelled cast-iron pot rests and burners with PerfectClean.

Design

A gas hob to suit every kitchen style

Individual design

Attractive design to suit all tastes: a minimalist stainless-steel look or elegant ceramic glass.

Safety

Automatic reignition for extra safety

GasStop & ReStart

Safe cooking: Automatic re-ignition for flame failure Should this prove unsuccessful, the gas supply is turned off immediately.

Flame failure monitor for maximum safety

GasStop

Reassuring: if the flame is extinguished, for example by a draught, the continued supply of gas is prevented.

Matching products and accessories

KMTS 5704-3

Pan set (4-piece)

made of robust and high-quality stainless steel, lid with side steam outlet.

KMBP 2800-3

Frying pan (28 cm)

made from stainless steel for lasting performance even at high temperatures.

KMKT 2040-3

Casserole (20 cm / 4 l)

made of robust and high-quality stainless steel, lid with side steam outlet.

KMKT 2460-3

Casserole (24 cm / 6 l)

made of robust and high-quality stainless steel, lid with side steam outlet.

KMKT 1615-3

Pot (16 cm / 1.5 l)

made of robust and high-quality stainless steel, lid with side steam outlet.

KMPD 2800-3

Frying pan lid (28 cm)

for the 28 cm Miele frying pan.

GP CL KM 0252 L

Ceramic and stainless steel cleaner, 250 ml

For best cleaning results and safe use.

GP MI S 0031 W

MicroCloth kit, 3 pieces

For best cleaning results and safe use.

GPS 0301 L

CleanKitchen set

For cleanliness and shine throughout the kitchen.

GP MI X 0011 W

Multi-purpose microfibre cloth, qty 1

For best cleaning results and safe use.

Downloads

Operating instructions/Installation instructions

PDF

Download

Product sheet

PDF

Download

Warranty conditions

PDF

Download

dwg

ZIP

Download

fbx

ZIP

Download

ifc

ZIP

Download

rfa

ZIP

Download

rvt

ZIP

Download

Product fiche

PDF

Download

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/dam/bcf6ff4b-1311-419e-8cbe-b3c600a99c26/20000085154_HighresDigitalRGB.png

Descriptions

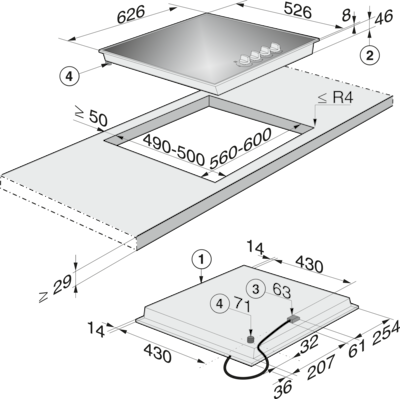

KM 3010 G (Installation drawing)

1. Front, 2. Casing depth, 3. Mains connection box with mains connection cable L = 2000 mmm, 4. Gas connection R 1/2" - ISO 7-1 (DIN EN 10226)

POSTSCRIPT

Download

1.Installation and recycling options available at checkout. For installation of built-in appliances please call 0330 160 6630

We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
