Induction hob with integrated vapour extraction SILVER
KMDA 7272-1 FR Silence
806 mm | Extraction and recirculation | SilenceMotor | Individual cooking zonessale price£3,249.00
Installation and recycling options available at checkout. For installation of built-in appliances please call 0330 160 6630
Product details
- The quietest TwoInOne from Miele –Silence motorLoading...
- Ample space – 4 round cooking zones
- Automatic fan power regulation –Con@ctivityLoading...
- Compact control using the numerical display –ComfortSelect PlusLoading...
- Flexible installation – Plug & Play, ducted recirculation or vented system
- View manufacturer details:
- You will find more information about product data and your rights under the EU Data Acthere
- Safety Information
Heating type Induction
Induction hob with integrated vapour extraction
Exhaust air guided with optional accessories DFK-xxxx,DMK 150-1
Recirculation air guided with optional accessories DFK-xxxx,DUU 1500,DUU 600
Unguided recirculation air (Plug&Play installation)
Elegant glass ceramic surface
Frameless – surface-mounted
Ceramic surface colour Black
Stainless steel frame
Flush fit extractor
Colour of cover grille Black
Number of cooking zones 4
Maximum number of pans 4
Position front left
Type Dual-circuit ring
Size in mm Ø 110-220
Max. rating in W 2300
Max. Booster power rating in W 3000
Position rear left
Type Dual-circuit ring
Size in mm Ø 100-190
Max. rating in W 1400
Max. Booster power rating in W 2100
Position rear right
Type Dual-circuit ring
Size in mm Ø 110-220
Max. rating in W 2300
Max. Booster power rating in W 3000
Position front right
Type Dual-circuit ring
Size in mm Ø 100-190
Max. rating in W 1400
Max. Booster power rating in W 2100
Operation via sensor controls ComfortSelect Plus
Loading...
Display colour Yellow
Con@ctivity
Loading...
Digital power level display
Permanent pan recognition
Loading...
Keeping warm
Stop & Go function
Recall function
Loading...
Minute minder
Safety switch-off
Auto heat-up
Individual setting options (e.g. buzzers)
Loading...
Run-on time 5/15 min.
Active charcoal filter saturation indicator
Energy efficiency class (A+++ to D) A+
Annual energy consumption in kWh/year 31.3
Fluid dynamic efficiency class A
Lighting efficiency class NA
Grease filtering efficiency class A
ECO motor
Loading...
Silence motor
Loading...
Easy to clean ceramic glass
Easy-to-clean canopy interior – CleanCover
Loading...
Quick cleaning of cooker hood interior
Intensive cleaning of cooker hood interior
Number of dishwasher-safe metal grease filters (10-ply) 1
Air throughput at min. level (m³/h) according to EN 61591 205
Air throughput at max. level (m³/h) according to EN 61591 533
Air throughput in Intensive level (m³/h) according to EN 61591 606
Sound power at min. level (dB(A) re 1 pW) according to EN 60704-3 41
Sound power at max. level (dB(A) re 1 pW) according to EN 60704-3 64
Sound power in Booster level (dB(A) re 1 pW) acc. to EN 60704-3 68
Sound pressure at min. level (dB(A) re 20 µPa) according to EN 60704-2-13 28
Sound pressure at max. level (dB(A) re 20 µPa) according to EN 60704-2-13 51
Noise pressure level in Intensive level (dB(A) re 20 µPa) according to EN 60704-2-13 54
Air throughput at min. level (m³/h) according to EN 61591 160
Air throughput at max. level (m³/h) according to EN 61591 475
Air throughput in Intensive level (m³/h) according to EN 61591 510
Sound power at min. level (dB(A) re 1 pW) according to EN 60704-3 46
Sound power at max. level (dB(A) re 1 pW) according to EN 60704-3 68
Noise power level in Intensive level (dB(A) re 1 pW) according to EN 60704-3 70
Sound pressure at min. level (dB(A) re 20 µPa) according to EN 60704-2-13 33
Sound pressure at max. level (dB(A) re 20 µPa) according to EN 60704-2-13 55
Noise pressure level in Intensive level (dB(A) re 20 µPa) according to EN 60704-2-13 57
Safety switch-off
Loading...
Lock function
Loading...
System lock
Integrated cooling fan
Overheating protection
Residual heat indicator
Connection for window contact switch
Dimensions (W x H x D) in mm 806 x 194 x 526
Dimensions in mm (width) 806
Dimensions in mm (height) 194
Dimensions in mm (depth) 526
Casing height incl. connection box in mm 194
Cutout dimensions in mm (width) with surface-mounted installation 780 mm
Cutout dimensions in mm (depth) with surface-mounted installation 500 mm
Weight in kg 16
Total rated load in kW 7.500
Voltage in V 230
Frequency in Hz 50-60
Length of supply lead in m 1.6
Mains cable Yes
Active charcoal filter DKF 35-P
Plug&Play adapter
EAN 4002516974673
Mains cable
Active charcoal filter DKF 35-P
Plug&Play adapter
State-of-the-art
Con@ctivity
Innovative convenience: the cooker hood reacts automatically to settings on the hob.
The quietest TwoInOne from Miele
Silence motor
Extra-quiet: developed by Miele, this motor is 25 % quieter than its predecessor at higher air throughput levels.
Permanent pot recognition
Autom. activation of numerical keybank: When turned on, crockery that has been placed is recognised immediately.
Miele CleanCover
Protection and easy cleaning: the smooth concealed surface prevents contact with electrical components and motor.
Stainless steel grease filters
Convenient cleaning: The high-quality metal grease filters are dishwasher-proof and extremely durable.
Flush-fit extractor
Flush and elegant: thanks to the discreet design, you can enjoy maximum design freedom in your kitchen.
Convenient additional functions
Numerous additional functions such as Stop & Go and the timer make life easier in the kitchen.Silence motor
Extra-quiet: developed by Miele, this motor is 25 % quieter than its predecessor at higher air throughput levels.Con@ctivity
Innovative convenience: the cooker hood reacts automatically to settings on the hob.
ComfortSelect Plus
Compact and convenient: all cooking zones and the fan can be operated using a clear central numerical display.
ECO motor
Powerful and quiet: the DC motor is efficient and particularly smooth running.
Safety functions
Our safety functions prevent any unwanted surprises.Matching products and accessories
Downloads
Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!
Descriptions
1) Front, 2) removable drip tray, 3) cleaning flap, 4) Mains connection box with mains connection cable, L = 1600 mm, 5) Worktop thickness, Exhaust air and guided recirculation mode: ≥10 mm, Plug&Play operation: ≥10 mm - ≤40 mm
1) Front, 2) removable drip tray, 3) cleaning flap, 4) Mains connection box with mains connection cable, L = 1600 mm, 5) Worktop thickness, Exhaust air and guided recirculation mode: ≥10 mm, Plug&Play operation: ≥10 mm - ≤40 mm POSTSCRIPT
Descriptions

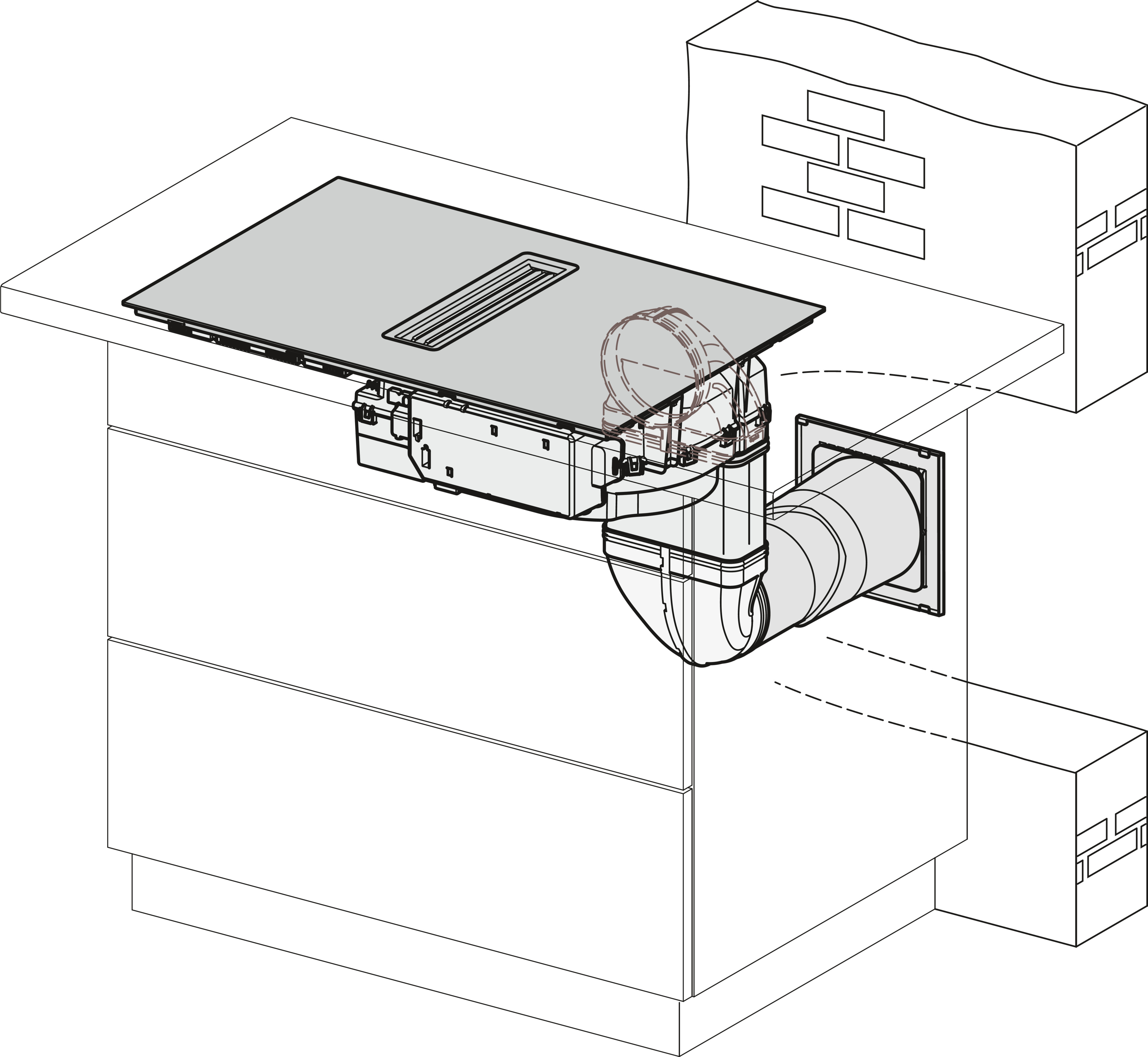

KMDA7272-1FL/FR, KMDA7473-1FL/FL MattFinish/FR, KMDA7272FL/FR, KMDA7473FL/FR, Exhaust air
KMDA7272-1FL/FR, KMDA7473-1FL/FR, KMDA7272FL/FR, KMDA7473FL/FR, Exhaust air POSTSCRIPT
Descriptions

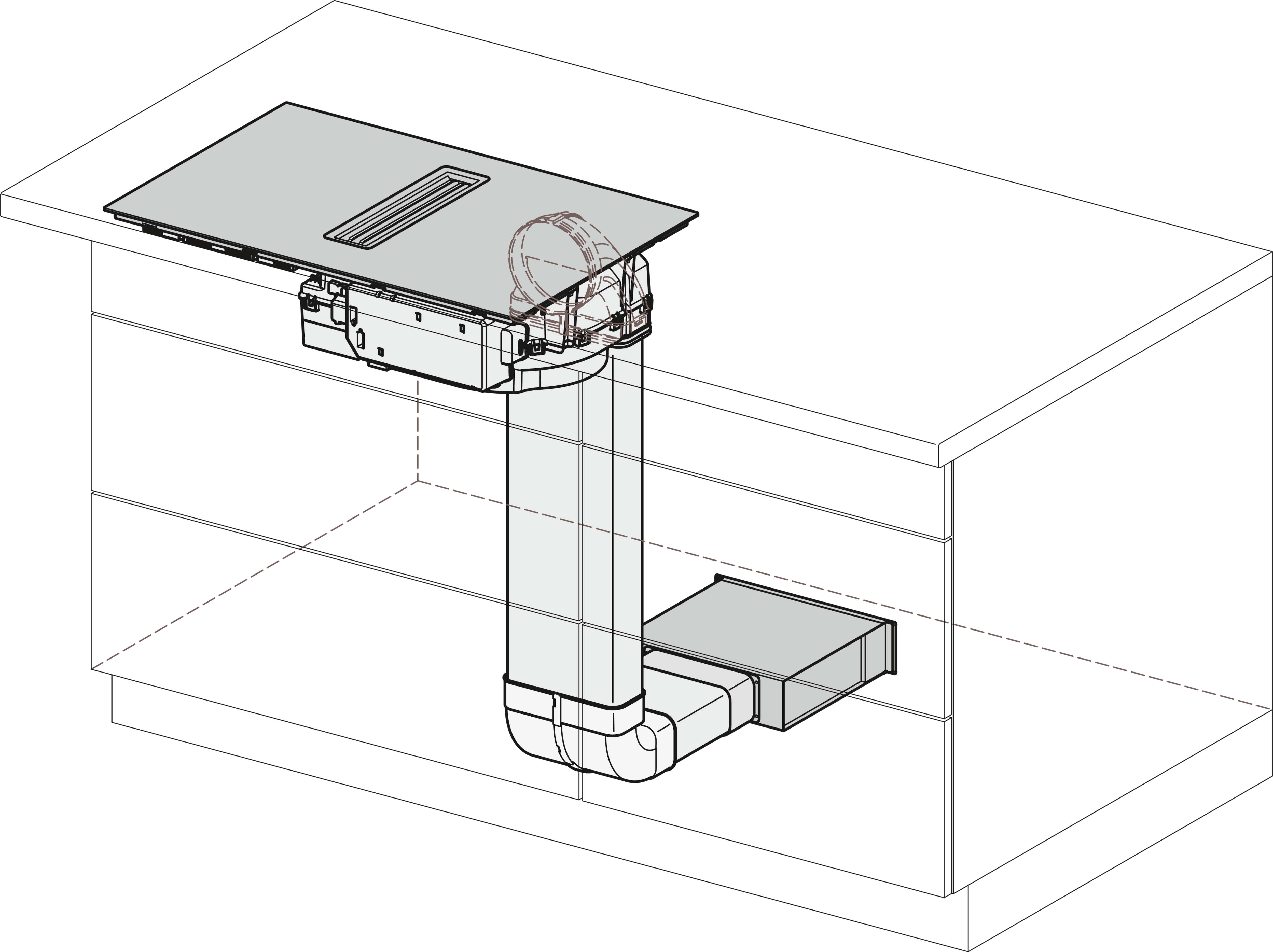

KMDA7272-1FL/FR, KMDA7473-1FL/FL MattFinish/FR, KMDA7272FL/FR, KMDA7473FL/FR, Air circulation
KMDA7272-1FL/FR, KMDA7473-1FL/FL MattFinish/FR, KMDA7272FL/FR, KMDA7473FL/FR, Air circulation POSTSCRIPT
Descriptions
KMDA7272-1FL/FR, KMDA7473-1FL/FL MattFinish/FR, KMDA7272FL/FR, KMDA7473FL/FR, Plug&Play
KMDA7272-1FL/FR, KMDA7473-1FL/FL MattFinish/FR, KMDA7272FL/FR, KMDA7473FL/FR, Plug&Play POSTSCRIPT
Descriptions
①When routing the exhaust air between the cabinet wall and an adjacent room wall or an adjacent piece of furniture, a minimum distance of 25 mm must be observed., ②The removable collection tray and the cleaning flap must be accessible after installation., ③The cross-section of the vent opening must be at least 425 cm²., ④Distance from the front of the lower box to the end of the plug & play adapter
①When routing the exhaust air between the cabinet wall and an adjacent room wall or an adjacent piece of furniture, a minimum distance of 25 mm must be observed., ②The removable collection tray and the cleaning flap must be accessible after installation., ③The cross-section of the vent opening must be at least 425 cm²., ④Distance from the front of the lower box to the end of the plug & play adapter POSTSCRIPT
Descriptions
①When routing the exhaust air between the cabinet wall and an adjacent room wall or an adjacent piece of furniture, a minimum distance of 25 mm must be observed. If the carcase rear wall is <gt/> 555 mm from the worktop front, the Plug&Play adapter must be extended with a supplementary set from Miele., ②The removable drip tray and the cleaning flap must be accessible after installation., ③The cross-section of the vent opening must be at least 425 cm²., ④Distance from the front of the lower box to the end of the plug & play adapter, , x Dimension by which the worktop depth is greater than 600 mm.
①When routing the exhaust air between the cabinet wall and an adjacent room wall or an adjacent piece of furniture, a minimum distance of 25 mm must be observed. If the carcase rear wall is <gt/> 555 mm from the worktop front, the Plug&Play adapter must be extended with a supplementary set from Miele., ②The removable drip tray and the cleaning flap must be accessible after installation., ③The cross-section of the vent opening must be at least 425 cm²., ④Distance from the front of the lower box to the end of the plug & play adapter, , x Dimension by which the worktop depth is greater than 600 mm. POSTSCRIPT
Descriptions
①The rear wall of the cabinet must be removable for servicing. A minimum distance of 110 mm must be maintained for routing the exhaust air duct between the cabinet wall and an adjacent room wall or furniture., ②The removable collection tray and the cleaning flap must be accessible after installation.
①The rear wall of the cabinet must be removable for servicing. A minimum distance of 110 mm must be maintained for routing the exhaust air duct between the cabinet wall and an adjacent room wall or furniture., ②The removable collection tray and the cleaning flap must be accessible after installation. POSTSCRIPT
Descriptions
①The rear wall of the cabinet must be removable for servicing. A minimum distance of 110 mm must be maintained for routing the exhaust air duct between the cabinet wall and an adjacent room wall or furniture., ②The removable collection tray and the cleaning flap must be accessible after installation., , x Dimension by which the worktop depth is greater than 600 mm.
①The rear wall of the cabinet must be removable for servicing. A minimum distance of 110 mm must be maintained for routing the exhaust air duct between the cabinet wall and an adjacent room wall or furniture., ②The removable collection tray and the cleaning flap must be accessible after installation., , x Dimension by which the worktop depth is greater than 600 mm. POSTSCRIPT
Descriptions
1) DFK-AK 90, 2) DFK-R 1000, 3) DFK-BV 90
1) DFK-AK 90, 2) DFK-R 1000, 3) DFK-BV 90 POSTSCRIPT
Descriptions
1) DFK-AK 90, 2) DFK-R 1000, 3) DFK-BV 90, 4) DFK-BH 90
1) DFK-AK 90, 2) DFK-R 1000, 3) DFK-BV 90, 4) DFK-BH 90 POSTSCRIPT
Descriptions
1) DFK-AK 90, 2) DFK-R 1000, 3) DFK-BV 90, 4) DFK-BH 90, 5) DFK-V, 6) DUU 1500, , The minimum width of the cabinet is 1350 mm.
1) DFK-AK 90, 2) DFK-R 1000, 3) DFK-BV 90, 4) DFK-BH 90, 5) DFK-V, 6) DUU 1500, , The minimum width of the cabinet is 1350 mm. POSTSCRIPT
Descriptions
1) DFK-AK 90, 2) DFK-R 1000, 3) DFK-BV 90, 4) DFK-BH 90, 5) DFK-V, 6) DUU 1500, , The minimum width of the cabinet is 1350 mm.
1) DFK-AK 90, 2) DFK-R 1000, 3) DFK-BV 90, 4) DFK-BH 90, 5) DFK-V, 6) DUU 1500, , The minimum width of the cabinet is 1350 mm. POSTSCRIPT
Descriptions
1) DFK-AK 90, 2) DFK-R 1000, 3) DFK-BV 90, 4) DFK-V, 5) DUU 1500, , The minimum depth of the cabinet is 935 mm.
1) DFK-AK 90, 2) DFK-R 1000, 3) DFK-BV 90, 4) DFK-V, 5) DUU 1500, , The minimum depth of the cabinet is 935 mm. POSTSCRIPT
Descriptions
1) DFK-AK 90, 2) DFK-R 1000, 3) DFK-BV 90, 4) DFK-BH 90, 5) DFK-V, 6) DUU 1500, , The minimum width of the cabinet is 1125 mm.
1) DFK-AK 90, 2) DFK-R 1000, 3) DFK-BV 90, 4) DFK-BH 90, 5) DFK-V, 6) DUU 1500, , The minimum width of the cabinet is 1125 mm. POSTSCRIPT
Descriptions
1) DFK-AK 90, 2) DFK-R 1000, 3) DFK-BV 90, 4) DFK-BH 90, 5) DFK-V, 6) DUU 1500, , The minimum width of the cabinet is 900 mm.
1) DFK-AK 90, 2) DFK-R 1000, 3) DFK-BV 90, 4) DFK-BH 90, 5) DFK-V, 6) DUU 1500, , The minimum width of the cabinet is 900 mm. POSTSCRIPT
Descriptions
1) DFK-AK 90, 2) DFK-R 1000, 3) DFK-BH 90, 4) DFK-A, 5) DMK 150-1
1) DFK-AK 90, 2) DFK-R 1000, 3) DFK-BH 90, 4) DFK-A, 5) DMK 150-1 POSTSCRIPT
Descriptions
1) DFK-AK 90, 2) DFK-R 1000, 3) DMK 150-1
1) DFK-AK 90, 2) DFK-R 1000, 3) DMK 150-1 POSTSCRIPT
Descriptions
1) DFK-AK 90, 2) DFK-R 1000, 3) DFK-BH 90, 4) DFK-A, 5) DMK 150-1
1) DFK-AK 90, 2) DFK-R 1000, 3) DFK-BH 90, 4) DFK-A, 5) DMK 150-1 POSTSCRIPT
Descriptions
KMDA7272-1FL/FR, KMDA7473-1FL/FR, KMDA7473-1FL MattFinish, KMDA7272FL/FR, KMDA7473FL/FR, Exhaust air
KMDA7272-1FL/FR, KMDA7473-1FL/FR, KMDA7272FL/FR, KMDA7473FL/FR, Exhaust air POSTSCRIPT
Descriptions
KMDA7272-1FL/FR, KMDA7473-1FL/FR, KMDA7473-1FL MattFinish, KMDA7272FL/FR, KMDA7473FL/FR, Air circulation
KMDA7272-1FL/FR, KMDA7473-1FL/FR, KMDA7272FL/FR, KMDA7473FL/FR, Air circulation POSTSCRIPT
Descriptions
KMDA7272-1FL/FR, KMDA7473-1FL/FR, KMDA7473-1FL MattFinish - surface installation, 21 cm, drilling template
KMDA7272-1FL/FR, KMDA7473-1FL/FR, KMDA7473-1FL MattFinish - surface installation, 21 cm, drilling template POSTSCRIPT
Descriptions
KMDA7272-1FL/FR, KMDA7473-1FL/FR, KMDA7473-1FL MattFinish - surface installation, drilling template
KMDA7272-1FL/FR, KMDA7473-1FL/FR, KMDA7473-1FL MattFinish - surface installation, drilling template POSTSCRIPT
Descriptions
✓Required, • Not required
KMDA7272-1FL/FR, KMDA7473-1FL/FR, KMDA7473-1FL MattFinish, KMDA7676-1FL, KMDA7876-1FL - Operating options POSTSCRIPT
