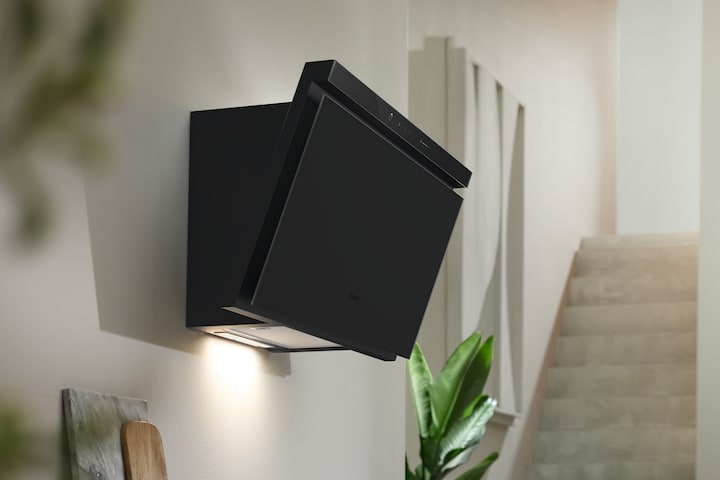

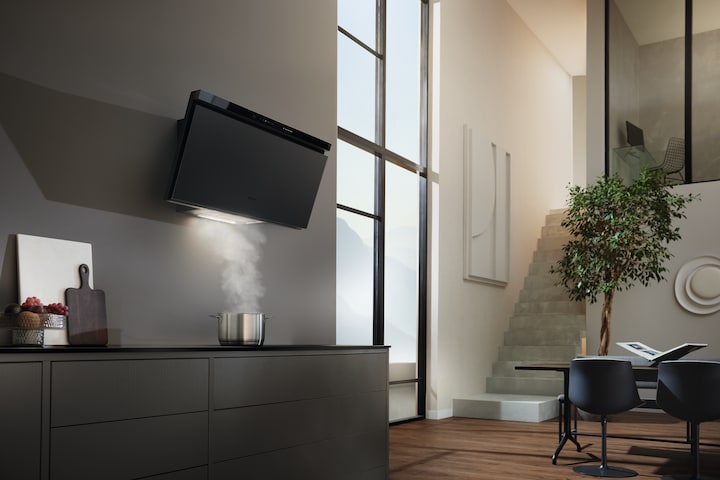

Wall mounted cooker hood

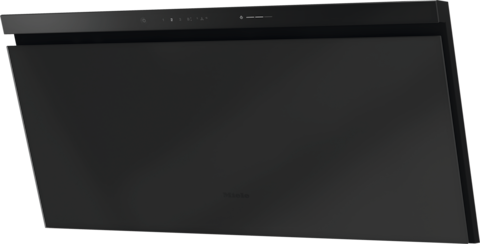

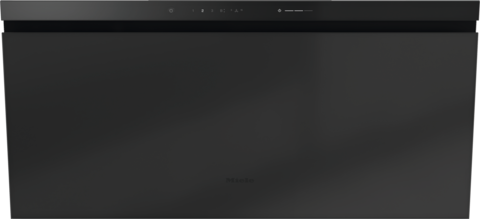

DAH 4980 Sienna Obsidian black matt

With particularly low noise levels and elegant matt black glass panel
Product data sheet
Colour:Obsidian black matt
sale price£2,499.00

Buy now. Pay with Klarna. Learn more

Installation and recycling options available at checkout. For installation of built-in appliances please call 0330 160 6630



Product details

  • ECO motor – the quietest Miele angled cooker hood with only 50 dB2,
  • Networking with Con@ctivity and
    Miele@home
  • Efficient filtration-
    10-ply stainless-steel grease filter
  • Lots of headroom – with front panel, 898 mm wide
  • Perfect match – glass panel and canopy in the same colour
  • Manufactured with great care by
  • Safety Information

Product data sheet

Wall mounted cooker hood
Type of air guide Can be retrofitted
Active charcoal filter (order separately) DKF 29
Colour Obsidian black matt
Edge extraction
Miele@home
Automatic function Con@ctivity
Electronic controls
SmartControl White
Controls SmartControl White
ON/OFF switch
Power levels (number without Booster level) 3
Booster levels 2
Run-on time 5/15 min.
Grease filter saturation indicator
Active charcoal filter saturation indicator
Silence package
Easy-to-clean canopy interior – CleanCover

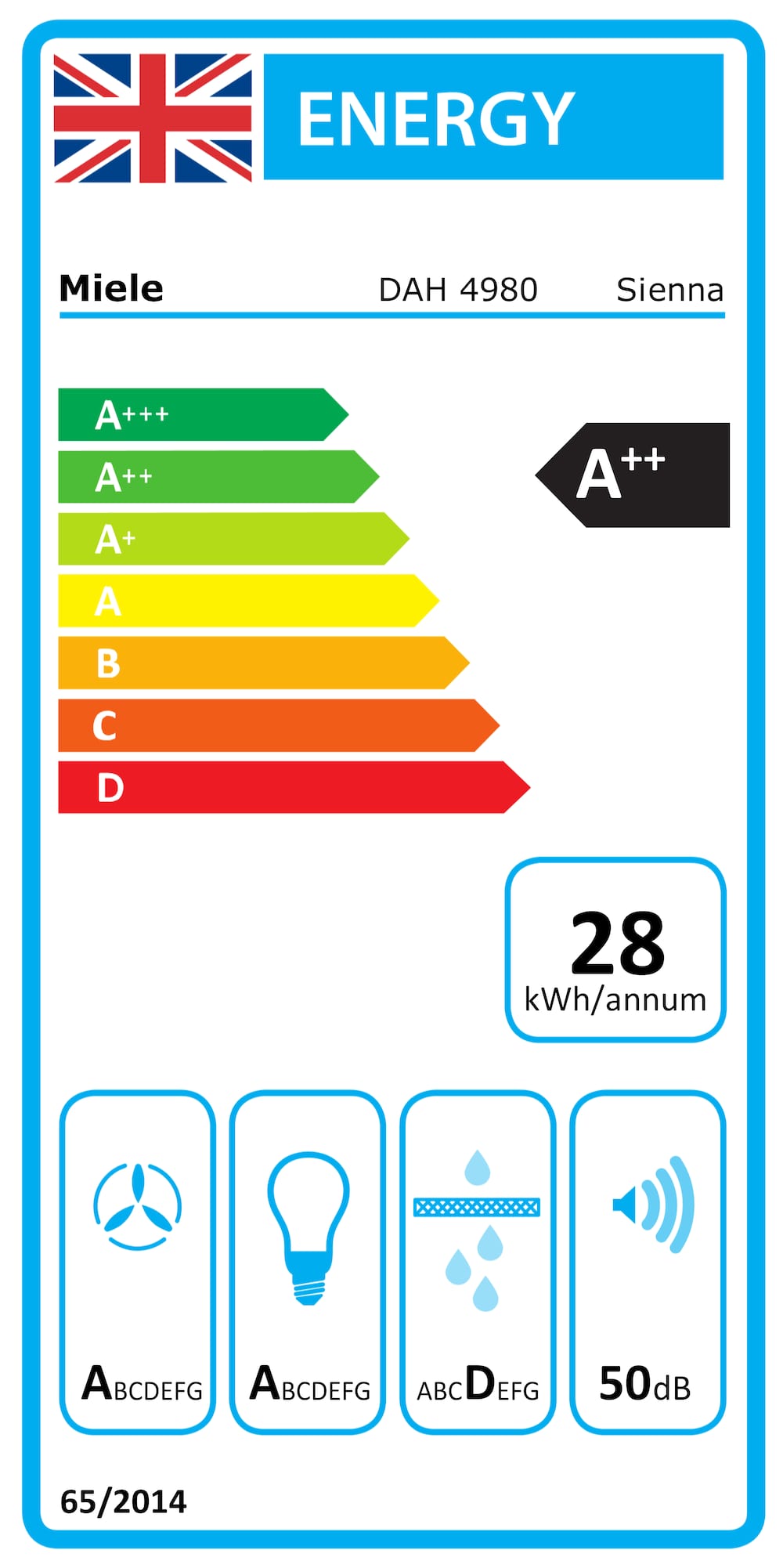

Energy efficiency class (A+++ to D) A++
Annual energy consumption in kWh/year 28.2
Fluid dynamic efficiency class A
Lighting efficiency class A
Grease filtering efficiency class D
ECO motor (DC motor)
PowerManagement system
Easy-to-clean canopy interior – CleanCover
Number of dishwasher-safe stainless steel grease filters (10-ply) 2
Number x W 1 x 3,2 W
Light intensity in Lx 260 lx
Colour temperature in K 3500 Kelvin
Dimmer function
Dual-action blower
DC motor
Air throughput in Level 1 (m³/h) according to EN 61591 215
Air throughput in Level 2 (m³/h) according to EN 61591 315
Air throughput in Level 3 (m³/h) according to EN 61591 415
Air throughput in Booster level 1 (m³/h) according to EN 61591 660
Air throughput in Booster level 2 (m³/h) according to EN 61591 875
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 38
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 45
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3 50
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3 61
Sound power in Booster level 2 (dB(A) re 1 pW) acc. to EN 60704-3 68
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 24
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 31
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13 36
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13 47
Sound pressure in Booster level 2 (dB(A) re 20 µPa) acc. to EN 60704-2-13 54
Air throughput in Level 1 (m³/h) according to EN 61591 175
Air throughput in Level 2 (m³/h) according to EN 61591 275
Air throughput in Level 3 (m³/h) according to EN 61591 430
Air throughput in Booster level 1 (m³/h) according to EN 61591 625
Air throughput in Booster level 2 (m³/h) according to EN 61591 720
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 46
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 53
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3 64
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3 73
Sound power in Booster level 2 (dB(A) re 1 pW) acc. to EN 60704-3 76
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 32
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 39
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13 50
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13 59
Sound pressure in Booster level 2 (dB(A) re 20 µPa) acc. to EN 60704-2-13 62
Safety shut-off
Single-ply safety glass (ESG)
Overall height for vented and external in in. (mm) 830
Overall height for extraction mode and external mode cooker hoods in mm 1210
Overall height for recirculation in in. (mm) 420
Overall height for recirculation mode cooker hoods in mm 420
Canopy width in in. (mm) 898
Canopy height in in. (mm) 420
Depth of hood canopy in in. (mm) 381
Minimum height above electric hobs in mm 450
Minimum safety distance above gas hobs (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm 650
Net weight in kg 18
Length of supply lead in m 1.3
Standard plug fitted
Total rated load in kW 0.223
Voltage in V 230
Fuse rating in A 10
Frequency in Hz 50
Number of phases 1
Extraction ducting connection at top
Extraction connection at top and rear
Diameter of extraction ducting connection in mm 150
Non-return flap
EAN 4002516802938

What's included

Non-return flap
Automatic operation for intelligent fan control
Con@ctivity

Innovative convenience: the cooker hood reacts automatically to settings on the hob.

Easy to use and effective against grease
Stainless steel grease filters (10-layer)

Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.

Performance and convenience as standard
Silence

Efficient and quiet: the fan is effectively insulated with special soundproofing mats.

Convenience and safety in detail
Miele CleanCover

Protection and easy cleaning: the sealed, smooth surface prevents contact with cables and the motor.

The heart of every cooker hood
ECO motor

Powerful and economical: the DC motor saves up to 50 % electricity compared with conventional motors.

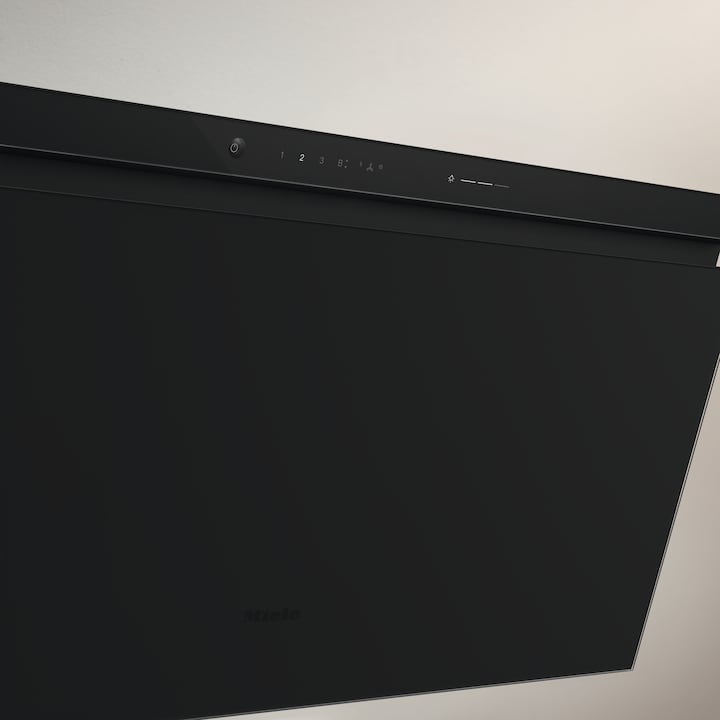

Elegant touch controls
SmartControl

High-quality and functional: enjoy convenient touch controls with a dimmer function.

Features

Easy to use and effective against grease
Stainless steel grease filters (10-layer)

Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.

Performance and convenience as standard
Silence

Efficient and quiet: the fan is effectively insulated with special soundproofing mats.

Convenience and safety in detail
Miele CleanCover

Protection and easy cleaning: the sealed, smooth surface prevents contact with cables and the motor.

Decorative panels instead of metal grease filters
Edge extraction

Efficient and good-looking: with edge extraction, the grease filters are covered by a panel.

User convenience

Automatic operation for intelligent fan control
Con@ctivity

Innovative convenience: the cooker hood reacts automatically to settings on the hob.

Countdown time conveniently in view
Filter indicator

Easy filter replacement: a red light lets you know when the grease and/or active charcoal filter is saturated.

Automatic fan run-on
Run-on function

Odour-free room air: after cooking, the fan can be set to switch off automatically after a 5 or 15 minute run-on period.

Elegant touch controls
SmartControl

High-quality and functional: enjoy convenient touch controls with a dimmer function.

Efficiency and sustainability

The heart of every cooker hood
ECO motor

Powerful and economical: the DC motor saves up to 50 % electricity compared with conventional motors.

Safety

Always on the safe side
Safety switch-off

Sensible, even in case of operating errors: the cooker hood switches off automatically after 10 hours.

Matching products and accessories

Aluminium vent hose
DAS 150

Aluminium vent hose

flexible vent duct.

£89.49
Matt black chimney

Matt black chimney

for alternative upward extraction ducting

£249.66
Roof vent
DDF 125

Roof vent

for extraction.

£262.49
Sensitive AirClean filter with active charcoal
DKF 29-S

Sensitive AirClean filter with active charcoal

for Miele DA 909x W, DA 929x W and DAH xxxx recirculation cooker hoods.

£93.49
Multi-purpose microfibre cloth, qty 1
GP MI X 0011 W

Multi-purpose microfibre cloth, qty 1

For best cleaning results and safe use.

£8.49
MicroCloth kit, 3 pieces
GP MI S 0031 W

MicroCloth kit, 3 pieces

For best cleaning results and safe use.

£16.99

Downloads

Installation plan
PDF
Downloads
Operating instructions/Installation instructions
PDF
Downloads
Warranty conditions
PDF
Downloads
Product sheet
PDF
Downloads
rvt
ZIP
Downloads
ifc
ZIP
Downloads
dwg
ZIP
Downloads
fbx
ZIP
Downloads
rfa
ZIP
Downloads
Product fiche
PDF
Downloads
Energy label
PNG
Downloads
Energy label
PDF
Downloads
Energy label
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/images/2000020/200002057/20000205753.png
Descriptions
DAH4970, DAH4980 Installation drawings
1) Break-through if the mains connection is not made with a mains plug, but with a fixed connection., 2) Exhaust air opening ø 200 mm, so that the exhaust air line can be moved in the wall. Exhaust air connection ø 150 mm to the top or alternatively to the rear., 3) Air outlet for recirculated air. The distance to the ceiling or furniture mounted above the unit should be at least 300 mm.
