Induction hob with onset controls

KM 7576-2 FL MattFinish

Induction hob with onset controls


sale price£2,999.00

Buy now. Pay with Klarna. Learn more

Installation and recycling options available at checkout. For installation of built-in appliances please call 0330 160 6630



Product details

  • Elegant surface for a unique kitchen design –MattFinish
  • Fast, intuitive selection using numerical displays –
    Smart Select White
  • 6  cooking zones incl. 3  high-power
    PowerFlex cooking areas
  • A width of 800 mm for surface-mounted or flush-fit installation
  • Networking with Con@ctivity and
    Miele@home
  • Manufactured with great care by
  • Safety Information

Product data sheet

Heating type Induction
Independent of cooker
Scratch-resistant surface MattFinish
Elegant glass ceramic surface
Ceramic surface colour Matt black
Anti-fingerprint effect
Flush
Surface-mounted installation
Surface-mounted/flush-fit –/•
Number of cooking zones 6
Number of cooking areas 3
Number of cooking zones/cooking areas –/–
Maximum number of pans 6
No. 6
Type PowerFlex cooking zone
Size in mm Ø 150 – 230
Max. rating in W 2100
Max. Booster power rating in W 3000
Max. TwinBooster power rating in W 3650
Position Left
Type PowerFlex bridge
Size in mm 230x390
Max. rating in W 3150
Max. Booster power rating in W 3400
Max. TwinBooster power rating in W 3650
Position Centred
Type PowerFlex bridge
Size in mm 230x390
Max. rating in W 3400
Max. Booster power rating in W 4800
Max. TwinBooster power rating in W 7300
Position right
Type PowerFlex bridge
Size in mm 230x390
Max. rating in W 3400
Max. Booster power rating in W 4800
Max. TwinBooster power rating in W 7300
Networking with Miele@home
Automatic function Con@ctivity
Operation via sensor controls Smart Select White
Display colour White
Permanent pan recognition
Pan and pan size recognition
Stop & Go function
Wipe protection
Recall function
Minute minder
Safety switch-off
Auto heat-up
Keeping warm
Individual setting options (e.g. buzzers)
Power rating in off mode in W 0.5
Power rating in standby mode in W 0.8
Power rating in networked standby in W 2
Time until automatic switch to off mode in min 10
Time until automatic switch to standby in min 10
Time until automatic switch to networked standby in min 10
Easy to clean ceramic glass
Safety switch-off
Lock function
System lock
Integrated cooling fan
Overheating protection
Residual heat indicator
Dimensions (H x W x D) in mm 51 x 800 x 520
Dimensions in mm (width) 800
Dimensions in mm (height) 51
Dimensions in mm (depth) 520
Cut-out dimensions (W x D) with surface-mounted installation in mm 780 mm x 500 mm
Cut-out dimensions (W x D) with flush-fit installation in mm 780/804 x 500/524
Casing height incl. connection box in mm 51
Cutout dimensions in mm (width) with surface-mounted installation 780 mm
Cutout dimensions in mm (depth) with surface-mounted installation 500 mm
Internal cutout dimensions in mm (width) with flush installation 780
Internal cutout dimensions in mm (depth) with flush installation 500
External cutout dimensions in mm (width) with flush installation 804
External cutout dimensions in mm (depth) with flush installation 524
Weight in kg 16
Total rated load in kW 9.200
Voltage in V 230
Frequency in Hz 50-60
Length of supply lead in m 1.4
Mains cable
EAN 4002516785637

What's included

Mains cable

Setup/function

Ideal for large pans
PowerFlex

Unbeatably fast and versatile: the booster output of up to 7.3 kW.


Booster Function for rapid heating
TwinBooster

Flexible power: the induction power can be individually distributed or focused on just one cooking zone.


Smart control
Con@ctivity

Innovative convenience: the cooker hood reacts automatically to settings on the hob.


Added convenience
Convenient additional functions

Numerous additional functions such as Stop & Go and the timer make life easier in the kitchen.


Set down your pan and get cooking
Permanent pan detection

Automatic control element activation: when the hob is turned on, pans which are already in place are detected.


Features

Unique design: new surface in elegant matt black
MattFinish

The elegant black MattFinish surface with anti-fingerprint effect is stunning and highly resistant to scratches.


User convenience

Easy operation with SmartSelect
SmartSelect White

Quick and intuitive: power levels can be selected directly for each cooking zone.


Safety

For greater safety and security
Safety functions

The safety functions prevent any unpleasant surprises – even if your mind is on other things.


Downloads

Warranty conditions
PDF
Downloads
Operating instructions/Installation instructions
PDF
Downloads
Product sheet
PDF
Downloads
rfa
ZIP
Downloads
dwg
ZIP
Downloads
ifc
ZIP
Downloads
rvt
ZIP
Downloads
fbx
ZIP
Downloads
Product fiche
PDF
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/images/2000019/200001991/20000199187.png
Descriptions

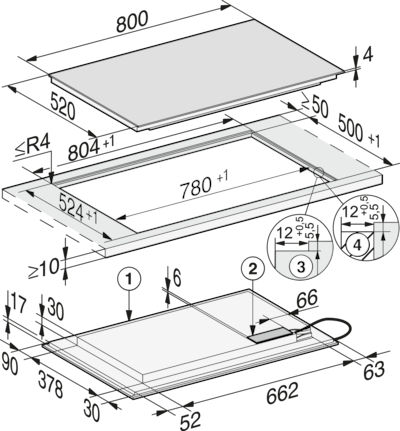

KM7575-2FL, KM7576-2FL flush (installation drawing)
1) front, 2) Mains connection box, The mains connection cable (L = 1440 mm) is enclosed loose, 3) Step milling natural stone worktop, 4) Wooden strip 12 mm (no supplied accessories)
Downloads
https://media.miele.com/images/2000019/200001991/20000199188.png
Descriptions

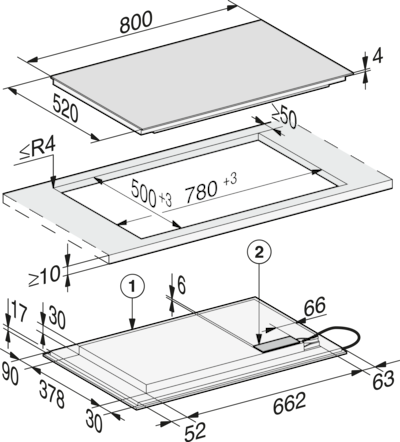

KM7575-2FL, KM7576-2FL surface mounted (installation drawing)
1) front, 2) Mains connection box, The mains connection cable (L = 1440 mm) is enclosed loose
Downloads
  • 1.Installation and recycling options available at checkout. For installation of built-in appliances please call 0330 160 6630

We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
