Induction hob with integrated vapour extraction
KMDA 7876 FL-A MattFinish
and MattFinish with 2 extra large PowerFlex XL cooking areas for extraction modeBenefits

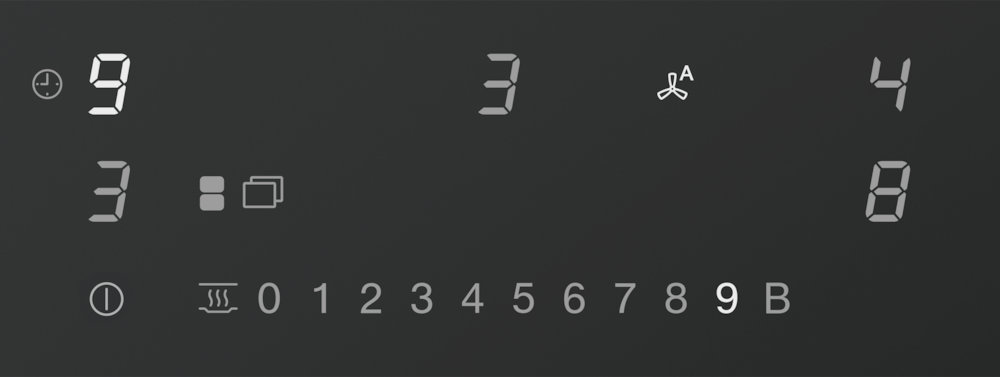

Easy and elegant operation: white numerical displayComfortSelect White
Elegant and convenient: conveniently control your Miele hob while enjoying its premium appearance.
A matt and hard-wearing surfaceMattFinish
The matt surface reduces scratches and fingerprints for a clean and elegant look.1,
Cleverly networkedDomestic appliance networking with Miele@home2,
Make your life smart: thanks to Miele@home, you can cleverly network your domestic appliances – for more options.
State-of-the-artCon@ctivity
Innovative convenience: the cooker hood reacts automatically to settings on the hob.
Power function for fast heat generationTwinBooster
Unique level of flexibility: Induction output can be individually distributed or used for one single zone.
Ideal for large potsPowerFlex XL
Ample space: as the entire depth of the hob can be used, large cookware can be positioned perfectly.
The quietest TwoInOne from MieleSilence motor
Extra-quiet: developed by Miele, this motor is 25 % quieter than its predecessor at higher air throughput levels.
Permanent pot recognition
Autom. activation of numerical keybank: When turned on, crockery that has been placed is recognised immediately.MattFinish
The matt surface reduces scratches and fingerprints for a clean and elegant look.1,
Miele CleanCover
Protection and easy cleaning: the smooth concealed surface prevents contact with electrical components and motor.
Grease filters
Enjoy a spotless kitchen thanks to effective grease filters that can be easily cleaned in the dishwasher.
Flush-fit extractor
Flush and elegant: thanks to the discreet design, you can enjoy maximum design freedom in your kitchen.PowerFlex XL
Ample space: as the entire depth of the hob can be used, large cookware can be positioned perfectly.
Convenient additional functions
Numerous additional functions such as Stop & Go and the timer make life easier in the kitchen.Silence motor
Extra-quiet: developed by Miele, this motor is 25 % quieter than its predecessor at higher air throughput levels.ComfortSelect White
Elegant and convenient: conveniently control your Miele hob while enjoying its premium appearance.Domestic appliance networking with Miele@home2,
Make your life smart: thanks to Miele@home, you can cleverly network your domestic appliances – for more options.Con@ctivity
Innovative convenience: the cooker hood reacts automatically to settings on the hob.TwinBooster
Unique level of flexibility: Induction output can be individually distributed or used for one single zone.
Safety functions
Our safety functions prevent any unwanted surprises.
Matching products and accessories
Downloads
Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!
Descriptions
KMDA7676-1FL, KMDA7876-1FL, KMDA7676FL, KMDA7876FL
1) Front, 2) Removable drip tray, 3) Cleaning flap, 4) Mains connection box with mains connection cable, L = 1600 mm, 5) Worktop thickness, Exhaust air and guided recirculation mode: ≥10 mm, Plug&Play operation: ≥10 mm - ≤40 mm POSTSCRIPT
Descriptions
KMDA7676-1FL, KMDA7876-1FL, KMDA7676FL, KMDA7876FL - flush
1) Front, 2) removable drip tray, 3) cleaning flap, 4) Mains connection box with mains connection cable, L = 1600 mm, 5) Step milling natural stone worktop, 6) Wooden strip 12 mm (not included in delivery), 7) Worktop thickness, Exhaust air and guided recirculation mode: ≥10 mm, Plug&play operation: ≥10 mm - ≤40 mm POSTSCRIPT
Descriptions
KMDA7676-1FL, KMDA7876-1FL, KMDA7676FL, KMDA7876FL - Side view lying on top
①The rear wall of the cabinet must be removable for servicing. A minimum distance of 110 mm must be maintained for routing the exhaust air duct between the cabinet wall and an adjacent room wall or furniture., ②The removable collection tray and the cleaning flap must be accessible after installation. POSTSCRIPT
Descriptions
KMDA7676-1FL, KMDA7876-1FL, KMDA7676FL, KMDA7876FL - Side view lying on top+X
①The rear wall of the cabinet must be removable for servicing. A minimum distance of 110 mm must be maintained for routing the exhaust air duct between the cabinet wall and an adjacent room wall or furniture., ② The removable collection tray and the cleaning flap must be accessible after installation., , x Dimension by which the worktop depth is greater than 600 mm. POSTSCRIPT
Descriptions
KMDA7676-1FL, KMDA7876-1FL, KMDA7676FL, KMDA7876FL - Side view flush
①The rear wall of the cabinet must be removable for servicing. A minimum distance of 110 mm must be maintained for routing the exhaust air duct between the cabinet wall and an adjacent room wall or furniture., ②The removable collection tray and the cleaning flap must be accessible after installation. POSTSCRIPT
Descriptions
KMDA7676-1FL, KMDA7876-1FL, KMDA7676FL, KMDA7876FL - Side view flush+X
①The rear wall of the cabinet must be removable for servicing. A minimum distance of 110 mm must be maintained for routing the exhaust air duct between the cabinet wall and an adjacent room wall or furniture., ②The removable collection tray and the cleaning flap must be accessible after installation., , x Dimension by which the worktop depth is greater than 600 mm. POSTSCRIPT
Descriptions
KMDA7676-1FL, KMDA7876-1FL, KMDA7676FL, KMDA7876FL - Side view lying on top, Plug&Play
①When routing the exhaust air between the cabinet wall and an adjacent room wall or an adjacent piece of furniture, a minimum distance of 25 mm must be observed., ②The removable collection tray and the cleaning flap must be accessible after installation., ③The cross-section of the vent opening must be at least 425 cm²., ④Distance from the front of the lower box to the end of the plug & play adapter POSTSCRIPT
Descriptions
KMDA7676-1FL, KMDA7876-1FL, KMDA7676FL, KMDA7876FL - Side view lying on top+X, Plug&Play
①When routing the exhaust air between the cabinet wall and an adjacent room wall or an adjacent piece of furniture, a minimum distance of 25 mm must be observed. If the carcase rear wall is <gt/> 555 mm from the worktop front, the Plug&Play adapter must be extended with a supplementary set from Miele., ②The removable drip tray and the cleaning flap must be accessible after installation., ③The cross-section of the vent opening must be at least 425 cm²., ④Distance from the front of the lower box to the end of the plug & play adapter, , x Dimension by which the worktop depth is greater than 600 mm. POSTSCRIPT
Descriptions
KMDA7676-1FL, KMDA7876-1FL, KMDA7676FL, KMDA7876FL - Side view flush, Plug&Play
①When routing the exhaust air between the cabinet wall and an adjacent room wall or an adjacent piece of furniture, a minimum distance of 25 mm must be observed., ②The removable collection tray and the cleaning flap must be accessible after installation., ③The cross-section of the ventilation opening must be at least 425 cm²., ④Distance from the front of the lower box to the end of the plug & play adapter POSTSCRIPT
Descriptions
KMDA7676-1FL, KMDA7876-1FL, KMDA7676FL, KMDA7876FL - Side view flush+X, Plug&Play
①When routing the exhaust air between the cabinet wall and an adjacent room wall or an adjacent piece of furniture, a minimum distance of 25 mm must be observed. If the carcase rear wall is <gt/> 555 mm from the worktop front, the Plug&Play adapter must be extended with a supplementary set from Miele., ②The removable drip tray and the cleaning flap must be accessible after installation., ③The cross-section of the vent opening must be at least 425 cm²., ④Distance from the front of the lower box to the end of the plug & play adapter, , x Dimension by which the worktop depth is greater than 600 mm. POSTSCRIPT
Descriptions
KMDA7676-1FL, KMDA7876-1FL, KMDA7676FL, KMDA7876FL - Installation variant 1 Basis
1) DFK-AK 90, 2) DFK-R 1000 POSTSCRIPT
Descriptions
KMDA7676-1FL, KMDA7876-1FL, KMDA7676FL, KMDA7876FL - Installation variant 2 Basis
1) DFK-AK 90, 2) DFK-R 1000, 3) DFK-BV 90 POSTSCRIPT
Descriptions
KMDA7676-1FL, KMDA7876-1FL, KMDA7676FL, KMDA7876FL -Installation variant 3 Basis - drawing
1) DFK-AK 90, 2) DFK-R 1000, 3) DFK-BV 90, 4) DFK-BH 90 POSTSCRIPT
Descriptions
KMDA7676-1FL, KMDA7876-1FL, KMDA7676FL, KMDA7876FL - Installation variant 9 Exhaust air
1) DFK-AK 90, 2) DFK-R 1000, 3) DFK-BH 90, 4) DFK-A, 5) DMK 150-1 POSTSCRIPT
Descriptions
KMDA7676-1FL, KMDA7876-1FL, KMDA7676FL, KMDA7876FL - Installation variant 10 Exhaust air
1) DFK-AK 90, 2) DFK-R 1000, 3) DMK 150-1 POSTSCRIPT
Descriptions
KMDA7676-1FL, KMDA7876-1FL, KMDA7676FL, KMDA7876FL - Installation variant 11 Exhaust air
1) DMK 150-1, 2) Flex hose POSTSCRIPT
Descriptions
KMDA7676-1FL, KMDA7876-1FL, KMDA7676FL, KMDA7876FL - Installation variant 12 Exhaust air
1) DFK-AK 90, 2) DFK-R 1000, 3) DFK-BH 90, 4) DFK-A, 5) DMK 150-1 POSTSCRIPT
Descriptions
KMDA7676-1FL/FR, KMDA7876-1FL/FR, KMDA7676FL/FR, KMDA7876FL/FR, Exhaust air
KMDA7676-1FL/FR, KMDA7876-1FL/FR, KMDA7676FL/FR, KMDA7876FL/FR, Exhaust air POSTSCRIPT
- 1.Scratch resistance is tested and verified by TÜV SÜD.
- 2.This is a separate digital offer from Miele & Cie. KG. The range of functions can vary depending on the model and the country. Acceptance of the Terms and Conditions and Privacy Policy for Miele digital products and services in the Miele app required. Miele reserves the right to change or discontinue the digital offer at any time.
We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
