Induction hob with integrated vapour extraction
KMDA 7676 FL-A BlackPerfection
with two extra large PowerFlex XL cooking areas for extraction mode
sale price£3,699.00
Buy now. Pay with Klarna. Learn more
Installation and recycling options available at checkout. For installation of built-in appliances please call 0330 160 6630
Product details
- The quietest TwoInOne from Miele –Silence motorLoading...
- Suitable for flexible extraction installations (e.g. with DFKS-AR)
- Ample space – 4 large cooking zones incl.2 PowerFlex XL areasLoading...
- Automatic fan power regulation –Con@ctivityLoading...
- All-black design ensures an elegant appearance
- Manufactured with great care by
- Safety Information
Heating type Induction
Induction hob with integrated vapour extraction
Exhaust air guided with optional accessories [
"DFK-xxxx",
"DMK 150-1"
]
Elegant glass ceramic surface
Frameless – surface-mounted
Flush
Surface-mounted/flush-fit •/•
Ceramic surface colour Black
Flush fit extractor
Colour of cover grille Black
Grease filter colour Black
Number of cooking zones 4
Number of cooking areas 2
Number of cooking zones/cooking areas 4/2
Maximum number of pans 4
No. 4
Type PowerFlex XL cooking area
Diameter in mm Ø 150 – 230
Rating in W 2100
Booster in W 3000
TwinBooster in W 3650
Max. rating / Booster rating / TwinBooster rating in W 2100/3000/3650
Position Left
Type PowerFlex XL cooking area
Size in mm 230x460
Max. rating in W 3400
Max. Booster power rating in W 4800
Max. TwinBooster power rating in W 7300
Max. rating / Booster rating / TwinBooster rating in W 3400/4800/7300
Position right
Type PowerFlex XL cooking area
Size in mm 230x460
Max. rating in W 3400
Max. Booster power rating in W 4800
Max. TwinBooster power rating in W 7300
Max. rating / Booster rating / TwinBooster rating in W 3400/4800/7300
Max. rating / Booster rating / TwinBooster rating in W –/–/–
Max. rating / Booster rating / TwinBooster rating in W –/–/–
Operation via sensor controls ComfortSelect White
Loading...
Display colour White
Miele@home
Automatic function Con@ctivity
Loading...
Digital power level display
Permanent pan recognition
Loading...
Keeping warm
Stop & Go function
Recall function
Loading...
Minute minder
Safety switch-off
Auto heat-up
Individual setting options (e.g. buzzers)
Loading...
Run-on time 5/15 min.

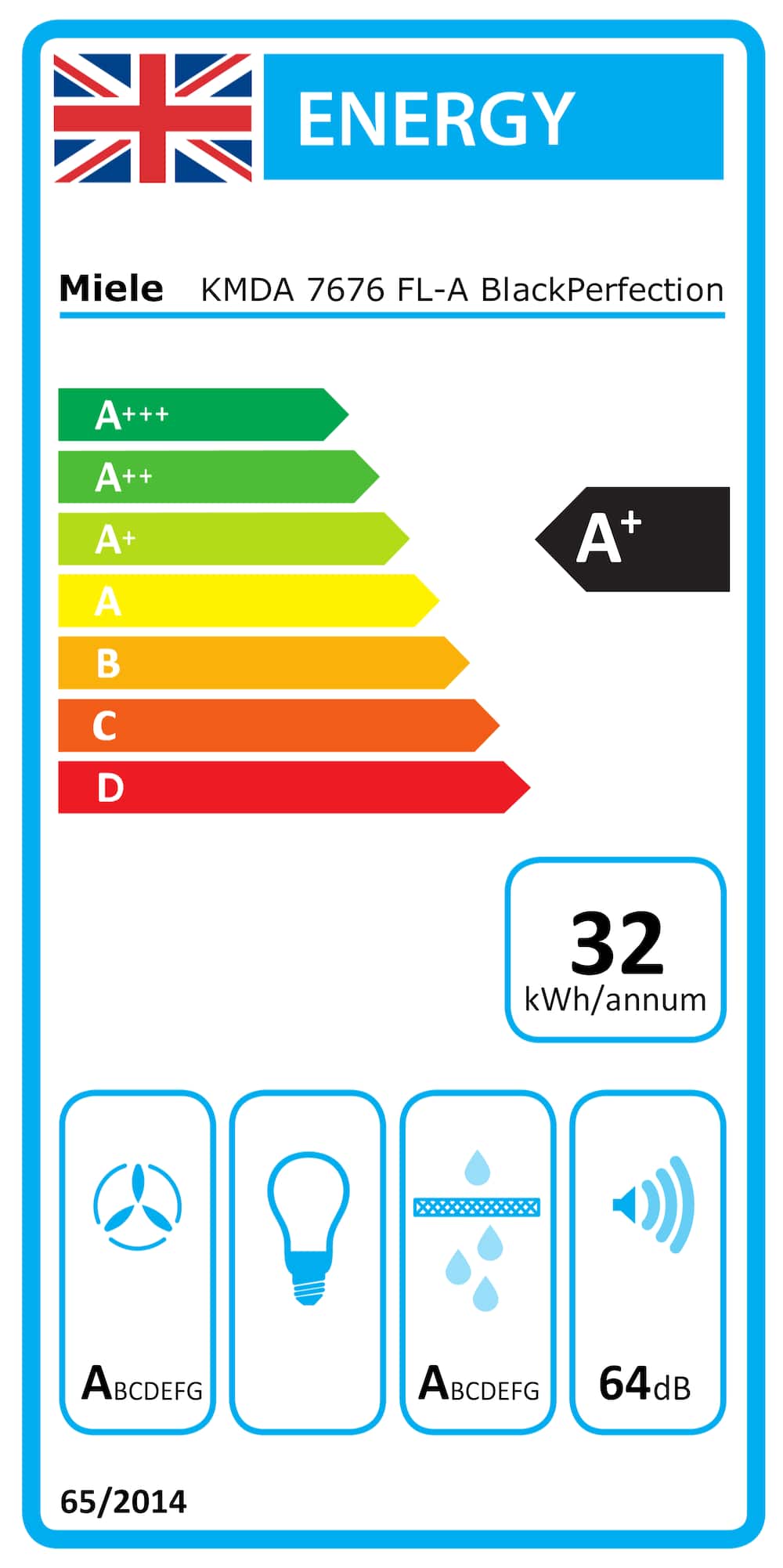

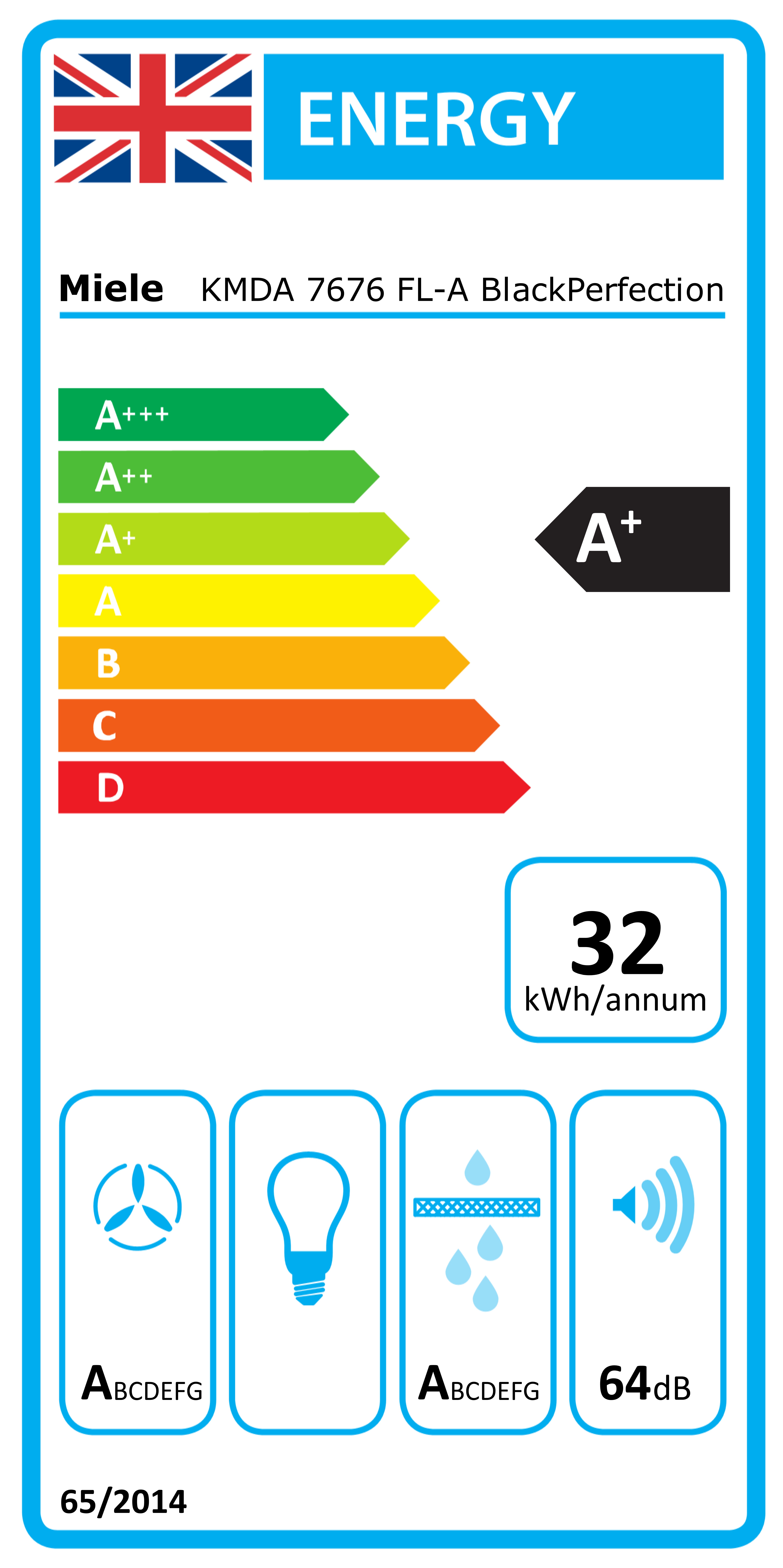

Energy efficiency class (A+++ to D) A+
Annual energy consumption in kWh/year 31.5
Fluid dynamic efficiency class A
Lighting efficiency class NA
Grease filtering efficiency class A
ECO motor
Loading...
Easy to clean ceramic glass
Wipe protection
Easy-to-clean canopy interior – CleanCover
Loading...
Number of dishwasher safe stainless-steel grease filters (10-ply) 1
Air throughput at min. level (m³/h) according to EN 61591 195
Air throughput at max. level (m³/h) according to EN 61591 538
Air throughput at max level / Booster (m³/h) 530/610
Air throughput in Intensive level (m³/h) according to EN 61591 615
Sound power at min. level (dB(A) re 1 pW) according to EN 60704-3 41
Sound power at max. level (dB(A) re 1 pW) according to EN 60704-3 64
Max. sound power level / Booster (dB) 64.0/67.0
Sound power in Booster level (dB(A) re 1 pW) acc. to EN 60704-3 67
Sound pressure at min. level (dB(A) re 20 µPa) according to EN 60704-2-13 27
Sound pressure at max. level (dB(A) re 20 µPa) according to EN 60704-2-13 50
Max. sound pressure level / Booster (dB) 50.0/53.0
Noise pressure level in Intensive level (dB(A) re 20 µPa) according to EN 60704-2-13 53
Air throughput at max level / Booster (m³/h) –/–
Max. sound power level / Booster (dB) –/–
Max. sound pressure level / Booster (dB) –/–
Safety switch-off
Loading...
Lock function
Loading...
System lock
Integrated cooling fan
Overheating protection
Residual heat indicator
Dimensions (W x H x D) in mm 800 x 238 x 520
Dimensions in mm (width) 800
Dimensions in mm (height) 238
Dimensions in mm (depth) 520
Casing height incl. connection box in mm 238
Cutout dimensions in mm (width) with surface-mounted installation 780 mm
Cutout dimensions in mm (depth) with surface-mounted installation 500 mm
Internal cutout dimensions in mm (width) with flush installation 780
Internal cutout dimensions in mm (depth) with flush installation 500
External cutout dimensions in mm (width) with flush installation 804
External cutout dimensions in mm (depth) with flush installation 524
Weight in kg 20
Total rated load in kW 7.500
Voltage in V 230
Frequency in Hz 50-60
Length of supply lead in m 1.4
Mains cable Yes
Active charcoal filter DKF 35-P No
EAN 4002516777793
Mains cable
State-of-the-art
Con@ctivity
Innovative convenience: the cooker hood reacts automatically to settings on the hob.
Ideal for large pots
PowerFlex XL
Ample space: as the entire depth of the hob can be used, large cookware can be positioned perfectly.
Power function for fast heat generation
TwinBooster
Unique level of flexibility: Induction output can be individually distributed or used for one single zone.
Easy and elegant operation: white numerical display
ComfortSelect White
Elegant and convenient: conveniently control your Miele hob while enjoying its premium appearance.
Best use of energy
Permanent pot recognition
Autom. activation of numerical keybank: When turned on, crockery that has been placed is recognised immediately.
Convenience and safety in detail
Miele CleanCover
Protection and easy cleaning: the smooth concealed surface prevents contact with electrical components and motor.
Ideal for large pots
PowerFlex XL
Ample space: as the entire depth of the hob can be used, large cookware can be positioned perfectly.
Convenient additional functions
Convenient additional functions
Numerous additional functions such as Stop & Go and the timer make life easier in the kitchen.
Aesthetically pleasing and highly functional
Stainless steel grease filters
Convenient cleaning: The high-quality metal grease filters are dishwasher-proof and extremely durable.
Vapour extraction at its best
Flush-fit extractor
Flush and elegant: thanks to the discreet design, you can enjoy maximum design freedom in your kitchen.
State-of-the-art
Con@ctivity
Innovative convenience: the cooker hood reacts automatically to settings on the hob.
Power function for fast heat generation
TwinBooster
Unique level of flexibility: Induction output can be individually distributed or used for one single zone.
Easy and elegant operation: white numerical display
ComfortSelect White
Elegant and convenient: conveniently control your Miele hob while enjoying its premium appearance.
The heart of every cooker hood
ECO motor
Powerful and quiet: the DC motor is efficient and particularly smooth running.
Safety for all
Safety functions
Our safety functions prevent any unwanted surprises.
Matching products and accessories
Downloads
Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!
Descriptions
KMDA7676FL, KMDA7876FL - Installation drawing
1) Front, 2) Removable drip tray, 3) Cleaning flap, 4) Mains connection box with mains connection cable, L = 1600 mm, 5) Worktop thickness, Exhaust air and guided recirculation mode: ≥10 mm, Plug&Play operation: ≥10 mm - ≤40 mm
Descriptions
KMDA7676FL, KMDA7876FL - flush - Installation drawing
1) Front, 2) removable drip tray, 3) cleaning flap, 4) Mains connection box with mains connection cable, L = 1600 mm, 5) Step milling natural stone worktop, 6) Wooden strip 12 mm (not included in delivery), 7) Worktop thickness, Exhaust air and guided recirculation mode: ≥10 mm, Plug&play operation: ≥10 mm - ≤40 mm
Descriptions
KMDA7676FL, KMDA7876FL - Side view lying on top - Installation drawing
①The rear wall of the cabinet must be removable for servicing. A minimum distance of 110 mm must be maintained for routing the exhaust air duct between the cabinet wall and an adjacent room wall or furniture., ②The removable collection tray and the cleaning flap must be accessible after installation.
Descriptions
KMDA7676FL, KMDA7876FL - Side view lying on top+X - Installation drawing
①The rear wall of the cabinet must be removable for servicing. A minimum distance of 110 mm must be maintained for routing the exhaust air duct between the cabinet wall and an adjacent room wall or furniture., ② The removable collection tray and the cleaning flap must be accessible after installation., , x Dimension by which the worktop depth is greater than 600 mm.
Descriptions
KMDA7676FL, KMDA7876FL - Side view flush - Installation drawing
①The rear wall of the cabinet must be removable for servicing. A minimum distance of 110 mm must be maintained for routing the exhaust air duct between the cabinet wall and an adjacent room wall or furniture., ②The removable collection tray and the cleaning flap must be accessible after installation.
Descriptions
KMDA7676FL, KMDA7876FL - Side view flush+X - Installation drawing
①The rear wall of the cabinet must be removable for servicing. A minimum distance of 110 mm must be maintained for routing the exhaust air duct between the cabinet wall and an adjacent room wall or furniture., ②The removable collection tray and the cleaning flap must be accessible after installation., , x Dimension by which the worktop depth is greater than 600 mm.
Descriptions
KMDA7676FL, KMDA7876FL - Side view lying on top, Plug&Play - Installation drawing
①When routing the exhaust air between the cabinet wall and an adjacent room wall or an adjacent piece of furniture, a minimum distance of 25 mm must be observed., ②The removable collection tray and the cleaning flap must be accessible after installation., ③The cross-section of the vent opening must be at least 425 cm²., ④Distance from the front of the lower box to the end of the plug & play adapter
Descriptions
KMDA7676FL, KMDA7876FL - Side view lying on top+X, Plug&Play - Installation drawing
①When routing the exhaust air between the cabinet wall and an adjacent room wall or an adjacent piece of furniture, a minimum distance of 25 mm must be observed. If the carcase rear wall is <gt/> 555 mm from the worktop front, the Plug&Play adapter must be extended with a supplementary set from Miele., ②The removable drip tray and the cleaning flap must be accessible after installation., ③The cross-section of the vent opening must be at least 425 cm²., ④Distance from the front of the lower box to the end of the plug & play adapter, , x Dimension by which the worktop depth is greater than 600 mm.
Descriptions
KMDA7676FL, KMDA7876FL - Side view flush, Plug&Play - Installation drawing
①When routing the exhaust air between the cabinet wall and an adjacent room wall or an adjacent piece of furniture, a minimum distance of 25 mm must be observed., ②The removable collection tray and the cleaning flap must be accessible after installation., ③The cross-section of the ventilation opening must be at least 425 cm²., ④Distance from the front of the lower box to the end of the plug & play adapter
Descriptions
KMDA7676FL, KMDA7876FL - Side view flush+X, Plug&Play - Installation drawing
①When routing the exhaust air between the cabinet wall and an adjacent room wall or an adjacent piece of furniture, a minimum distance of 25 mm must be observed. If the carcase rear wall is <gt/> 555 mm from the worktop front, the Plug&Play adapter must be extended with a supplementary set from Miele., ②The removable drip tray and the cleaning flap must be accessible after installation., ③The cross-section of the vent opening must be at least 425 cm²., ④Distance from the front of the lower box to the end of the plug & play adapter, , x Dimension by which the worktop depth is greater than 600 mm.
Descriptions
KMDA7676FL, KMDA7876FL - Installation variant 1 Basis -drawing
1) DFK-AK 90, 2) DFK-R 1000
Descriptions
KMDA7676FL, KMDA7876FL - Installation variant 2 Basis - drawing
1) DFK-AK 90, 2) DFK-R 1000, 3) DFK-BV 90
Descriptions
KMDA7676FL, KMDA7876FL -Installation variant 3 Basis - drawing
1) DFK-AK 90, 2) DFK-R 1000, 3) DFK-BV 90, 4) DFK-BH 90
Descriptions
KMDA7676FL, KMDA7876FL - Installation variant 9 Exhaust air - drawing
1) DFK-AK 90, 2) DFK-R 1000, 3) DFK-BH 90, 4) DFK-A, 5) DMK 150-1
Descriptions
KMDA7676FL, KMDA7876FL - Installation variant 10 Exhaust air - drawing
1) DFK-AK 90, 2) DFK-R 1000, 3) DMK 150-1
Descriptions
KMDA7676FL, KMDA7876FL - Installation variant 11 Exhaust air - drawing
1) DMK 150-1, 2) Flex hose
Descriptions
KMDA7676FL, KMDA7876FL - Installation variant 12 Exhaust air - drawing
1) DFK-AK 90, 2) DFK-R 1000, 3) DFK-BH 90, 4) DFK-A, 5) DMK 150-1
Descriptions
KMDA7676FL/FR, KMDA7876FL/FR, Exhaust air (Installation drawing)
