Induction hob with onset controls

KM 7363 FL

with flex cooking area for large cookware


sale price£1,079.00

Buy now. Pay with Klarna. Learn more

Installation and recycling options available at checkout. For installation of built-in appliances please call 0330 160 6630



Product details

  • Quick selection via numerical keybank – ComfortSelect
  • 4 cooking zones incl. 1 flex cooking area
  • A width of 620 mm for surface-mounted or flush-fit installation
  • Communication with the cooker hood – automatic
    Con@ctivity
    function
  • Convenient use of large cookware items thanks to combinableFlex cooking zones
  • Manufactured with great care by
  • Safety Information

Product data sheet

Heating type Induction
Independent of cooker
Elegant glass ceramic surface
Ceramic surface colour Black
Flush
Surface-mounted installation
Surface-mounted/flush-fit •/•
Number of cooking zones 4
Number of cooking areas 1
Number of cooking zones/cooking areas –/–
Maximum number of pans 4
No. 2
Type Flex cooking zone
Size in mm Ø 110-210
Max. rating in W 2100
Max. Booster power rating in W 3000
Position front left
Type Dual-circuit ring
Size in mm Ø 90-160
Max. rating in W 1350
Max. Booster power rating in W 1850
Position rear left
Type Dual-circuit ring
Size in mm Ø 110-220
Max. rating in W 2300
Max. Booster power rating in W 3000
Position right
Type Flex cooking zone
Size in mm 210x400
Max. rating in W 3000
Max. Booster power rating in W 3650
Networking with Miele@home
Automatic function Con@ctivity

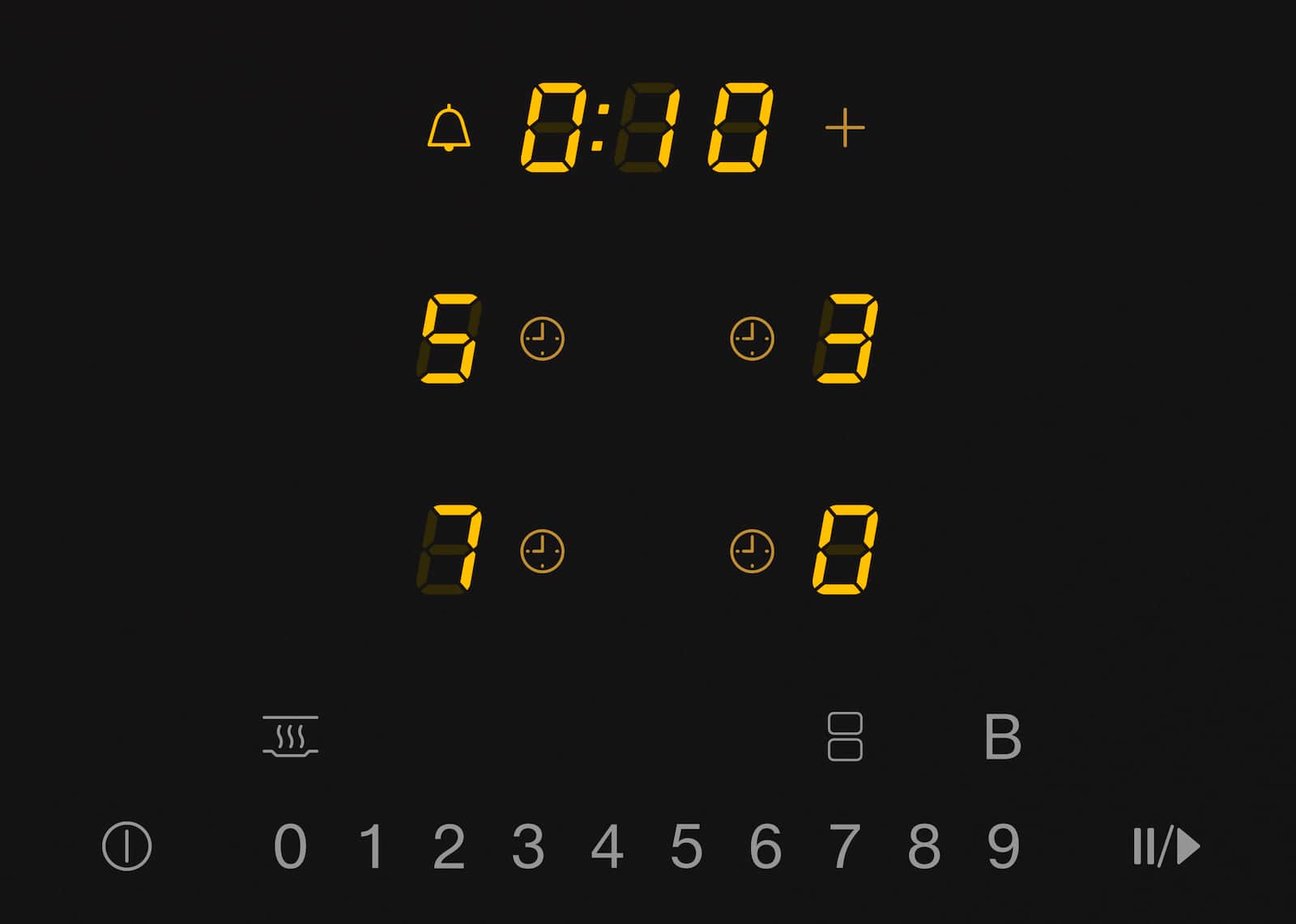

Operation via sensor controls ComfortSelect
Display colour Yellow
Permanent pan recognition
Pan and pan size recognition
Stop & Go function
Recall function
Minute minder
Safety switch-off
Auto heat-up
Keeping warm
Individual setting options (e.g. buzzers)
Residual heat utilisation
Power rating in off mode in W 0.5
Power rating in standby mode in W 0.8
Power rating in networked standby in W 2
Time until automatic switch to off mode in min 10
Time until automatic switch to standby in min 10
Time until automatic switch to networked standby in min 10
Easy to clean ceramic glass
Safety switch-off
Lock function
System lock
Integrated cooling fan
Overheating protection
Residual heat indicator
Dimensions (H x W x D) in mm 53 x 620 x 520
Dimensions in mm (width) 620
Dimensions in mm (height) 53
Dimensions in mm (depth) 520
Cut-out dimensions (W x D) with surface-mounted installation in mm 600 mm - 600 mm x 490 mm - 500 mm
Cut-out dimensions (W x D) with flush-fit installation in mm 600/624 x 500/524
Casing height incl. connection box in mm 53
Cutout dimensions in mm (width) with surface-mounted installation 600 mm - 600 mm
Cutout dimensions in mm (depth) with surface-mounted installation 490 mm - 500 mm
Internal cutout dimensions in mm (width) with flush installation 600
Internal cutout dimensions in mm (depth) with flush installation 500
External cutout dimensions in mm (width) with flush installation 624
External cutout dimensions in mm (depth) with flush installation 524
Weight in kg 9
Total rated load in kW 7.300
Voltage in V 230
Frequency in Hz 50-60
Length of supply lead in m 1.4
Mains cable
EAN 4002516732808

What's included

Mains cable

Setup/function

Smart control
Con@ctivity

Innovative convenience: the cooker hood reacts automatically to settings on the hob.


Added convenience
Convenient additional functions

Numerous additional functions such as Stop & Go and the timer make life easier in the kitchen.


Set down your pan and get cooking
Permanent pan detection

Automatic control element activation: when the hob is turned on, pans which are already in place are detected.


Safety

For greater safety and security
Safety functions

The safety functions prevent any unpleasant surprises – even if your mind is on other things.


Downloads

Warranty conditions
PDF
Downloads
Operating instructions/Installation instructions
PDF
Downloads
Product sheet
PDF
Downloads
rfa
ZIP
Downloads
rvt
ZIP
Downloads
fbx
ZIP
Downloads
dwg
ZIP
Downloads
ifc
ZIP
Downloads
Product fiche
PDF
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/images/2000019/200001966/20000196674.png
Descriptions

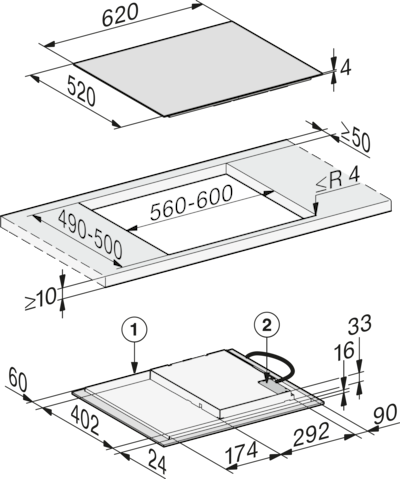

KM7363FL surface-mounted (*Fußnote) (Installation drawing)
1) front, 2) Mains connection box, The mains connection cable (L = 1440 mm) is enclosed loose
Downloads
https://media.miele.com/images/2000019/200001966/20000196675.png
Descriptions

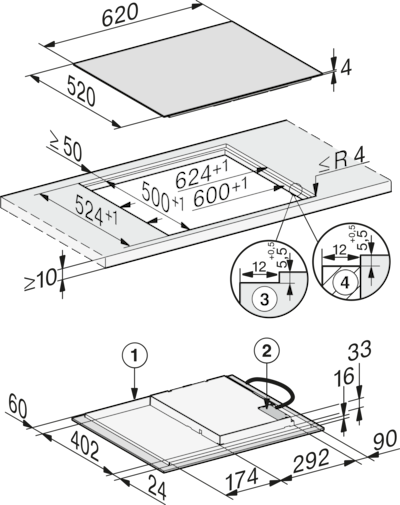

KM7363FL flush (*Fußnote) (Installation drawing)
1) front, 2) Mains connection box, The mains connection cable (L = 1440 mm) is enclosed loosely, 3) Step milling natural stone worktop, 4) Wooden strip 12 mm (no supplied accessories)
Downloads
