  • Miele - KM 7699 FR Stainless steel – Hobs - 1
Induction hob with onset controlsPLATINUM

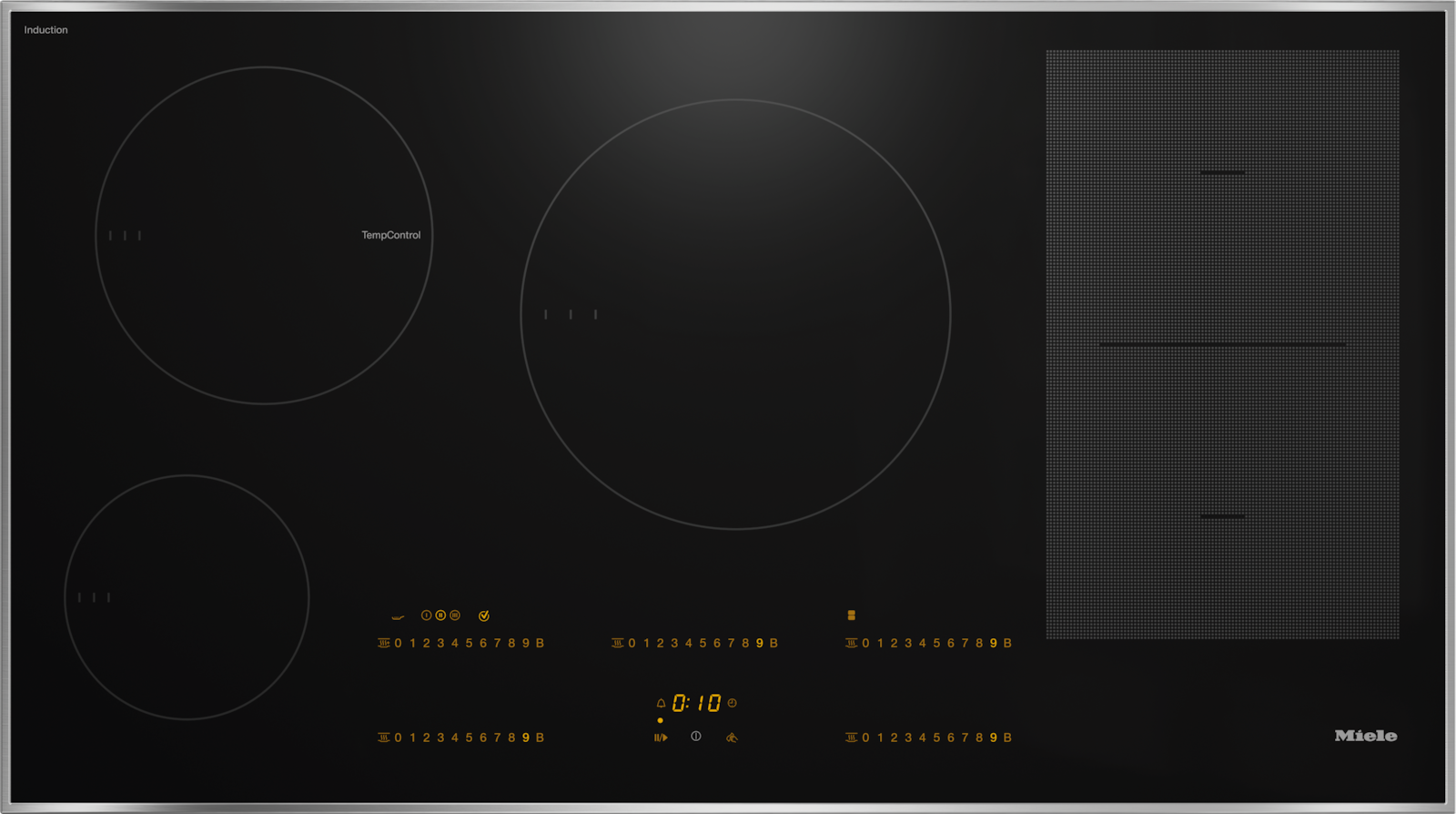

KM 7699 FR Stainless steel

(5 reviews) with TempControl for perfect frying results
Colour:Stainless steel
Product data sheet
Permanently out of stock
View alternative products

Product data sheet

Model identifier KM 7699 FR
Manufacturer material number 11515550
EAN number 4002516338796
Marketing class
Platinum
Heating type Induction
Independent of cooker
Elegant glass ceramic surface
Ceramic surface colour Black
Stainless-steel frame
Surface-mounted installation
Number of cooking zones 5
Number of cooking areas 1
Maximum number of pans 5
No. 2
Type PowerFlex cooking zone
Size in mm Ø 150 – 230
Max. rating in W 2100
Max. Booster power rating in W 3000
Max. TwinBooster power rating in W 3650
Position front left
Type Dual-circuit ring
Size in mm Ø 100-160
Max. rating in W 1400
Max. Booster power rating in W 1700
Max. TwinBooster power rating in W 2200
Position rear left
Type TempControl cooking zone
Size in mm Ø 160-230
Max. rating in W 2300
Max. Booster power rating in W 3000
Max. TwinBooster power rating in W 3650
Position rear centre
Type Dual-circuit ring
Size in mm Ø 180-280
Max. rating in W 2600
Max. Booster power rating in W 3000
Max. TwinBooster power rating in W 3650
Position right
Type PowerFlex bridge
Size in mm 230x390
Max. rating in W 3400
Max. Booster power rating in W 4800
Max. TwinBooster power rating in W 7300
Networking with Miele@home
Con@ctivity

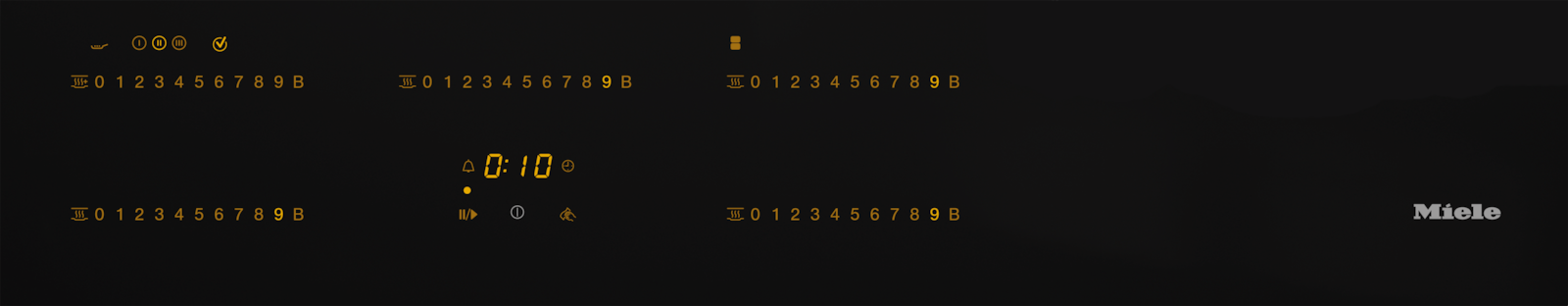

Operation via sensor controls SmartSelect
TempControl
Display colour Yellow
Pan and pan size recognition
Permanent pan recognition
Stop & Go function
Wipe protection
Recall function
Minute minder
Safety switch-off
Auto heat-up
Keeping warm
Keeping warm plus
Individual setting options (e.g. buzzers)
Power rating in off mode in W 0.5
Power rating in standby mode in W 0.8
Power rating in networked standby in W 2
Time until automatic switch to off mode in min 10
Time until automatic switch to standby in min 10
Time until automatic switch to networked standby in min 10
Easy to clean ceramic glass
Safety switch-off
Lock function
System lock
Integrated cooling fan
Overheating protection
Residual heat indicator
Dimensions (H x W x D) in mm 52 x 942 x 526
Dimensions in mm (width) 942
Dimensions in mm (height) 52
Dimensions in mm (depth) 526
Cut-out dimensions (W x D) with surface-mounted installation in mm 916 mm x 500 mm
Casing height incl. connection box in mm 45
Cutout dimensions in mm (width) with surface-mounted installation 916 mm
Cutout dimensions in mm (depth) with surface-mounted installation 500 mm
Weight in kg 16
Total rated load in kW 11
Voltage in V 230
Frequency in Hz 50-60
Length of supply lead in m 1.4
Mains cable
EAN 4002516338796

What's included

Mains cable
  • The secret to perfect cooking results

    The secret to perfect cooking results

    CookAssist1,

    Step-by-step instructions via the app for precise cooking.

  • Cleverly networked

    Cleverly networked

    Domestic appliance networking with Miele@home1,

    Make your life smart: thanks to Miele@home, you can cleverly network your domestic appliances – for more options.

  • Smart control

    Smart control

    Con@ctivity

    Innovative convenience: the cooker hood reacts automatically to settings on the hob.

  • Frying couldn’t be easier

    Frying couldn’t be easier

    TempControl

    Perfect frying results every time: the temperature of the pan is kept constant and nothing can burn.

  • Ideal for large pans

    Ideal for large pans

    PowerFlex

    Unbeatably fast and versatile: the booster output of up to 7.3 kW.

Setup/function

Smart control
Smart control

Con@ctivity

Innovative convenience: the cooker hood reacts automatically to settings on the hob.
Frying couldn’t be easier
Frying couldn’t be easier

TempControl

Perfect frying results every time: the temperature of the pan is kept constant and nothing can burn.
Ideal for large pans
Ideal for large pans

PowerFlex

Unbeatably fast and versatile: the booster output of up to 7.3 kW.
Heats up particularly quickly thanks to Booster
Heats up particularly quickly thanks to Booster

TwinBooster

Distribute the induction power across several cooking zones or concentrate the power on one cooking zone.
Added convenience
Added convenience

Convenient additional functions

Numerous additional functions such as Stop & Go and the timer make life easier in the kitchen.
Set down your pan and get cooking
Set down your pan and get cooking

Permanent pan detection

Automatic control element activation: when the hob is turned on, pans which are already in place are detected.

User convenience

Cleverly networked
Cleverly networked

Domestic appliance networking with Miele@home1,

Make your life smart: thanks to Miele@home, you can cleverly network your domestic appliances – for more options.
Operate your hob simply and intuitively
Operate your hob simply and intuitively

SmartSelect

Thanks to the intuitive controls, you can quickly and easily select power levels and individual timers.

Safety

For greater safety and security
For greater safety and security

Safety functions

The safety functions prevent any unpleasant surprises – even if your mind is on other things.

Smart Extras

  • The secret to perfect cooking results

    The secret to perfect cooking results

    CookAssist1,

    Step-by-step instructions via the app for precise cooking.

What our customers say

(5 reviews)
5 stars
4 reviews
4 stars
1 review
3 stars
0 reviews
2 stars
0 reviews
1 star
0 reviews

Most recent reviews

Matching products and accessories

Pan set (4-piece)
KMTS 5704-3

Pan set (4-piece)

made of robust and high-quality stainless steel, lid with side steam outlet.

£628.99
Induction compatible gourmet oven dish
HUB 5001-M

Induction compatible gourmet oven dish

For frying, braising and gratinating.

£249.99
Gourmet griddle plate
GGRP

Gourmet griddle plate

for a unique grilling experience on Miele induction hobs.

£273.39
Tepan Yaki
KMTY

Tepan Yaki

for a unique cooking experience on Miele induction hobs.

£271.99
Frying pan (28 cm)
KMBP 2800-3

Frying pan (28 cm)

made from stainless steel for lasting performance even at high temperatures.

£167.99
Gourmet casserole dish lid
HBD 60-22

Gourmet casserole dish lid

compatible with HUB 61-22, HUB 62-22, HUB 5000-M and HUB 5001-M.

£114.79
Ceramic and stainless steel cleaner, 250 ml
GP CL KM 0252 L

Ceramic and stainless steel cleaner, 250 ml

For best cleaning results and safe use.

£7.49
Scraper for cleaning
GP GS KM 0011 M

Scraper for cleaning

For ceramic glass hobs.

£11.99
MicroCloth kit, 3 pieces
GP MI S 0031 W

MicroCloth kit, 3 pieces

For best cleaning results and safe use.

£17.39
Multi-purpose microfibre cloth, qty 1
GP MI X 0011 W

Multi-purpose microfibre cloth, qty 1

For best cleaning results and safe use.

£8.69

Downloads

Operating instructions/Installation instructions
PDF
Downloads
Product sheet
PDF
Downloads
Warranty conditions
PDF
Downloads
dwg
ZIP
Downloads
fbx
ZIP
Downloads
ifc
ZIP
Downloads
rfa
ZIP
Downloads
rvt
ZIP
Downloads
Product fiche
PDF
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/images/2000016/200001677/20000167783.png
Descriptions

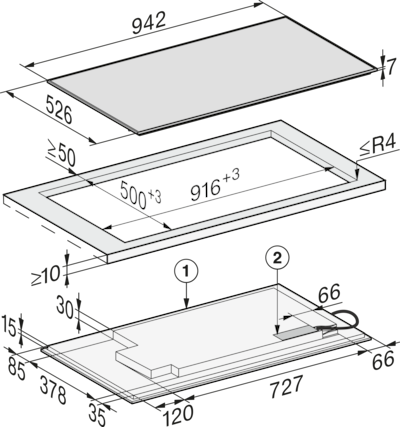

KM 7699 FR (installtion drawing)
1) Front , 2) Mains connection box with mains connection cable, L = 1440 mm, are enclosed loosely
