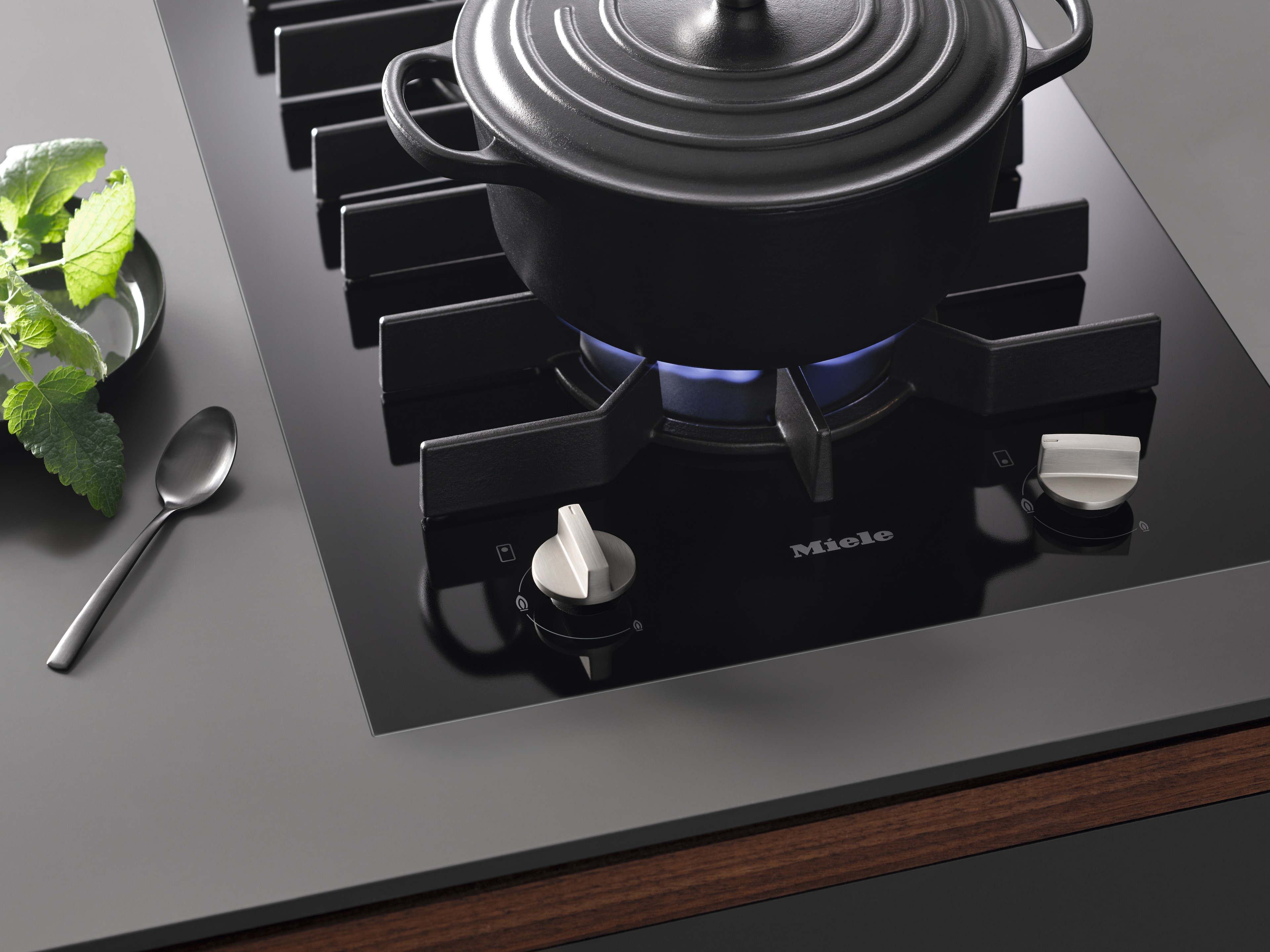

CS 7102-1 FL

SmartLine element

CS 7102-1 FL Black

Name: CS 7102-1 FL
Brand: Miele
SKU: 11402730
Price: 1529 GBP
Availability: InStock

with two burners

Product data sheet

Colour:Black

£1,529.00

Buy now. Pay with Klarna. Learn more

Installation and recycling options available at checkout. For installation of built-in appliances please call 0330 160 6630

Product details

Simple controls -single-handed operation via rotary dial control
Elegant design – for flush or raised installation
Seamlessly integrates with any
SmartLine element
Particularly versatile - 1 medium burner and 1 large burner
Easy cleaning - dishwasher-safe ComfortClean pot rests
Manufactured with great care by
Safety Information

Product data sheet

Heating type Gas

SmartLine

Elegant glass ceramic surface

Ceramic surface colour Black

Flush

Surface-mounted installation

Cast iron pot rests (matt black enamelled)

Number of cooking zones 2

Medium burner in kW 1.70

Large burner in kW 2.70

Position front centre

Type Standard burner

Size in mm Ø 120-220

Max. rating in W 1700

Position rear centre

Type High-speed burner

Size in mm Ø 140-240

Max. rating in W 2700

Operation via sensor controls Knob

Operation via knobs

Electronic ignition with single-hand operation

Easy to clean ceramic glass

Dishwasher-proof pot rests

GasStop

Dimensions (W x D) in mm 378 x 92 x 520

Dimensions in mm (width) 378

Dimensions in mm (height) 92

Dimensions in mm (depth) 520

Cut-out dimensions (W x D) with surface-mounted installation in mm 358 mm x 500 mm

Casing height incl. connection box in mm 92

Cutout dimensions in mm (width) with surface-mounted installation 358 mm

Cutout dimensions in mm (depth) with surface-mounted installation 500 mm

Internal cutout dimensions in mm (width) with flush installation 358

Internal cutout dimensions in mm (depth) with flush installation 500

External cutout dimensions in mm (width) with flush installation 382

External cutout dimensions in mm (depth) with flush installation 524

Weight in kg 7

Total rated load in kW 4.400

Position of gas connection Hinten links

Voltage in V 220-240

Frequency in Hz 50-60

Length of supply lead in m 1.4

CSFG 7000 FlameGuard

Mains cable

Jets for natural gas

Jets for liquid gas

EAN 4002516306252

What's included

Mains cable

Jets for liquid gas

Jets for natural gas

CSFG 7000 FlameGuard

Efficiently protects and makes cleaning easier

ComfortClean pot rests

Fast cleaning: remove the pot rests and wash in the dishwasher. Keeps gas hobs looking good for longer.

Flame failure monitor for maximum safety

GasStop

Reassuring: if the flame is extinguished, for example by a draught, the continued supply of gas is prevented.

User convenience

Easy ignition of the flame

Electronic ignition with single-handed operation

No need for matches or lighters: automatic ignition of burners thanks to intelligent technology.

Maintenance

Efficiently protects and makes cleaning easier

ComfortClean pot rests

Fast cleaning: remove the pot rests and wash in the dishwasher. Keeps gas hobs looking good for longer.

Design

Design in detail

Metal knobs

Perfect convenience: the gas elements can be intuitively operated via high-quality metal knobs.

Safety

Flame failure monitor for maximum safety

GasStop

Reassuring: if the flame is extinguished, for example by a draught, the continued supply of gas is prevented.

Matching products and accessories

Spacer strip

for installing several SmartLine elements in one single cut-out.

KMTS 5704-3

Pan set (4-piece)

made of robust and high-quality stainless steel, lid with side steam outlet.

Spacer strip

for installing several SmartLine elements in one single cut-out.

KMBP 2800-2

Fiskars “All Steel” frying pan (28 cm)

made from stainless steel for lasting performance even at high temperatures.

KMKT 1615-3

Pot (16 cm / 1.5 l)

made of robust and high-quality stainless steel, lid with side steam outlet.

KMST 1615-3

Saucepan (16 cm / 1.5 l)

made of robust and high-quality stainless steel, lid with side steam outlet.

KMKT 2460-3

Casserole (24 cm / 6 l)

made of robust and high-quality stainless steel, lid with side steam outlet.

GP GS KM 0011 M

Scraper for cleaning

For ceramic glass hobs.

GP MI X 0011 W

Multi-purpose microfibre cloth, qty 1

For best cleaning results and safe use.

GP MI S 0031 W

MicroCloth kit, 3 pieces

For best cleaning results and safe use.

GP GSB KM 0101 M

Replacement blades, 10 pieces

For cleaning scraper.

Downloads

Product sheet

PDF

Downloads

Warranty conditions

PDF

Downloads

Operating instructions/Installation instructions

PDF

Downloads

rvt

ZIP

Downloads

rfa

ZIP

Downloads

fbx

ZIP

Downloads

ifc

ZIP

Downloads

dwg

ZIP

Downloads

Product fiche

PDF

Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/images/2000013/200001320/20000132003.png

Descriptions

CS7102FL, CS7102-1FL flush (installation drawing)

1) Front, 2) Mains connection box with mains connection cable, L = 2000 mm, 3) Stepped cut-out, 4) Wooden frame 12 mm (supplied loose), 5) Gas connection 1/2 - ISO 7-1 (DIN EN 10226)

Downloads

https://media.miele.com/images/2000013/200001320/20000132004.png

Descriptions

CS7102FL, CS7102-1FL (installation drawing)

1) Front, 2) Mains connection box with mains connection cable, L = 2000 mm, 3) Gas connection 1/2 - ISO 7-1 (DIN EN 10226)

Downloads

https://media.miele.com/images/2000013/200001326/20000132666.png

Descriptions

CS 7000 FL (Installation drawing)

Installation drawings

Downloads

https://media.miele.com/images/2000013/200001355/20000135550.png

Descriptions

CS 7000 FL, flush (Installation drawing)

*7+0,5 = CS7611 (Wok)
