  • Miele - KM 7575 FR Stainless steel – Hobs - 1
  • Miele - KM 7575 FR Stainless steel – Hobs - 2
Induction hob with onset controlsGold

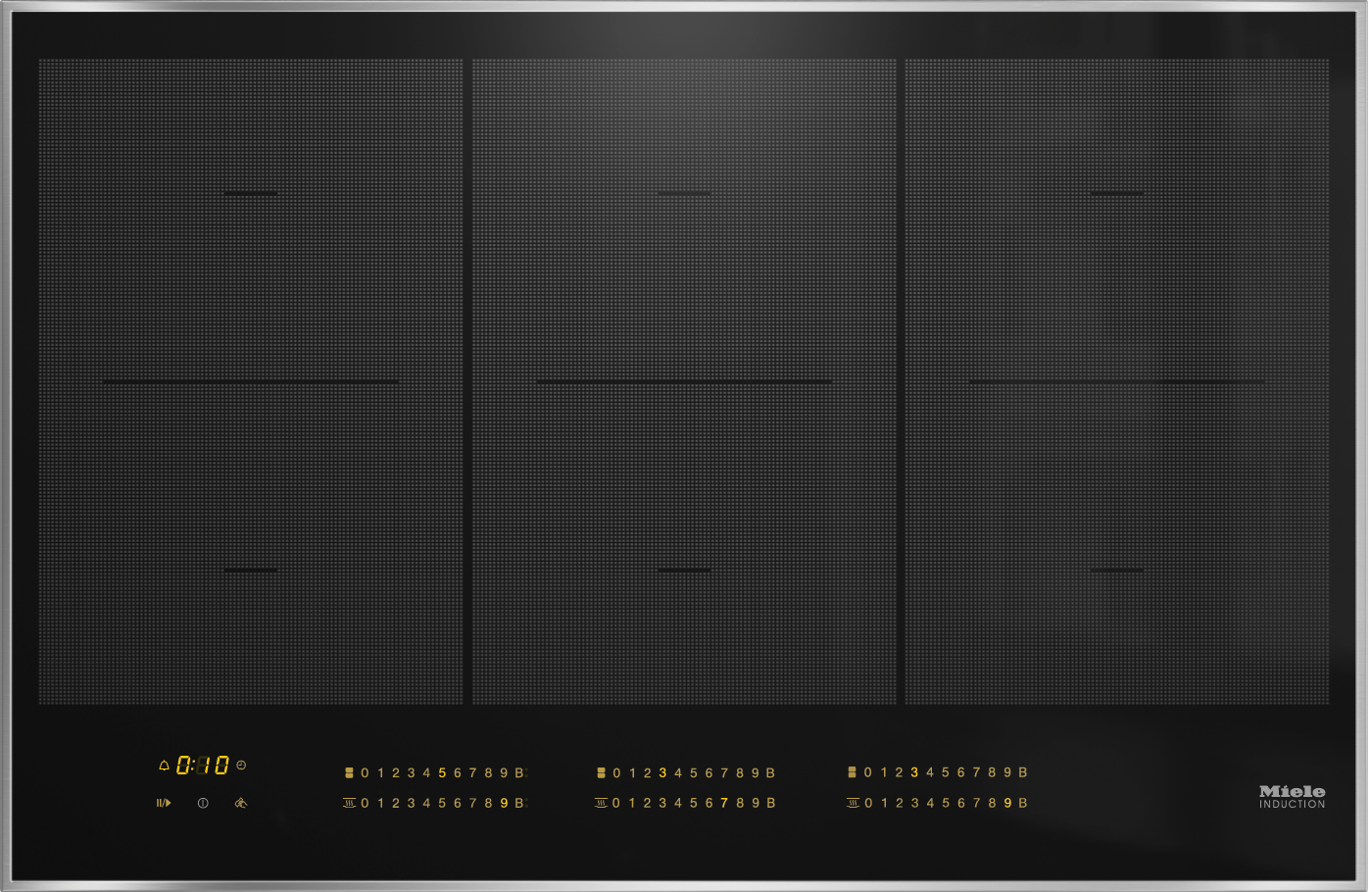

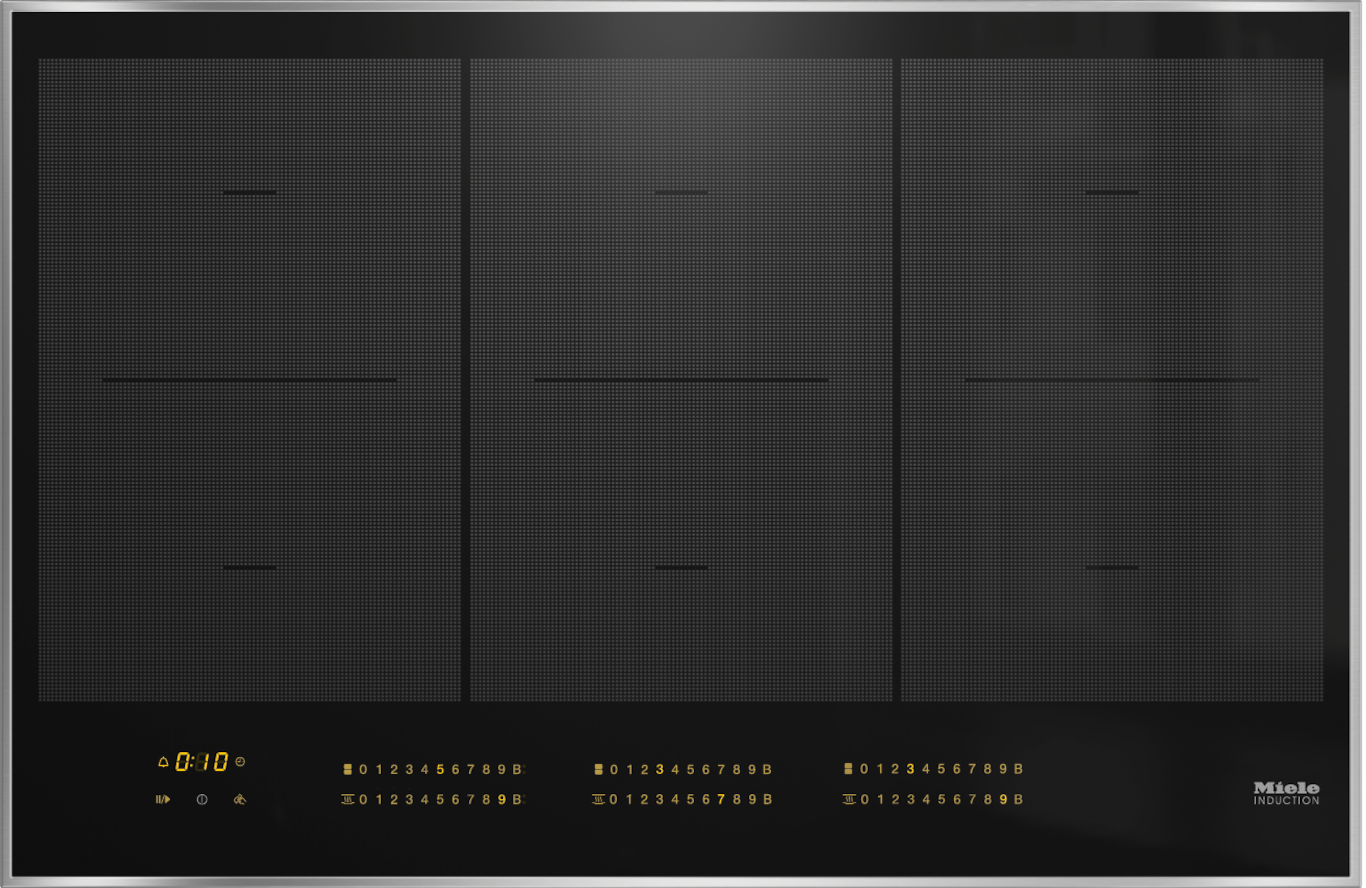

KM 7575 FR Stainless steel

(1 review) with 3  PowerFlex cooking areas for maximum power output
Colour:Stainless steel
original price£2,399.00
sale price£1,999.00
1
Installation and recycling options available at checkout. For installation of built-in appliances please call 0330 160 6630




Product details

  • Intuitive quick selection via number sequences –
    Smart Select
  • 6 cooking zones incl. 3 powerful
    PowerFlex cooking areas
  • A width of 806 mm with stainless steel frame for surface installation
  • Shortest heating-up times - TwinBooster
  • Communication with the cooker hood – automatic
    Con@ctivity
    function
  • View manufacturer details:
  • Safety Information

Product data sheet

Model identifier
KM 7575 FR
Manufacturer material number
11144060
EAN number
4002516149286
Marketing class
Gold
Heating type
Induction
Independent of cooker
Elegant glass ceramic surface
Ceramic surface colour
Black
Stainless-steel frame
Surface-mounted installation
Number of cooking zones
6
Number of cooking areas
3
Maximum number of pans
6
No.
6
Type
PowerFlex cooking zone
Size in mm
Ø 150 – 230
Max. rating in W
2100
Max. Booster power rating in W
3000
Max. TwinBooster power rating in W
3650
Position
Left
Type
PowerFlex bridge
Size in mm
230x390
Max. rating in W
3150
Max. Booster power rating in W
3400
Max. TwinBooster power rating in W
3650
Position
Centred
Type
PowerFlex bridge
Size in mm
230x390
Max. rating in W
3400
Max. Booster power rating in W
4800
Max. TwinBooster power rating in W
7300
Position
right
Type
PowerFlex bridge
Size in mm
230x390
Max. rating in W
3400
Max. Booster power rating in W
4800
Max. TwinBooster power rating in W
7300
Networking with Miele@home
Con@ctivity
Operation via sensor controls
SmartSelect
Display colour
Yellow
Pan and pan size recognition
Permanent pan recognition
Stop & Go function
Wipe protection
Recall function
Minute minder
Safety switch-off
Auto heat-up
Keeping warm
Individual setting options (e.g. buzzers)
Recipes
Push notifications
Smart Home Integration
Power rating in off mode in W
0.5
Power rating in standby mode in W
0.8
Power rating in networked standby in W
2
Time until automatic switch to off mode in min
10
Time until automatic switch to standby in min
10
Time until automatic switch to networked standby in min
10
Easy to clean ceramic glass
Safety switch-off
Lock function
System lock
Integrated cooling fan
Overheating protection
Residual heat indicator
Dimensions (H x W x D) in mm
52 x 806 x 526
Dimensions in mm (width)
806
Dimensions in mm (height)
52
Dimensions in mm (depth)
526
Cut-out dimensions (W x D) with surface-mounted installation in mm
780 mm x 500 mm
Casing height incl. connection box in mm
45
Cutout dimensions in mm (width) with surface-mounted installation
780 mm
Cutout dimensions in mm (depth) with surface-mounted installation
500 mm
Weight in kg
16
Total rated load in kW
11
Voltage in V
230
Frequency in Hz
50 - 60
Length of supply lead in m
1.4
Mains cable
EAN
4002516149286

What's included

Mains cable
  • *This is a separate digital offer from Miele & Cie. KG. The range of functions can vary depending on the model and the country. Acceptance of the Terms and Conditions and Privacy Policy for Miele digital products and services in the Miele app required. Miele reserves the right to change or discontinue the digital offer at any time.
  • Cleverly networked
    Cleverly networked

    Domestic appliance networking with Miele@home2,

    Make your life smart: thanks to Miele@home, you can cleverly network your domestic appliances – for more options.

  • Smart control
    Smart control

    Con@ctivity

    Innovative convenience: the cooker hood reacts automatically to settings on the hob.

  • Ideal for large pans
    Ideal for large pans

    PowerFlex

    Unbeatably fast and versatile: the booster output of up to 7.3 kW.

Setup/function

Smart control
Smart control

Con@ctivity

Innovative convenience: the cooker hood reacts automatically to settings on the hob.
Ideal for large pans
Ideal for large pans

PowerFlex

Unbeatably fast and versatile: the booster output of up to 7.3 kW.
Heats up particularly quickly thanks to Booster
Heats up particularly quickly thanks to Booster

TwinBooster

Distribute the induction power across several cooking zones or concentrate the power on one cooking zone.
Added convenience
Added convenience

Convenient additional functions

Numerous additional functions such as Stop & Go and the timer make life easier in the kitchen.
Set down your pan and get cooking
Set down your pan and get cooking

Permanent pan detection

Automatic control element activation: when the hob is turned on, pans which are already in place are detected.

User convenience

Cleverly networked
Cleverly networked

Domestic appliance networking with Miele@home2,

Make your life smart: thanks to Miele@home, you can cleverly network your domestic appliances – for more options.
Operate your hob simply and intuitively
Operate your hob simply and intuitively

SmartSelect

Thanks to the intuitive controls, you can quickly and easily select power levels and individual timers.

Safety

For greater safety and security
For greater safety and security

Safety functions

The safety functions prevent any unpleasant surprises – even if your mind is on other things.

Smart Extras

  • Inspiration for every taste
    Inspiration for every taste

    Recipes2,

    Discover a wide range of digital recipe ideas and get started straight away.

  • Everything at a glance with smart notifications
    Everything at a glance with smart notifications

    Push notifications2,

    Receive relevant information directly on your smartphone or tablet.

  • Seamless networking throughout your home
    Seamless networking throughout your home

    Smart Home Integration2,

    Intelligent integration of Miele appliances into a Smart Home system.

What our customers say

(1 review)
5 stars
1 review
4 stars
0 reviews
3 stars
0 reviews
2 stars
0 reviews
1 star
0 reviews

Most recent local reviews

  • Top hob!

    Fantastic hob. Very flexible and the zones are great for larger pans. Plenty of room when you need multiple pots on the go at the same time.
    Pete

Downloads

Operating instructions/Installation instructions
PDF
Download
Product sheet
PDF
Download
Warranty conditions
PDF
Download
dwg
ZIP
Download
fbx
ZIP
Download
ifc
ZIP
Download
rfa
ZIP
Download
rvt
ZIP
Download
Product fiche
PDF
Download

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/images/2000014/200001428/20000142813.png
Descriptions
KM 7575 FR (installation drawing)
1) Front, 2) Mains connection box with mains connection cable, L = 1440 mm, are enclosed loosely
