  • Miele - KM 6520 FR Stainless steel – Hobs - 1
  • Miele - KM 6520 FR Stainless steel – Hobs - 2
  • Miele - KM 6520 FR Stainless steel – Hobs - 3
Electric hob with onset controlsSilver

KM 6520 FR Stainless steel

(5 reviews) with 4 cooking zones for maximum convenience at an attractive entry level price.
Colour:Stainless steel
sale price£799.00
1
Installation and recycling options available at checkout. For installation of built-in appliances please call 0330 160 6630




Product details

  • Easy operation –
    EasySelect
  • Attractive design - 574 mm wide with all-round frame
  • Particularly versatile - 4 cooking zones incl. 1 Vario zone
  • Convenient -
    Auto heat-up
    for every cooking zone
  • Safe - three level residual heat indicator for every cooking zone
  • View manufacturer details:
  • Safety Information

Product data sheet

Model identifier
KM 6520 FR
Manufacturer material number
10889620
EAN number
4002515995068
Marketing class
Silver
Heating type
Electric
Independent of cooker
Elegant glass ceramic surface
Ceramic surface colour
Black
Stainless-steel frame
Surface-mounted installation

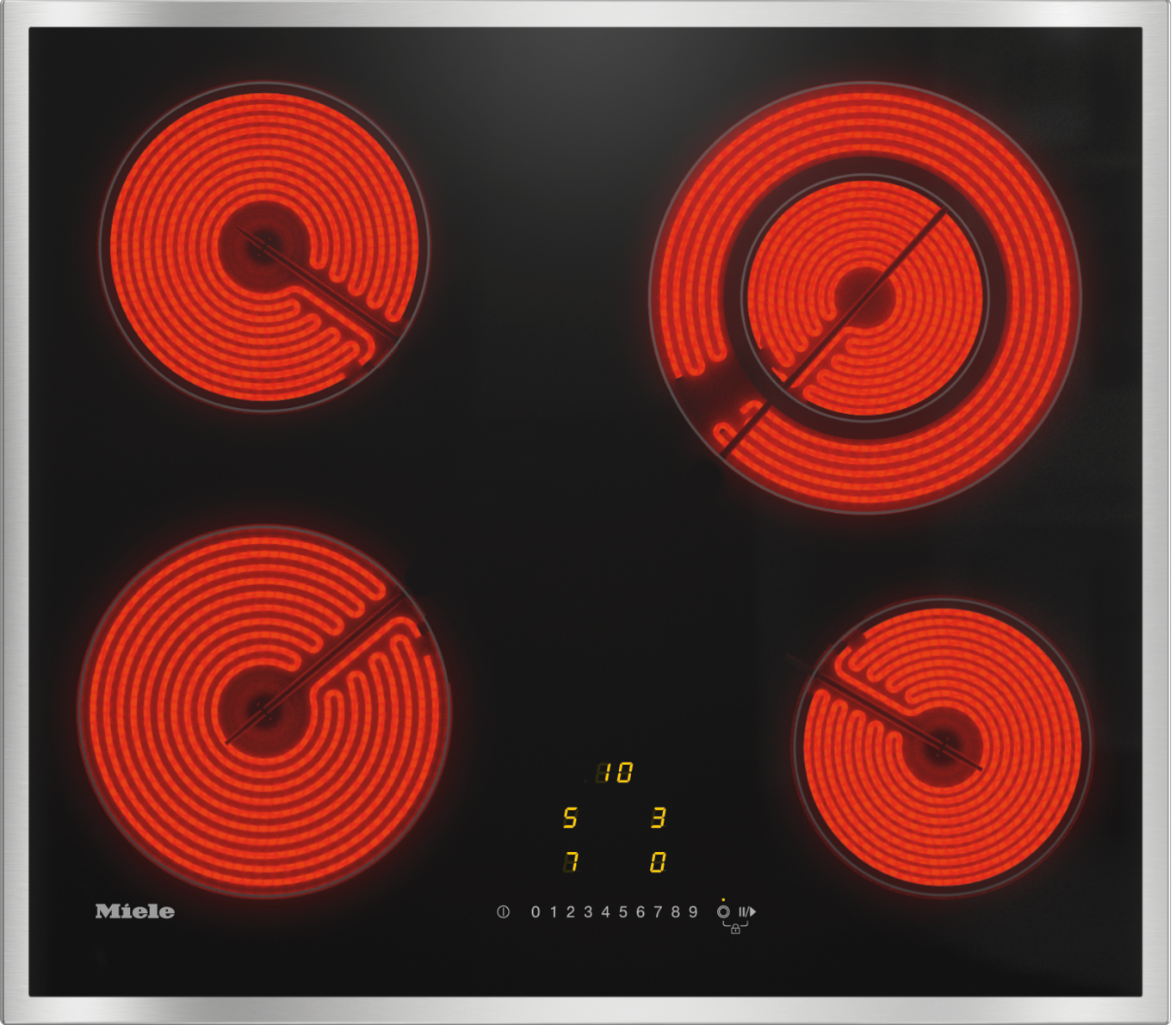

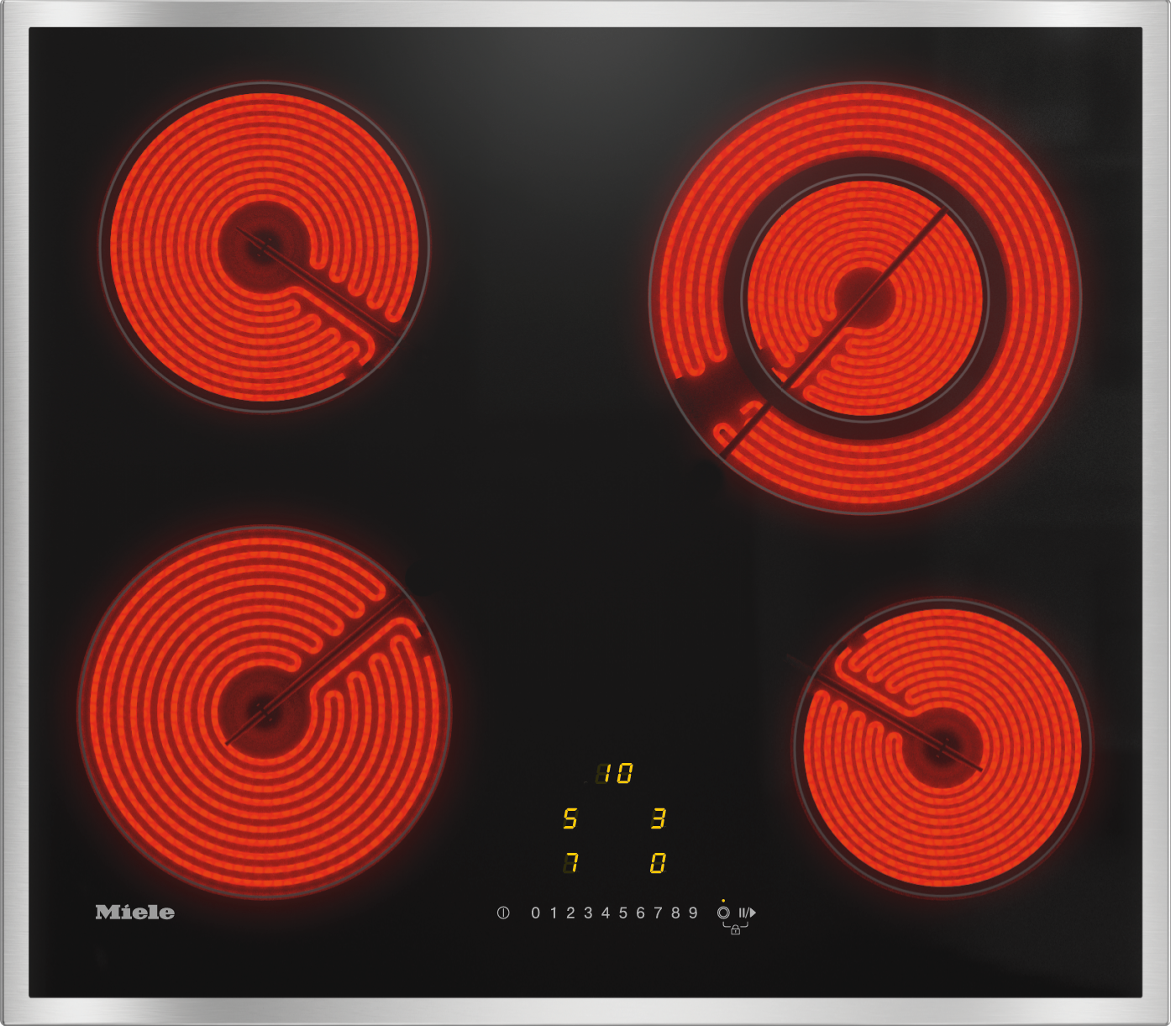

Number of cooking zones
4
Position
front left
Type
Single-circuit ring
Size in mm
Ø 180
Max. rating in W
1800
Position
rear left
Type
Single-circuit ring
Size in mm
Ø 160
Max. rating in W
1500
Position
rear right
Type
Dual-circuit ring
Size in mm
Ø 120 / Ø 210
Max. rating in W
750/2200
Position
front right
Type
Single-circuit ring
Size in mm
Ø 145
Max. rating in W
1200
Display colour
Yellow
Stop & Go function
Recall function
Minute minder
Safety switch-off
Auto heat-up
Individual setting options (e.g. buzzers)
Residual heat utilisation
Power rating in off mode in W
0.5
Power rating in standby mode in W
0.8
Power rating in networked standby in W
2
Time until automatic switch to off mode in min
10
Time until automatic switch to standby in min
10
Time until automatic switch to networked standby in min
10
Easy to clean ceramic glass
Safety switch-off
Lock function
System lock
Overheating protection
Residual heat indicator
Dimensions (H x W x D) in mm
43 x 574 x 504
Dimensions in mm (width)
574
Dimensions in mm (height)
43
Dimensions in mm (depth)
504
Cut-out dimensions (W x D) with surface-mounted installation in mm
560 mm x 490 mm
Casing height incl. connection box in mm
43
Cutout dimensions in mm (width) with surface-mounted installation
560 mm
Cutout dimensions in mm (depth) with surface-mounted installation
490 mm
Weight in kg
8
Total rated load in kW
6.700
Voltage in V
230
Frequency in Hz
50 - 60
Length of supply lead in m
1.4
Razor-blade scraper
Mains cable
EAN
4002515995068

What's included

Razor-blade scraper
Mains cable

Setup/function

Added convenience
Added convenience

Convenient additional functions

Numerous additional functions such as Stop & Go and the timer make life easier in the kitchen.

User convenience

Saves not just energy
Saves not just energy

Auto heat-up

Always at the right time: This function reduces the initial power boost to prevent burning.
Depending on your needs
Depending on your needs

Programmable options

Completely unique: basic hob settings can be adapted to suit personal preferences.

Safety

For greater safety and security
For greater safety and security

Safety functions

The safety functions prevent any unpleasant surprises – even if your mind is on other things.

What our customers say

(5 reviews)
5 stars
4 reviews
4 stars
1 review
3 stars
0 reviews
2 stars
0 reviews
1 star
0 reviews

Most recent local reviews

Downloads

Operating instructions/Installation instructions
PDF
Download
Product sheet
PDF
Download
Warranty conditions
PDF
Download
dwg
ZIP
Download
fbx
ZIP
Download
ifc
ZIP
Download
rfa
ZIP
Download
rvt
ZIP
Download
Product fiche
PDF
Download

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/dam/505ae355-397a-467c-b51e-b3bd007b48cf/20000137219_HighresDigitalRGB.png
Descriptions
KM 6520 FR, KM 6538 FR (Installation drawign)
1) Front, 2) Mains Connection box. Built-in height 43 mm, mains connection cable L = 1440 mm
