CS 7612 FL
SmartLine element with induction PowerFlex cooking zone
- Subject to technical changes; no liability accepted for the accuracy of the information given. See General Terms and Conditions in footer for additional details.
Your exclusive advantages
Exclusive to Miele
SmartSelect
Easy to use thanks to SmartSelect
Quick and intuitive: power levels and times can be selected separately for each cooking zone.
Exclusive to Miele
TwinBooster
Power function for rapid heat generation
Unique flexibility: induction output can be individually distributed or used for one single zone.
Features depend on model – images are only examples and used for explanation purposes
Setup/function (2)
Pan size recognition
Best possible use of energy
Impressive: the size of the pan is recognised within the cooking zone and energy supplied to this area only.
Permanent pan recognition
Best use of energy
Automatic activation of numerical display: when turned on, pans which are already on a cooking zone are detected.
User convenience (3)
Exclusive to Miele
SmartSelect
Easy to use thanks to SmartSelect
Quick and intuitive: power levels and times can be selected separately for each cooking zone.
Exclusive to Miele
TwinBooster
Power function for rapid heat generation
Unique flexibility: induction output can be individually distributed or used for one single zone.
Wipe protection
Safe removal of spillages
Cleaning made easy: this feature deactivates the appliance for 20 seconds so you can wipe the surface.
Maintenance (1)
Easy-to-clean ceramic glass
A real relief
Food can no longer burn on: because the hob surface remains relatively cool, soiling can be removed easily.
Safety (3)
Turns off if no cookware is in place
Reassuringly safe
Only on induction: if there is no pan on the switched-on hob, the power supply is interrupted immediately.
Residual heat indicator
Absolutely safe
Practical: the residual heat indicator reminds you not to touch the cooking zones when they are still hot.
Safety switch-off
Peace of mind
Clever: if a cooking zone has been operating for an unusually long time, it switches off automatically.
Product data sheet
Heating type
| Heating type | Induction |
Construction type
| SmartLine | • |
Design
| Elegant glass ceramic surface | • |
| Ceramic surface colour | Black |
| Flush | • |
| Surface-mounted installation | • |
Cooking zone details
| Number of cooking zones | 2 |
PowerFlex cooking zones
| No. | 2 |
| Size in mm | 150x230 |
| Max. rating in W | 2.10 |
| Max. Booster power rating in W | 3.00 |
| Max. TwinBooster power rating in W | 3650 |
1st cooking zone/cooking area
| Position | Centred |
| Type | PowerFlex |
| Max. rating in W | 2100 |
| Max. Booster power rating in W | 3000 |
| Max. TwinBooster power rating in W | 3650 |
User convenience
| Operation via sensor controls | Smart Select |
| Display colour | Yellow |
| Permanent pan recognition | • |
| Pan and pan size recognition | • |
| Stop & Go function | • |
| Wipe protection | • |
| Recall function | • |
| Minute minder | • |
| Safety switch-off | • |
| Auto heat-up | • |
| Keeping warm | • |
| Individual setting options (e.g. buzzers) | • |
| Digital power level display | • |
Cleaning convenience
| Easy to clean ceramic glass | • |
Safety
| Safety switch-off | • |
| Lock function | • |
| System lock | • |
| Integrated cooling fan | • |
| Overheating protection | • |
| Residual heat indicator | • |
| Fault monitoring | • |
Technical data
| Dimensions in mm (width) | 378 |
| Dimensions in mm (height) | 51 |
| Casing height incl. connection box in mm | 51 |
| Dimensions in mm (depth) | 520 |
| Cutout dimensions in mm (width) with surface-mounted installation | 358 |
| Cutout dimensions in mm (depth) with surface-mounted installation | 500 |
| Internal cutout dimensions in mm (width) with flush installation | 358 |
| Internal cutout dimensions in mm (depth) with flush installation | 500 |
| External cutout dimensions in mm (width) with flush installation | 382 |
| External cutout dimensions in mm (depth) with flush installation | 524 |
| Weight in kg | 7 |
| Total rated load in kW | 3.60 |
| Voltage in V | 230 |
| Frequency in Hz | 50-60 |
| Length of supply lead in m | 1.40 |
What’s included
- Mains cable
Supplementary products and accessories
Downloads, CAD & Apps
- Warranty conditionsPDF
- Product sheetPDF
- Operating instructions/Installation instructionsPDF
- fbxZIP
- dwgZIP
- ifcZIP
- rvtZIP
- rfaZIP
- Product fichePDF
Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!
Descriptions
CS 7000 FL, flush (Installation drawing)
*7+0
5 = CS7611 (Wok)
Descriptions
CS 7000 FL (Installation drawing)
Descriptions

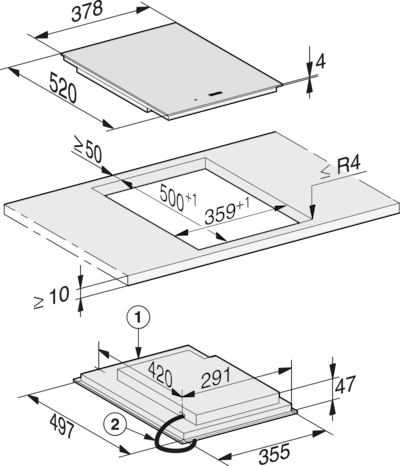

CS 7612 FL, (installation drawing)
1) Front
2) Mains connection cable
L = 2000 mm
Descriptions

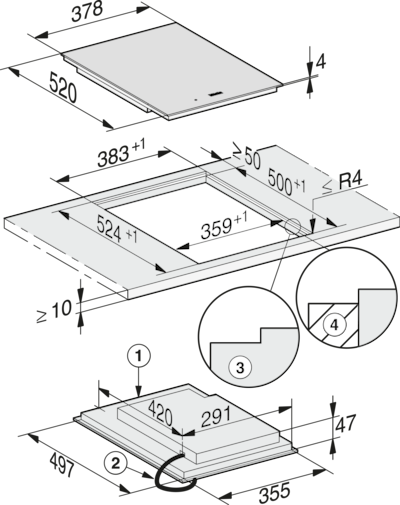

CS 7612 FL, flush (installation drawing)
1) Front
2) Mains connection cable
L = 2000 mm
3) Stepped cut-out
4) Wooden Frame 12 mm (supplied loose)
Descriptions
CS 7000 FL, flush (Installation drawing)
*7+0
5 = CS7611 (Wok)
