Downdraft extractorGOLD

DAD 4370 Levantar Obsidian black

916 mm | 655 m3/h | 62 dB(a) | Touch | Con@ctivity | DynamicWhite | ECO motor
Colour:Obsidian black
sale price£2,499.00
1
Installation and recycling options available at checkout. For installation of built-in appliances please call 0330 160 6630




Product details

  • Easy recirculation mode installation with
    plug&play accessory set
  • Motorised retractable deflector plate –
    Hood in Motion
  • DynamicWhite
    – harmonisation of colour temperature with other light sources
  • Efficient filtration-
    10-ply stainless-steel grease filter
  • View manufacturer details:
  • You will find more information about product data and your rights under the EU Data Acthere
  • Safety Information

Product data sheet

Downdraft extractor
Type of air guide Can be retrofitted
Recirculation conversion kit (order separately) DUU 600,DUP 150
Active charcoal filter (order separately) [ "DKF 30-P", "DKF 30-R" ]
Colour Obsidian black
Edge extraction
Miele@home
Con@ctivity Personalised
Electronic controls
Touch-on-glass controls
Controls SmartControl
Power levels (number without Booster level) 3
Booster levels 2
Run-on time 5/15 min.
Grease filter saturation indicator
Active charcoal filter saturation indicator
Motor-operated cooker hoods
Easy-to-clean canopy interior – CleanCover

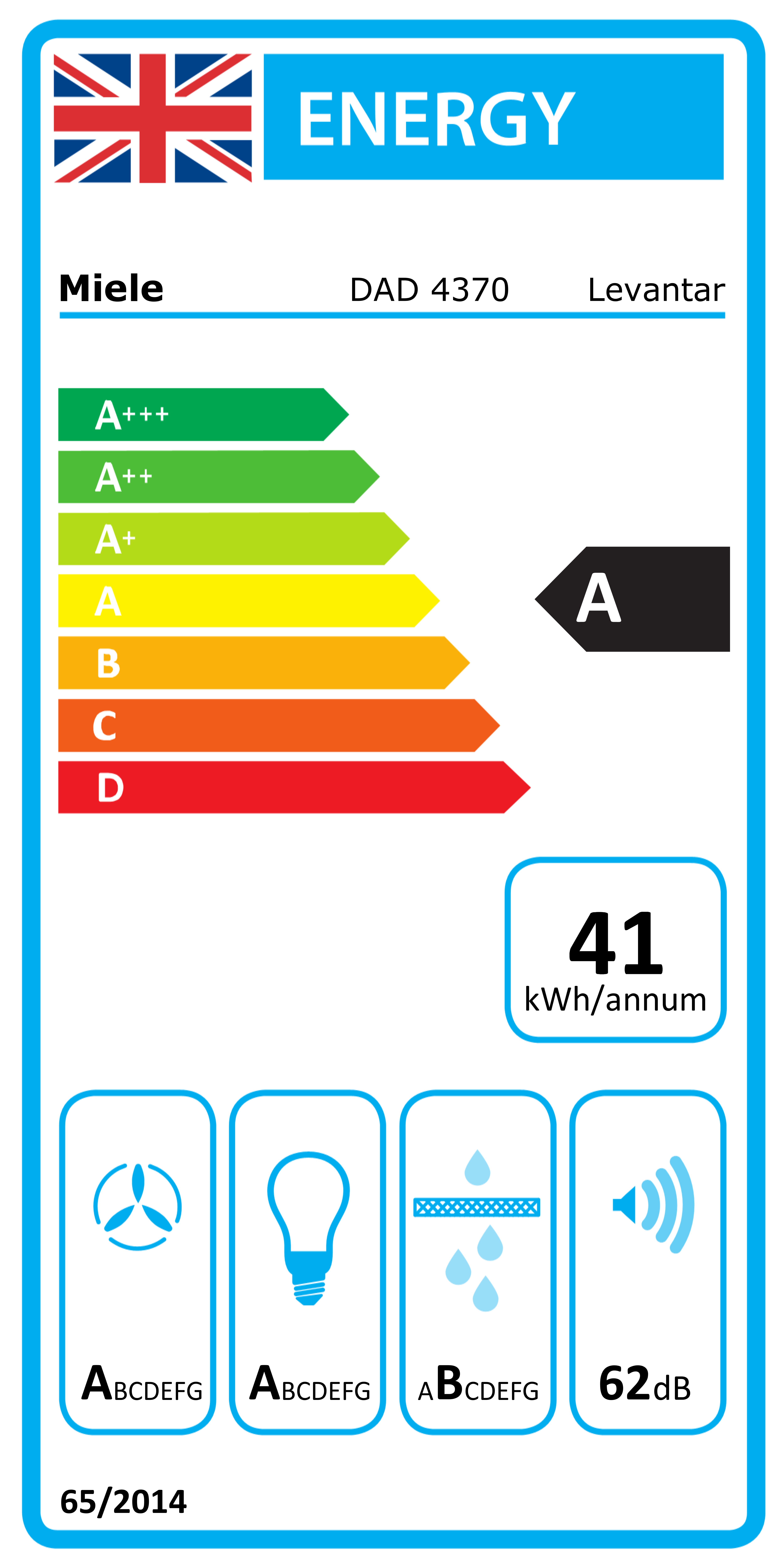

Energy efficiency class (A+++ to D) A
Annual energy consumption in kWh/year 41.1
Fluid dynamic efficiency class A
Lighting efficiency class A
Grease filtering efficiency class B
ECO motor (DC motor)
PowerManagement system
Easy-to-clean canopy interior – CleanCover
Number of dishwasher-safe stainless steel grease filters (10-ply) 2
Number x W 1 x 12 W
Light intensity in Lx 400 lx
Colour temperature in K 3500 Kelvin
Dimmer function
Dual-action blower
DC motor
Air throughput in Level 1 (m³/h) according to EN 61591 205
Air throughput in Level 2 (m³/h) according to EN 61591 350
Air throughput in Level 3 (m³/h) according to EN 61591 450
Air throughput in Booster level 1 (m³/h) according to EN 61591 610
Air throughput in Booster level 2 (m³/h) according to EN 61591 655
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 43
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 55
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3 62
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3 69
Sound power in Booster level 2 (dB(A) re 1 pW) acc. to EN 60704-3 71
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 30
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 42
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13 48
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13 55
Sound pressure in Booster level 2 (dB(A) re 20 µPa) acc. to EN 60704-2-13 57
Air throughput in Level 1 (m³/h) according to EN 61591 165
Air throughput in Level 2 (m³/h) according to EN 61591 320
Air throughput in Level 3 (m³/h) according to EN 61591 420
Air throughput in Booster level 1 (m³/h) according to EN 61591 525
Air throughput in Booster level 2 (m³/h) according to EN 61591 560
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 49
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 63
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3 69
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3 74
Sound power in Booster level 2 (dB(A) re 1 pW) acc. to EN 60704-3 75
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 36
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 50
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13 55
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13 61
Sound pressure in Booster level 2 (dB(A) re 20 µPa) acc. to EN 60704-2-13 62
Safety shut-off
Single-ply safety glass (ESG)
Canopy dimensions (W x H x D) in mm 916 x 708 x 171
Overall hood height for extraction mode and external in mm 1008–1288
Overall height for recirculation mode cooker hoods in mm 1008–1288
Overall height for vented and external in in. (mm) 1008
Overall height for extraction mode and external mode cooker hoods in mm 1288
Overall height for recirculation in in. (mm) 1008
Overall height for recirculation mode cooker hoods in mm 1288
Canopy width in in. (mm) 916
Cut-out dimension in mm (width) with surface-mounted installation 815
Cut-out dimension in mm (depth) with surface-mounted installation 106
Cut-out dimension in mm (width) with flush-fit installation – internal 815
Cut-out dimension in mm (depth) with flush-fit installation – internal 106
Cut-out dimension in mm (width) with flush-fit installation – external 920
Cut-out dimension in mm (depth) with flush-fit installation – external 124
Canopy height in in. (mm) 708
Depth of hood canopy in in. (mm) 171
Installation on unit floor
Installation on floor
Min. base unit width in mm 900
Glass frame width in mm 916
Net weight in kg 34
Length of supply lead in m 1.4
Standard plug fitted
Total rated load in kW 0.252
Voltage in V 230
Fuse rating in A 10
Frequency in Hz 50
Number of phases 1
Diameter of extraction ducting connection in mm 150
Optimum combination with hob subject to availability KM 8575 FL
Joint installation with hob in one cut-out
Flush-fit installation
Surface-mounted installation
Bottom exhaust duct
EAN 4002516975083
  • More convenience when cooking

    More convenience when cooking

    Con@ctivity

    The cooker hood reacts automatically to the hob and the oven.

  • Easy to use and effective against grease

    Easy to use and effective against grease

    Stainless steel grease filters (10-layer)

    Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.

  • Convenience and safety in detail

    Convenience and safety in detail

    Miele CleanCover

    Protection and easy cleaning: the sealed, smooth surface prevents contact with cables and the motor.

  • The heart of every cooker hood

    The heart of every cooker hood

    ECO motor

    Powerful and economical: the DC motor saves up to 50 % electricity compared with conventional motors.

  • Elegant touch controls

    Elegant touch controls

    SmartControl

    High-quality and functional: enjoy convenient touch controls with a dimmer function.

Features

Easy to use and effective against grease
Easy to use and effective against grease

Stainless steel grease filters (10-layer)

Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.
Convenience and safety in detail
Convenience and safety in detail

Miele CleanCover

Protection and easy cleaning: the sealed, smooth surface prevents contact with cables and the motor.
Decorative panels instead of metal grease filters
Decorative panels instead of metal grease filters

Edge extraction

Efficient and good-looking: with edge extraction, the grease filters are covered by a panel.
A completely odour-free kitchen
A completely odour-free kitchen

Longlife AirClean filter

Efficient odour neutralisation: durable, as the active charcoal filter can be regenerated in the oven.

User convenience

More convenience when cooking
More convenience when cooking

Con@ctivity

The cooker hood reacts automatically to the hob and the oven.
Automatic fan run-on
Automatic fan run-on

Run-on function

Odour-free room air: after cooking, the fan can be set to switch off automatically after a 5 or 15 minute run-on period.
Countdown time conveniently in view
Countdown time conveniently in view

Filter indicator

Easy filter replacement: a red light lets you know when the grease and/or active charcoal filter is saturated.
Miele cooker hoods in motion
Miele cooker hoods in motion

Hood in motion

Best possible ergonomics: The cooker hood canopy automatically moves to the ideal working position.
Elegant touch controls
Elegant touch controls

SmartControl

High-quality and functional: enjoy convenient touch controls with a dimmer function.

Efficiency

The heart of every cooker hood
The heart of every cooker hood

ECO motor

Powerful and economical: the DC motor saves up to 50 % electricity compared with conventional motors.

Safety

Always on the safe side
Always on the safe side

Safety switch-off

Sensible, even in case of operating errors: the cooker hood switches off automatically after 10 hours.

Matching products and accessories

Induction hob with onset controls
KM 8575 FL

Induction hob with onset controls

916 mm | panorama design | PowerFlex cooking areas | M Sense ready

£2,299.00
Wall box
DMK 150-1

Wall box

for extraction.

£299.00
Flat ducting adapter
DFK-AK 90

Flat ducting adapter

For effective and customised air guidance.

£44.00
Aluminium vent hose
DAS 150

Aluminium vent hose

flexible vent duct.

£89.49
Roof vent
DDF 125

Roof vent

for extraction.

£262.49
Active AirClean charcoal filter
DKF 30-P

Active AirClean charcoal filter

for Miele DAD 4x4x recirculation cooker hoods

£123.99
Reactivatable Longlife AirClean charcoal filter
DKF 30-R

Reactivatable Longlife AirClean charcoal filter

for Miele DAD 4x4x recirculation cooker hoods

£337.69
MicroCloth kit, 3 pieces
GP MI S 0031 W

MicroCloth kit, 3 pieces

For best cleaning results and safe use.

£17.39
Multi-purpose microfibre cloth, qty 1
GP MI X 0011 W

Multi-purpose microfibre cloth, qty 1

For best cleaning results and safe use.

£8.69

Downloads

Installation plan
PDF
Downloads
Operating instructions/Installation instructions
PDF
Downloads
Product sheet
PDF
Downloads
Warranty conditions
PDF
Downloads
Energy label
PDF
Downloads
Energy label
PNG
Downloads
Energy label
PDF
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/images/2000022/200002231/20000223154.png
Descriptions
1. Stepped cutout for flush-fit installation in stone worktops (granite, marble)., 2. Ensure that materials are sufficiently stable., 3. Cut-out off-centre., Exhaust duct Ø 150 mm., *Only required when flat ducting is laid under cabinets or the DUU 600 recirculation box is used.
1. Stepped cutout for flush-fit installation in stone worktops (granite, marble)., 2. Ensure that materials are sufficiently stable., 3. Cut-out off-centre., Exhaust duct Ø 150 mm., *Only required when flat ducting is laid under cabinets or the DUU 600 recirculation box is used.
POSTSCRIPT
Downloads
https://media.miele.com/images/2000022/200002231/20000223156.png
Descriptions
DAD4370, DAD4870, DAD4970, DAD6880, DAD6980, Installation drawings
DAD4370, DAD4870, DAD4970, DAD6880, DAD6980, Installation drawings
POSTSCRIPT
Downloads
https://media.miele.com/images/2000022/200002231/20000223157.png
Descriptions
1. If you install the extractor hood and hob flush with each other in a shared cut-out, you must use the angle strip provided., 2. The minimum dimension is required if flat ducts are installed under the cabinets or if the DUU 600 recirculation box is used.
1. If you install the extractor hood and hob flush with each other in a shared cut-out, you must use the angle strip provided., 2. The minimum dimension is required if flat ducts are installed under the cabinets or if the DUU 600 recirculation box is used.
POSTSCRIPT
Downloads
https://media.miele.com/images/2000022/200002231/20000223163.png
Descriptions
Installation of the downdraft hood and cooktop in separate cutouts., Flush installation., 1. Cut-out for exhaust air duct in the cabinet base., 2. Ensure sufficient stability of the worktop., 3. Step milling for flush mounting in a countertop. Note the, the different milling widths for the hob and the downdraft. Instead of a step milling, a wooden strip offset 5.5 mm downwards can be installed as an alternative (not included in the scope of delivery)., , Exhaust air connection ø 150 mm.
Installation of the downdraft hood and cooktop in separate cutouts., Flush installation., 1. Cut-out for exhaust air duct in the cabinet base., 2. Ensure sufficient stability of the worktop., 3. Step milling for flush mounting in a countertop. Note the, the different milling widths for the hob and the downdraft. Instead of a step milling, a wooden strip offset 5.5 mm downwards can be installed as an alternative (not included in the scope of delivery)., , Exhaust air connection ø 150 mm.
POSTSCRIPT
Downloads
https://media.miele.com/images/2000022/200002231/20000223164.png
Descriptions
Installation of the downdraft hood and cooktop in separate cutouts., Surface-mounted installation, 1. Cutout for exhaust air line in cabinet base., 2. Ensure sufficient stability of the worktop., Exhaust air connection ø150 mm
Installation of the downdraft hood and cooktop in separate cutouts., Surface-mounted installation, 1. Cutout for exhaust air line in cabinet base., 2. Ensure sufficient stability of the worktop., Exhaust air connection ø150 mm
POSTSCRIPT
Downloads
https://media.miele.com/images/2000022/200002231/20000223167.png
Descriptions
Side-by-side installation of the downdraft hood and the cooktop in a common cutout., Example: combination with KM 8575 FL., Surface-mounted installation, 1. Cut-out for exhaust air line in cabinet base., 2. Ensure sufficient stability of the worktop., , Exhaust air connection ø150 mm.
Side-by-side installation of the downdraft hood and the cooktop in a common cutout., Example: combination with KM 8575 FL., Surface-mounted installation, 1. Cut-out for exhaust air line in cabinet base., 2. Ensure sufficient stability of the worktop., , Exhaust air connection ø150 mm.
POSTSCRIPT
Downloads
https://media.miele.com/images/2000022/200002231/20000223168.png
Descriptions
Side-by-side installation of the downdraft hood and the cooktop in a common cutout., Example: combination with KM 8575 FL., Flush installation, 1. Cut-out for exhaust air duct in the cabinet base., 2. Ensure sufficient stability of the worktop., 3. Step milling for flush mounting in a worktop. Note the, the different milling widths for the hob and the downdraft. , Instead of a step milling, a 5.5 mm downwardly offset wooden strip can be installed (not included in the scope of delivery)., , Exhaust air connection ø 150 mm.
Side-by-side installation of the downdraft hood and the cooktop in a common cutout., Example: combination with KM 8575 FL., Flush installation, 1. Cut-out for exhaust air duct in the cabinet base., 2. Ensure sufficient stability of the worktop., 3. Step milling for flush mounting in a worktop. Note the, the different milling widths for the hob and the downdraft. , Instead of a step milling, a 5.5 mm downwardly offset wooden strip can be installed (not included in the scope of delivery)., , Exhaust air connection ø 150 mm.
POSTSCRIPT
Downloads
  • 1.Installation and recycling options available at checkout. For installation of built-in appliances please call 0330 160 6630

We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
