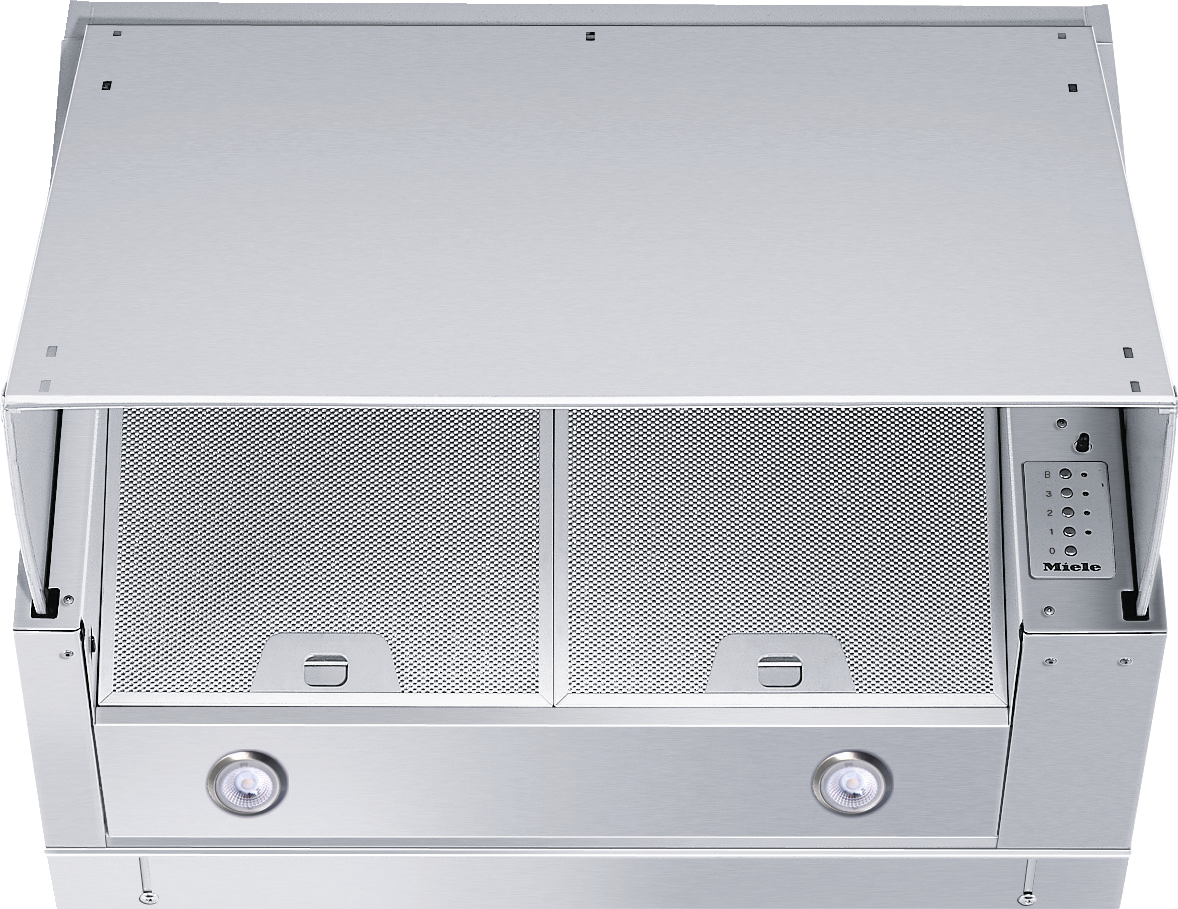

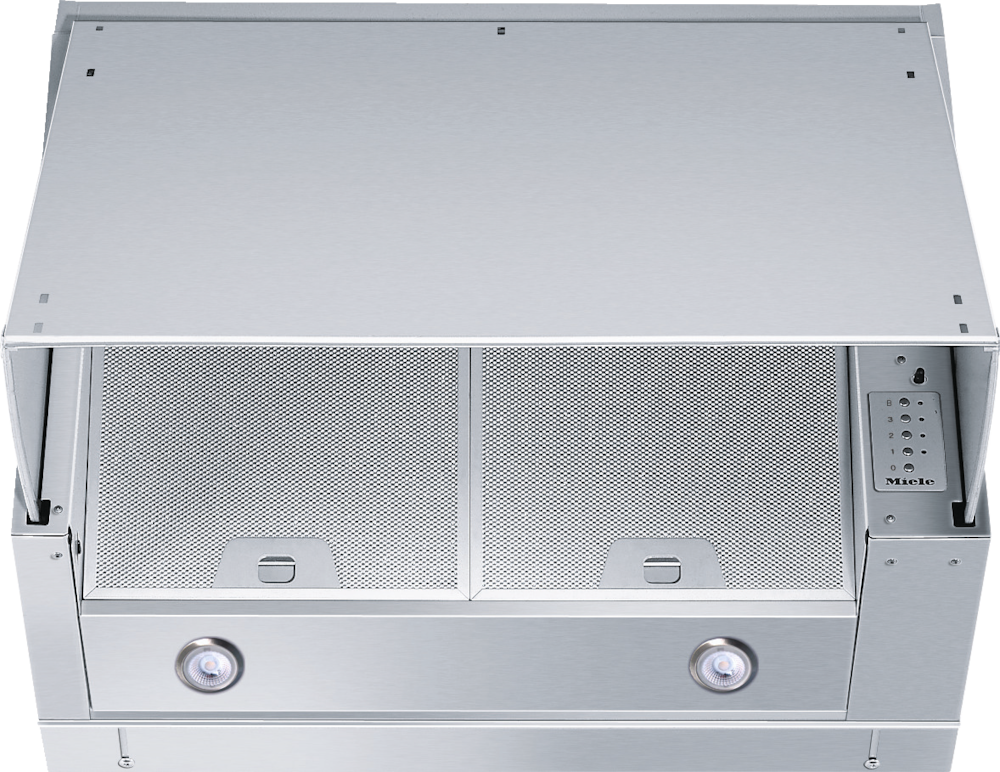

Model identifier DAZ 1620
Manufacturer material number 12697770
EAN number 4002516852599
Type of air guide Can be retrofitted
Colour Stainless steel (PF)
Controls Light-touch switches with LEDs
Power levels (number without Booster level) 3
Booster levels 1

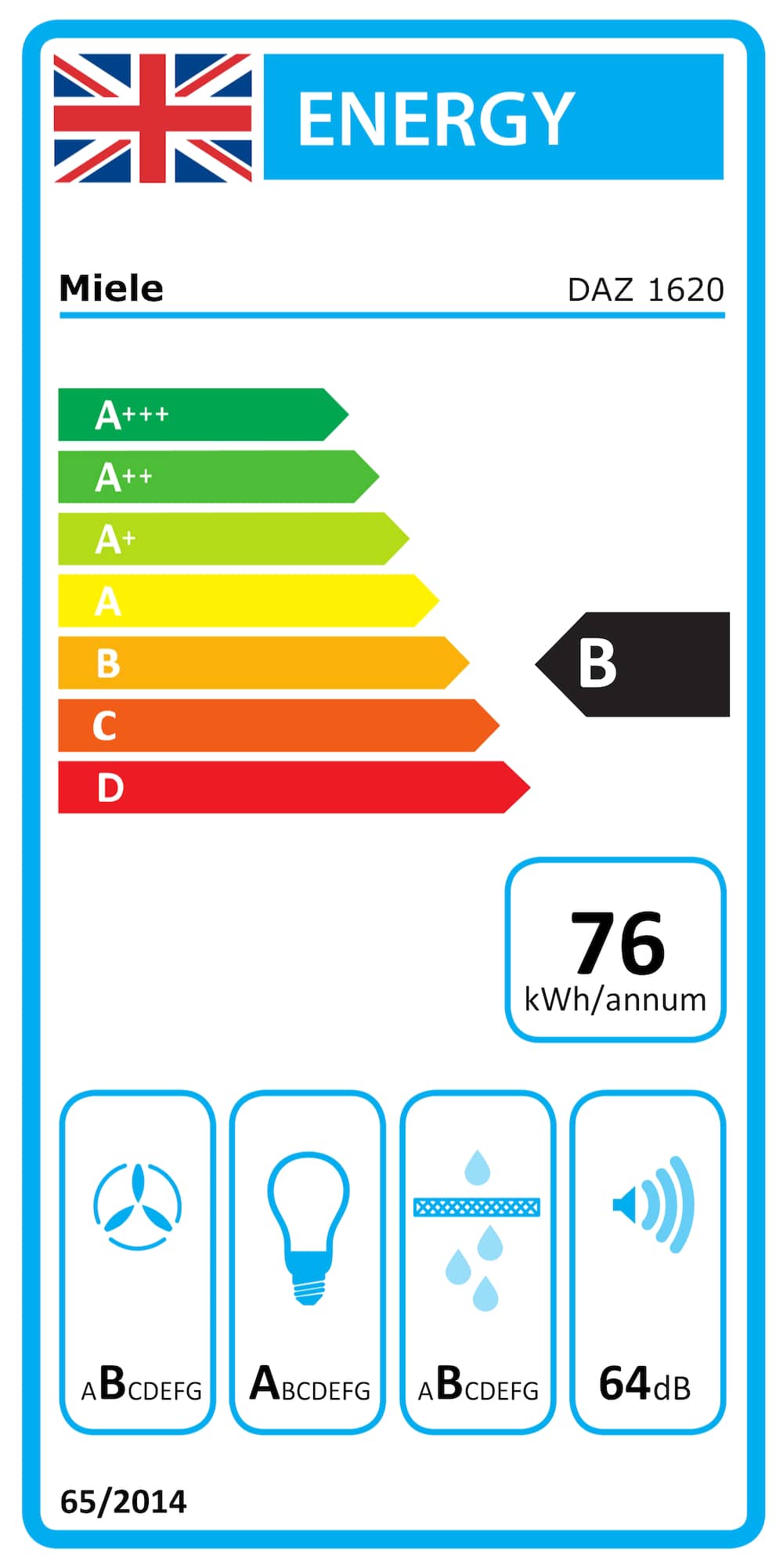

Energy efficiency class (A+++ to D) B
Annual energy consumption in kWh/year 75.9
Fluid dynamic efficiency class B Lighting efficiency class A Grease filtering efficiency class B Number of dishwasher safe metal grease filters 2
Number x W 2 x 1,0 W
Light intensity in Lx 170 lx
Air throughput in Level 1 (m³/h) according to EN 61591 300
Air throughput in Level 2 (m³/h) according to EN 61591 470
Air throughput in Level 3 (m³/h) according to EN 61591 620
Air throughput in Booster level 1 (m³/h) according to EN 61591 730
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 47
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 58
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3 64
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3 68
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 39
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 49
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13 55
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13 59
Air throughput in Level 1 (m³/h) according to EN 61591 255
Air throughput in Level 2 (m³/h) according to EN 61591 355
Air throughput in Level 3 (m³/h) according to EN 61591 410
Air throughput in Booster level 1 (m³/h) according to EN 61591 430
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 64
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 71
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3 74
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3 75
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 55
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 62
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13 65
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13 66
Canopy dimensions (W x H x D) in mm 599 x 450 x 275
Canopy width in in. (mm) 599
Canopy height in in. (mm) 450
Depth of hood canopy in in. (mm) 275
Minimum height above electric hobs in mm 650 Minimum safety distance above gas hobs (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm 650 Net weight in kg 11.8
Length of supply lead in m 120
Total rated load in kW 0.252
Voltage in V 230
Fuse rating in A 5
Frequency in Hz 50
Number of phases 1
Extraction ducting connection at top Diameter of extraction ducting connection in mm 150
