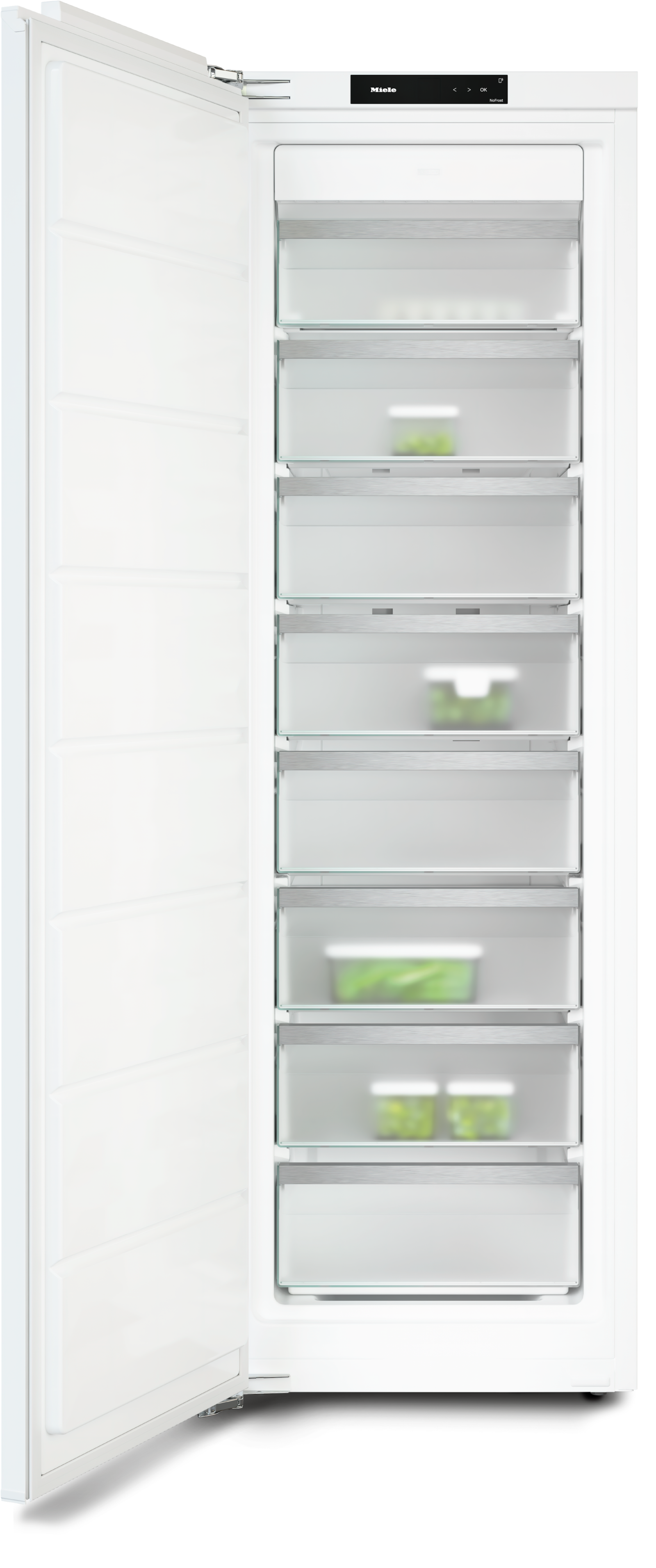

Built-in freezer

FNS 7710 E

Name: FNS 7710 E
Brand: Miele
SKU: 12565320
Price: 1799 GBP
Availability: InStock

with NoFrost and 8 freezer drawers for max. convenience.

Product data sheet

£1,799.00

Buy now. Pay with Klarna. Learn more

Installation and recycling options available at checkout. For installation of built-in appliances please call 0330 160 6630

Product details

No icing up of food and no need to defrost thanks toNoFrost
Food is frozen quickly and gently –SuperFreeze
Flexible increase in freezer volume –VarioRoom
Manufactured with great care by
Safety Information

Product data sheet

Freezer

Built-in appliance

Integrated appliance

Door hingeLeft

Convertible door hinging

Side-by-side enabled

Networking with Miele@home

NoFrost

VarioRoom

Operating conceptSensorTouch

SuperFreeze

No. of temperature zones1

Sabbath mode

Party mode

Number of freezer drawers8

Energy efficiency class (A–G)E

Annual energy consumption in kWh237.25

Energy consumption in 24 h in kWh0.649

Lock function

Acoustic door alarm

Acoustic temperature alarm

Optical temperature alarm

Power cut indication for freezer section

Niche width in mm min.560

Niche width in mm max.570

Niche height in mm min.1772

Niche height in mm max.1788

Niche depth in mm550

Appliance width in mm559

Appliance height in mm1770

Appliance depth in mm546

Weight in kg58.5

Door hinge technologyFixed door

Max. door front weight – refrigerator, in kg26

Climate classSN-T

4* freezer compartment in l213

Total usable capacity in l213

Storage time in case of fault in h9

Freezer capacity in kg/24 h12

Acoustic airborne noise emission class (A–D)B

Sound emissions in dB(A) re 1 pW33

Current consumption (mA)1300

Voltage in V220-240

Fuse rating in A10

Number of phases1

Frequency in Hz50-60

Length of supply lead in m2.2

Replacing lampsService

Ice cube tray

EAN4002516797517

What's included

Ice cube tray

Cleverly networked

Miele@home^2,

Make your life smart: thanks to Miele@home, you can cleverly network your domestic appliances – for more options.

User convenience

Defrosting is a thing of the past

NoFrost

No more defrosting: the circulation cooling system prevents ice from developing, saving the hassle of defrosting.

Cleverly networked

Miele@home^2,

Make your life smart: thanks to Miele@home, you can cleverly network your domestic appliances – for more options.

Matching products and accessories

GaLa-Set

Gourmet Box set (3 pieces)

for cooking, storing and cleverly organising food.

GaLa-S

Gourmet Box S

for cooking, storing and cleverly organising food.

GaLa-L

Gourmet Box L

for cooking, storing and cleverly organising food.

GaLa-M

Gourmet Box M

for cooking, storing and cleverly organising food.

GP MI X 0011 W

Multi-purpose microfibre cloth, qty 1

For best cleaning results and safe use.

GP MI S 0031 W

MicroCloth kit, 3 pieces

For best cleaning results and safe use.

Downloads

Product sheet

PDF

Downloads

Fitting Instructions

PDF

Downloads

UK declaration of conformity

PDF

Downloads

User manual

PDF

Downloads

fbx

ZIP

Downloads

rfa

ZIP

Downloads

ifc

ZIP

Downloads

dwg

ZIP

Downloads

rvt

ZIP

Downloads

Energy label

PNG

Downloads

Energy label

PDF

Downloads

Product fiche

PDF

Downloads

Energy label

Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/images/2000017/200001721/20000172144.png

Descriptions

K7733E, K7763E, K7732E, K7734F, K7764E, K7743E, K7744E, K7773D, K7774D, side view (installation drawings)

Installation drawings

Downloads

https://media.miele.com/images/2000017/200001721/20000172143.png

Descriptions

K7733E, K7763E, K7732D, K7732E, K7734F, K7764E, K7743E, K7744E, K7773D, K7774D, built-in (footnote*) (drawings)

*The declared energy consumption was calculated in a 560 mm deep niche. The appliance is fully functional in a 550 mm niche but the energy consumption will be slightly higher.

Downloads

https://media.miele.com/images/2000017/200001721/20000172142.png

Descriptions

K7733E, K7763E, K7732E, K7734F, K7764E, K7743E, K7744E, K7773D, K7774D (footnote*) (installation drawings)

*1. View from the front, 2. Mains connection cable, L = 2200 mm, 3. Ventilation cut-out min. 200 cm², 4. Ventilation, 5. No connections permitted in this area

Downloads

1.Installation and recycling options available at checkout. For installation of built-in appliances please call 0330 160 6630
2.This is a separate digital offer from Miele & Cie. KG. The range of functions can vary depending on the model and the country. Acceptance of the General Terms and Conditions and Privacy Policy for Miele digital products and services in the Miele app required. Miele reserves the right to change or discontinue the digital offers at any time.

We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
