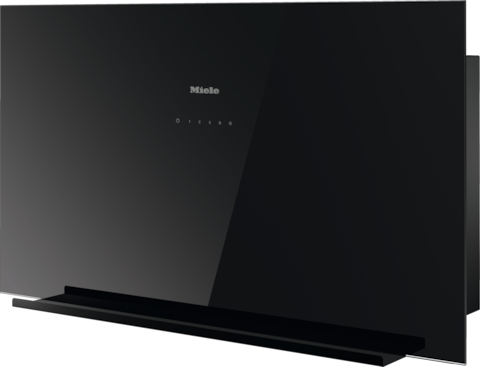

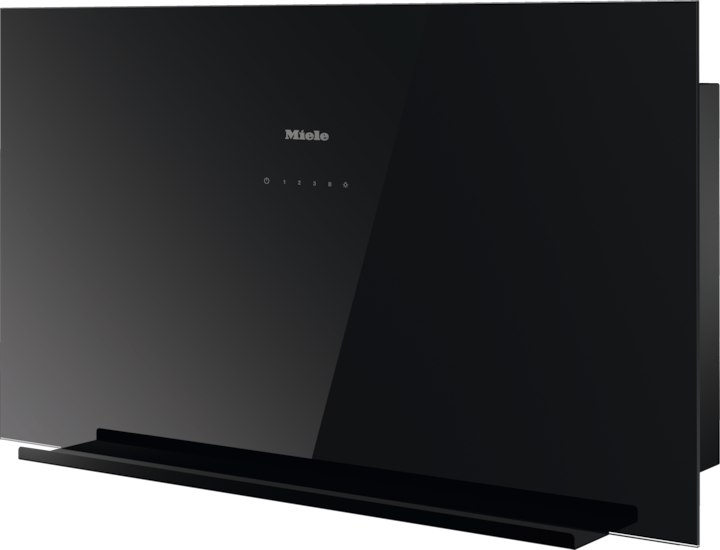

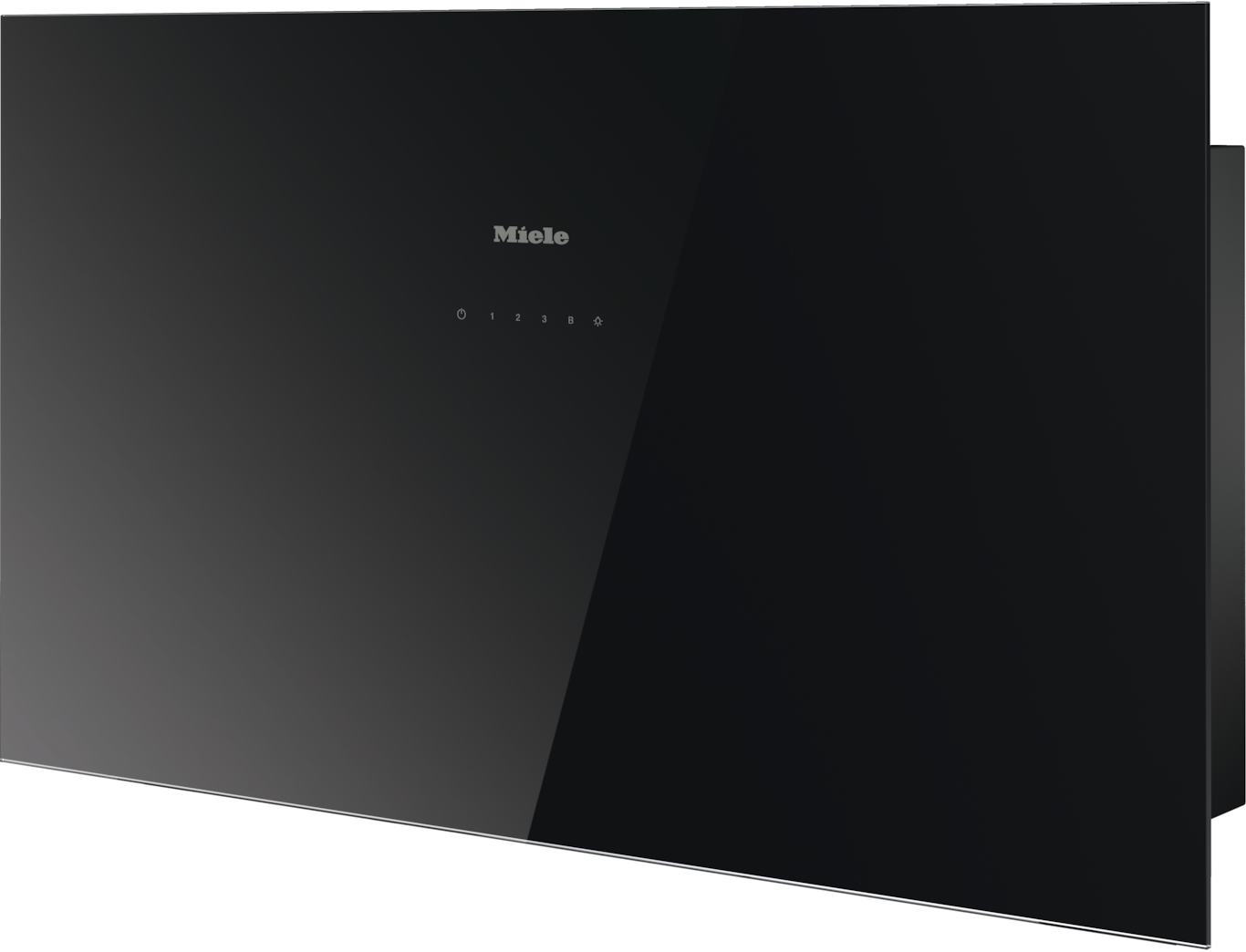

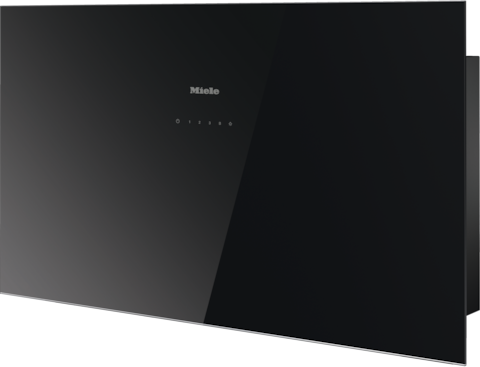

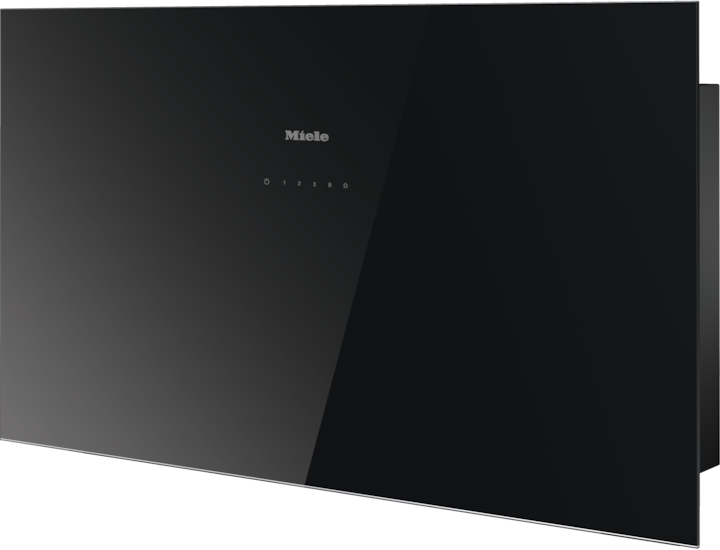

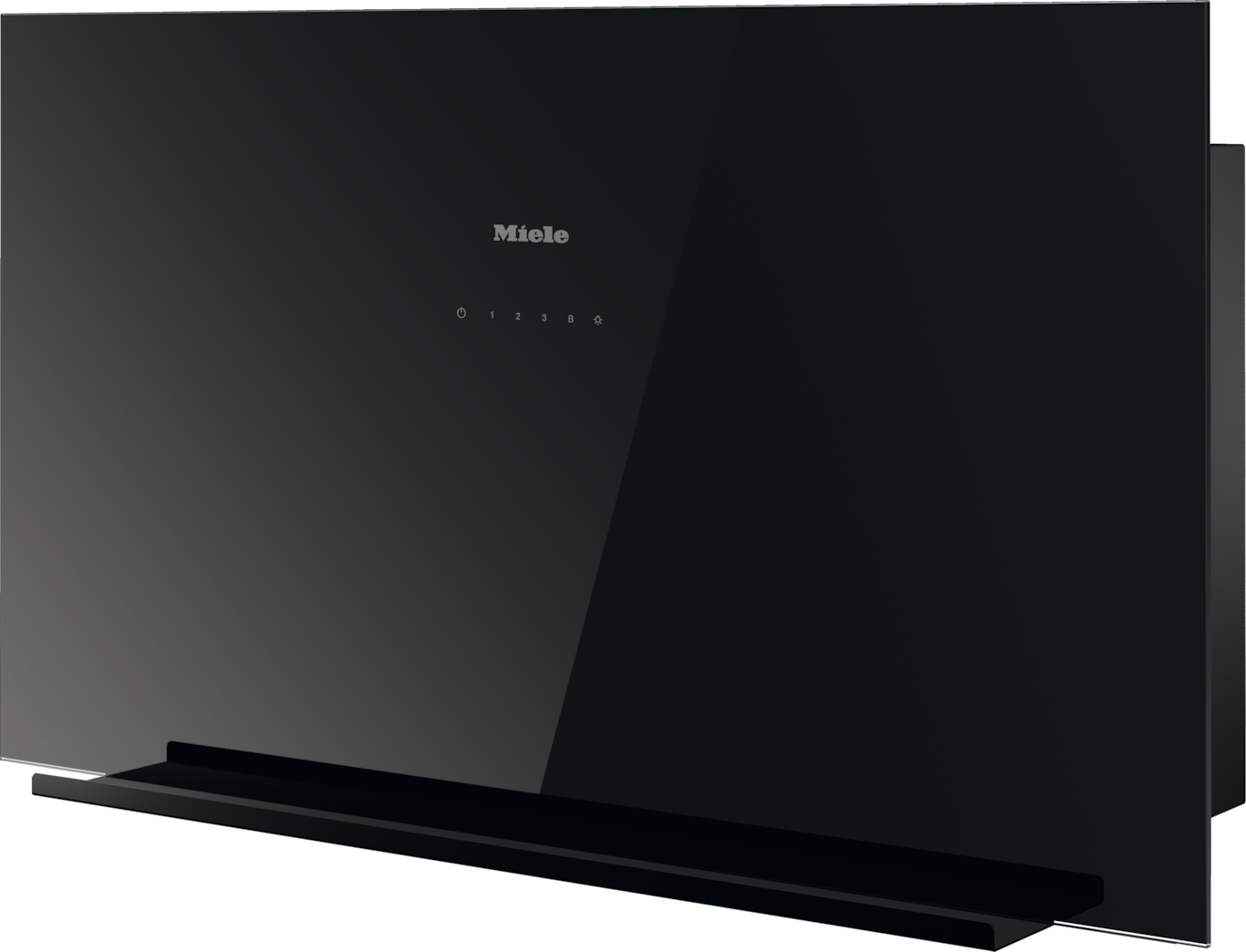

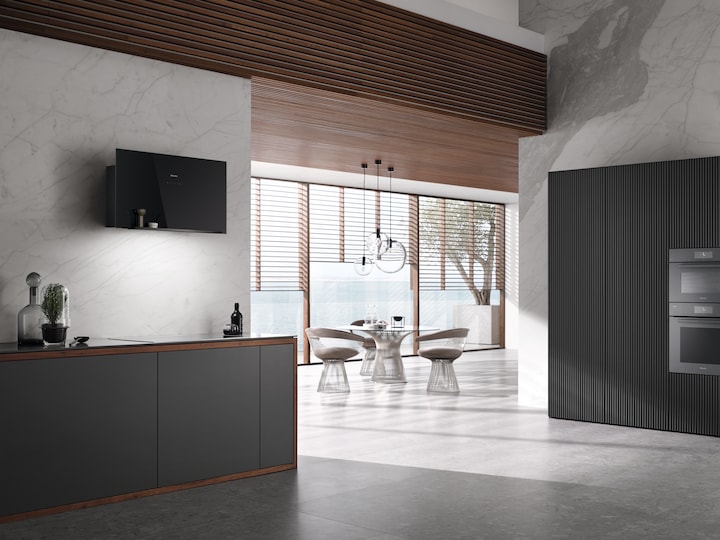

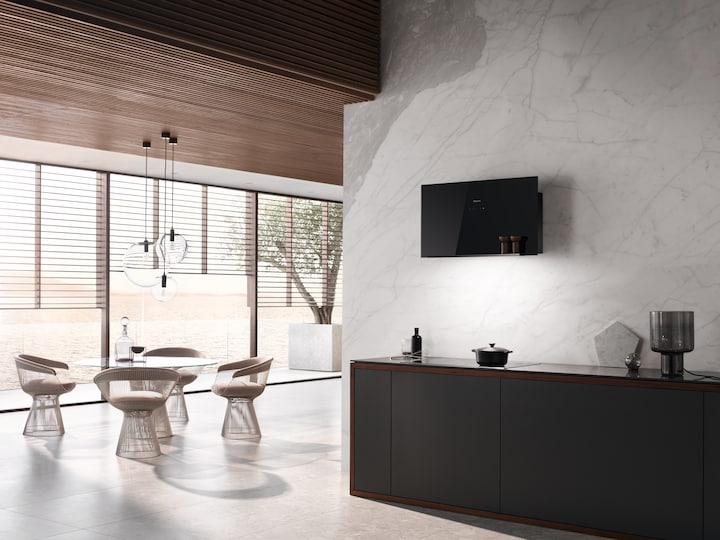

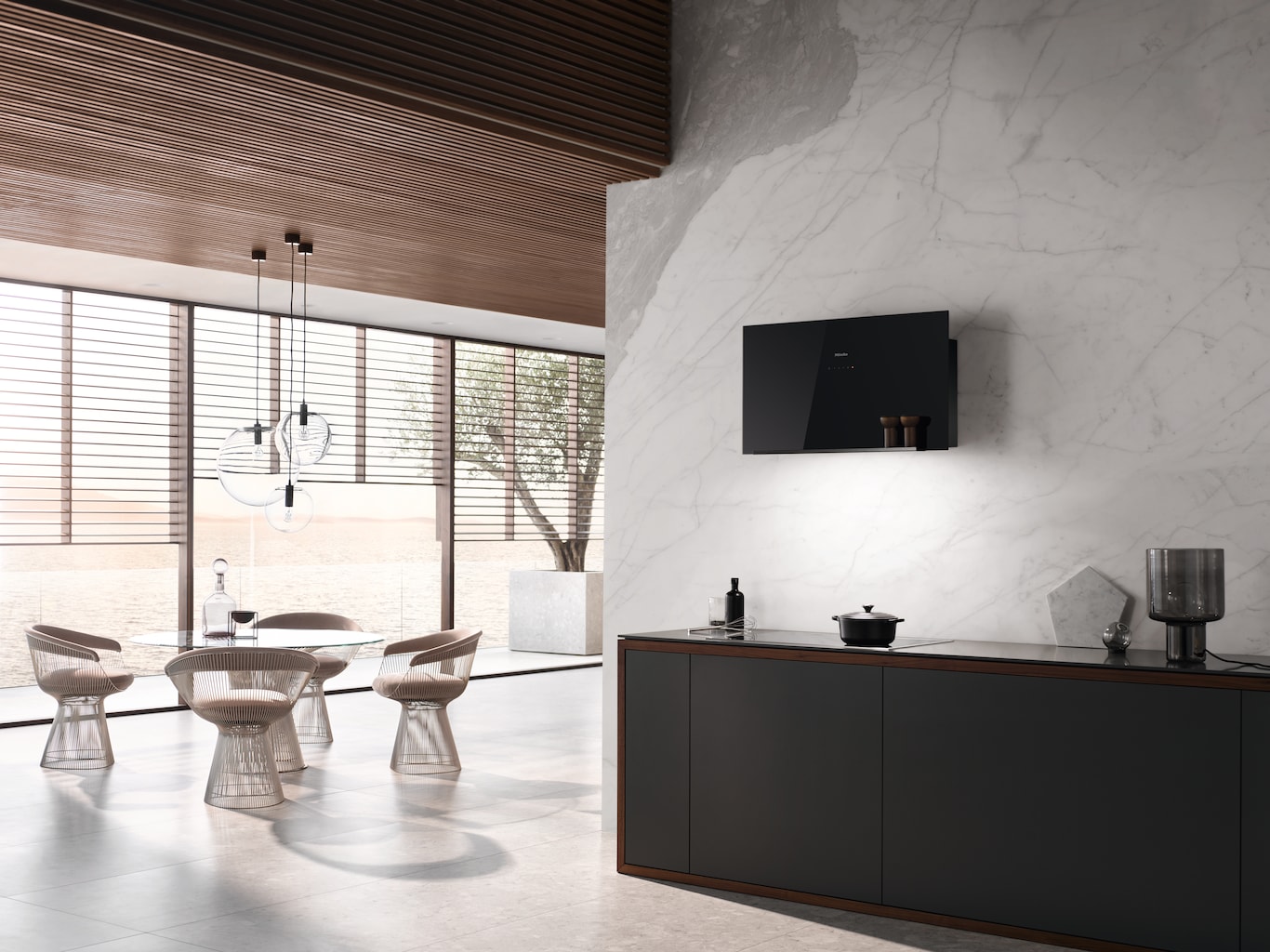

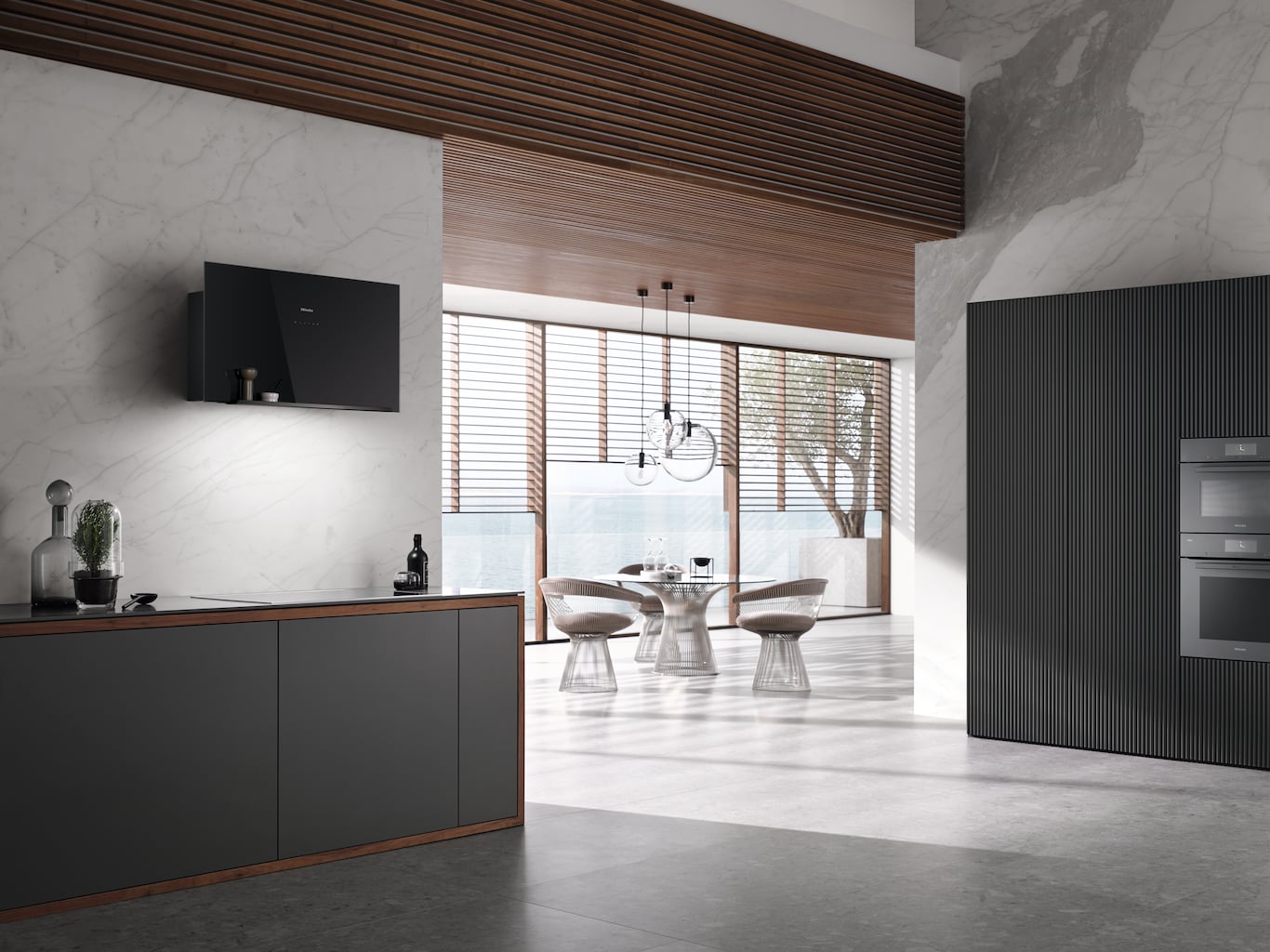

Wall mounted cooker hood

DA 9092 W Screen Obsidian black

(2 reviews)

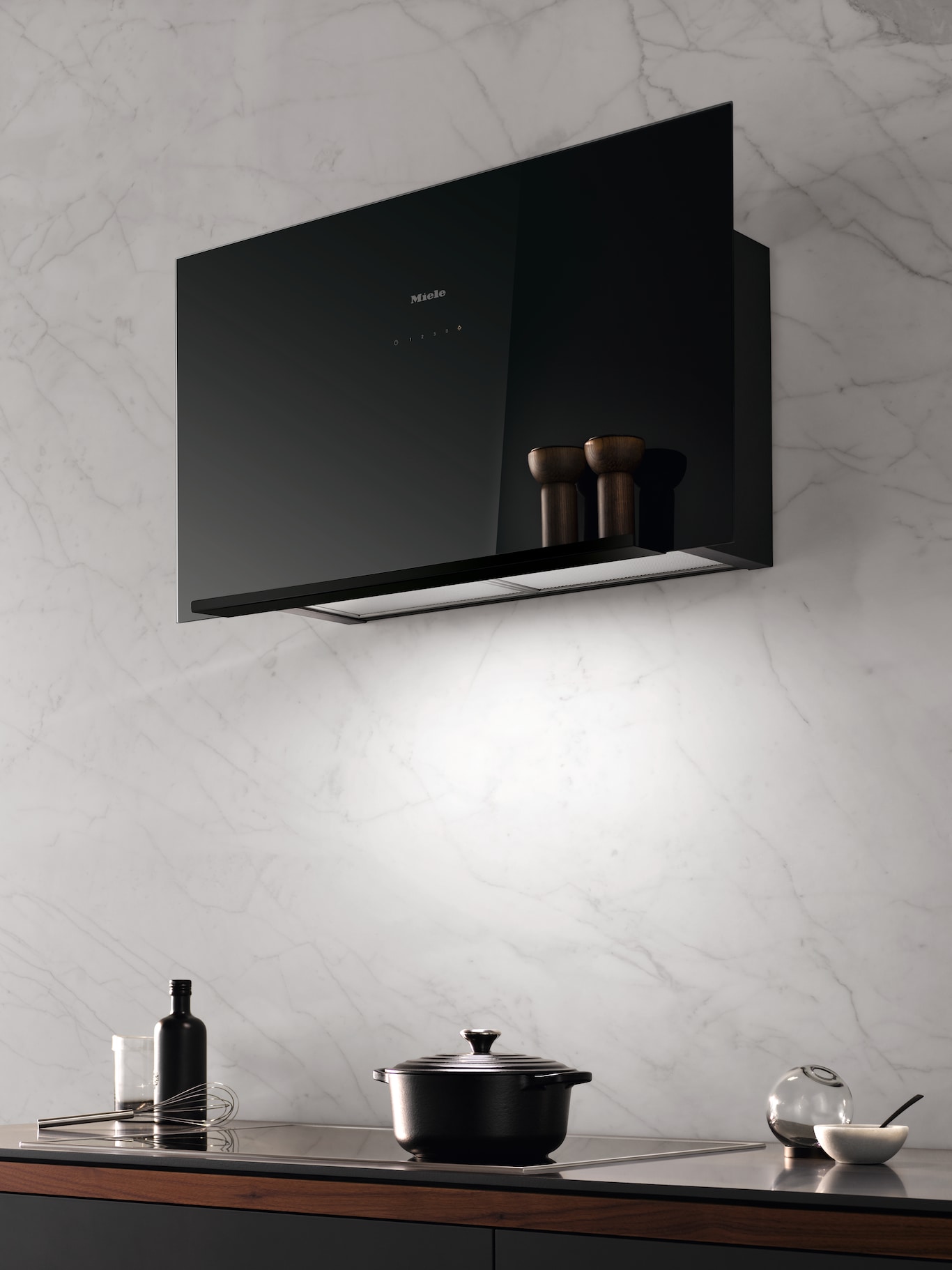

With vertical glass front and extremely flat design for more headroom.


Colour:Obsidian black

sale price£999.00

Buy now. Pay with Klarna. Learn more

Installation and recycling options available at checkout. For installation of built-in appliances please call 0330 160 6630



Product details

  • Linear design with 880 mm width and minimum depth of 260 mm

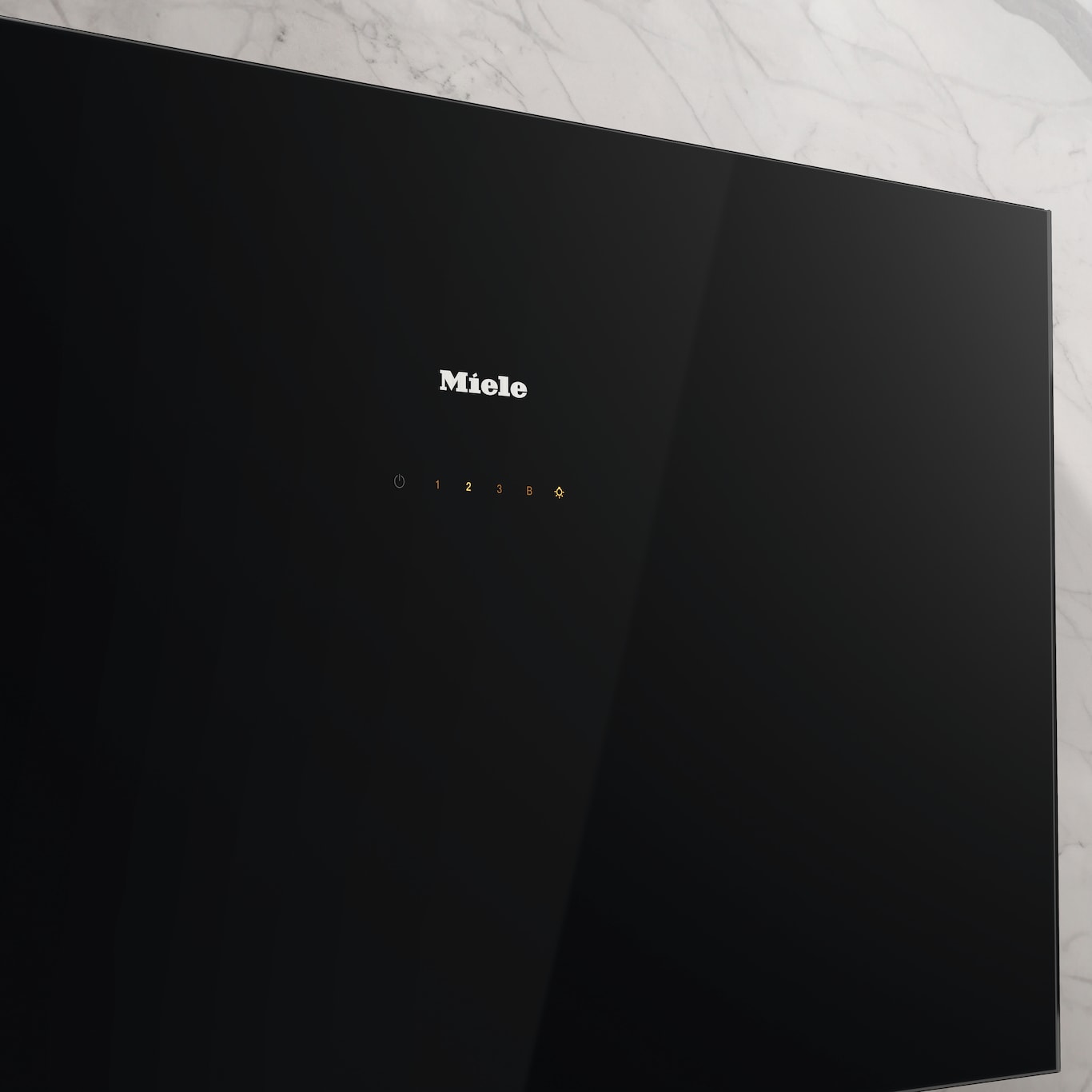

  • Modern touch controls on glass front
  • LED strip for uniform lighting
  • Wide
    rack
    – can be used as a shelf for herbs, for example
  • Efficient filtration-
    10-ply stainless-steel grease filter
  • Manufactured with great care by
  • Safety Information

Product data sheet

Wall mounted cooker hood
Type of air guide Can be retrofitted
Active charcoal filter (order separately) DKF 29
Colour Obsidian black
Electronic controls
Touch controls
Controls Touch-on-glass controls
Power levels (number without Booster level) 3
Booster levels 1
Silence package
Easy-to-clean canopy interior – CleanCover

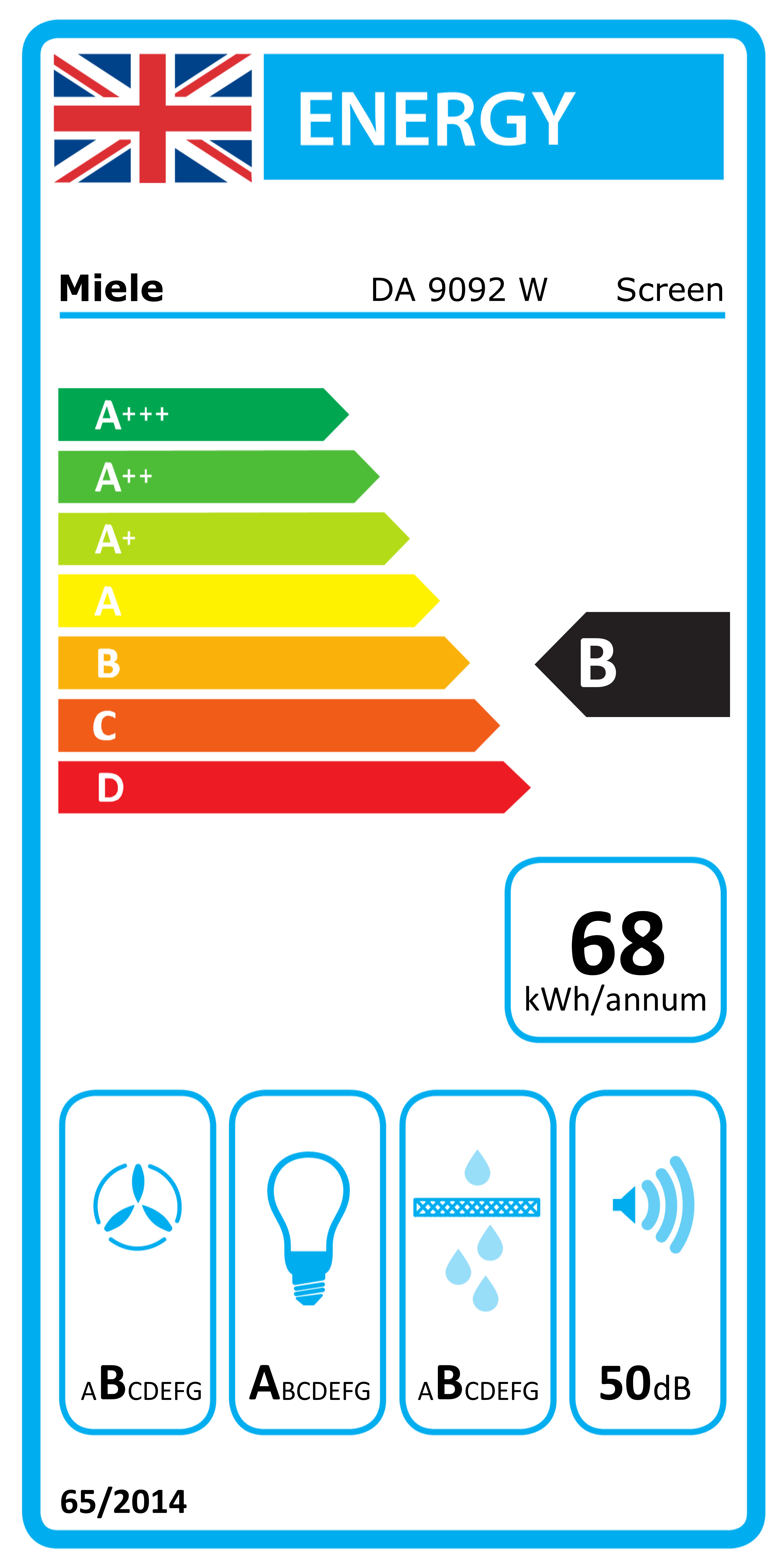

Energy efficiency class (A+++ to D) B
Annual energy consumption in kWh/year 67.7
Fluid dynamic efficiency class B
Lighting efficiency class A
Grease filtering efficiency class B
Easy-to-clean canopy interior – CleanCover
Number of dishwasher-safe stainless steel grease filters (10-ply) 2
Number x W 1 x 3,2 W
Light intensity in Lx 300 lx
Colour temperature in K 3500 Kelvin
Dual-action blower
Air throughput in Level 1 (m³/h) according to EN 61591 205
Air throughput in Level 2 (m³/h) according to EN 61591 310
Air throughput in Level 3 (m³/h) according to EN 61591 415
Air throughput in Booster level 1 (m³/h) according to EN 61591 670
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 39
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 45
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3 50
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3 62
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 25
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 31
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13 36
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13 48
Air throughput in Level 1 (m³/h) according to EN 61591 190
Air throughput in Level 2 (m³/h) according to EN 61591 290
Air throughput in Level 3 (m³/h) according to EN 61591 385
Air throughput in Booster level 1 (m³/h) according to EN 61591 605
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 44
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 51
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3 58
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3 69
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 30
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 37
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13 44
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13 55
Safety shut-off
Single-ply safety glass (ESG)
Overall height for vented and external in in. (mm) 500
Overall height for extraction mode and external mode cooker hoods in mm 500
Overall height for recirculation in in. (mm) 500
Overall height for recirculation mode cooker hoods in mm 500
Canopy width in in. (mm) 880
Canopy height in in. (mm) 500
Depth of hood canopy in in. (mm) 260
Minimum height above electric hobs in mm 450
Minimum safety distance above gas hobs (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm 650
Net weight in kg 21.5
Length of supply lead in m 1.5
Standard plug fitted
Total rated load in kW 0.203
Voltage in V 230
Fuse rating in A 10
Frequency in Hz 50
Number of phases 1
Extraction ducting connection at top
Extraction connection at top and rear
Diameter of extraction ducting connection in mm 150
Non-return flap
EAN 4002516798620

What's included

Non-return flap

Features

Easy to use and effective against grease
Stainless steel grease filters (10-layer)

Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.


Performance and convenience as standard
Silence

Efficient and quiet: the fan is effectively insulated with special soundproofing mats.


Convenience and safety in detail
Miele CleanCover

Protection and easy cleaning: the sealed, smooth surface prevents contact with cables and the motor.


Safety

Always on the safe side
Safety switch-off

Sensible, even in case of operating errors: the cooker hood switches off automatically after 10 hours.


What our customers say

(2 reviews)
5 stars
1 review
4 stars
0 reviews
3 stars
1 review
2 stars
0 reviews
1 star
0 reviews

Most recent reviews

Downloads

Product sheet
PDF
Downloads
Warranty conditions
PDF
Downloads
Installation plan
PDF
Downloads
Operating instructions/Installation instructions
PDF
Downloads
ifc
ZIP
Downloads
rfa
ZIP
Downloads
rvt
ZIP
Downloads
fbx
ZIP
Downloads
dwg
ZIP
Downloads
Energy label
PNG
Downloads
Energy label
PDF
Downloads
Product fiche
PDF
Downloads
Energy label
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/images/2000016/200001611/20000161136.png
Descriptions
DA9091W, DA9092W (Installation drawings)
1) Installation area for the mains connection., 2) Cut-out when ducting to the rear. Alternative vent connection at the back., 3) Air outlet for recirculation. A distance of at least 200 mm must be maintained between the top of the appliance and the ceiling or any furniture units installed above the appliance.,
