- PDR 1108 SmartBiz HP [EL]
PDR 1108 SmartBiz HP [EL]
meets industry standards with simple and flexible installation without ducting.Product details
- Drum volume 120 l, load size 8 kg
- 50 % less energy consumption than vented dryers4,
- High-quality stainless steel fascia plus Mielehoneycomb drumLoading...
- Supplied ready for connection incl. mains plug
- Space-saving installation aswasher-dryer stackLoading...
- View manufacturer details:
- Safety Information
Product data sheet
- Construction typeLoading...
- Front-loader, stackable
- Range
- SmartBiz
- Front
- Lotus white
- Fascia color
- Stainless steel
- Load in kg
- 8
- Drum volume in l
- 120
- Drying system
- Heat pump
- Door opening [Ø] in mm
- 370Loading...
- Door opening angle in degrees
- 167
- Door hinge
- left
- Stainless steel honeycomb drumLoading...
- Suitable for the hotel and catering industry
- Suitable for small businesses
- Suitable for universities, nurseries, and schools
- Suitable for sports clubs
- Suitable for beauty salons, spas, and fitness centres
- Suitable for domestic useLoading...
- Maximum evaporation capacity in l/hour
- 1.7Loading...
- Specific energy consumption in kWh/kg
- 0.140Loading...
- Specific energy consumption for Cottons/Normal drying programme with residual moisture at 48 % in kW
- 0.140
- Specific energy consumption for mixed fibre fabrics/Normal drying programme with residual moisture a
- 0.120
- Programme duration in min.
- 134Loading...
- Programme duration for Cottons/Normal drying programme with residual moisture at 48 % in minutes
- 134
- Programme duration for mixed fibre fabrics/Normal drying programme with residual moisture at 40 % in
- 112
- Tested operating hours
- 15000Loading...
- Control system
- DirectSensor 7-segment
- User interfaceLoading...
- Residual moisture controlled
- Max. delay start in hLoading...
- 24
- Time left displayLoading...
- Fascia panel with plain textLoading...
- Heating typeLoading...
- Heat pump
- Electrical connection
- 220-240V~ 50HZ
- Total connected load in kW
- 1.100
- Fuse rating in A
- 13
- External dimensions, height in mm
- 850
- External dimensions, width in mm
- 596
- External dimensions, depth in mm
- 636
- External dimensions, gross height in mm
- 940Loading...
- External dimensions, gross width in mm
- 660Loading...
- External dimensions, gross depth in mm
- 690Loading...
- Net weight in kg
- 53.5
- Gross weight in kg
- 58Loading...
- Maximum floor load in N
- 920Loading...
- Emission sound pressure level in the workplace
- ≤70 dB(A) re 20 µPaLoading...
- Heat dissipation into the room in MJ/h
- 1.79Loading...
- Axial airflowLoading...
- Fluff filter in the doorLoading...
- SmartBiz heat exchanger filter systemLoading...
- PerfectDryLoading...
- Wash2DryLoading...
- SoftLift drum ribsLoading...
- Gentle tumble functionLoading...
- Condensed water drainageLoading...
- FragranceDosLoading...
- Drum lightingLoading...
- Machine-independent accessoriesLoading...

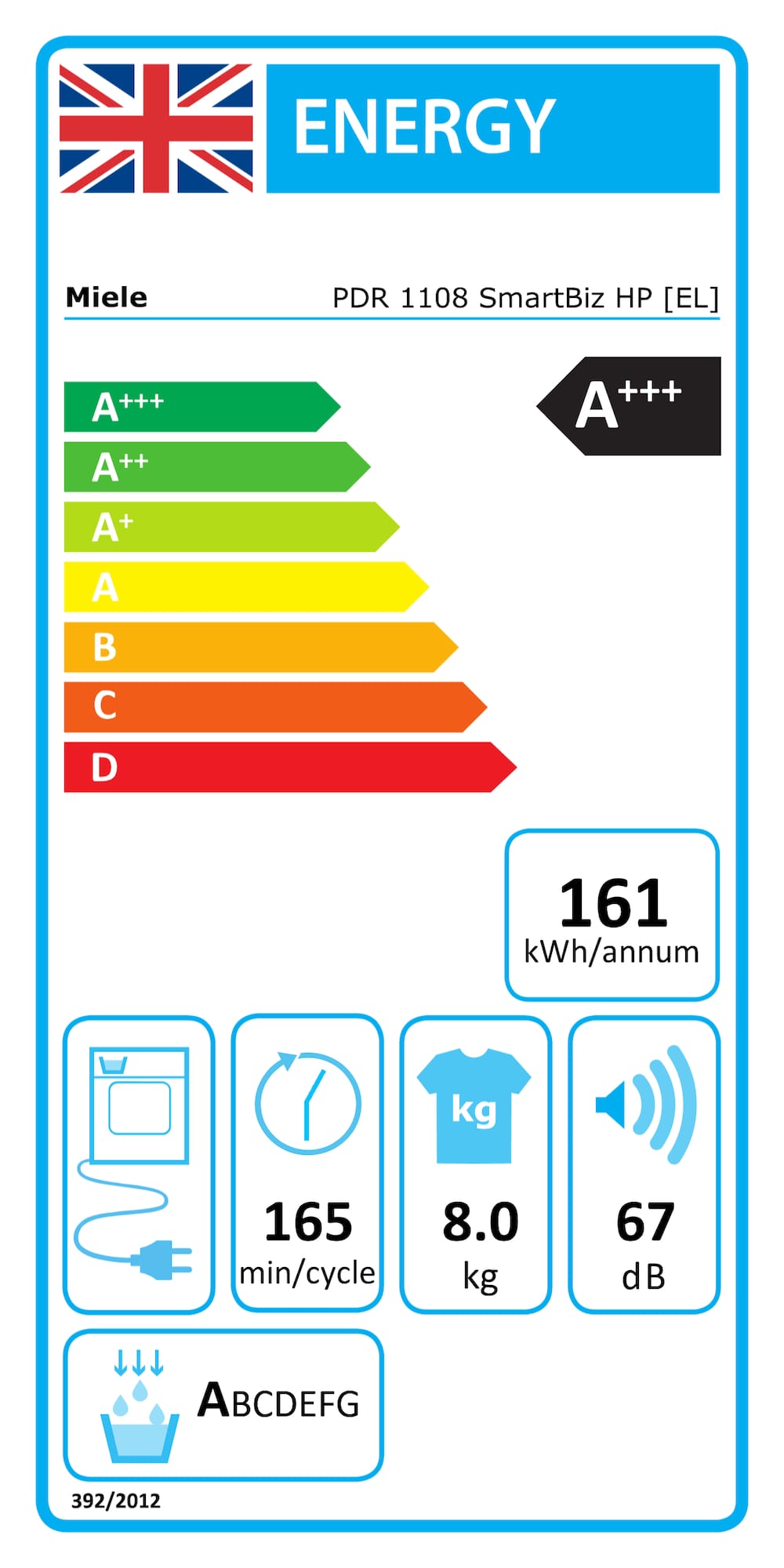

- Energy efficiency class
- A+++
- Condensation efficiency class
- A
- Annual energy consumption in kWh
- 161
- Noise in dB(a) in the Cottons Normal dry standard programme with a full load
- 67
- Duration in minutes in the standard programme
- 165
- How it works
- Condenser
- Load in kg
- 8
- Recycling rate in %
- 95
- Hermetically sealed system
- CoolantLoading...
- R290
- Refrigerant quantity in kg
- 0.140
- Refrigerant global warming potential in kg CO2e
- 3
- Appliance global warming potential in kg CO2e
- 0.42
- Optical interface for service accessLoading...
- WiFiConn@ctLoading...
- CE
- VDE
- Splash-proof safety rating IPX4
- WEEE
- UKCA
- Complies with Machinery Directive 2006/42/EC
- EAN
- 4002516798675
The cleverly networked laundry care teamWash2Dry
*Loading...Hand in hand: your tumble dryer automatically uses the same programme as your washing machine.
Quick and efficientShort programme cycles
Premium commercial technology allows you to benefit from the shortest programme cycles.
Unique honeycomb structure for gentle fabric careHoneycomb drum
Less creasing, easy finishing: Laundry is dried very gently and evenly in the honeycomb drum.
Economical and efficientLow consumption values
Economical and efficient: laundry machines from Miele Professional boast exceptionally low consumption values.
Clear and conciseClear text display in country-specific language
Programme names and other information are displayed as clear text in country-specific languages
Perfect drying resultsPerfectDry system
On the basis of a constant residual moisture measurement, the PerfectDry system perfectly dried garments.
Washing & drying on less than 0.5 m² of fl. sp.Stackable
The washer-dryer stack or dryer-only stack delivers top performance on a small footprint.
User convenience

Wash2Dry*Loading...
Hand in hand: your tumble dryer automatically uses the same programme as your washing machine.
Delay start up to 24 hours
The programme start time can be pre-set up to 24 hours in advance for efficient planning.
Countdown indicator
After the programme has started, the display shows the cycle time remaining.
Drum lighting
No laundry item is overlooked when unloading thanks to the perfectly lit honeycomb drum.
Clear text display in country-specific language
Programme names and other information are displayed as clear text in country-specific languages
Patented condensate drainage1,
Emptying not necessary: The condensed water can be drained directly via a hose.
Stackable
The washer-dryer stack or dryer-only stack delivers top performance on a small footprint.
SmartBiz heat exchanger filter system
For easy cleaning: a low-maintenance filter system protects the heat exchanger from dust particles.
Convenient fluff filter2,
Easy to access: the second fluff filter reliably captures fluff and is easy to clean.Quality

Conforms to Machinery Directive
Miele commercial machines comply with applicable safety regulations.
Excellent durability
Professional technology ensures excellent reliability and durability for daily work routine.Connectivity

WiFiConn@ct
Simple networking via WiFiConn@ct: connect via smartphone/tablet and app3, and retrieve status updates.Performance

Short programme cycles
Premium commercial technology allows you to benefit from the shortest programme cycles.
PerfectDry system
On the basis of a constant residual moisture measurement, the PerfectDry system perfectly dried garments.
Axial airflow
For perfect drying results, air is passed through the drum according to the principle of longitudinal air flow.Efficiency

Refrigerant: propane
The use of propane as a refrigerant reduces the GWP (global warming potential) by up to 99.8 %.
Large capacity
The large capacity drum ensures perfect drying results even with large loads.
Low consumption values
Economical and efficient: laundry machines from Miele Professional boast exceptionally low consumption values.Gentle laundry care

Honeycomb drum
Less creasing, easy finishing: Laundry is dried very gently and evenly in the honeycomb drum.
SoftLift drum ribs ensure gentle fabric care
The SoftLift drum ribs allow laundry to be dried gently and evenly.
Perfect anti-crease action
The laundry is tumbled regularly after the end of the programme to protect it from creasing.Matching products and accessories
Downloads
- 1.European patent: EP2532779
- 2.European patent: EP2273005
- 3.The Mobile app is available separately – its availability depends on the country or region.
- 4.Heat pump dryers consume up to 50 % less energy than an electrically heated vented dryer.
We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
