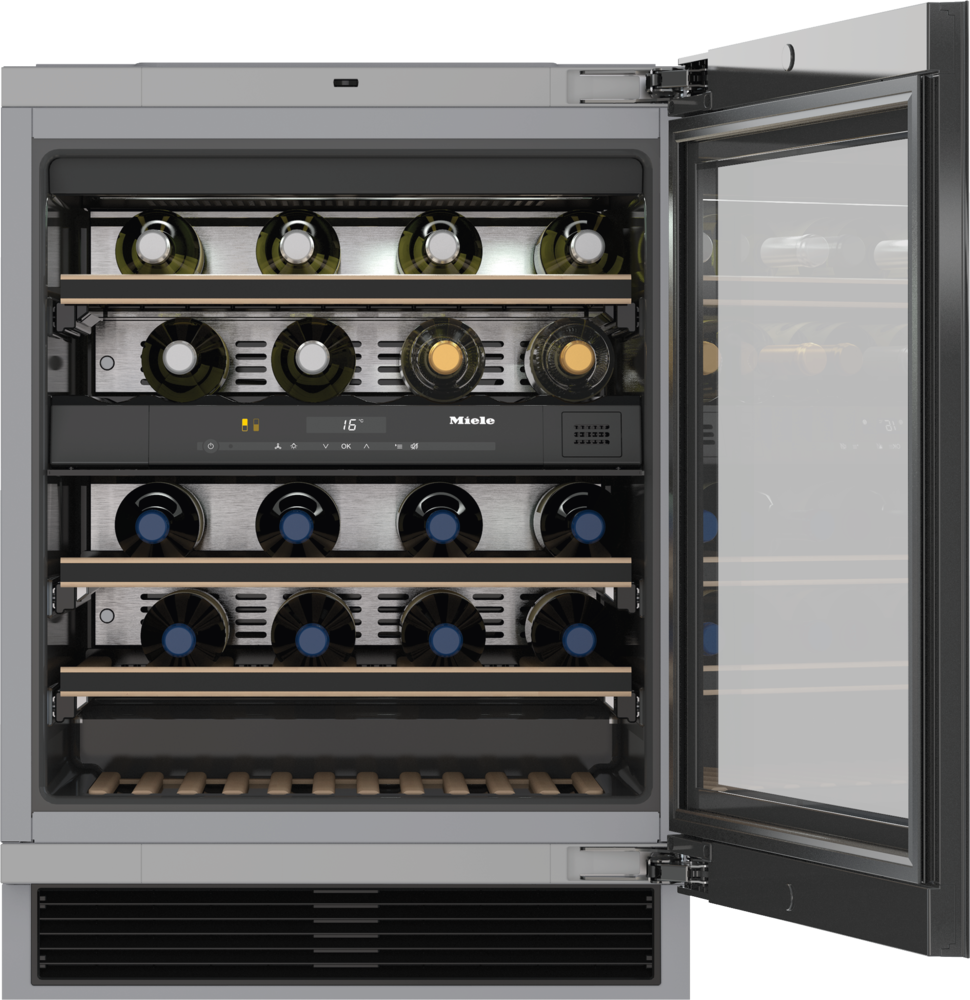

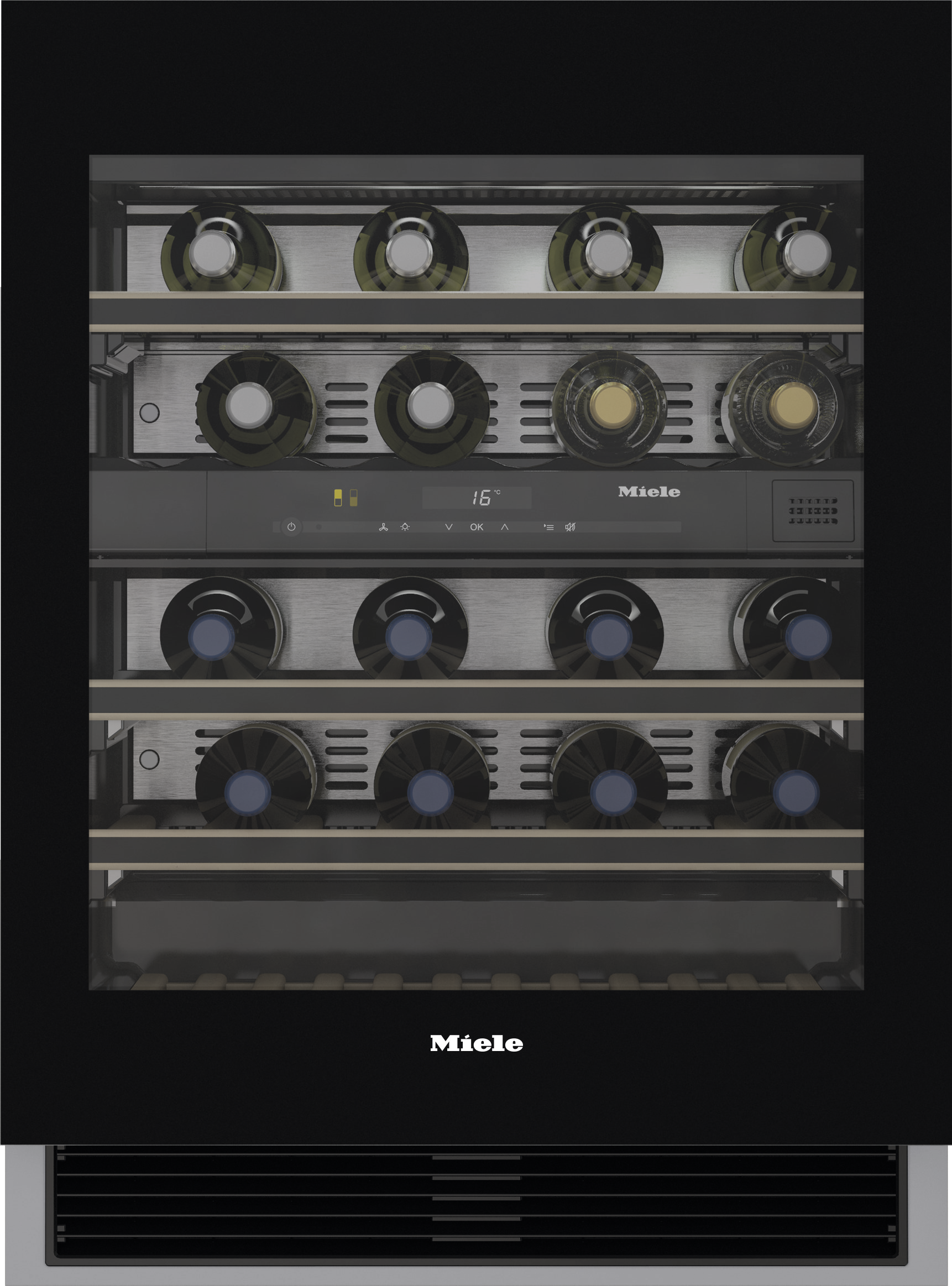

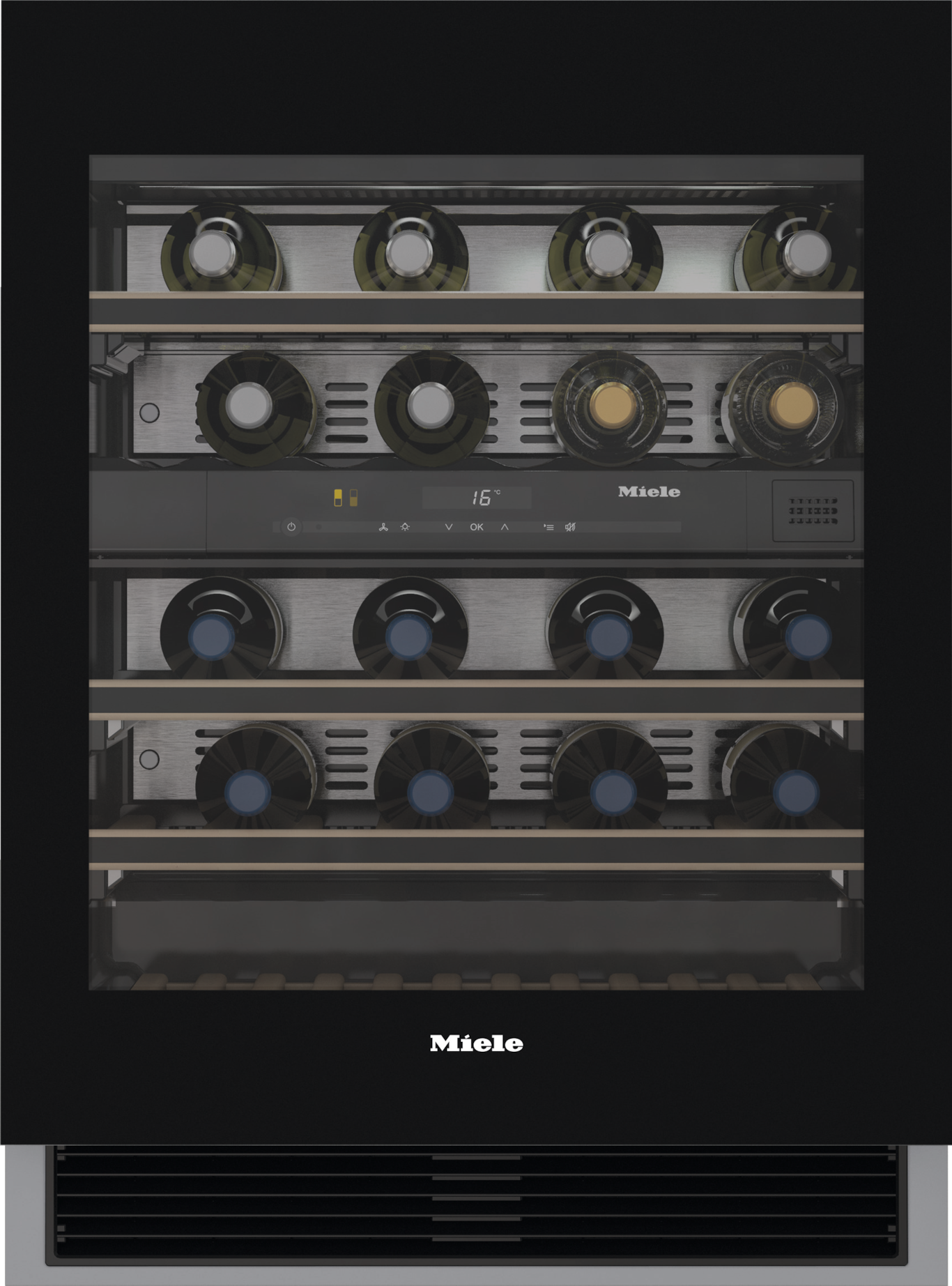

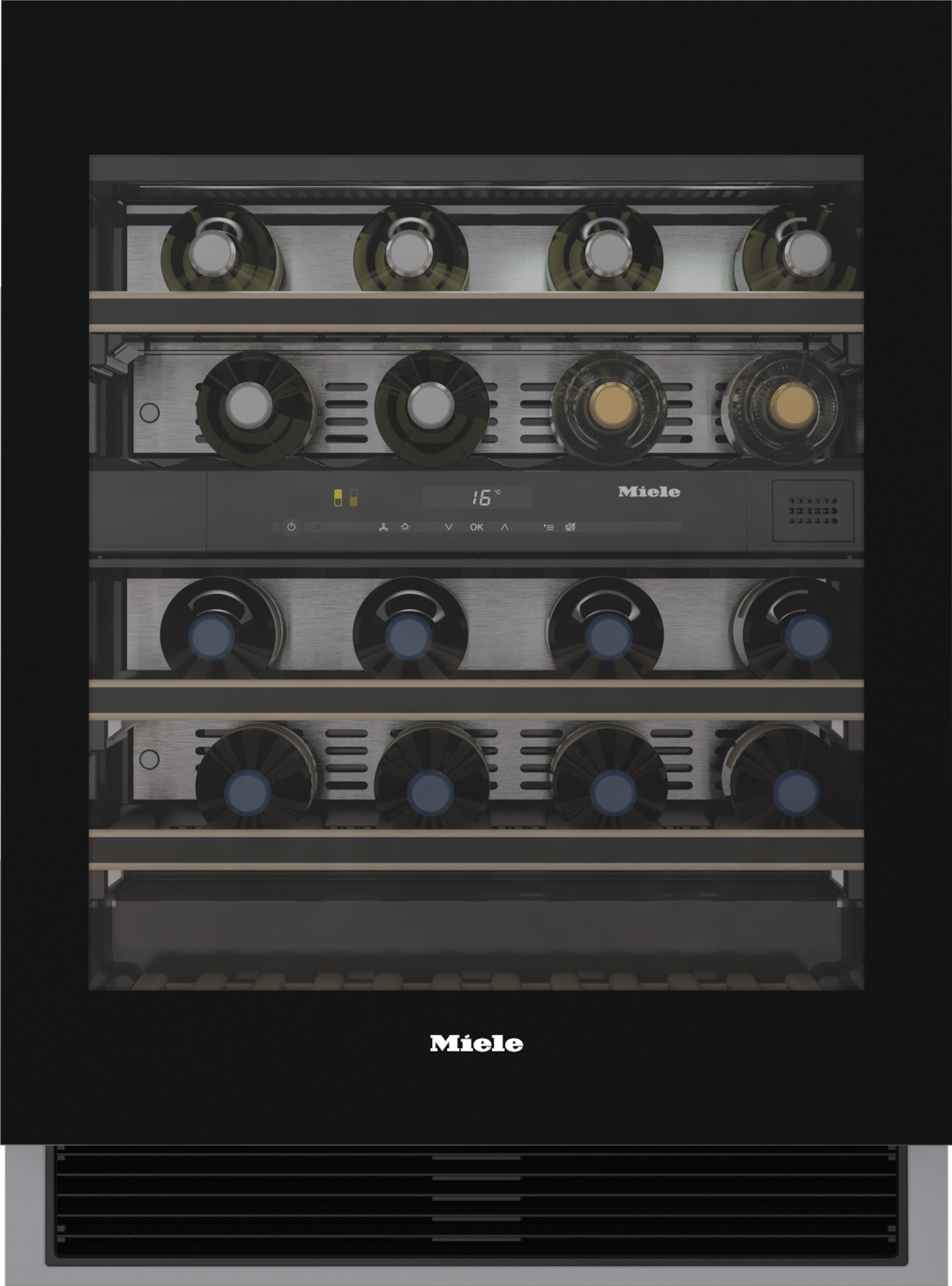

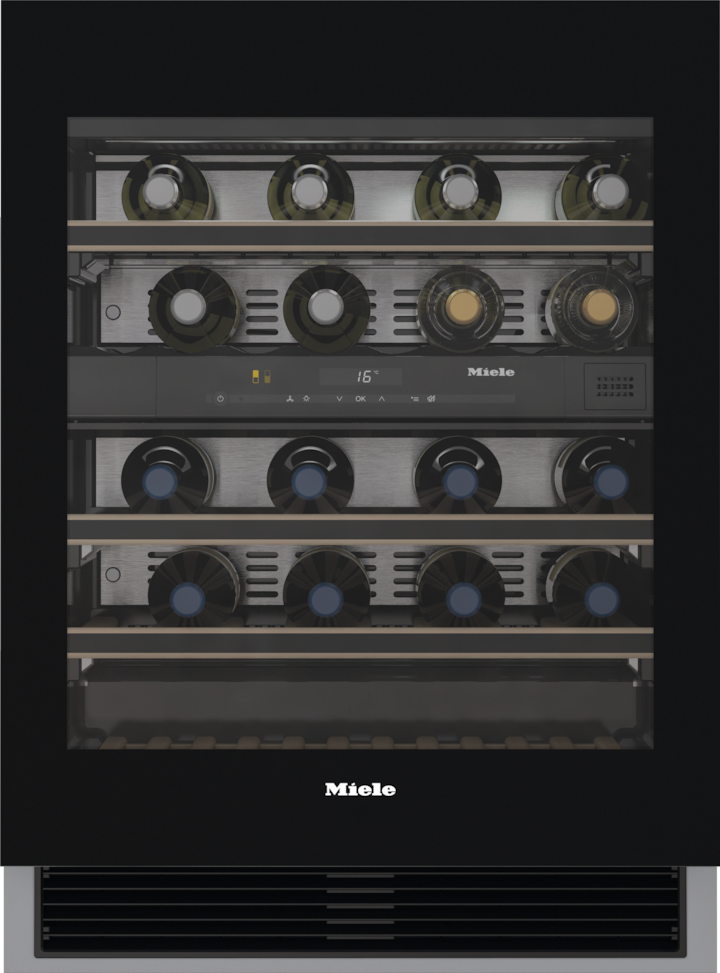

Built-under wine conditioning unitDIAMOND

KWT 6322 UG-1 Glass door

(1 review) with FlexiFrame and Push2open for greater versatility and top-quality design.
Colour:Glass door
Product data sheet
Permanently out of stock

Product data sheet

Wine conditioning unit
Built-in appliance
Integrated appliance
Undercounter appliance
Door hinge right
Convertible door hinging
Side-by-side enabled
Front colour Glass door
Wine compartment lighting LED illumination
Networking with Miele@home
Accessories required XKS 3130 W
DynaCool
SoftClose
Active AirClean Filter
Total number of shelves 5
Number of shelves 4
Shelf material Beechwood
Number of FlexiFrame racks
3
NoteBoard
Low-vibration storage

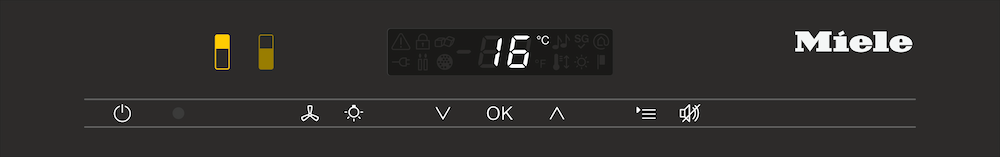

Operating concept TouchControl
No. of temperature zones
2
Min. temperature setting range in °C 5
Max. temperature setting range in °C 20
Annual energy consumption in kWh 138
Energy consumption in 24 h in kWh 0.378
Lock function
Acoustic door alarm
Optical door alarm
Niche width in mm min. 600
Niche width in mm max. 600
Niche height in mm min. 820
Niche height in mm max. 870
Niche depth in mm 580
Appliance dimensions (W x H x D) in mm 597 x 822 x 577
Appliance width in mm 597
Appliance height in mm 822
Appliance depth in mm 577
Weight in kg 47
Climate class SN-T
Refrigerator compartment in l 94
Wine compartment in l 94
Total usable capacity in l 94
0.75 l Bordeaux bottle capacity (no. of bottles) 34 bottles
Acoustic airborne noise emission class (A–D) B
Sound emissions in dB(A) re 1 pW 35
Current consumption (mA) 1500
Voltage in V 220-240
Fuse rating in A 10
Number of phases 1
Frequency in Hz 50
Length of supply lead in m 2.8
Active AirClean filter
EAN 4002516770398

What's included

Active AirClean filter

User convenience

Beautiful and protects precious wines
Beautiful and protects precious wines

UV protection

The best protection for valuable wine: glass door with integrated UV filter.

Customise each rack with strips you can write on
Customise each rack with strips you can write on

NoteBoard

For individual labelling: every bottle rack features a removable, magnetic strip for labelling bottles on the rack.

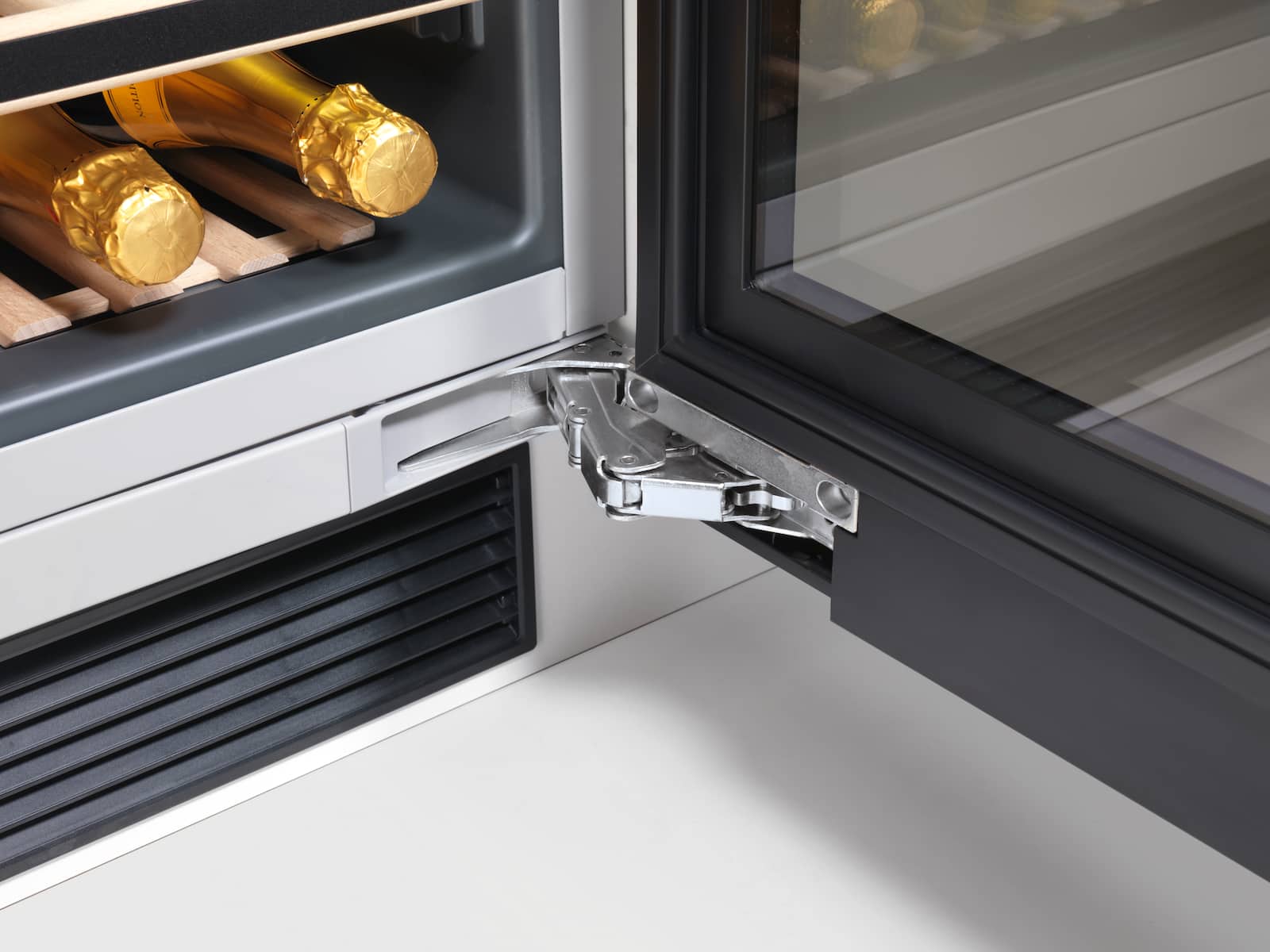

Appliance door closes softly
Appliance door closes softly

SoftClose

Quiet and safe: the doors close quietly, gently and as if of their own accord for storage without any vibrations.

Perfect storage conditions for food and wine
Perfect storage conditions for food and wine

DynaCool (dynamic cooling)

Uniform distribution of temperature: a ventilator ensures excellent circulation and distribution of cold air.

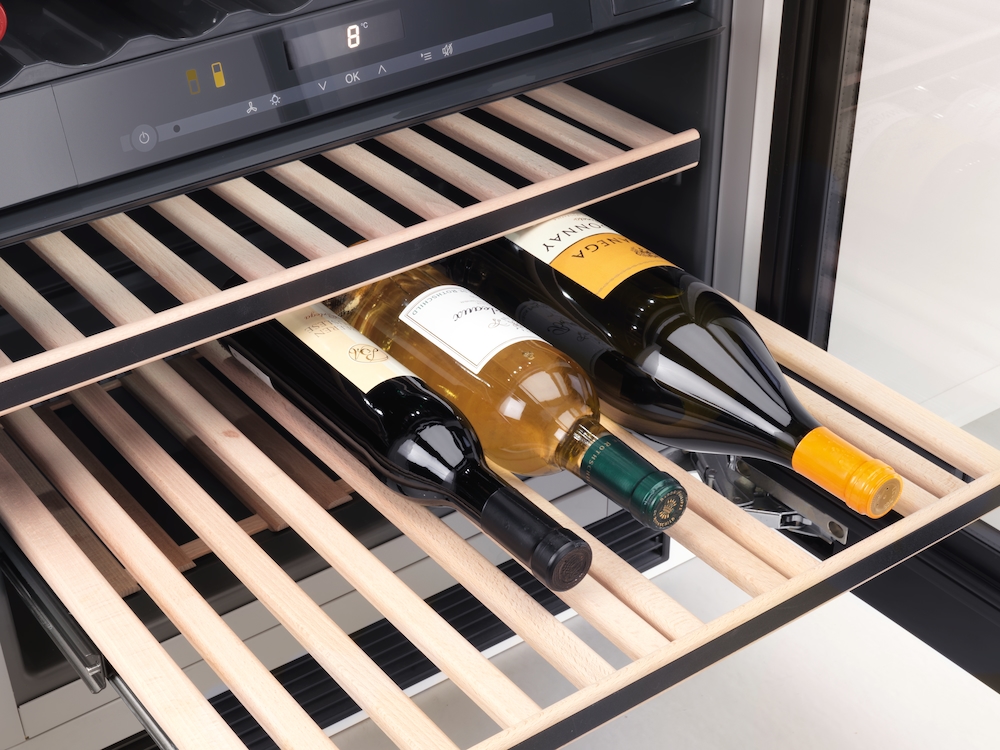

Holds bottles of all sizes securely
Holds bottles of all sizes securely

FlexiFrame

Just one movement: move individual slats so that large wine bottles are easy to store.

Cleverly networked
Cleverly networked

Miele@home1,

Make your life smart: thanks to Miele@home, you can cleverly network your domestic appliances – for more options.

Quality

Specially developed for storage in the wine unit
Specially developed for storage in the wine unit

Storage with low vibration

Low vibration: The compressor is uncoupled and cushioned against vibration.

Convenience features

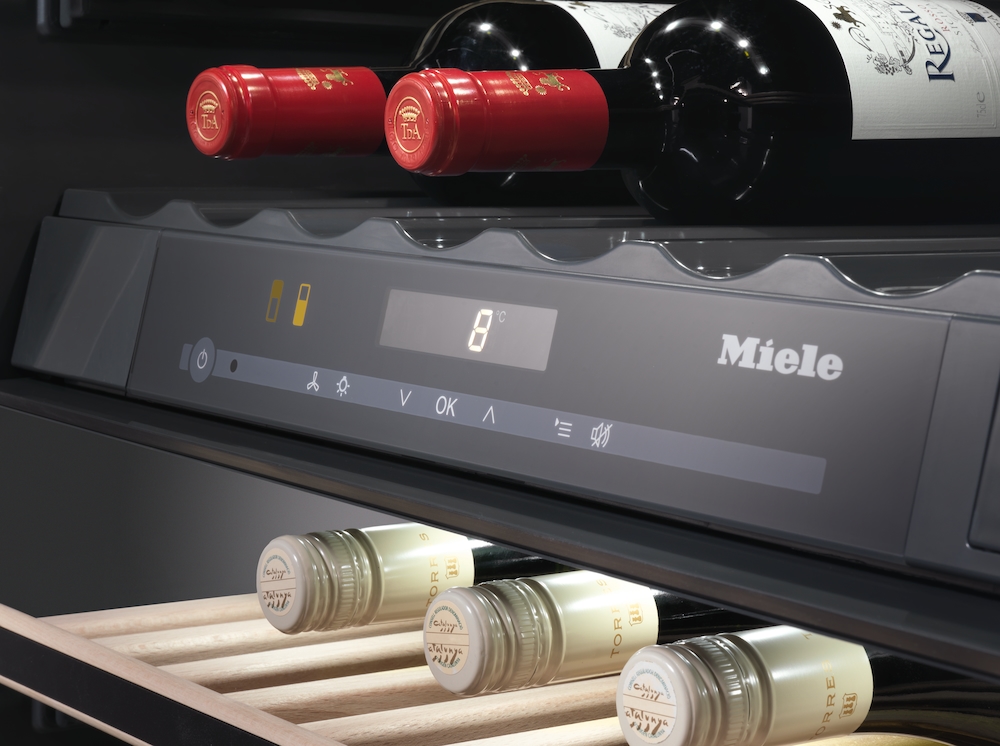

Several temperature zones in one appliance
Several temperature zones in one appliance

Temperature zones

Separate controls: up to three different types of wine can be stored at the same time at different temperatures.

What our customers say

(1 review)
5 stars
1 review
4 stars
0 reviews
3 stars
0 reviews
2 stars
0 reviews
1 star
0 reviews

Most recent reviews

Downloads

Product sheet
PDF
Downloads
dwg
ZIP
Downloads
fbx
ZIP
Downloads
ifc
ZIP
Downloads
rfa
ZIP
Downloads
rvt
ZIP
Downloads

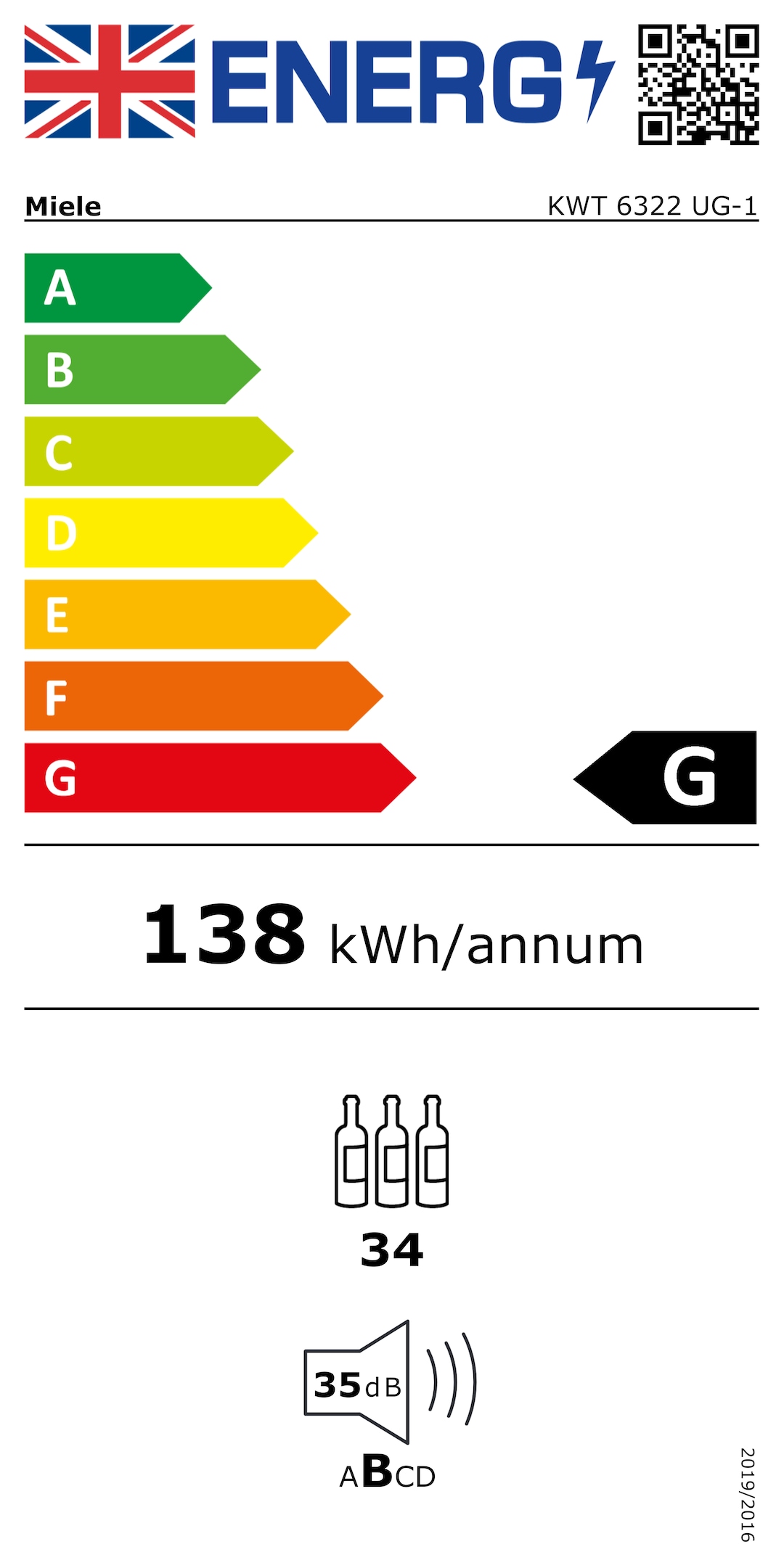

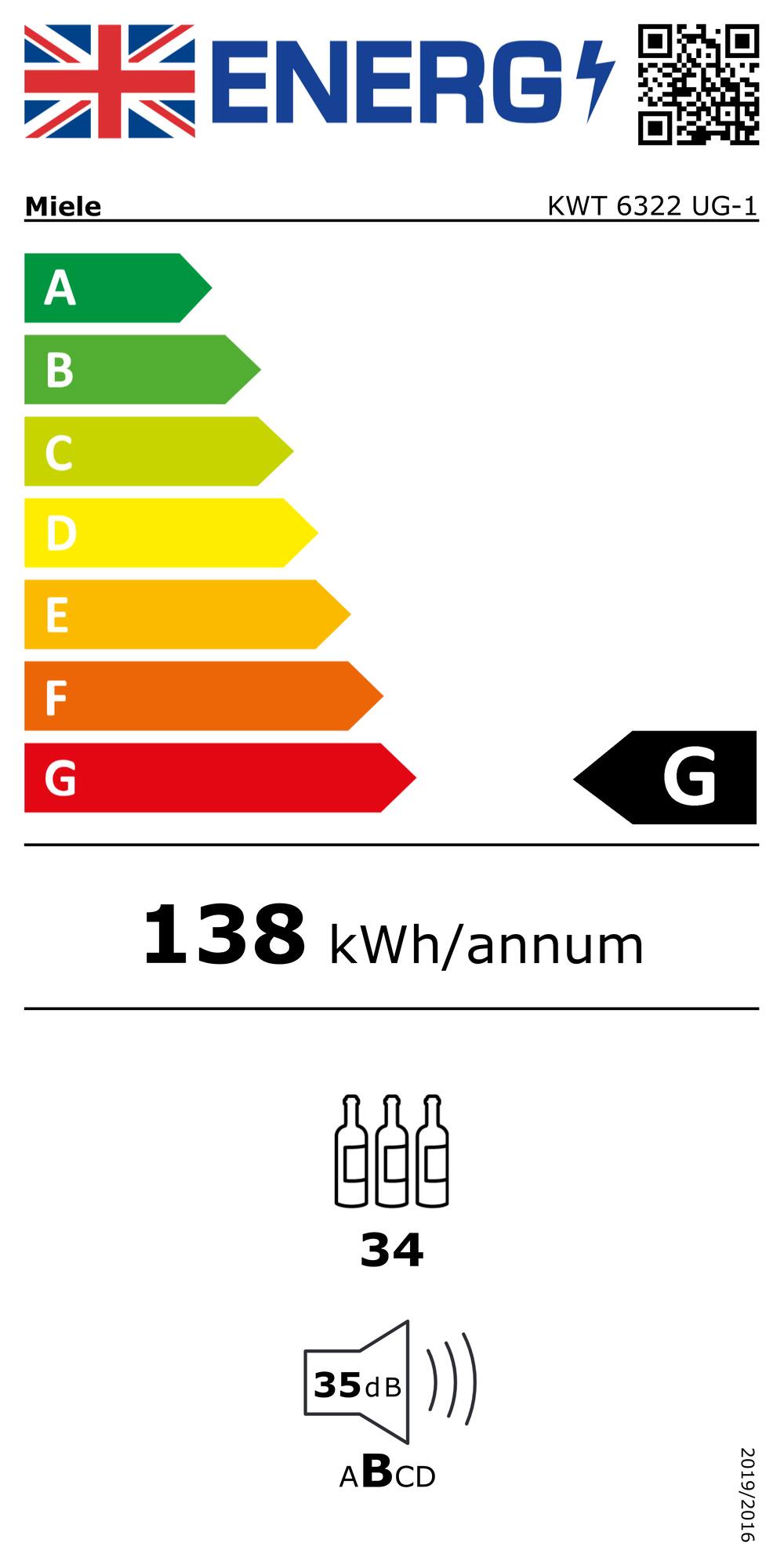

Energy label
PDF
Downloads
Energy label
PNG
Downloads
Product fiche
PDF
Downloads
Energy label
PDF
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/images/2000010/200001079/20000107908.png
Descriptions
KWT6312UGS, KWT6322UG, KWT6322UG-1, KWT6322UG edt/cs (installation drawings)
KWT6312UGS, KWT6322UG, KWT6322UG-1, KWT6322UG edt/cs (installation drawings)
POSTSCRIPT
Downloads
https://media.miele.com/images/2000011/200001128/20000112851.png
Descriptions
KWT6312UGS, KWT6322UG, KWT6322UG-1, KSK6300, Side by Side (installation drawing)
KWT6312UGS, KWT6322UG, KWT6322UG-1, KSK6300, Side by Side (installation drawing)
POSTSCRIPT
Downloads
https://media.miele.com/images/2000015/200001553/20000155348.png
Descriptions
KWT6322UG, KWT6322UG-1, KWT6322UG edt/cs, Interior dimensions (Installation drawings)
KWT6322UG, KWT6322UG-1, KWT6322UG edt/cs, Interior dimensions (Installation drawings)
POSTSCRIPT
Downloads
https://media.miele.com/images/2000016/200001630/20000163057.png
Descriptions
KWT6312UGS, KWT6322UG, KWT6322UG-1, KWT6322UG edt/cs (installation drawings)
KWT6312UGS, KWT6322UG, KWT6322UG-1, KWT6322UG edt/cs (installation drawings)
POSTSCRIPT
Downloads
  • 1.This is a separate digital offer from Miele & Cie. KG. The range of functions can vary depending on the model and the country. Acceptance of the Terms and Conditions and Privacy Policy for Miele digital products and services in the Miele app required. Miele reserves the right to change or discontinue the digital offer at any time.

We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
