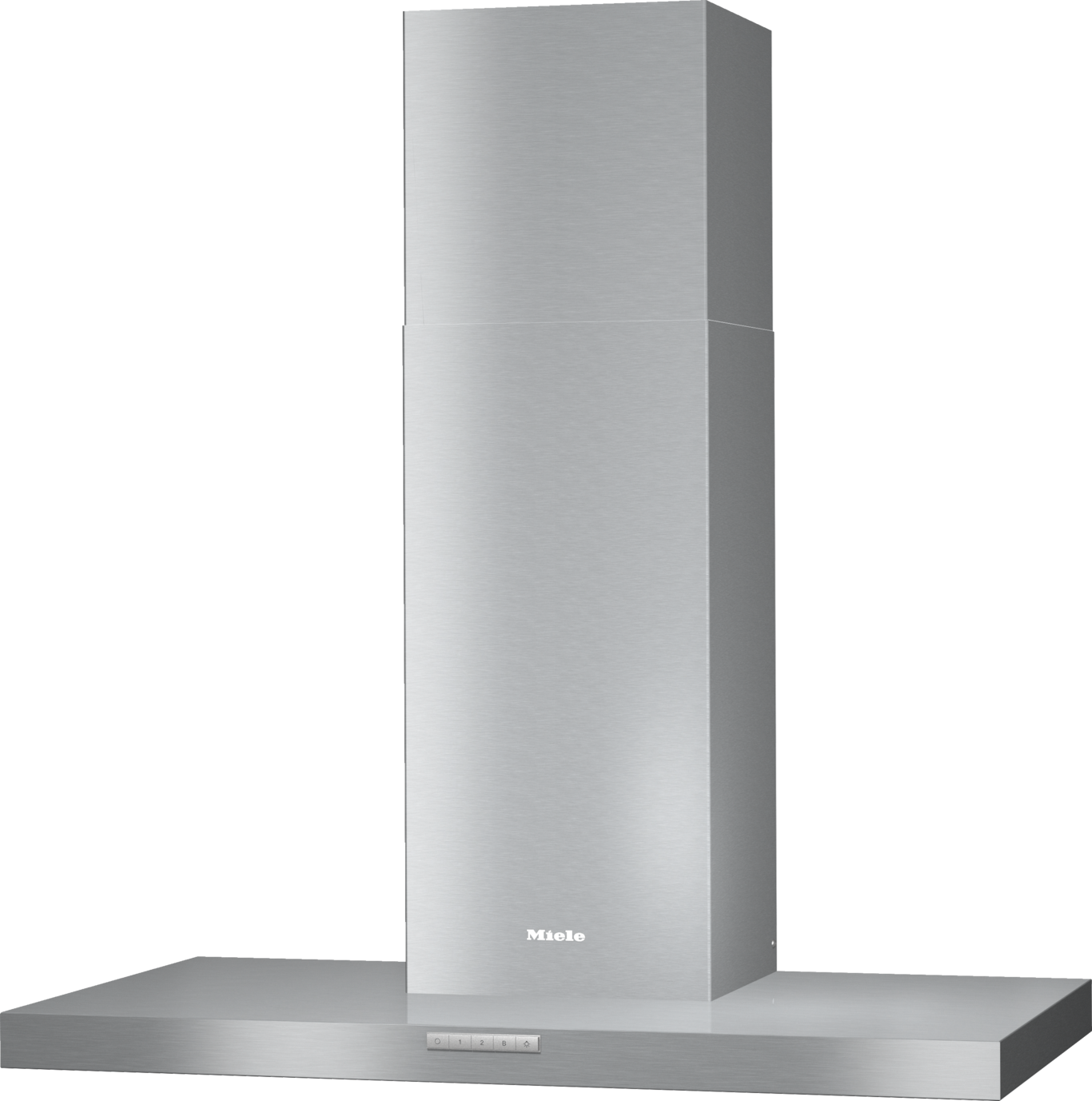

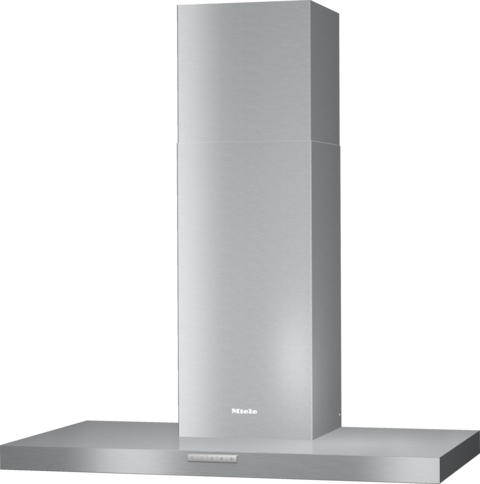

Wall mounted cooker hood

DAW 1920 Active Stainless steel

(2 reviews)
with EasySwitch pushbuttons for convenient operation


Colour:Stainless steel

sale price£849.00

Buy now. Pay with Klarna. Learn more

Installation and recycling options available at checkout. For installation of built-in appliances please call 0330 160 6630



Product details

  • Timeless design – stainless steel canopy 898 mm wide
  • Powerful – 645 m3/h in Booster level
  • LED strip for uniform lighting
  • Effective filtration – 10-ply aluminium metal grease filter
  • Suitable for every home - for extraction or recirculation
  • Manufactured with great care by
  • Safety Information

Product data sheet

Wall mounted cooker hood
Type of air guide Can be retrofitted
Active charcoal filter (order separately) DKFS 36-P
Colour Stainless steel
Electronic controls
Booster levels 1
Energy efficiency class (A+++ to D) A
Annual energy consumption in kWh/year 49.8
Fluid dynamic efficiency class A
Lighting efficiency class A
Grease filtering efficiency class B
Number of dishwasher-safe metal grease filters 3
Number x W 1 x 3,2 W
Light intensity in Lx 350 lx
Colour temperature in K 3500 Kelvin
Dual-action blower
Air throughput in Level 1 (m³/h) according to EN 61591 255
Air throughput in Level 2 (m³/h) according to EN 61591 400
Air throughput in Booster level 1 (m³/h) according to EN 61591 645
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 53
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 62
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3 71
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 39
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 48
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13 57
Air throughput in Level 1 (m³/h) according to EN 61591 235
Air throughput in Level 2 (m³/h) according to EN 61591 390
Air throughput in Booster level 1 (m³/h) according to EN 61591 620
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 54
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 64
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3 74
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 40
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 50
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13 60
Overall height for vented and external in in. (mm) 673
Overall height for extraction mode and external mode cooker hoods in mm 993
Overall height for recirculation in in. (mm) 803
Overall height for recirculation mode cooker hoods in mm 1123
Canopy width in in. (mm) 898
Canopy height in in. (mm) 50
Depth of hood canopy in in. (mm) 500
Minimum height above electric hobs in mm 450
Net weight in kg 15
Length of supply lead in m 1.4
Standard plug fitted
Total rated load in kW 0.248
Voltage in V 230
Fuse rating in A 10
Frequency in Hz 50
Number of phases 1
Extraction ducting connection at top
Extraction connection at top and rear
Diameter of extraction ducting connection in mm 150
Telescopic chimney
Non-return flap
EAN 4002516657057

What's included

Non-return flap

What our customers say

(2 reviews)
5 stars
0 reviews
4 stars
1 review
3 stars
0 reviews
2 stars
0 reviews
1 star
1 review

Most recent reviews

Downloads

Installation plan
PDF
Downloads
Warranty conditions
PDF
Downloads
Operating instructions/Installation instructions
PDF
Downloads
Product sheet
PDF
Downloads
dwg
ZIP
Downloads
ifc
ZIP
Downloads
rfa
ZIP
Downloads
rvt
ZIP
Downloads
fbx
ZIP
Downloads
Product fiche
PDF
Downloads

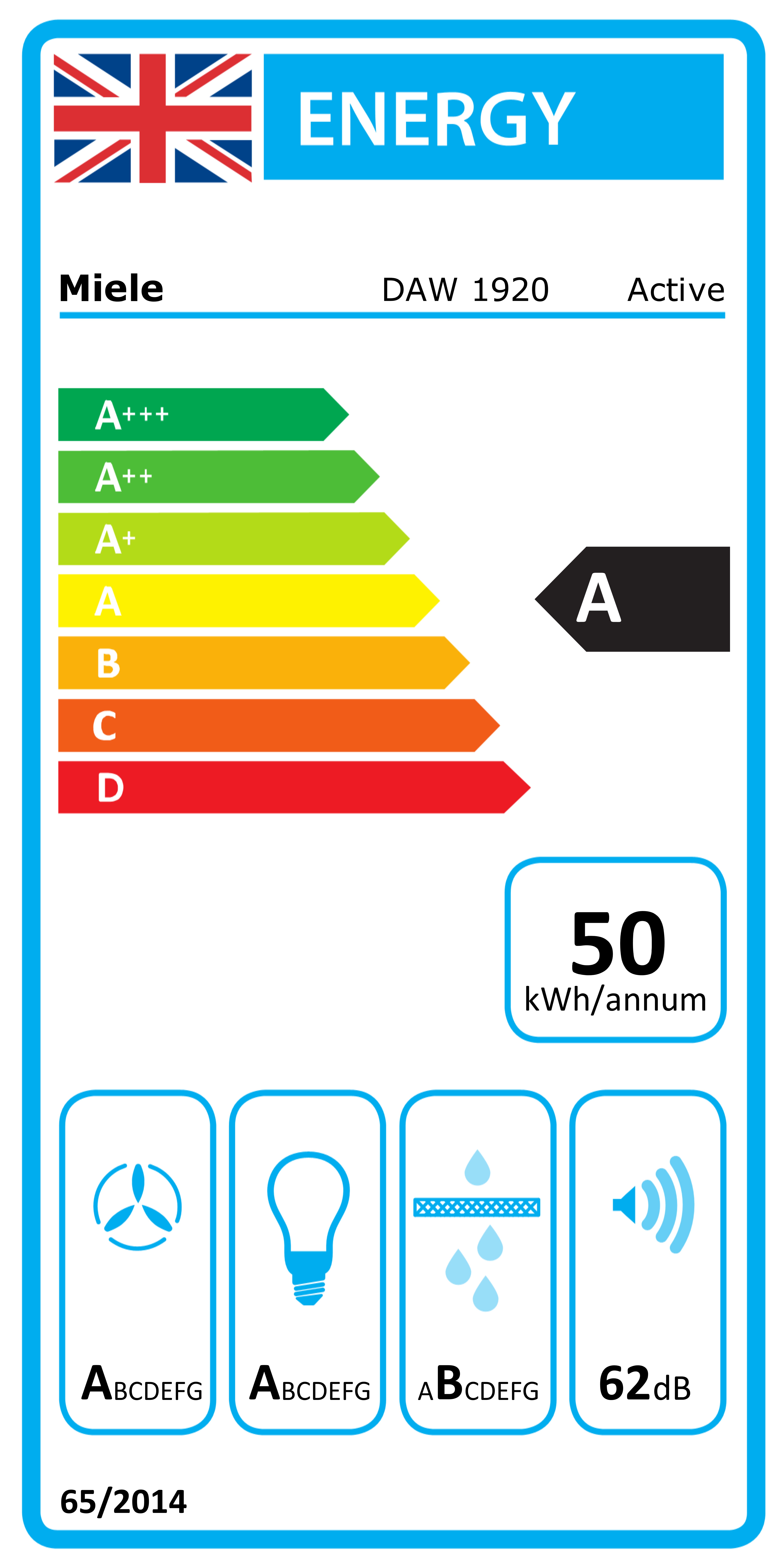

Energy label
PNG
Downloads
Energy label
PDF
Downloads
Energy label
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/images/2000017/200001780/20000178030.png
Descriptions
DAW1920, DAW1922W Living, Installation drawings
1) Extraction, 2) Recirculation, 3) Ventilation grille positioned at the top for recirculation, 4+5) Installation area (only 4 required for recirculation mode)
