Wall mounted cooker hood

DAW 1620 Active Stainless steel

Name: DAW 1620 Active
Brand: Miele
SKU: 12178460
Price: 749 GBP
Availability: InStock

with EasySwitch pushbuttons for convenient operation

Product data sheet

£749.00

Free delivery on consumables and small appliance orders over £50, otherwise £3.99. Delivery charge for large appliances £20. Installation and recycling options available at checkout. For installation of built-in appliances please call 0330 160 6630.

Additional services

Product details

Timeless design – stainless steel canopy 598 mm wide
Powerful – 640 m3/h in Booster level
LED strip for uniform lighting
Effective filtration – 10-ply aluminium metal grease filter
Suitable for every home - for extraction or recirculation

Product data sheet

Wall mounted cooker hood

Type of air guideCan be retrofitted

Active charcoal filter (order separately)DKFS 36-P

ColourStainless steel

Electronic controls

Energy efficiency class (A+++ to D)A

Annual energy consumption in kWh/year49.90

Fluid dynamic efficiency classA

Lighting efficiency classA

Grease filtering efficiency classB

Number of dishwasher-safe metal grease filters2

Number x W1 x 3,2 W

Light intensity in Lx390 lx

Colour temperature in K3500 Kelvin

Dual-action blower

AC motor

Air throughput in Level 1 (m³/h) according to EN 61591250

Air throughput in Level 2 (m³/h) according to EN 61591395

Air throughput in booster level 1 (m³/h)640

Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-352

Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-362

Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-371

Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-1338

Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-1348

Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-1357

Air throughput in Level 1 (m³/h) according to EN 61591235

Air throughput in Level 2 (m³/h) according to EN 61591390

Air throughput in Booster level 1 (m³/h) according to EN 61591620

Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-353

Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-364

Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-374

Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-1339

Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-1350

Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-1360

Overall height for vented and external in in. (mm)673

Overall height for extraction mode and external mode cooker hoods in mm993

Overall height for recirculation in in. (mm)803

Overall height for recirculation mode cooker hoods in mm1123

Canopy width in in. (mm)598

Canopy height in in. (mm)50

Depth of hood canopy in in. (mm)500

Minimum height above electric hobs in mm450

Net weight in kg13.40

Length of supply lead in m1.40

Standard plug fitted

Total rated load in kW0.25

Voltage in V230

Fuse rating in A10

Frequency in Hz50

Number of phases1

Extraction ducting connection at top

Extraction connection at top and rear

Diameter of extraction ducting connection in mm150

Telescopic chimney

Non-return flap

EAN4002516657040

What's included

Matching products and accessories

DKF 36-P

Active AirClean charcoal filter

for Miele recirculation cooker hoods after DKFS 36-P DAW 162x, DAW 192x.

DKFS 36-P

Active AirClean charcoal filter

for Miele DAW 162x, DAW 192x Miele recirculation cooker hoods.

Aluminium vent hose

flexible vent duct.

Roof vent

for extraction.

Downloads

Warranty conditions

PDF

Downloads

Installation plan

PDF

Downloads

Product sheet

PDF

Downloads

Operating instructions/Installation instructions

PDF

Downloads

fbx

ZIP

Downloads

rvt

ZIP

Downloads

rfa

ZIP

Downloads

dwg

ZIP

Downloads

ifc

ZIP

Downloads

Product fiche

PDF

Downloads

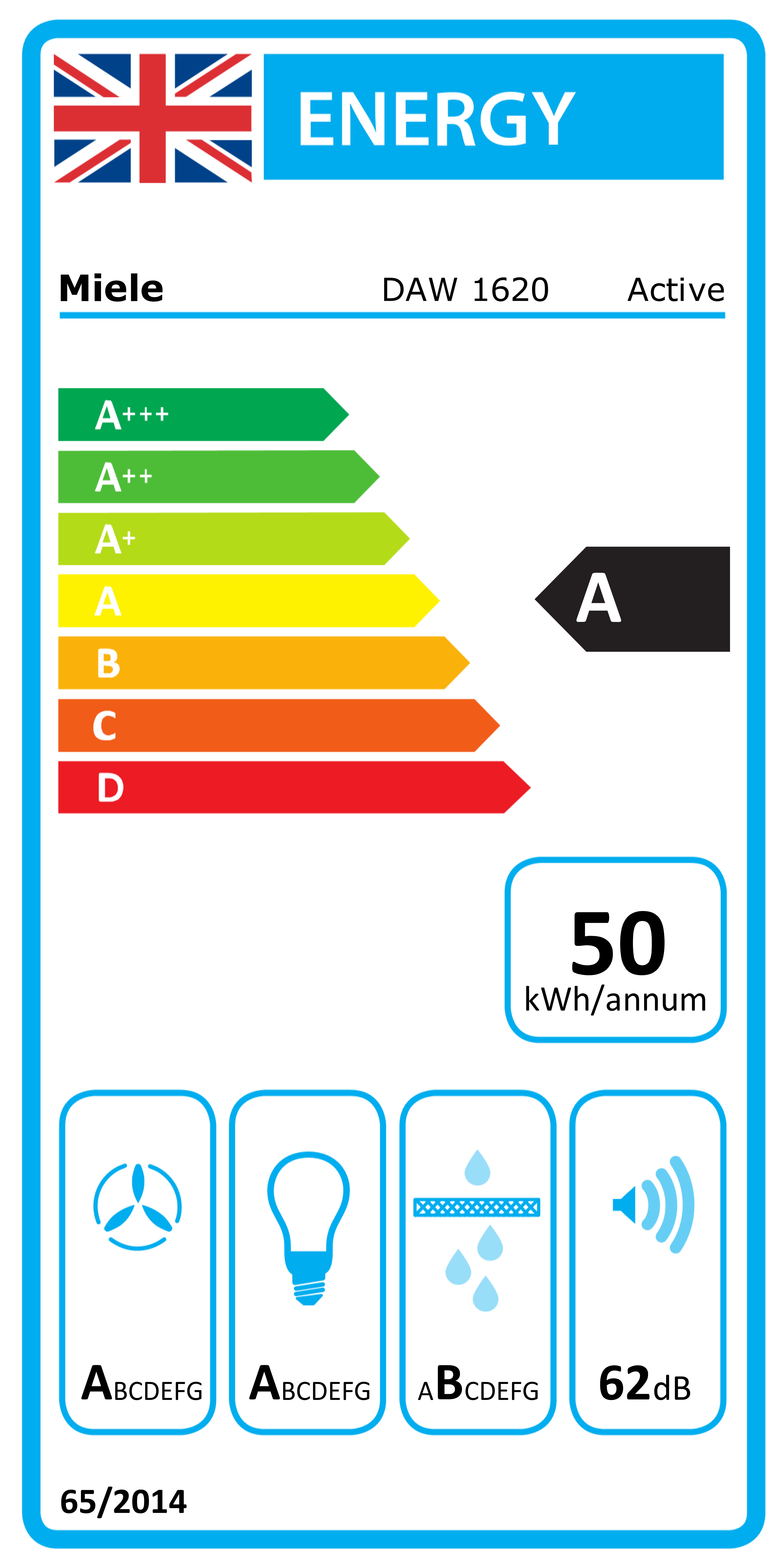

Energy label

Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/images/2000017/200001780/20000178029.png

Descriptions

DAW1620, DAW1622W Living, Installation drawings

1) Extraction, 2) Recirculation, 3) Ventilation grille positioned at the top for recirculation, 4+5) Installation area (only 4 required for recirculation mode)
