Island cooker hoodDIAMOND
DA 6698 D Purist. Ed.6000 Stainless steel
with energy-efficient LED lighting and touch controls for simple operation.Colour:Stainless steel
Wall mounted cooker hood
Type of air guide Can be retrofitted
Colour Stainless steel
Electronic controls
Booster levels 1
Silence package
Loading...

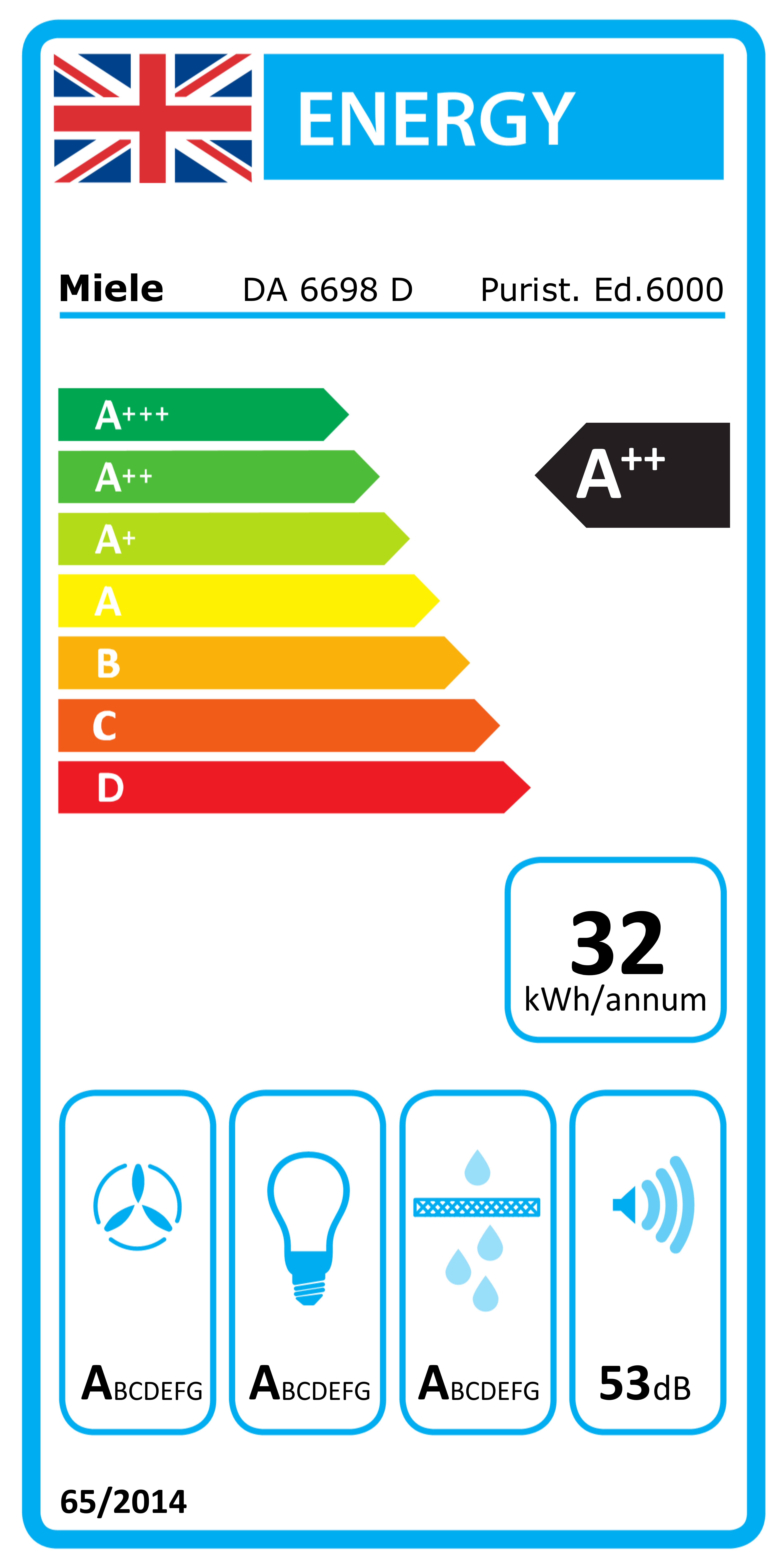

Energy efficiency class (A+++ to D) A++
Annual energy consumption in kWh/year 32.1
Fluid dynamic efficiency class A
Loading...
Lighting efficiency class A
Loading...
Grease filtering efficiency class A
Loading...
ECO motor (DC motor)
Loading...
PowerManagement system
Loading...
Number of dishwasher-safe stainless steel grease filters (10-ply) 3
Loading...
Number x W 4 x 3 W
Light intensity in Lx 820 lx
Colour temperature in K 3500 Kelvin
Dual-action blower
DC motor
Loading...
Air throughput in Level 1 (m³/h) according to EN 61591 200
Air throughput in Level 2 (m³/h) according to EN 61591 320
Air throughput in Level 3 (m³/h) according to EN 61591 450
Air throughput in Booster level 1 (m³/h) according to EN 61591 730
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 35
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 44
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3 53
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3 65
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 20
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 29
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13 38
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13 50
Air throughput in Level 1 (m³/h) according to EN 61591 115
Air throughput in Level 2 (m³/h) according to EN 61591 210
Air throughput in Level 3 (m³/h) according to EN 61591 330
Air throughput in Booster level 1 (m³/h) according to EN 61591 480
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 45
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 55
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3 64
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3 73
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 30
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 40
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13 49
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13 58
Safety shut-off
Loading...
Single-ply safety glass (ESG)
Canopy dimensions (W x H x D) in mm 898 x 85 x 598
Overall hood height for extraction mode and external in mm 705–1005
Overall height for recirculation mode cooker hoods in mm 765–1075
Overall height for vented and external in in. (mm) 705
Overall height for extraction mode and external mode cooker hoods in mm 1005
Overall height for recirculation in in. (mm) 765
Overall height for recirculation mode cooker hoods in mm 1075
Canopy width in in. (mm) 898
Canopy height in in. (mm) 85
Depth of hood canopy in in. (mm) 598
Minimum height above electric hobs in mm 450
Loading...
Minimum safety distance above gas hobs (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm 650
Loading...
Net weight in kg 35
Hard-wired connection
Total rated load in kW 0.117
Voltage in V 230
Fuse rating in A 10
Frequency in Hz 50
Number of phases 1
Extraction ducting connection at top
Diameter of extraction ducting connection in mm 150
Telescopic chimney
Loading...
Non-return flap
Loading...
EAN 4002516585787
Non-return flap
Easy to use and effective against grease
Stainless steel grease filters (10-layer)
Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.
Performance and convenience as standard
Silence
Efficient and quiet: the fan is effectively insulated with special soundproofing mats.
The heart of every cooker hood
ECO motor
Powerful and economical: the DC motor saves up to 50 % electricity compared with conventional motors.
Easy to use and effective against grease
Stainless steel grease filters (10-layer)
Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.
Performance and convenience as standard
Silence
Efficient and quiet: the fan is effectively insulated with special soundproofing mats.
The heart of every cooker hood
ECO motor
Powerful and economical: the DC motor saves up to 50 % electricity compared with conventional motors.
Always on the safe side
Safety switch-off
Sensible, even in case of operating errors: the cooker hood switches off automatically after 10 hours.
