Slimline cooker hood

DAS 4640 Transp. glass

for installation in narrow wall units with EasySwitch controls


Colour:Transp. glass

sale price£1,179.00

Buy now. Pay with Klarna. Learn more

Installation and recycling options available at checkout. For installation of built-in appliances please call 0330 160 6630



Product details

  • Perfect combination with Con@ctivity-enabled hobs
  • Light design – transparent glass panel, 60 cm wide
  • LED strip for uniform lighting
  • Efficient filtration-
    10-ply stainless-steel grease filter
  • Recirculation mode –
    Active AirClean or Longlife AirClean filter
  • Manufactured with great care by
  • Safety Information

Product data sheet

Slimline cooker hood
Type of air guide Can be retrofitted
Recirculation conversion kit (order separately) DUU 151
Active charcoal filter (order separately) [ "DKF 31-R", "DKF 31-P" ]
Colour Transp. glass
Miele@home
Automatic function Con@ctivity
Electronic controls
Touch-on-glass controls
Controls EasySwitch
Booster levels 1
Run-on time 5/15 min.
Grease filter saturation indicator
Active charcoal filter saturation indicator
Easy-to-clean canopy interior – CleanCover

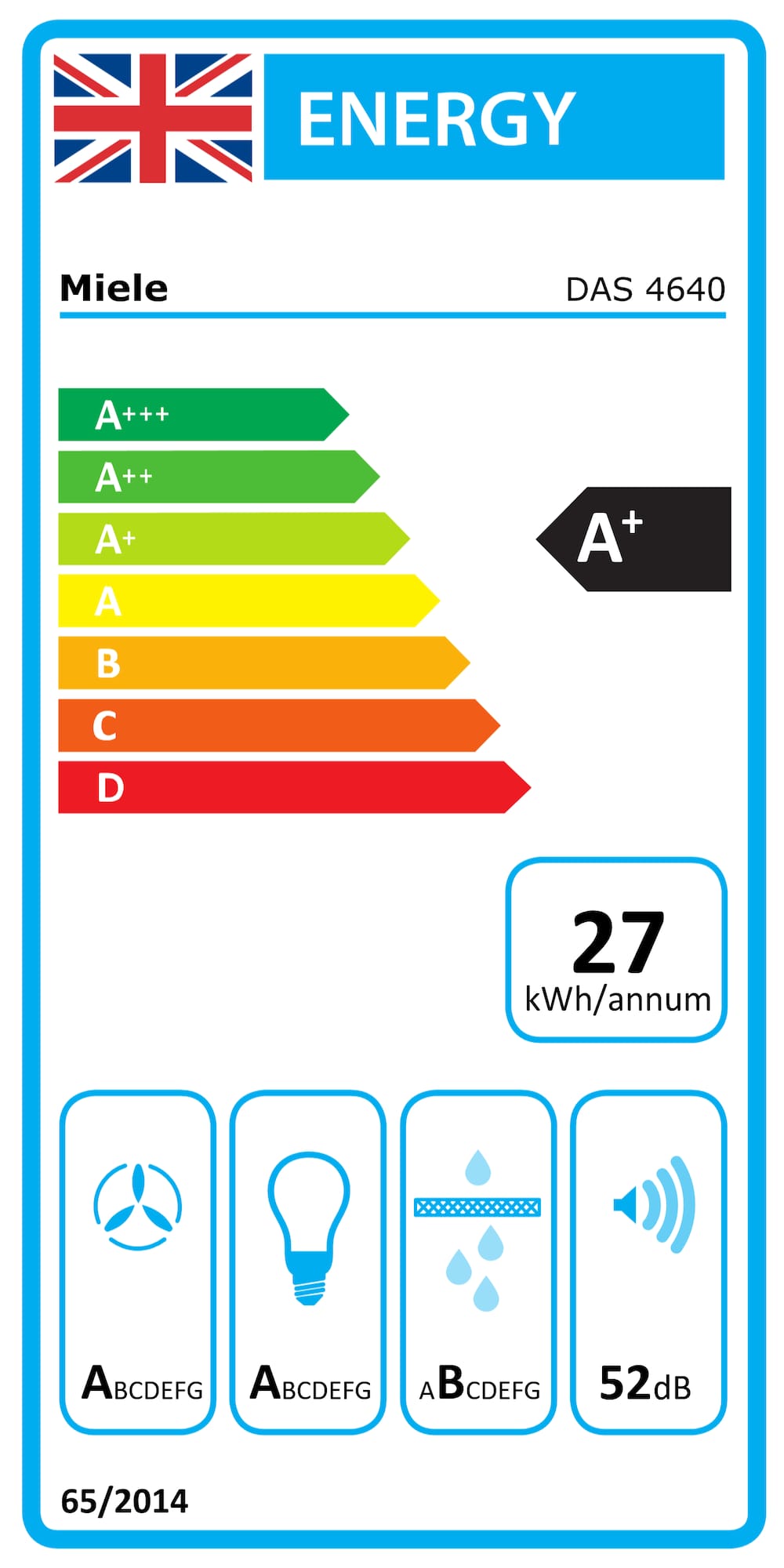

Energy efficiency class (A+++ to D) A+
Annual energy consumption in kWh/year 27.4
Fluid dynamic efficiency class A
Lighting efficiency class A
Grease filtering efficiency class B
ECO motor (DC motor)
PowerManagement system
Easy-to-clean canopy interior – CleanCover
Number of dishwasher-safe stainless steel grease filters (10-ply) 2
Number x W 1 x 3 W
Light intensity in Lx 300 lx
Colour temperature in K 3500 Kelvin
Dimmer function
Dual-action blower
DC motor
Air throughput in Level 1 (m³/h) according to EN 61591 180
Air throughput in Level 2 (m³/h) according to EN 61591 270
Air throughput in Level 3 (m³/h) according to EN 61591 380
Air throughput in Booster level 1 (m³/h) according to EN 61591 600
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 37
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 45
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3 52
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3 64
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 23
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 31
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13 39
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13 50
Air throughput in Level 1 (m³/h) according to EN 61591 160
Air throughput in Level 2 (m³/h) according to EN 61591 260
Air throughput in Level 3 (m³/h) according to EN 61591 405
Air throughput in Booster level 1 (m³/h) according to EN 61591 580
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 41
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 50
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3 61
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3 70
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 27
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 37
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13 48
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13 57
Safety shut-off
Single-ply safety glass (ESG)
Canopy width in in. (mm) 561
Canopy height in in. (mm) 68
Depth of hood canopy in in. (mm) 307
Minimum height above electric hobs in mm 450
Net weight in kg 12
Length of supply lead in m 1.5
Standard plug fitted
Total rated load in kW 0.083
Voltage in V 230
Fuse rating in A 10
Frequency in Hz 50
Number of phases 1
Extraction ducting connection at top
Extraction connection at top and rear
Diameter of extraction ducting connection in mm 150
Fitting template
Non-return flap
EAN 4002516496298

What's included

Non-return flap

Features

Easy to use and effective against grease
Stainless steel grease filters (10-layer)

Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.


Convenience and safety in detail
Miele CleanCover

Protection and easy cleaning: the sealed, smooth surface prevents contact with cables and the motor.


User convenience

Automatic operation for intelligent fan control
Con@ctivity

Innovative convenience: the cooker hood reacts automatically to settings on the hob.


Automatic fan run-on
Run-on function

Odour-free room air: after cooking, the fan can be set to switch off automatically after a 5 or 15 minute run-on period.


Countdown time conveniently in view
Filter indicator

Easy filter replacement: a red light lets you know when the grease and/or active charcoal filter is saturated.


Efficiency and sustainability

The heart of every cooker hood
ECO motor

Powerful and economical: the DC motor saves up to 50 % electricity compared with conventional motors.


Safety

Always on the safe side
Safety switch-off

Sensible, even in case of operating errors: the cooker hood switches off automatically after 10 hours.


Downloads

Installation plan
PDF
Downloads
UK declaration of conformity
PDF
Downloads
Warranty conditions
PDF
Downloads
Product sheet
PDF
Downloads
Operating instructions/Installation instructions
PDF
Downloads
dwg
ZIP
Downloads
ifc
ZIP
Downloads
rfa
ZIP
Downloads
rvt
ZIP
Downloads
fbx
ZIP
Downloads
Product fiche
PDF
Downloads
Energy label
PNG
Downloads
Energy label
PDF
Downloads
Energy label
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/images/2000017/200001780/20000178037.png
Descriptions
DAS4640, Installation drawings
1) Extraction, recirculation with conversion kit DUU 150., 2) Alternative ducting connection to the rear., 3) Accessory DSM module., 4) The wall unit can be fitted with a partition after installation. The slots for the grease filters and, in recirculation mode, for the odor filters must remain accessible., , The height of the wall unit and the cut-out dimensions must take into account any accessories fitted (e.g. silencer, recirculation hood conversion kit, DSM module)
