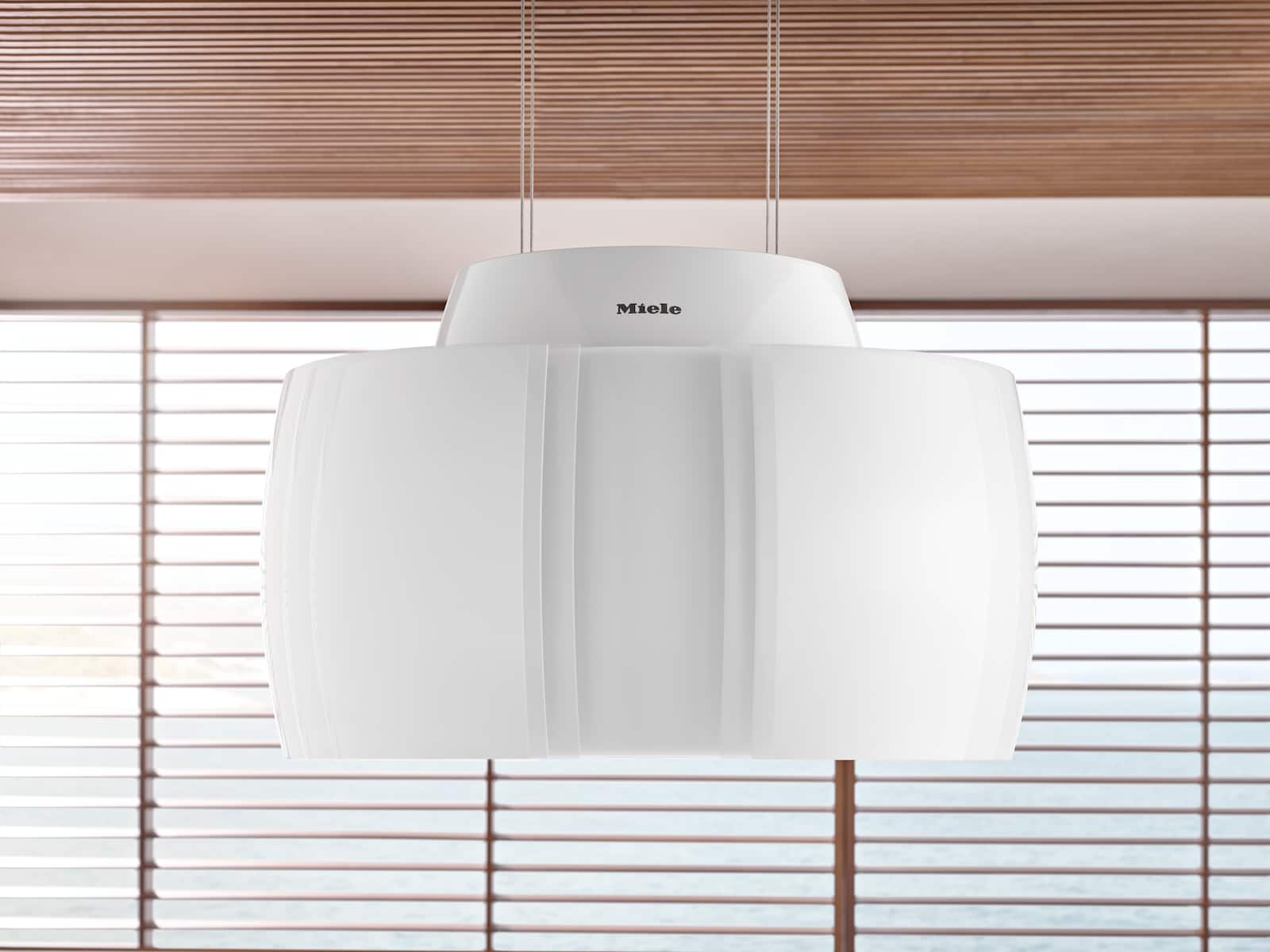

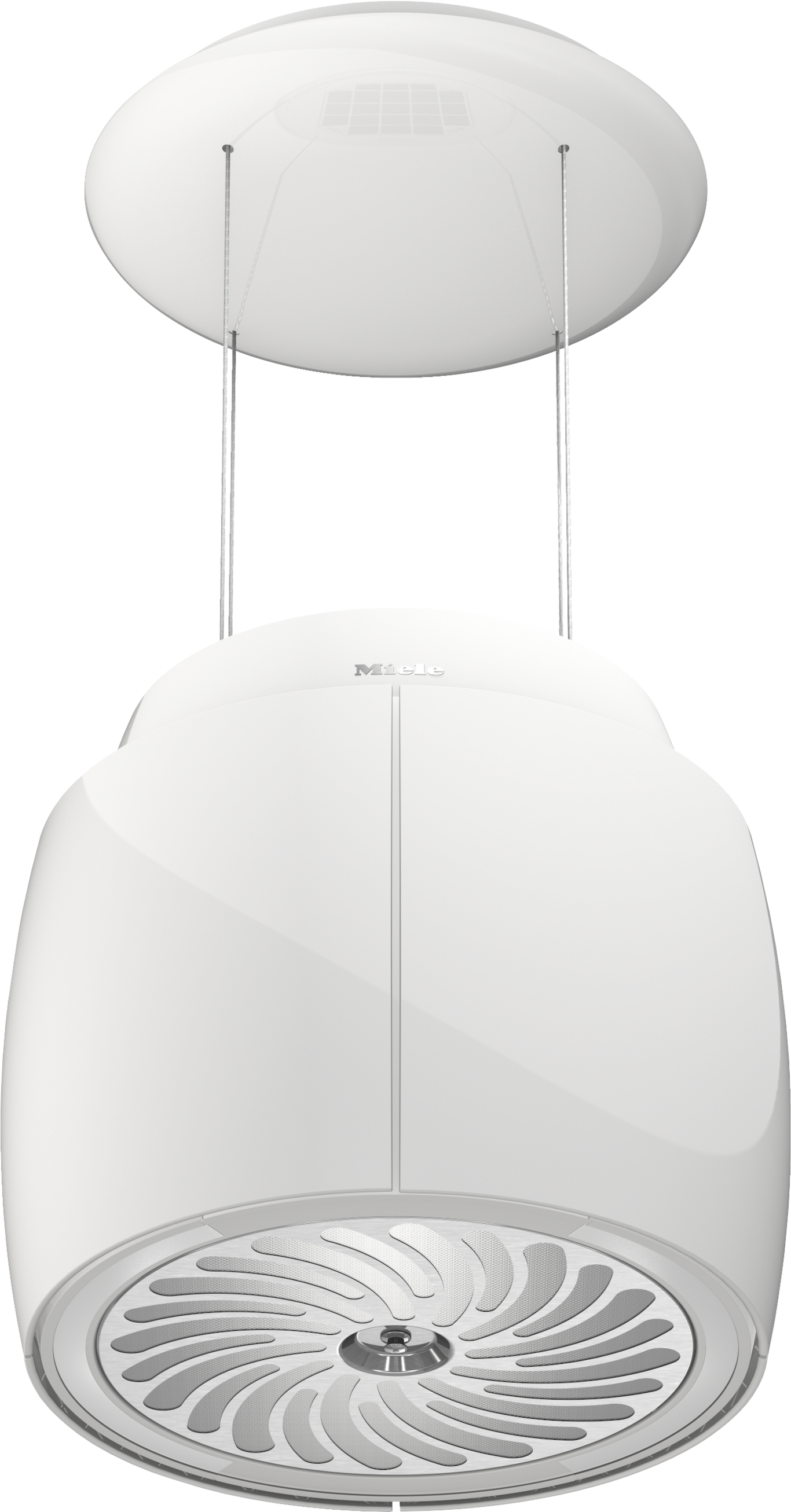

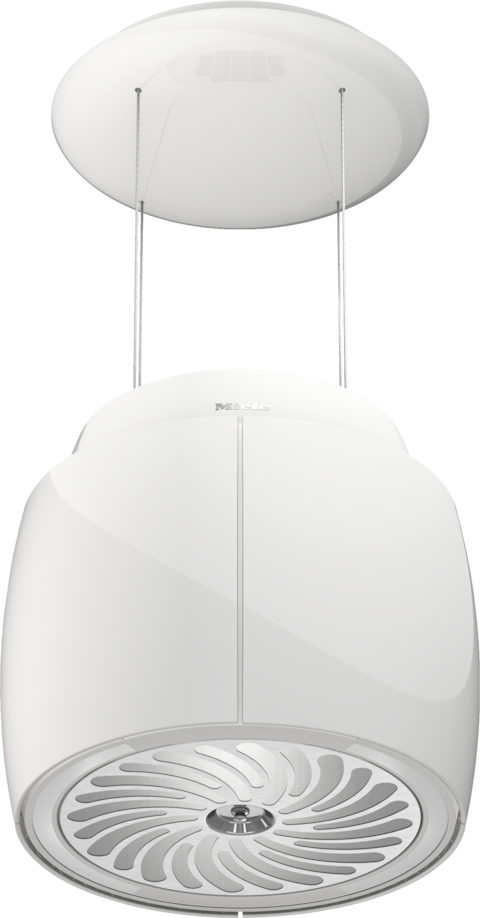

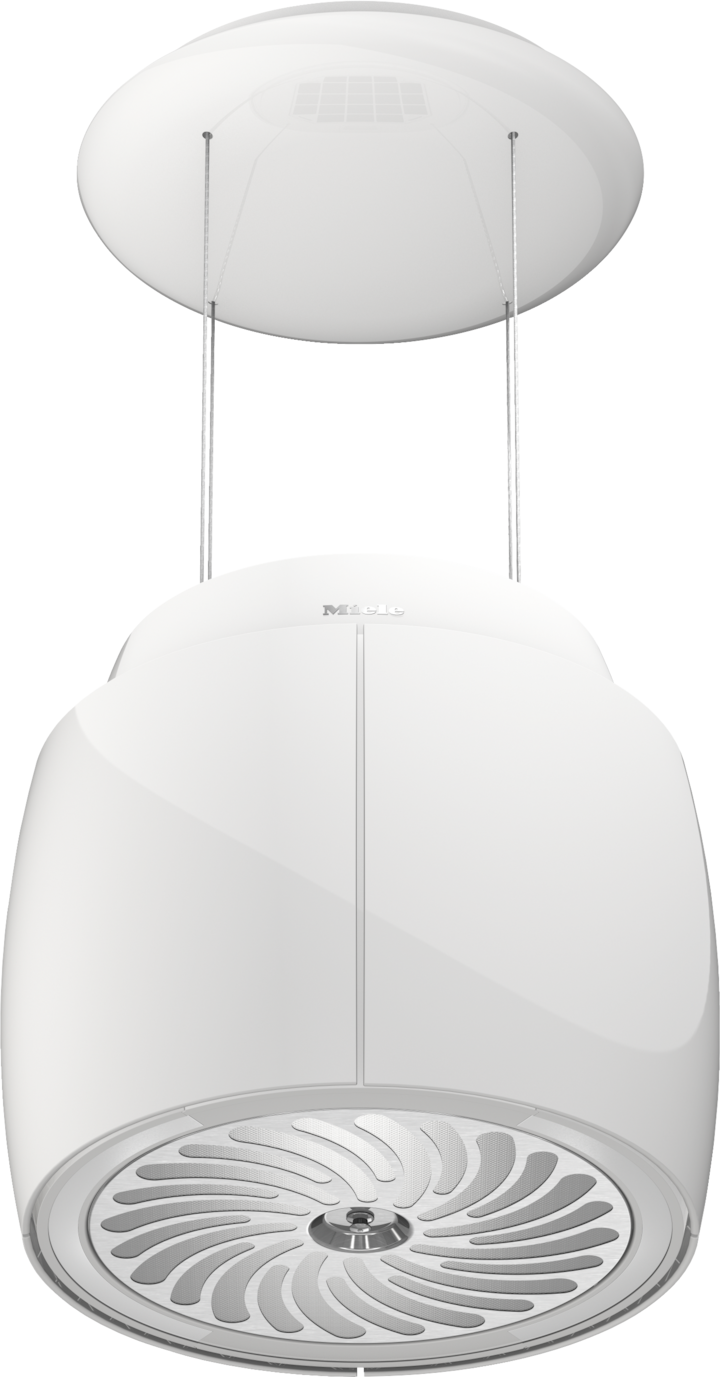

Island cooker hoodDIAMOND
DA 7378 D Aura 4.0 Ambient Brilliant white
With smart control exclusively via Con@ctivity 3.0 and Miele@mobile app.Colour:Brilliant white
Island cooker hood
Type of air guide Recirculation
Colour Brilliant white
Miele@home
Con@ctivity Yes
Electronic controls
Miele@mobile app
Power levels (number without Booster level) 3
Booster levels 1
Run-on time 5/15 min.
Loading...
Grease filter saturation indicator
Active charcoal filter saturation indicator
Motor-operated cooker hoods
AmbientFragrance
HumidityBalance
Easy-to-clean canopy interior – CleanCover
Loading...
Energy efficiency class (A+++ to D) A+
Annual energy consumption in kWh/year 31.6
Fluid dynamic efficiency class A
Loading...
Lighting efficiency class A
Loading...
Grease filtering efficiency class A
Loading...
ECO motor (DC motor)
Loading...
PowerManagement system
Loading...
Easy-to-clean canopy interior – CleanCover
Loading...
Number of dishwasher-safe stainless steel grease filters (10-ply) 1
Loading...
Number x W 2x5 W / 2x7,7 W
Light intensity in Lx 350 lx
Colour temperature in K 3500 Kelvin
Dimmer function

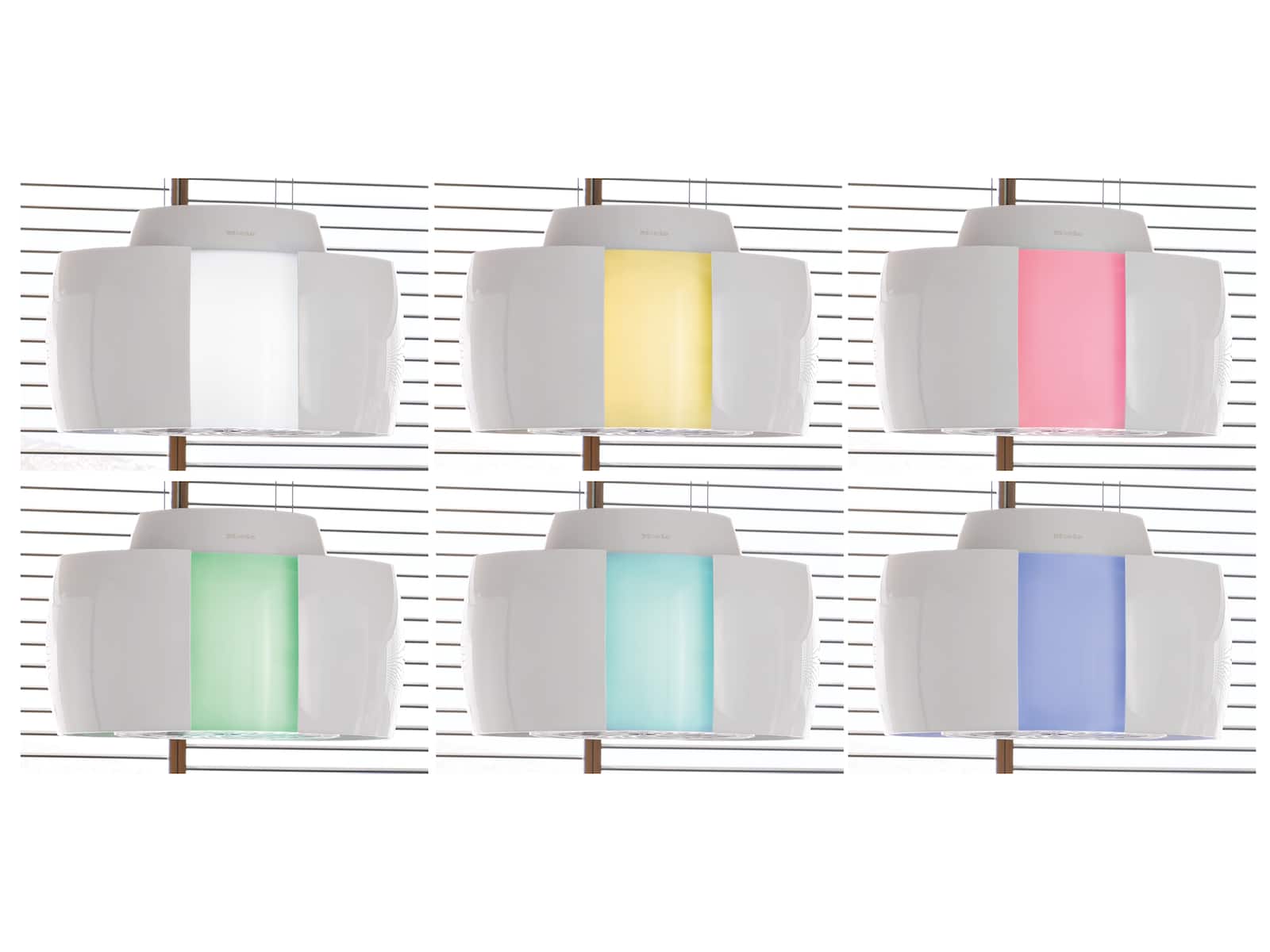

Ambient lighting colour
Loading...
Dual-action blower
DC motor
Loading...
Air throughput in Level 1 (m³/h) according to EN 61591 240
Air throughput in Level 2 (m³/h) according to EN 61591 380
Air throughput in Level 3 (m³/h) according to EN 61591 440
Air throughput in Booster level 1 (m³/h) according to EN 61591 600
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 53
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 63
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3 66
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3 73
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 39
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 49
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13 52
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13 59
Safety shut-off
Loading...
Canopy dimensions (W x H x D) in mm 700 x 440 x 500
Overall height for recirculation mode cooker hoods in mm 700–1000
Overall height for recirculation in in. (mm) 700
Overall height for recirculation mode cooker hoods in mm 1000
Canopy width in in. (mm) 700
Canopy height in in. (mm) 440
Canopy height of round cooker hoods in mm 440
Depth of hood canopy in in. (mm) 500
Canopy diameter in mm 500
Minimum height above electric hobs in mm 450
Loading...
Net weight in kg 24.6
Hard-wired connection
Total rated load in kW 0.130
Voltage in V 230
Fuse rating in A 10
Frequency in Hz 50
Number of phases 1
Fitting template
Combination with WiFi-enabled Miele hob required
Loading...
Fragrance flacon
Active charcoal filter, can be reactivated
Dehumidifying filter
EAN 4002516305972
Fragrance flacon
Active charcoal filter, can be reactivated
Dehumidifying filter
Automatic operation for intelligent fan control
Con@ctivity
Innovative convenience: the cooker hood reacts automatically to settings on the hob.
Easy to use and effective against grease
Stainless steel grease filters (10-layer)
Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.
Convenience and safety in detail
Miele CleanCover
Protection and easy cleaning: the sealed, smooth surface prevents contact with cables and the motor.
The heart of every cooker hood
ECO motor
Powerful and economical: the DC motor saves up to 50 % electricity compared with conventional motors.
Stainless steel grease filters (10-layer)
Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.Miele CleanCover
Protection and easy cleaning: the sealed, smooth surface prevents contact with cables and the motor.

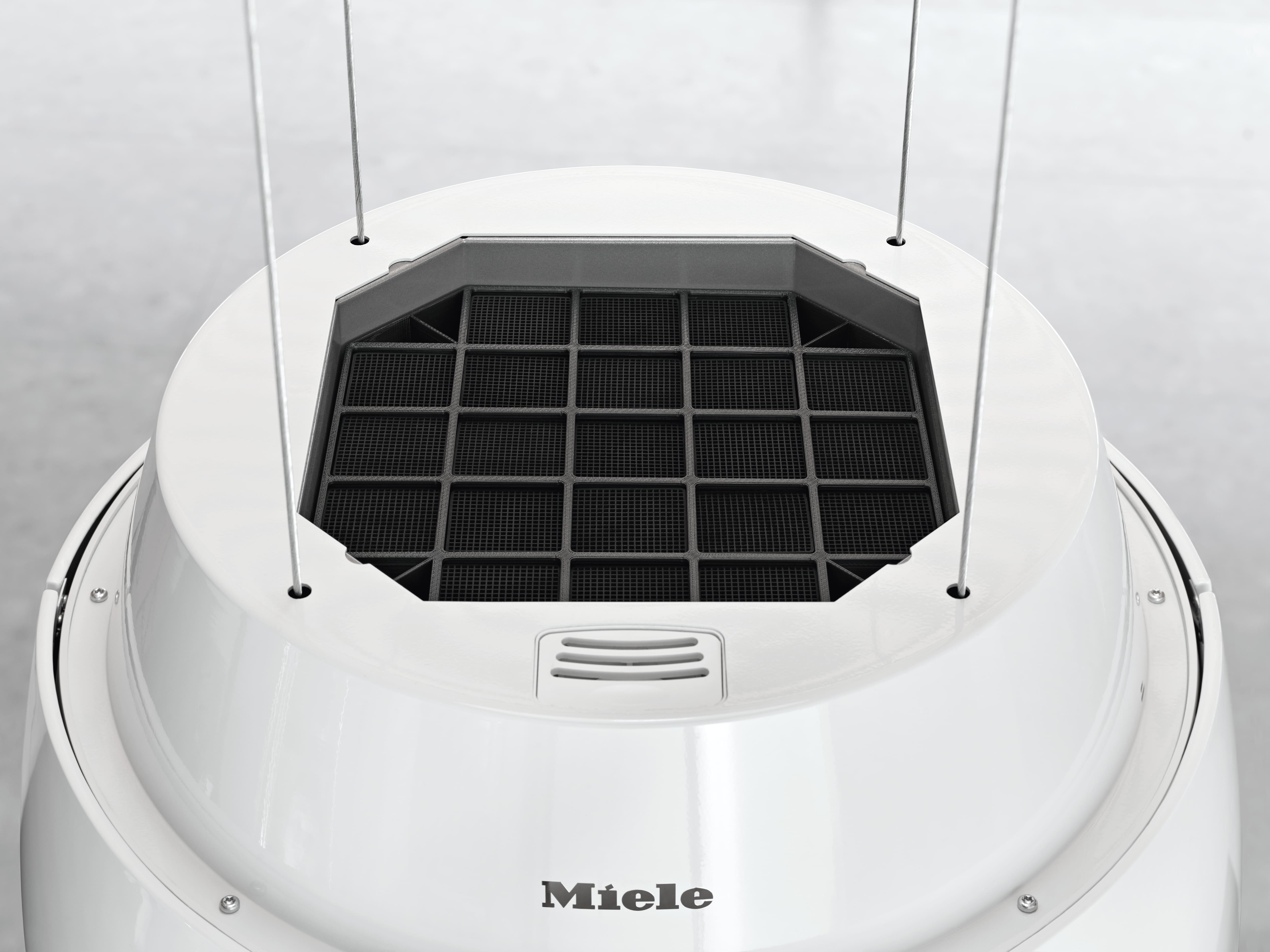

HumidityBalance
Unique and innovative: HumidityBalance absorbs any moisture generated during the cooking process.
AmbientFragrance
Enjoy subtle fragrances with AmbientFragrance – there is bound to be one to suit your taste.Con@ctivity
Innovative convenience: the cooker hood reacts automatically to settings on the hob.
Run-on function
Odour-free room air: after cooking, the fan can be set to switch off automatically after a 5 or 15 minute run-on period.
Filter indicator
Easy filter replacement: a red light lets you know when the grease and/or active charcoal filter is saturated.
Hood in motion
Best possible ergonomics: The cooker hood canopy automatically moves to the ideal working position.ECO motor
Powerful and economical: the DC motor saves up to 50 % electricity compared with conventional motors.
Safety switch-off
Sensible, even in case of operating errors: the cooker hood switches off automatically after 10 hours.
Downloads
Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!
Descriptions

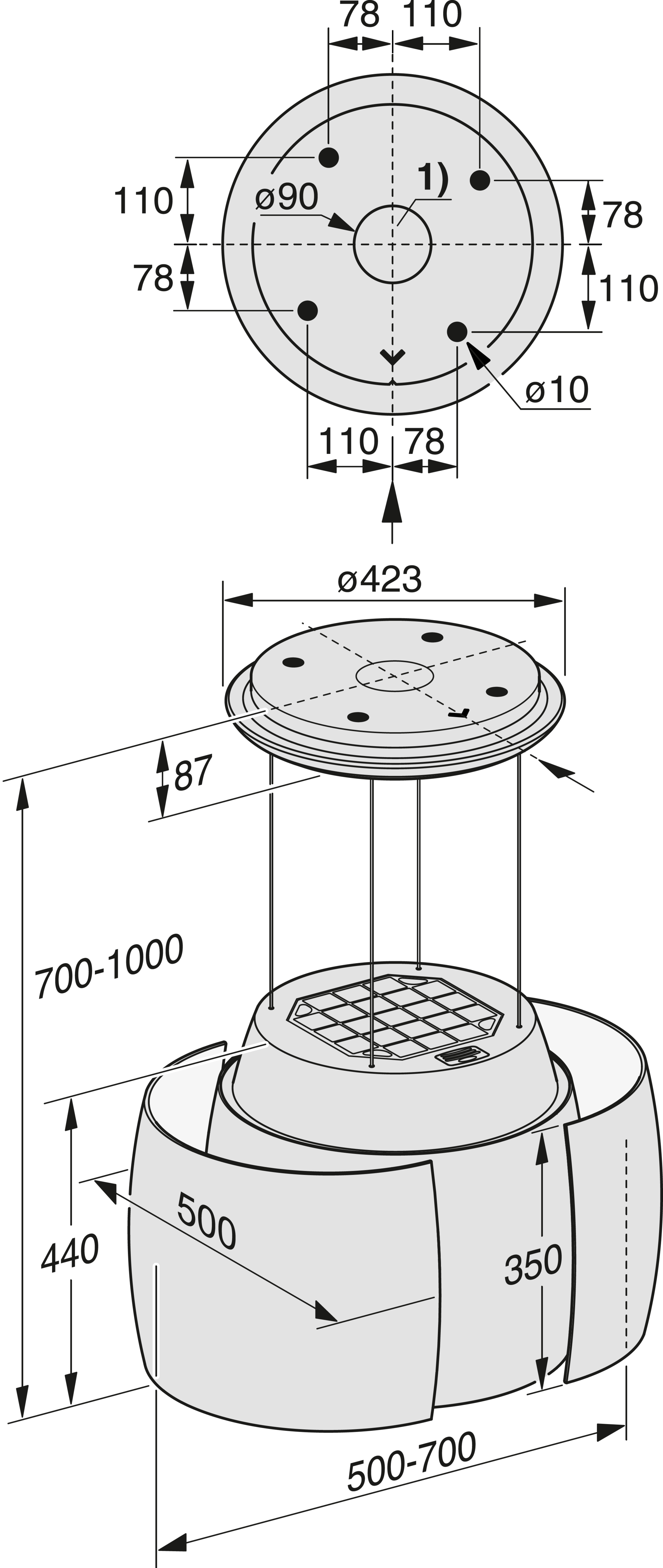

DA 7378 D - (installation drawings)
1) Cut-out for feeding through the mains cable POSTSCRIPT
We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
