Super smart and easy to use with great extraction air draw.
A beautiful quality addition to our kitchen. Super smart and easy to use with great extraction air draw. Quiet, no fuss operation. Delighted.
Product details

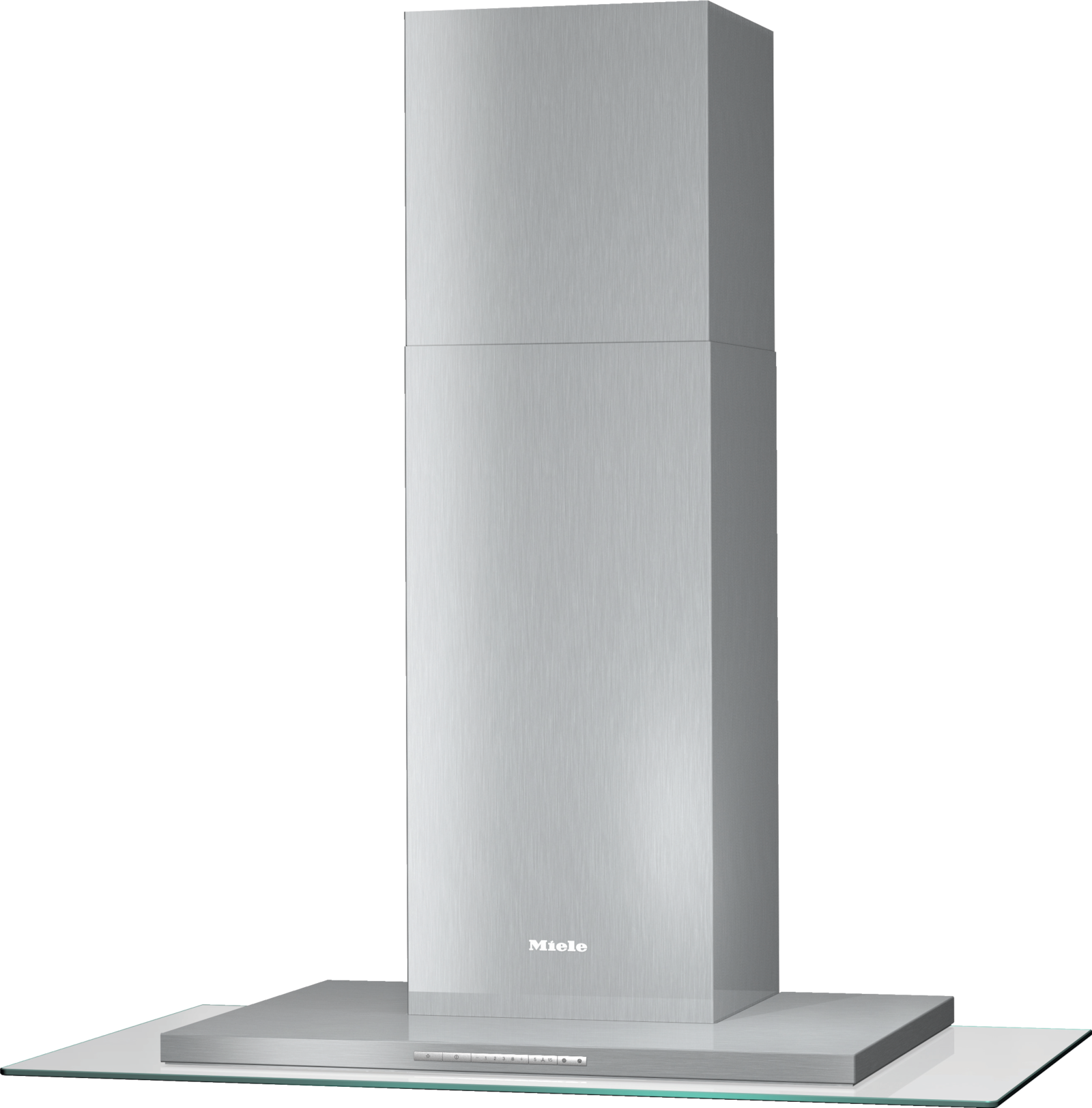

- Design - 893 mm wide stainless steel and glass cooker hood
- Unique user convenience –Con@ctivityLoading...
- Powerful – 600 m3/h in Booster level
- Energy-efficient and quiet - powerfulECO motorLoading...
- Efficient filtration-10-ply stainless-steel grease filterLoading...
- Manufactured with great care by
- You will find more information about product data and your rights under the EU Data Acthere
- Safety Information
Wall mounted cooker hood
Type of air guide Can be retrofitted
Recirculation conversion kit (order separately) DUW 20
Active charcoal filter (order separately) DKF 12-P
Colour Stainless steel
Miele@home
Automatic function Con@ctivity
Electronic controls
Controls Light-touch switches with LEDs
Miele@mobile app
Power levels (number without Booster level) 3
Booster levels 1
Run-on time 5/15 min.
Loading...
Grease filter saturation indicator
Active charcoal filter saturation indicator
Silence package
Loading...
Easy-to-clean canopy interior – CleanCover
Loading...

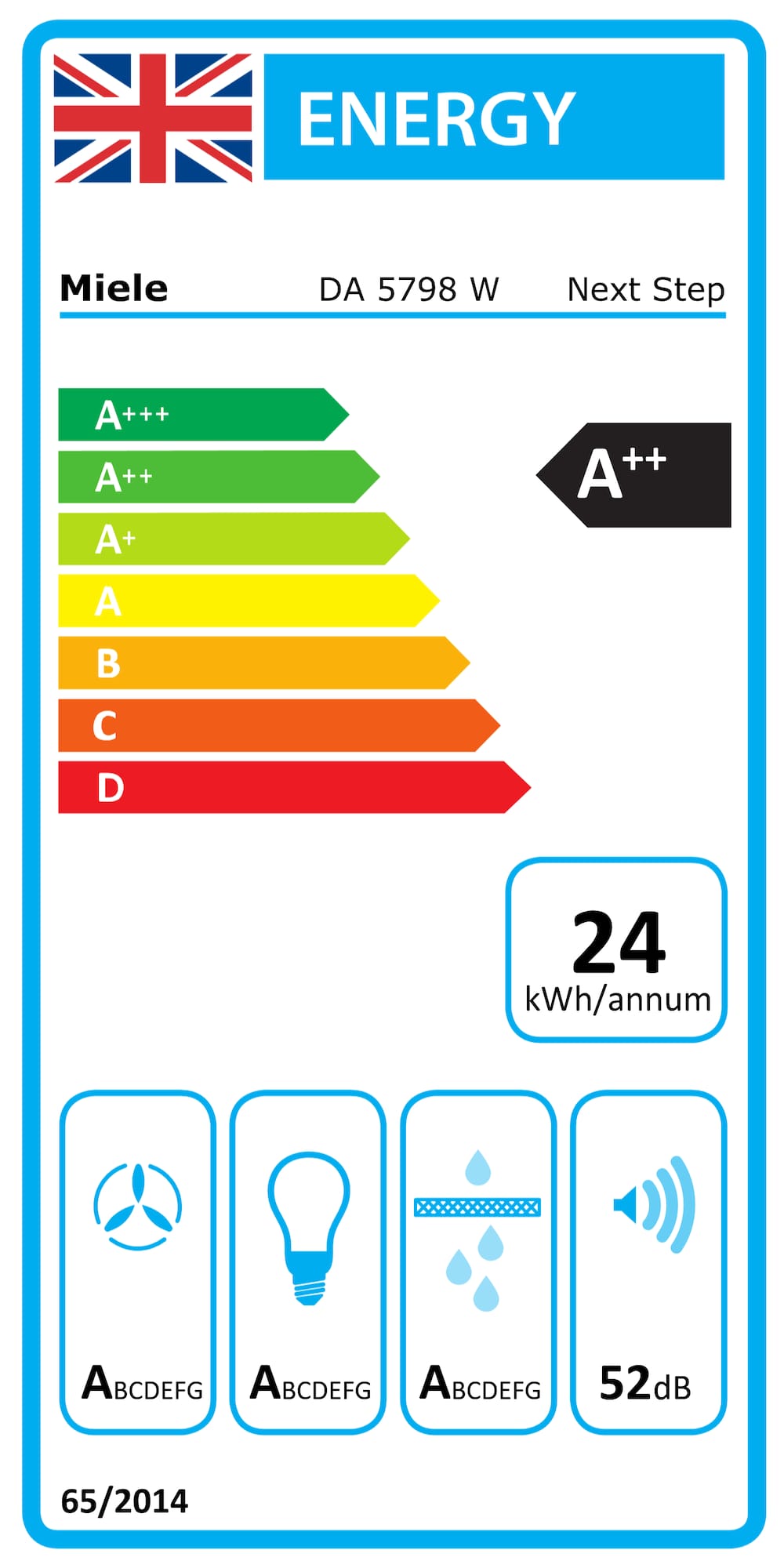

Energy efficiency class (A+++ to D) A++
Annual energy consumption in kWh/year 24.1
Fluid dynamic efficiency class A
Loading...
Lighting efficiency class A
Loading...
Grease filtering efficiency class A
Loading...
ECO motor (DC motor)
Loading...
PowerManagement system
Loading...
Easy-to-clean canopy interior – CleanCover
Loading...
Number of dishwasher-safe stainless steel grease filters (10-ply) 2
Loading...
Number x W 2 x 3 W
Light intensity in Lx 550 lx
Colour temperature in K 3500 Kelvin
Dimmer function
Dual-action blower
DC motor
Loading...
Air throughput in Level 1 (m³/h) according to EN 61591 180
Air throughput in Level 2 (m³/h) according to EN 61591 280
Air throughput in Level 3 (m³/h) according to EN 61591 380
Air throughput in Booster level 1 (m³/h) according to EN 61591 600
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 35
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 44
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3 52
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3 63
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 20
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 29
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13 37
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13 48
Air throughput in Level 1 (m³/h) according to EN 61591 110
Air throughput in Level 2 (m³/h) according to EN 61591 190
Air throughput in Level 3 (m³/h) according to EN 61591 320
Air throughput in Booster level 1 (m³/h) according to EN 61591 460
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 45
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 53
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3 63
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3 72
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 30
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 38
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13 48
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13 57
Safety shut-off
Loading...
Single-ply safety glass (ESG)
Overall height for vented and external in in. (mm) 660
Overall height for extraction mode and external mode cooker hoods in mm 980
Overall height for recirculation in in. (mm) 790
Overall height for recirculation mode cooker hoods in mm 1110
Canopy width in in. (mm) 893
Canopy height in in. (mm) 34
Depth of hood canopy in in. (mm) 520
Minimum height above electric hobs in mm 450
Loading...
Minimum safety distance above gas hobs (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm 650
Loading...
Net weight in kg 22
Length of supply lead in m 1.5
Standard plug fitted
Total rated load in kW 0.086
Voltage in V 230
Fuse rating in A 10
Frequency in Hz 50
Number of phases 1
Extraction ducting connection at top
Diameter of extraction ducting connection in mm 150
Telescopic chimney
Loading...
Combination with WiFi-enabled Miele hob recommended
Loading...
Non-return flap
Loading...
EAN 4002515978269
Non-return flap
Easy to use and effective against grease
Stainless steel grease filters (10-layer)
Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.
Automatic operation for intelligent fan control
Con@ctivity
Innovative convenience: the cooker hood reacts automatically to settings on the hob.
Performance and convenience as standard
Silence
Efficient and quiet: the fan is effectively insulated with special soundproofing mats.
Convenience and safety in detail
Miele CleanCover
Protection and easy cleaning: the sealed, smooth surface prevents contact with cables and the motor.
The heart of every cooker hood
ECO motor
Powerful and economical: the DC motor saves up to 50 % electricity compared with conventional motors.
Countdown time conveniently in view
Filter indicator
Easy filter replacement: a red light lets you know when the grease and/or active charcoal filter is saturated.
Automatic operation for intelligent fan control
Con@ctivity
Innovative convenience: the cooker hood reacts automatically to settings on the hob.
Automatic fan run-on
Run-on function
Odour-free room air: after cooking, the fan can be set to switch off automatically after a 5 or 15 minute run-on period.
Easy to use and effective against grease
Stainless steel grease filters (10-layer)
Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.
Performance and convenience as standard
Silence
Efficient and quiet: the fan is effectively insulated with special soundproofing mats.
Convenience and safety in detail
Miele CleanCover
Protection and easy cleaning: the sealed, smooth surface prevents contact with cables and the motor.
The heart of every cooker hood
ECO motor
Powerful and economical: the DC motor saves up to 50 % electricity compared with conventional motors.
Always on the safe side
Safety switch-off
Sensible, even in case of operating errors: the cooker hood switches off automatically after 10 hours.
What our customers say
Most recent reviews
Matching products and accessories
Downloads
Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!
Descriptions
DA5796W, DA5798W (installation drawing)
1) Extraction, 2) Recirculation, 3) Ventilation grille positioned at top for recirculation, 4+5) Installation cut-out (5 not required for recirculation mode) - 1.Installation and recycling options available at checkout. For installation of built-in appliances please call 0330 160 6630
