Product details
- Customised kitchen design - fully integrated in 580 mm width
- Unique user convenience –Con@ctivityLoading...
- Powerful – 585 m3/h in Booster level
- Energy-efficient and quiet - powerfulECO motorLoading...
- Efficient filtration-10-ply stainless-steel grease filterLoading...
- Manufactured with great care by
- Safety Information
Integrated extractor
Type of air guide Can be retrofitted
Recirculation conversion kit (order separately) DUU 151
Active charcoal filter (order separately) DKF 19-P
Colour Stainless steel
Edge extraction
Miele@home
Automatic function Con@ctivity
Electronic controls
Controls Light-touch switches with LEDs
Miele@mobile app
Power levels (number without Booster level) 3
Booster levels 1
Run-on time 5/15 min.
Loading...
Grease filter saturation indicator
Active charcoal filter saturation indicator
Easy-to-clean canopy interior – CleanCover
Loading...

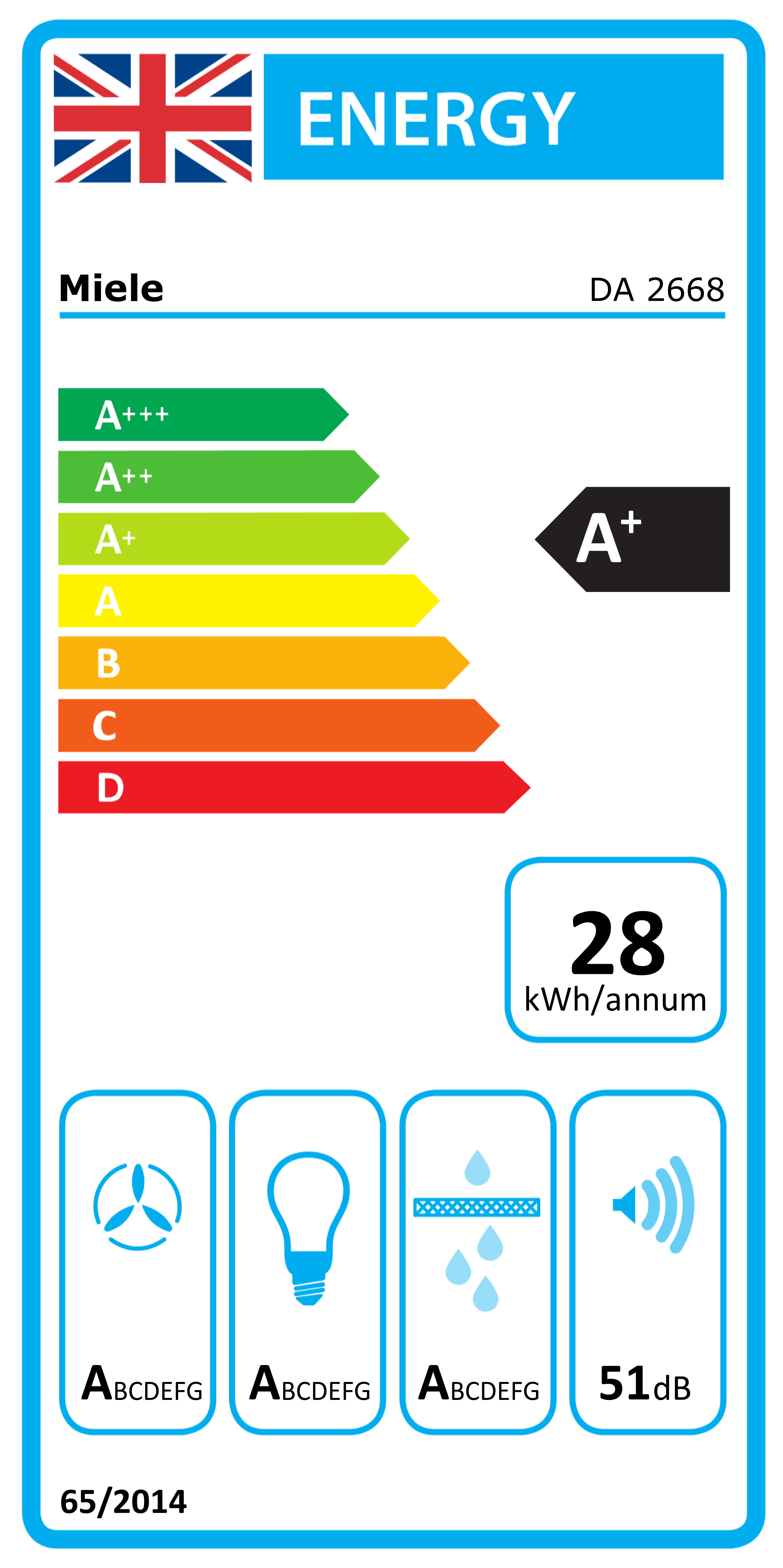

Energy efficiency class (A+++ to D) A+
Annual energy consumption in kWh/year 28.4
Fluid dynamic efficiency class A
Loading...
Lighting efficiency class A
Loading...
Grease filtering efficiency class A
Loading...
ECO motor (DC motor)
Loading...
PowerManagement system
Loading...
Easy-to-clean canopy interior – CleanCover
Loading...
Number of dishwasher-safe stainless steel grease filters (10-ply) 2
Loading...
Number x W 2 x 4,5 W
Light intensity in Lx 700 lx
Colour temperature in K 3500 Kelvin
Dimmer function
Dual-action blower
DC motor
Loading...
Air throughput in Level 1 (m³/h) according to EN 61591 175
Air throughput in Level 2 (m³/h) according to EN 61591 265
Air throughput in Level 3 (m³/h) according to EN 61591 365
Air throughput in Booster level 1 (m³/h) according to EN 61591 585
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 35
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 44
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3 51
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3 64
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 21
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 29
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13 37
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13 50
Air throughput in Level 1 (m³/h) according to EN 61591 115
Air throughput in Level 2 (m³/h) according to EN 61591 200
Air throughput in Level 3 (m³/h) according to EN 61591 330
Air throughput in Booster level 1 (m³/h) according to EN 61591 490
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 46
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 56
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3 64
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3 74
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 32
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 42
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13 49
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13 60
Safety shut-off
Loading...
Canopy width in in. (mm) 580
Canopy height in in. (mm) 63
Depth of hood canopy in in. (mm) 293
Minimum height above electric hobs in mm 450
Loading...
Minimum safety distance above gas hobs (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm 650
Loading...
Net weight in kg 12
Length of supply lead in m 1.5
Standard plug fitted
Total rated load in kW 0.089
Voltage in V 230
Fuse rating in A 10
Frequency in Hz 50
Number of phases 1
Extraction ducting connection at top
Extraction connection at top and rear
Diameter of extraction ducting connection in mm 150
Combination with WiFi-enabled Miele hob recommended
Loading...
Non-return flap
Loading...
EAN 4002516001522
Non-return flap
Easy to use and effective against grease
Stainless steel grease filters (10-layer)
Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.
Convenience and safety in detail
Miele CleanCover
Protection and easy cleaning: the sealed, smooth surface prevents contact with cables and the motor.
The heart of every cooker hood
ECO motor
Powerful and economical: the DC motor saves up to 50 % electricity compared with conventional motors.
Automatic operation for intelligent fan control
Con@ctivity
Innovative convenience: the cooker hood reacts automatically to settings on the hob.
Automatic fan run-on
Run-on function
Odour-free room air: after cooking, the fan can be set to switch off automatically after a 5 or 15 minute run-on period.
Countdown time conveniently in view
Filter indicator
Easy filter replacement: a red light lets you know when the grease and/or active charcoal filter is saturated.
Automatic operation for intelligent fan control
Con@ctivity
Innovative convenience: the cooker hood reacts automatically to settings on the hob.
Easy to use and effective against grease
Stainless steel grease filters (10-layer)
Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.
Convenience and safety in detail
Miele CleanCover
Protection and easy cleaning: the sealed, smooth surface prevents contact with cables and the motor.
Decorative panels instead of metal grease filters
Edge extraction
Efficient and good-looking: with edge extraction, the grease filters are covered by a panel.
The heart of every cooker hood
ECO motor
Powerful and economical: the DC motor saves up to 50 % electricity compared with conventional motors.
Always on the safe side
Safety switch-off
Sensible, even in case of operating errors: the cooker hood switches off automatically after 10 hours.
