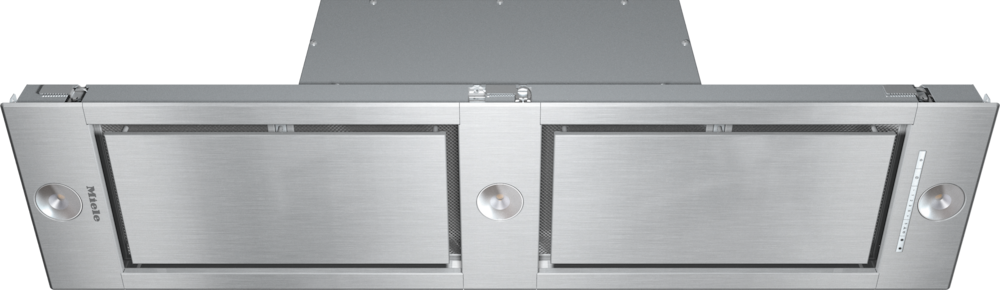

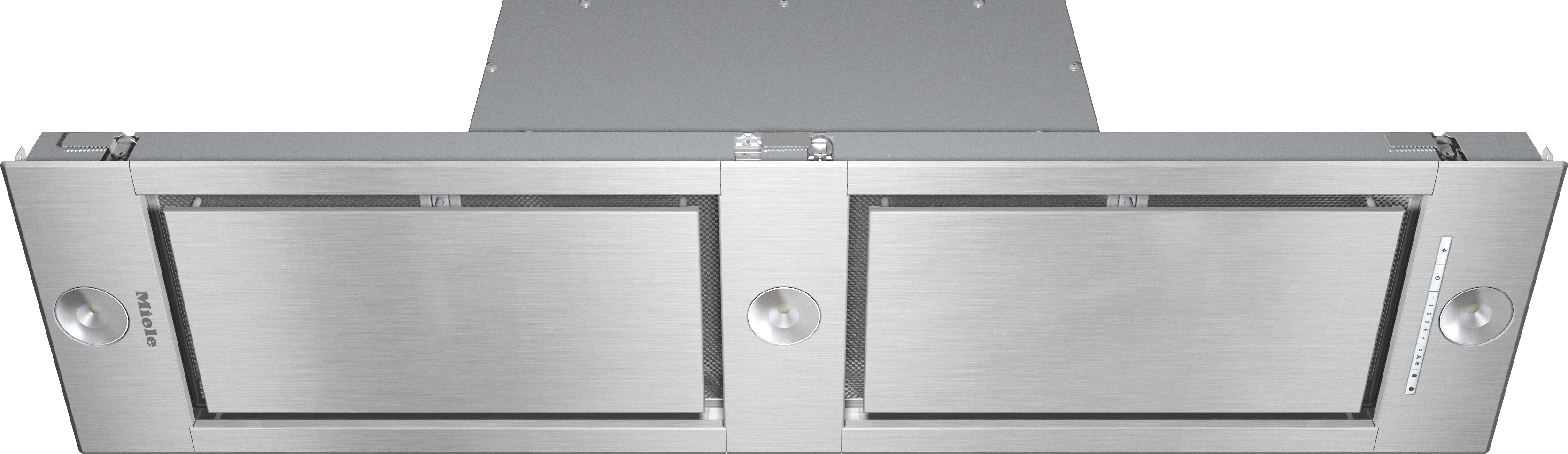

Extractor unit

DA 2628 Stainless steel

with energy-efficient LED lighting and light-touch switches for easy use.


Colour:Stainless steel

sale price£2,829.00

Buy now. Pay with Klarna. Learn more

Installation and recycling options available at checkout. For installation of built-in appliances please call 0330 160 6630



Product details

  • Customised kitchen design - fully integrated in 1180 mm width
  • Unique user convenience –
    Con@ctivity
  • Powerful – 640 m3/h in Booster level
  • Energy-efficient and quiet - powerful
    ECO motor
  • Elegant and efficient - edge extraction panels
  • Manufactured with great care by
  • Safety Information

Product data sheet

Integrated extractor
Type of air guide Exhaust air
Colour Stainless steel
Edge extraction
Miele@home
Automatic function Con@ctivity
Electronic controls
Controls Light-touch switches with LEDs
Miele@mobile app
Power levels (number without Booster level) 3
Booster levels 1
Run-on time 5/15 min.
Grease filter saturation indicator
Easy-to-clean canopy interior – CleanCover
Energy efficiency class (A+++ to D) A+
Annual energy consumption in kWh/year 26.8
Fluid dynamic efficiency class A
Lighting efficiency class A
Grease filtering efficiency class A
ECO motor (DC motor)
PowerManagement system
Easy-to-clean canopy interior – CleanCover
Number of dishwasher-safe stainless steel grease filters (10-ply) 4
Number x W 3 x 4,5 W
Light intensity in Lx 700 lx
Colour temperature in K 3500 Kelvin
Dimmer function
Dual-action blower
DC motor
Air throughput in Level 1 (m³/h) according to EN 61591 200
Air throughput in Level 2 (m³/h) according to EN 61591 300
Air throughput in Level 3 (m³/h) according to EN 61591 400
Air throughput in Booster level 1 (m³/h) according to EN 61591 640
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 36
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 44
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3 51
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3 62
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 22
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 30
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13 37
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13 48
Safety shut-off
Canopy width in in. (mm) 1180
Canopy height in in. (mm) 63
Depth of hood canopy in in. (mm) 293
Minimum height above electric hobs in mm 450
Minimum safety distance above gas hobs (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm 650
Net weight in kg 15
Length of supply lead in m 1.5
Standard plug fitted
Total rated load in kW 0.093
Voltage in V 230
Fuse rating in A 10
Frequency in Hz 50
Number of phases 1
Extraction ducting connection at top
Extraction connection at top and rear
Diameter of extraction ducting connection in mm 150
Combination with WiFi-enabled Miele hob recommended
Non-return flap
EAN 4002516001515

What's included

Non-return flap

User convenience

Automatic fan run-on
Run-on function

Odour-free room air: after cooking, the fan can be set to switch off automatically after a 5 or 15 minute run-on period.


Countdown time conveniently in view
Filter indicator

Easy filter replacement: a red light lets you know when the grease and/or active charcoal filter is saturated.


Automatic operation for intelligent fan control
Con@ctivity

Innovative convenience: the cooker hood reacts automatically to settings on the hob.


Features

Easy to use and effective against grease
Stainless steel grease filters (10-layer)

Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.


Convenience and safety in detail
Miele CleanCover

Protection and easy cleaning: the sealed, smooth surface prevents contact with cables and the motor.


Decorative panels instead of metal grease filters
Edge extraction

Efficient and good-looking: with edge extraction, the grease filters are covered by a panel.


Efficiency and sustainability

The heart of every cooker hood
ECO motor

Powerful and economical: the DC motor saves up to 50 % electricity compared with conventional motors.


Safety

Always on the safe side
Safety switch-off

Sensible, even in case of operating errors: the cooker hood switches off automatically after 10 hours.
