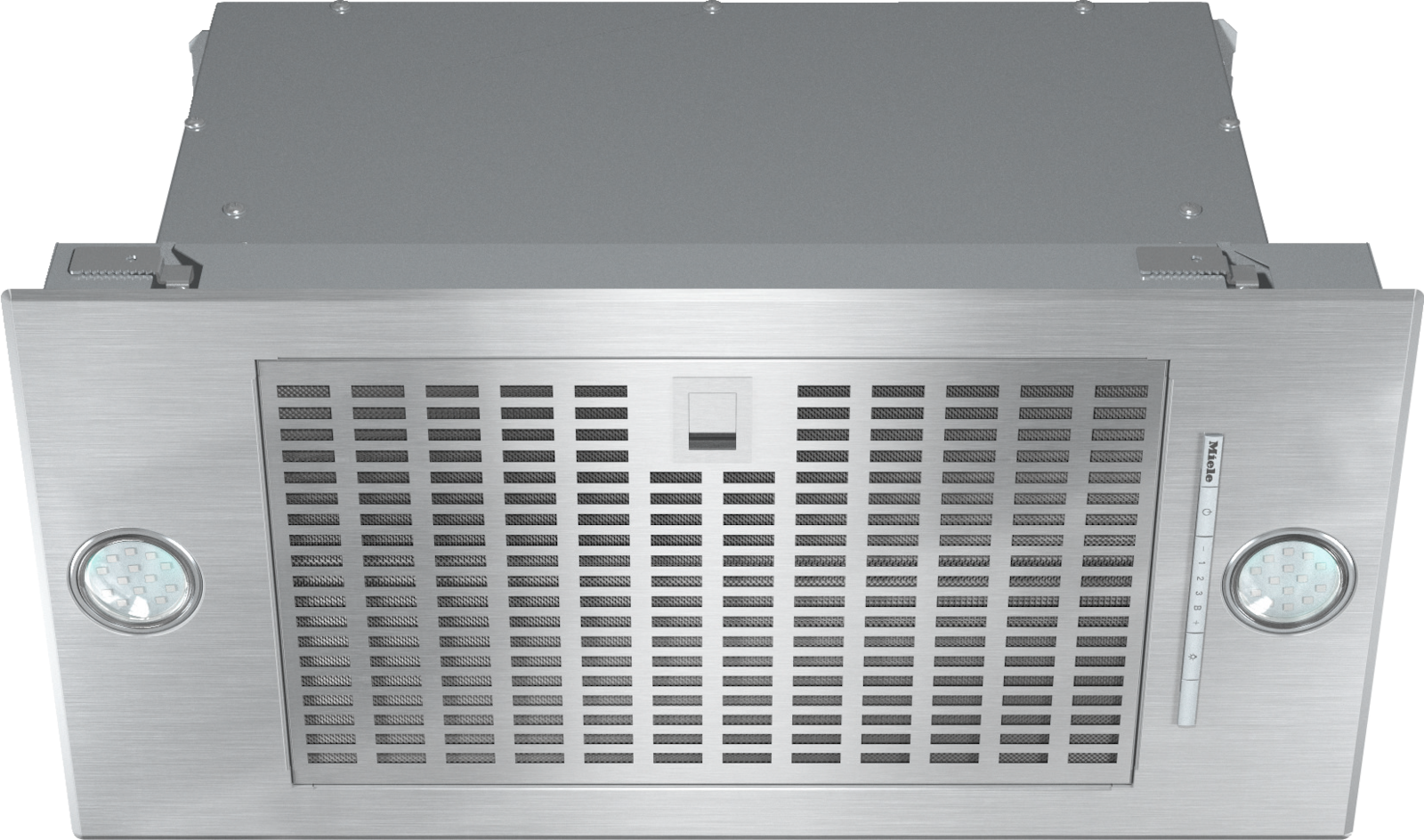

Extractor unit

DA 2360 Stainless steel

with energy-efficient LED lighting and light-touch switches for easy use.


Colour:Stainless steel

sale price£1,049.00

Buy now. Pay with Klarna. Learn more

Installation and recycling options available at checkout. For installation of built-in appliances please call 0330 160 6630



Product details

  • Customised kitchen design - fully integrated in 584 mm width
  • Space saving - suitable for narrow wall units over 30 cm deep
  • Powerful – 600 m3/h in Booster level
  • Efficient filtration-
    10-ply stainless-steel grease filter
  • Safe and easy to clean -
    Miele CleanCover
  • Manufactured with great care by
  • Safety Information

Product data sheet

Integrated extractor
Type of air guide Can be retrofitted
Recirculation conversion kit (order separately) DUU 151
Active charcoal filter (order separately) DKF 19-P
Colour Stainless steel

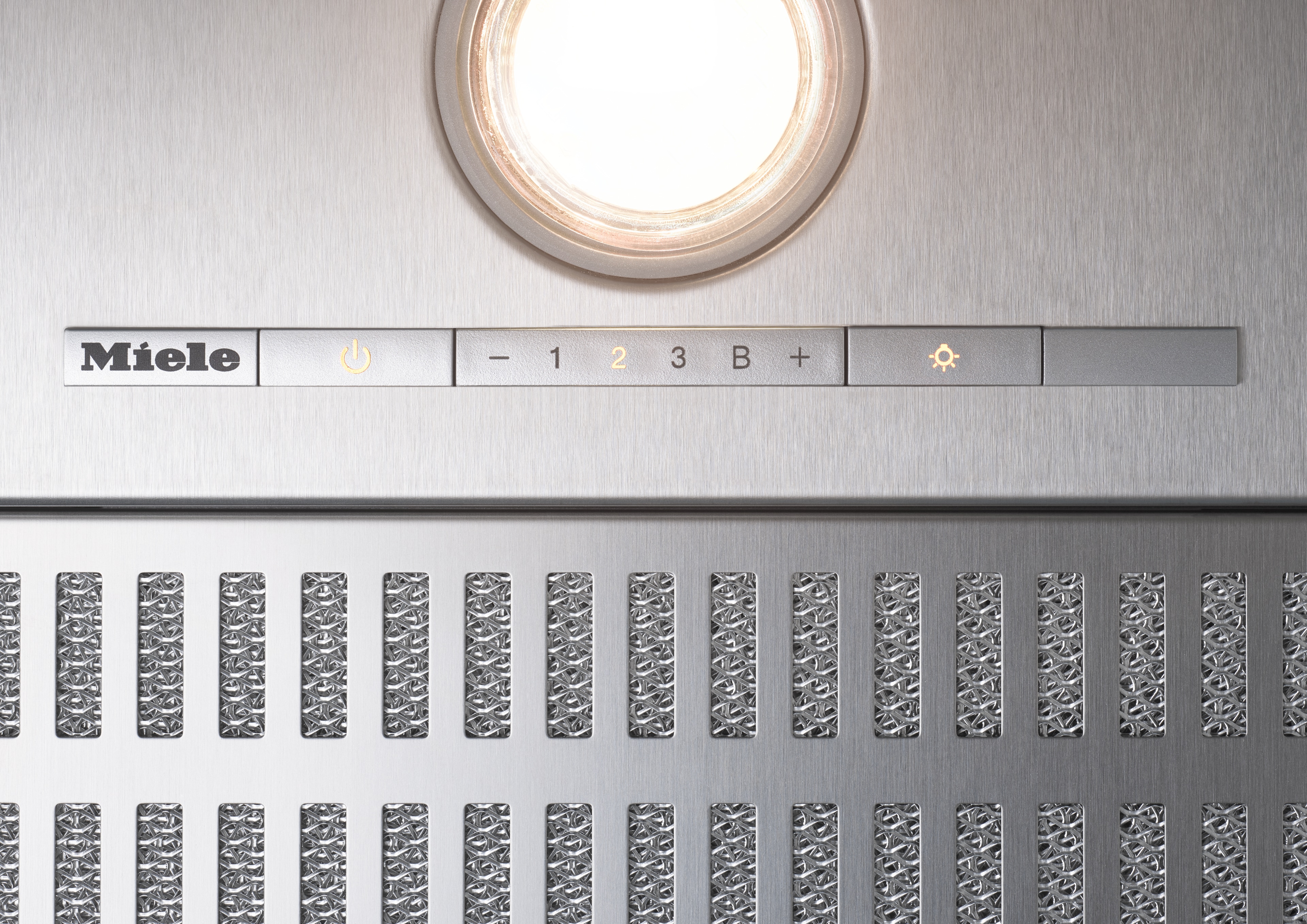

Electronic controls
Controls Light-touch switches with LEDs
Power levels (number without Booster level) 3
Booster levels 1
Easy-to-clean canopy interior – CleanCover
Energy efficiency class (A+++ to D) A
Annual energy consumption in kWh/year 49.1
Fluid dynamic efficiency class A
Lighting efficiency class A
Grease filtering efficiency class B
Easy-to-clean canopy interior – CleanCover
Number of dishwasher-safe stainless steel grease filters (10-ply) 1
Number x W 2 x 3 W
Light intensity in Lx 350 lx
Colour temperature in K 3000 Kelvin
Dual-action blower
Air throughput in Level 1 (m³/h) according to EN 61591 250
Air throughput in Level 2 (m³/h) according to EN 61591 300
Air throughput in Level 3 (m³/h) according to EN 61591 360
Air throughput in Booster level 1 (m³/h) according to EN 61591 600
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 47
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 48
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3 52
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3 64
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 31
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 34
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13 38
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13 50
Air throughput in Level 1 (m³/h) according to EN 61591 190
Air throughput in Level 2 (m³/h) according to EN 61591 250
Air throughput in Level 3 (m³/h) according to EN 61591 320
Air throughput in Booster level 1 (m³/h) according to EN 61591 500
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 54
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 60
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3 64
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3 72
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 39
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 45
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13 49
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13 57
Safety shut-off
Canopy width in in. (mm) 584
Canopy height in in. (mm) 63
Depth of hood canopy in in. (mm) 297
Minimum height above electric hobs in mm 450
Minimum safety distance above gas hobs (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm 650
Net weight in kg 11
Length of supply lead in m 1.5
Standard plug fitted
Total rated load in kW 0.226
Voltage in V 230
Fuse rating in A 10
Frequency in Hz 50
Number of phases 1
Extraction ducting connection at top
Extraction connection at top and rear
Diameter of extraction ducting connection in mm 150
Non-return flap
EAN 4002515792193

What's included

Non-return flap

Features

Easy to use and effective against grease
Stainless steel grease filters (10-layer)

Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.


Convenience and safety in detail
Miele CleanCover

Protection and easy cleaning: the sealed, smooth surface prevents contact with cables and the motor.


Safety

Always on the safe side
Safety switch-off

Sensible, even in case of operating errors: the cooker hood switches off automatically after 10 hours.


Downloads

Warranty conditions
PDF
Downloads
Installation plan
PDF
Downloads
Operating instructions/Installation instructions
PDF
Downloads
Product sheet
PDF
Downloads
ifc
ZIP
Downloads
fbx
ZIP
Downloads
dwg
ZIP
Downloads
rfa
ZIP
Downloads
rvt
ZIP
Downloads

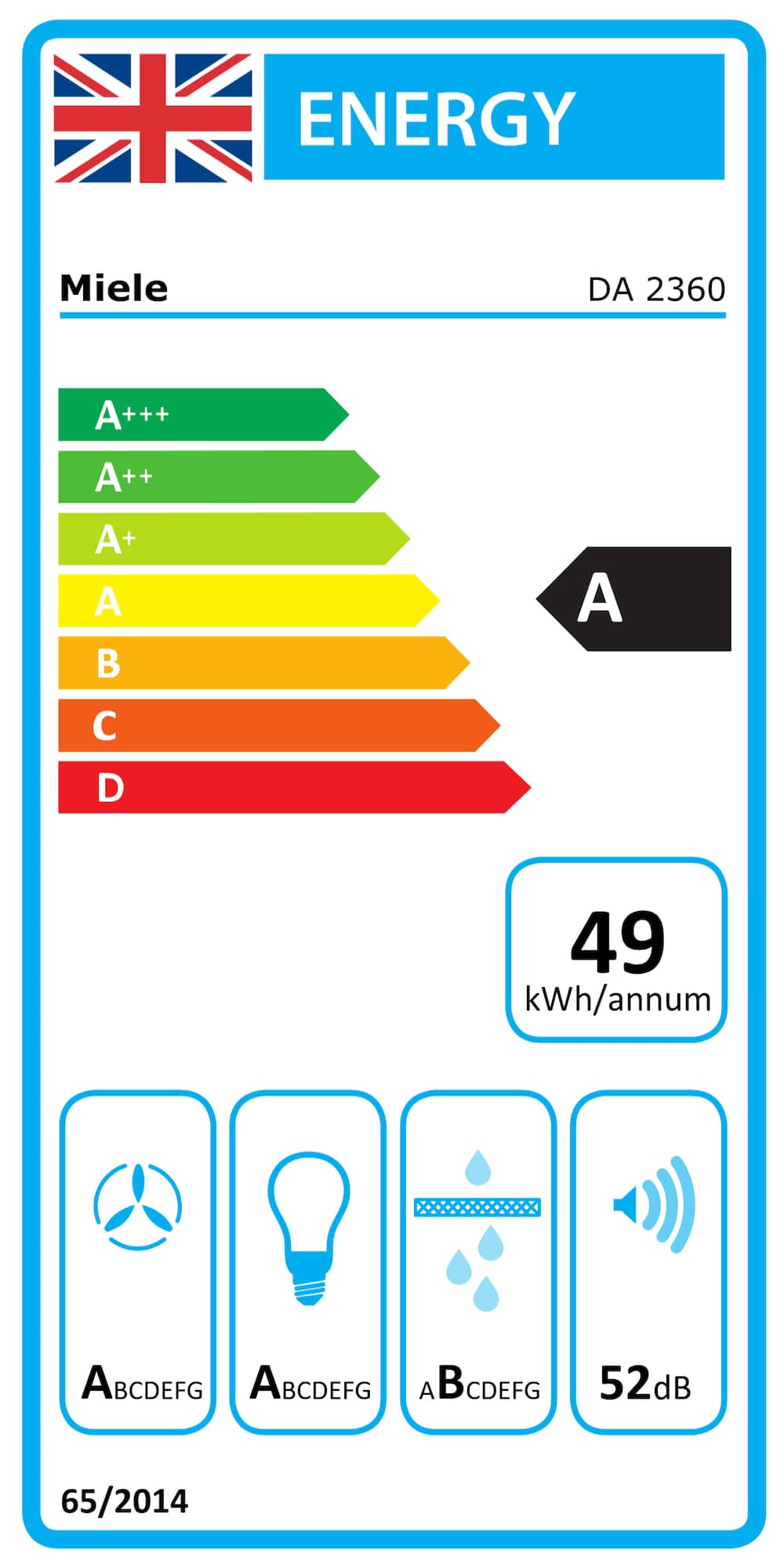

Energy label
PDF
Downloads
Product fiche
PDF
Downloads
Energy label
PNG
Downloads
Energy label
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/images/2000012/200001284/20000128425.png
Descriptions

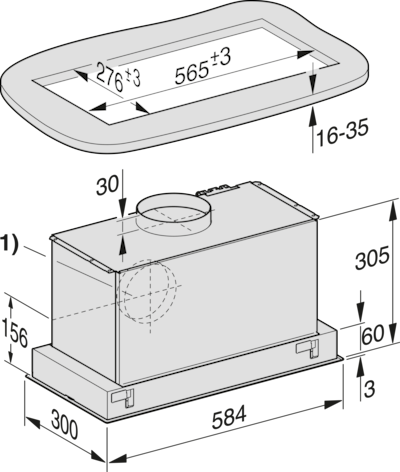

DA 2360 (Installation drawing)
The hood is fixed in the cut-out using clamps., in the cut-out. This requires a solid construction of the, solid construction of the installation surface, e.g. of wood, is required. Make sure that the, sufficient load-bearing capacity of the construction. In the area of the, In the area of the terminals, components such as struts or cables,, must be at least 25 mm away from the cut-out., have., 1) Vent connection alternatively to rear
