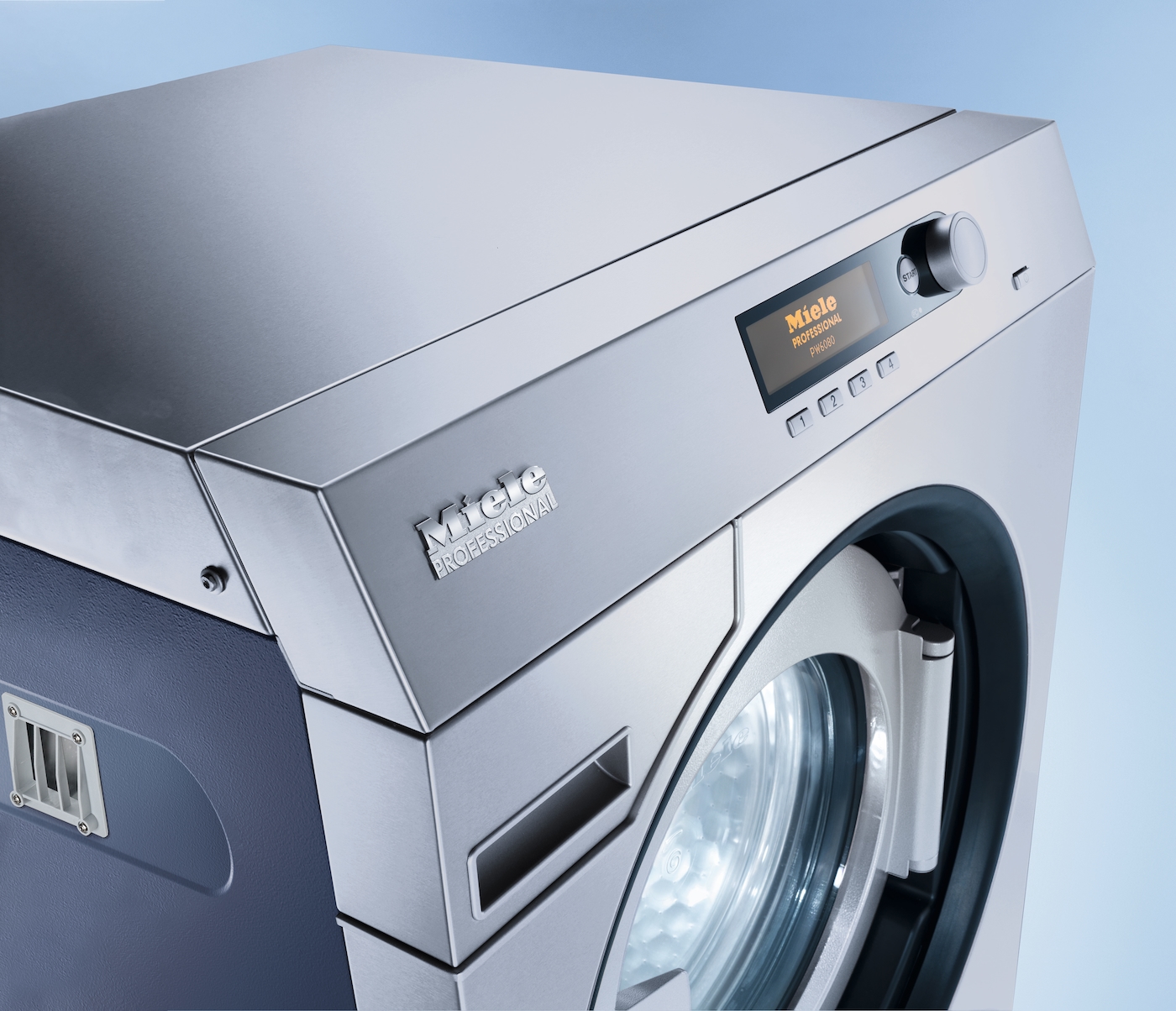

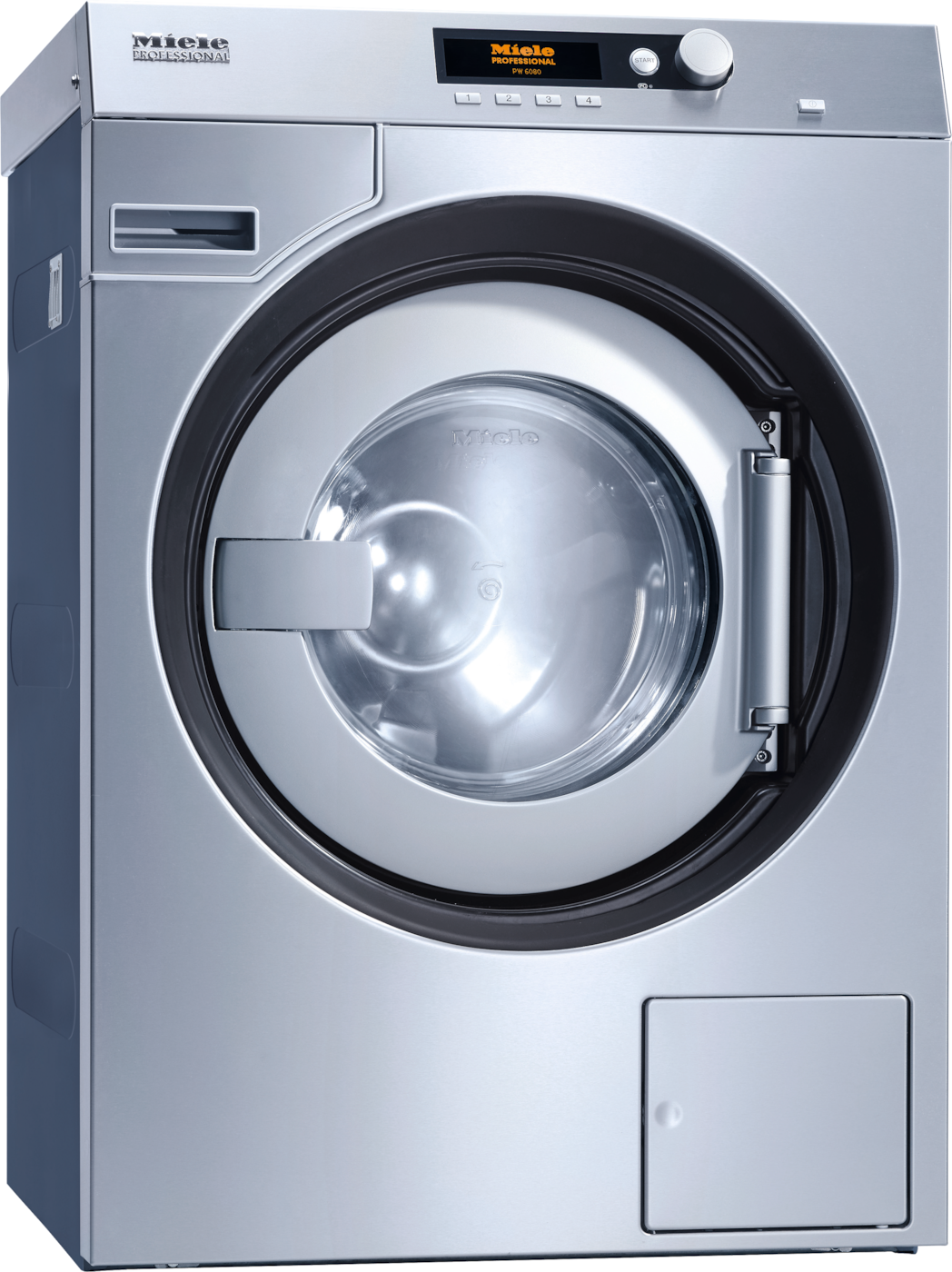

PW 6080 Vario XL [EL LP 1N AC 230V 50Hz]
Washing machine, electrically heated with suspended drum unit, shortest programme running time of 53 min and drain pump.
- Drum volume 80 l, load size 9 kg
- Large programme variety - application-specific wash programmes
- Gentle laundry care thanks to the Miele honeycomb drumHoneycomb drum
The honeycomb structure of the Miele honeycomb drum allows garments to glide gently on a thin film of water. - Particularly efficient - low water and energy consumptionLow consumption values
Economical and efficient: laundry machines from Miele Professional boast exceptionally low consumption values. - Perfect spinning results – residual moisture 44 %*, g-factor520Residual moisture specification relates to a hot rinse during the last rinse cycle.Maximum spin efficiency
A high g-factor guarantees that water is thoroughly spun out of the laundry. This has an optimum effect on the subsequent drying process. Due to the reduced residual moisture, the drying time is shortened considerably and drying costs are minimal.
Product benefits
Safe disinfection
Top-class hygiene
Disinfection programmes ensure reliable levels of hygiene. The hygiene certificate can be found under “Downloads”.*Model-dependent
Exclusive to Miele
Patented liquid dispensing adapter*Patent: EP 1 835 063 B1
Optimum dosage
A dispensing adapter directs the liquid agents straight into the detergent dispenser.
Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.
Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.
Large capacity
More space
Miele Professional washer-extractors have a large capacity drum to accommodate large loads of laundry.
EasyDos
Optimised dispensing of liquid media
Dispensing of liquid detergent can be set individually to suit requirements.
Precise automatic load recognition
Efficient savings
Water and energy consumption are automatically adjusted for the load size.
Efficient hot water connection
Quick and economical
Connection to a hot water supply enables excellent savings in time and energy with minimal effort.
Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.
Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.
Safe disinfection
Top-class hygiene
Disinfection programmes ensure reliable levels of hygiene. The hygiene certificate can be found under “Downloads”.*Model-dependent
High temperature consistency
We keep our promises
For reliable cleaning results and maximum hygiene, the temperature of the washing water is monitored constantly.
Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.
Precisely controlled water consumption
Every drop counts
The flow meter monitors the volume of water intake precisely for maximum efficiency.
Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.
Powerful heater elements
Truly powerful
The washer-extractors are equipped with powerful heater elements for heating water quickly.
Excellent durability
Ultimate quality
Professional technology ensures excellent reliability and durability for daily work routine.
Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.
Exclusive to Miele
Patented liquid dispensing adapter*Patent: EP 1 835 063 B1
Optimum dosage
A dispensing adapter directs the liquid agents straight into the detergent dispenser.
Countdown indicator
An eye on the time
After the programme has started, the display shows the cycle time remaining.
Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.
Product details
PW 6080 Vario XL [EL LP 1N AC 230V 50Hz]
EAN 4002516235767 / Article number 516080X2GB / Material number 11330400
EAN 4002516235767 / Article number 516080X2GB / Material number 11330400
Construction type | Front loader |
---|---|
Range | Octoplus |
Front | Stainless steel |
Load ratio | 1:9 |
Load in kg | 9 |
Drum volume in l | 80 |
Door opening [Ø] in mm Large drum opening Large drum opening for fast, ergonomic loading and unloading ensures smooth operation. | 370 |
Door opening angle in degrees | 180 |
Door hinge | right |
Maintenance-free motor with frequency converter | |
Stainless steel honeycomb drum |
Specific water consumption for hot water connection in l/kg Note In the Cottons 60 °C programme with connection to hot and cold water, hot rinse. | 8 |
---|---|
Specific energy consumption for hot water connection in kWh/kg Note In the Cottons 60 °C programme with connection to hot and cold water, hot rinse. | 0.055 |
Programme duration in minutes with cold water connection Note In the Cottons 60°C programme with connection to cold water. | 57 |
Programme duration in minutes with cold water and hot water connection Note In the Cottons 60 °C programme with connection to hot and cold water, hot rinse. | 53 |
Residual moisture with cold rinse in % | 49 |
Residual moisture with hot rinse in % | 44 |
Spin speed in rpm | 1300 |
g factor | 520 |
Tested operating hours Note Our machines undergo intensive testing under laboratory conditions. The actual operating hours may vary depending on actual usage behaviour, maintenance and care of the machine. | 30000 |
Control system | Profitronic L Vario |
---|---|
Programmability | programmable |
Max. delay start in h | 24 Delay start up to 24 hours The programme start time can be pre-set up to 24 hours in advance for efficient planning. |
Time left display | |
Programme sequence indicator | |
Selectable display languages |
Detergent drawer | 3 compartments |
---|---|
Patented liquid dispensing adapter | Patented liquid dispensing adapter* A dispensing adapter directs the liquid agents straight into the detergent dispenser.Patent: EP 1 835 063 B1 |
Maximum number of connections for liquid dispenser pumps [number] | 6 EasyDos Dispensing of liquid detergent can be set individually to suit requirements. |
Empty sensor |
Heating type | Electric |
---|---|
Electrical connection | AC 230V 50HZ |
Heater rating in kW | 5.3 |
Total connected load in kW | 5.5 |
Fuse rating in A | 25 |
Cold water [number] | 1x 1/2" hose w/ 3/4" th. union |
---|---|
Hot water [number] | 1x 1/2" hose w/ 3/4" th. union |
Grey water (optional) [number] | 1 x 1/2" w/ 3/4" union |
Drain pump | DN 22 |
External dimensions, height in mm | 1020 |
---|---|
External dimensions, width in mm | 700 |
External dimensions, depth in mm | 727 |
External dimensions, gross height in mm Note Including packaging | 1215 |
External dimensions, gross width in mm Note Including packaging | 760 |
External dimensions, gross depth in mm Note Including packaging | 820 |
Net weight in kg | 140 |
Gross weight in kg Note Including packaging | 148 |
Maximum floor load in N | 2330 |
Emission sound pressure level in the workplace Emission sound pressure level in the workplace The emission sound pressure level is a value given to the noise created by the machine. Miele Professional commercial laundry machines have very low noise levels. | <lt/>70 dB(A) re 20 µPa |
---|---|
Heat dissipation into the room in MJ/h Heat output into the room During operation, laundry machines release heat into the surrounding area. The released amount of heat/time depends on the set temperatures and the intensity of use. The stated maximum value can be used to control the temperature of the area or to calculate an increase in room temperature. | 3 |
Imbalance monitoring | |
---|---|
Disinfection rinse | |
Temperature monitoring | |
Special heater element | |
Automatic load control | |
Flow meter | |
Communication slot | |
Machine-independent accessories |
Recycling rate in % | 95 |
---|
Payment system | |
---|---|
Optical interface for service access | |
Serial interface module RS 232 (optional) | |
Peak-load negotiation / energy management (optional) |
Respirator masks [number] | 4-5 |
---|---|
Overalls [number] | 1 |
Over jackets [number] | 1-2 |
Synthetic duvets [number] | 1 |
Synthetic pillows [number] | 1-2 |
Down duvets [number] | 1 |
Down pillows [number] | 1-2 |
CE | |
---|---|
VDE-EMC | |
VDE | |
Splash-proof safety rating IPX4 | |
WRAS | |
WEEE | |
Complies with Machinery Directive 2006/42/EC |
