PLW 8617 [Safety EL]

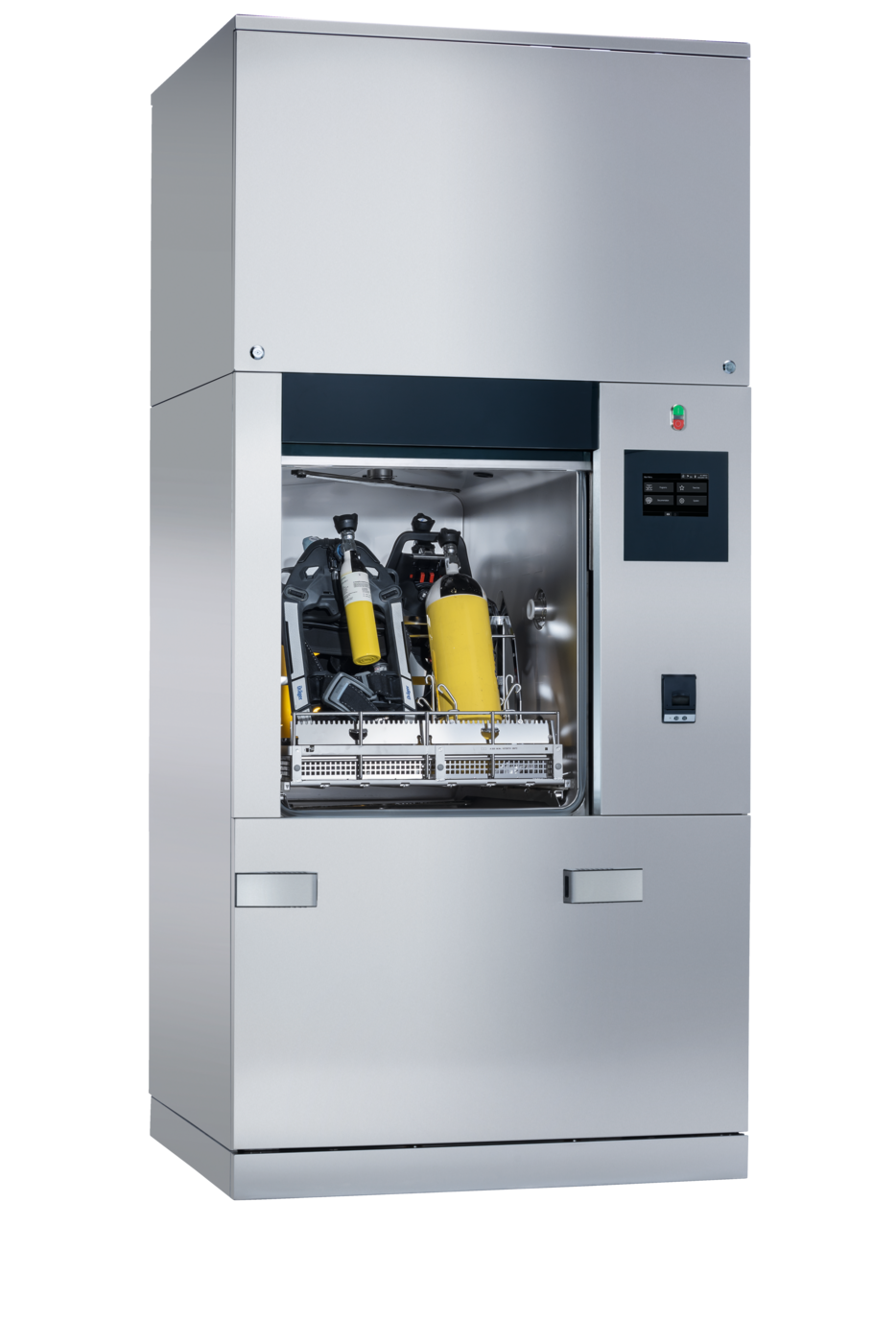

Washer-disinfector for the reprocessing of breathing apparatus – electric heating, single door, 1150 mm wide

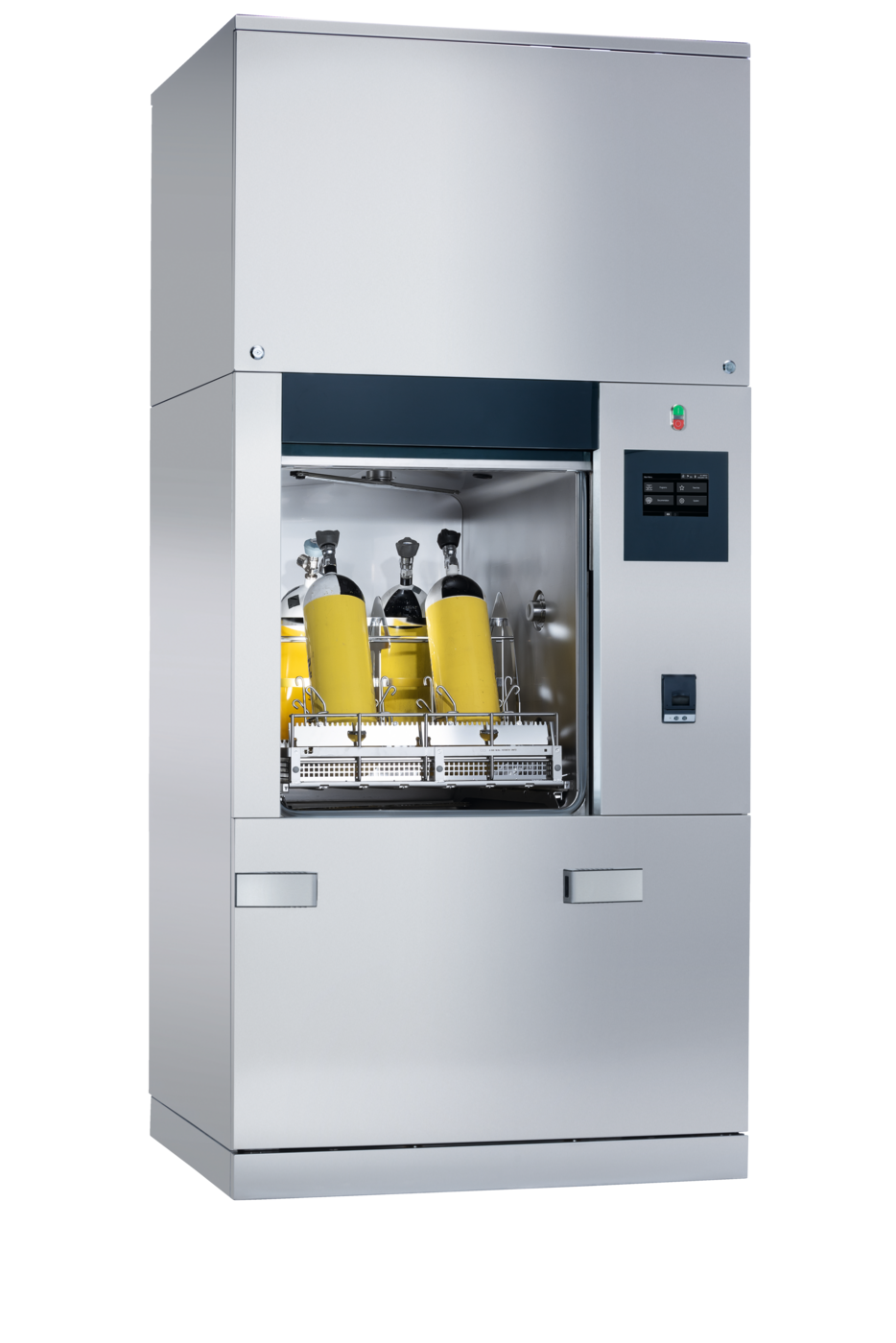

- Alternative load: 4 compressed air bottles or 4 carrier frames
- Intuitive operation and programmable controlsIntuitive and flexible
7" full-touch colour display for intuitive and convenient use and simple process control. Flush-fit display in machine front for simple and safe cleaning. Programmes are flexible and can be modified to suit individual needs. - High-performance system and specific programmesPowerful and reliable
In combination with the programmes that have been adapted specifically for the breathing apparatus, the high-performance washer system delivers efficient reprocessing and reliable results. - Reliable results thanks to spray arm monitoringSpray arm monitoring
Reliable cleaning performance thanks to the monitoring of the rotation speed of the spray arm.
Product benefits
Status display via chamber lighting
Chamber lighting is used to indicate machine status
Convenient: changing chamber lighting colours indicate the programme phase status.
Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.
Integrated hot-air drying
Dried safely
All reprocessing items are dried efficiently using hot air filtered with a HEPA filter.
Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.
USB interface
Update quickly and safely
Easy access to Miele Service: firmware updates can be performed via USB stick in order to save time.
Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.
Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.
Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.
Integrated printer
Logged on paper
For paper-supported documentation, the integrated printer produces a comprehensive report on the process.
Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.
Status display via chamber lighting
Chamber lighting is used to indicate machine status
Convenient: changing chamber lighting colours indicate the programme phase status.
Clear text display
Text display
Everything at a glance: The display shows everything as clear text in the country-specific language.
Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.
Product details
PLW 8617 [Safety EL]
EAN 4002516669166 / Article number 62861709GB / Material number 12278690
EAN 4002516669166 / Article number 62861709GB / Material number 12278690
Construction type | Freestanding, 1 glass vertical sliding door Vertical door opening The lift-up sliding door opens and closes the wash cabinet using a vertical, electronically controlled movement. In this way, the work area in front of the washer-disinfector remains freely accessible for transport trolleys or loading and unloading conveyors, for example. The lift-up sliding door in easy-to-clean full glass also allows for visual monitoring of the ongoing reprocessing. |
---|---|
Type of heating | Electricity |
Front/back | Stainless Steel |
Side panels | Stainless steel |
Single/multiple installations | |
Loading with mobile units | |
Electric door lock | |
Buzzer, acoustic signal at end of programme | |
Service-friendly design |
Suitable for fire brigades and rescue services |
---|
Breathing masks [number] | 24 |
---|---|
Compressed air bottles [number] | 4 |
Compressed air unit carrier frames with compressed air bottle [number] | 2 |
Compressed air unit carrier frames [number] | 4 |
Circulation pump, Qmax in l/min | 400 |
---|---|
Additional circulation pump for load carrier – direct coupling, Qmax in l/min | 600 |
Variable-speed pump | Sustainable thanks to two-pump technology Smart two-pump technology is at the heart of this laboratory washer from Miele. The variable-speed pump is particularly flexible regarding the basket coupling system. This pump adapts the wash pressure and required water to the specific requirements – high pressure facilitates the removal of stubborn soiling, while low pressure ensures complete wetting of the whole load. This guarantees maximum cleaning performance while ensuring sustainable use of resources. |
Wash cabinet usable capacity in l | 351 |
Tested operating hours Note Our machines undergo intensive testing under laboratory conditions. The actual operating hours may vary depending on actual usage behaviour, maintenance and care of the machine. | 15000 |
Service life in wash cycles | 20000 |
Electrical connection | 3N AC 400V 50HZ |
---|---|
Heater rating in kW | 18 |
Total rated load in kW | 20 |
Fuse rating in A | 32-35 |
Cold water [number] | 2 |
---|---|
Hot water [number] Efficient hot water connection Connection to the warm water supply saves a lot of time and energy. | 1 |
DI water [number] DI water connection Thanks to the connection for fully demineralised water (DI water), these washer-disinfectors and thermal disinfectors facilitate optimum reprocessing results. Carrying out the final rinse with DI water also protects valuable wash items from deposits and corrosion. | 2 |
Required flow pressure in kPa | 200-1000 |
Maximum water hardness (cold water/hot water) in mmol/l | 0.71 |
Drain valve [DN] | 50 |
Drain pump (optional) |
Compressed air connection, technical [number] | 1 |
---|---|
Required compressed air, technical, in kPa | 600-800 |
Drying unit heating type | Electricity |
---|---|
Air throughput in m³/h | 250 |
Time setting in 1-minute increments | 1-240 |
HEPA filter class | H13 |
HEPA filter filtration efficiency (DIN EN 1822) in % | 99.95 |
Electric heater rating in kW | 8 |
External dimensions, net height in mm | 1670 |
---|---|
External dimensions, net width in mm | 1150 |
External dimensions, net depth in mm | 990 |
External dimensions incl. plinth/floor tray and top-box panelling, height in mm | 2495 |
External dimensions, gross height in mm Note Including packaging | 1960 |
External dimensions, gross width in mm Note Including packaging | 1250 |
External dimensions, gross depth in mm Note Including packaging | 1130 |
Wash cabinet, height in mm | 675 |
Wash cabinet, width in mm | 650 |
Wash cabinet, depth in mm | 800 |
Rack height above floor in mm | 850 |
Net weight in kg | 381 |
Gross weight in kg Note Including packaging | 393 |
Maximum floor load in N/m² Maximum floor bearing capacity Maximum floor bearing capacity states the maximum weight (N) that can be placed on the supporting surface on which the machine is installed. This maximum load bearing capacity is the result of adding up the weight of the machine, the load and the water in it, as well as the dynamic forces that occur during operation. | 8000 |
Sound pressure LpA in cleaning and drying according to DIN EN ISO 11201 Emissions - sound pressure at workplace The emission sound pressure level depends on the programme and is a value given to the noise created by the machine. Miele Professional appliances have very low noise levels. | <lt/>65 dB(A) re 20 µPa |
---|
Breathing apparatus | |
---|---|
Vario FB Special | |
Vario FB Special Plus | |
Vario FB Chem | |
Vario FB Chem Plus | |
Drying FB |
2 integrated diaphragm dispenser pumps for liquid media | |
---|---|
Additional integrated dispenser pumps | 4 |
Steam condenser (optional) | |
Volume flow control | |
Spray arm monitoring | |
Conductivity monitoring | |
Interface for process documentation | |
Multi-component filter system | |
Micro-fine filter | |
Load carrier – direct coupling | |
Integrated hot air drying (optional) | |
Integrated printer for process documentation (optional) | |
Heater elements outside wash cabinet | |
Setting options for process chemicals (4 x 10 l) | |
Wash cabinet made from high-quality stainless steel (1.4404/316L) | |
Plinth, on wheels (optional) | |
Multi-coloured chamber lighting | |
Modular basket design |
Ethernet interface | |
---|---|
External dispensing modules | |
USB interface | |
Central dispensing | |
Peak-load negotiation / energy management |
CE | |
---|---|
VDE (electrical safety) | |
EN 61010-2-040 | |
Machinery Directive 2006/42/EC |
