K 1901 Vi
£7,999.00
1 . All product prices include 20% VAT

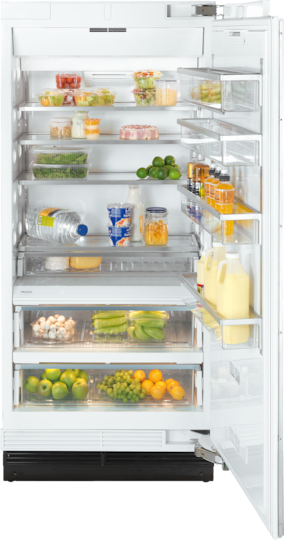

K 1901 Vi

MasterCool refrigerator with high-quality features and maximum storage space for fresh food.
  • Gentle storage and maximum enjoyment - MasterFresh
  • Store food anywhere in the refrigerator - DynaCool
  • Perfect illumination thanks to halogen emitters - BrilliantLight
  • Infinitely height-adjustable internal containers - Drop and Lock
  • Food is chilled quickly thanks to Automatic SuperCool

Your exclusive advantages

Features depend on model – images are only examples and used for explanation purposes

Product data sheet

Construction type
Side-by-side enabled
Built-in appliance
Integrated appliance
Door hingeright
Appliance category
Refrigerator
Safety
Acoustic door alarm
Acoustic temperature alarm
Optical door alarm
Optical temperature alarm
Efficiency and sustainability
Energy efficiency class (A+++ to G)A+
Annual energy consumption in kWh194
Energy consumption per 100 l in 24 h in kWh0.53
Fridge/Fridge section
Height-adjustable tempered glass shelves
No. of shelves3
No. of crisper drawers2
Full-width door shelves2
Door rack for bottles2
Controls
Operating conceptTouchControl
Automatic SuperCool
No. of temperature zones1
User convenience
Freshness systemMasterFresh
DynaCool
Drop and Lock
Design
Refrigeration section lightingBrilliantLight
Technical data
Niche width in mm max915
Niche height in mm min2134
Niche height in mm max2164
Niche depth in mm629
Appliance width in mm908
Appliance height in mm2127
Appliance depth in mm610
Weight in kg184.00
Max. door front weight – refrigerator, in kg37.00
Climate classSN-T
Refrigerator compartment in l556
4* freezer compartment in l0
PerfectFresh zone in l154
Total usable capacity in l554
Storage time in case of fault0
Freezer capacity in kg/24 h0
Sound power in dB(A) re1pW40
Current consumption (mA)0
Fuse rating in A10
Frequency in Hz50
Length of supply lead in m2.20
Show all technical details

Reviews

Downloads, CAD & Apps
Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

Descriptions

Side by side assembly, MasterCool (footnote) (installation drawings)

1. side wall heater

Descriptions

ventilation area of niche, MasterCool (Sketch)

Descriptions

Side by side assembly, MasterCool (Sketch)

Descriptions

Side-by-side, MasterCool, med mellemvæg, med sidevægsopvarmning (skitse) (med fodnote)

1) Sidevægsopvarmning

Descriptions

Opening angel 90°/115°, right side stop, MasterCool (Sketch) with footnote

A) Appliance door width

F 2461 Vi: 525 mm (20 2/3 inch);

K 2601 Vi

K 2601 SF

F 2661 Vi

KWT 2601 Vi

KWT 2601 SF

KWT 2661 ViS

KWT 2661 SFS: 677 mm (26 2/3 inch);

K 2801 Vi

K 2801 SF

F 2801 Vi

KF 2801 Vi

KF 2801 SF: 829 mm (32 2/3 inch);

K 2901 Vi

K 2901 SF

F 2901 Vi

KF 2901 Vi

KF 2901 SF: 982 mm (38 2/3 inch)

B) Furniture front (max. 38 mm) (1 1/2 inch)

C) Door handle

D) Distance door to wall (without furniture front and door handle): F 2461 Vi: 237 mm (9 1/3 inch);

K 2601 Vi

K 2601 SF

F 2661 Vi

KWT 2601 Vi

KWT 2601 SF

KWT 2661 ViS

KWT 2661 SFS: 296 mm (11 2/3 inch);

K 2801 Vi

K 2801 SF

F 2801 Vi

KF 2801 Vi

KF 2801 SF: 363 mm (14 1/3 inch);

K 2901 Vi

K 2901 SF

F 2901 Vi

KF 2901 Vi

KF 2901 SF: 428 mm (16 7/8 inch)

E) ONLY valid for SF versions: A + 25 mm (1 inch)

Descriptions

Side-by-side, MasterCool, uden mellemvæg, med sidevægsopvarmning (skitse) (med fodnote)

1) Sidevægsopvarmning

Descriptions

F1411Vi, K1801Vi, F1811Vi, K1901Vi, F1911Vi, KWT1601Vi, KWT1602Vi, dimensions of appliance, MasterCool (Sketch)*Footnote

K1801Vi / F1811Vi: A = 762 mm

K1901Vi / F1911Vi: A = 915 mm

F1411Vi: A = 457 mm

KWT1601/KWT1611Vi: A = 610 mm

KWT1602/KWT1612Vi: A = 610 mm

Descriptions

K1801Vi, K1901Vi, KF1801Vi, KF1901Vi, F1411Vi, F1811Vi, F1911Vi, securing fixing frame, MasterCool (Sketch) *Footenote

- Mark gap X on the inside of the furniture front.

- Similarly

locate and mark the midpoint Y on the furniture front.

- Remove the fixing frame from the appliance door and position it according to the markings on the furniture front.

- Pre-drill the holes.

- Screw the fixing frame to the furniture front

using at least one screw for each fixing point.

- Secure the fixing frame to the top of the furniture front

using at least 10 screws.

Descriptions

K1801Vi, K1901Vi, F1811Vi, F1911Vi, KF1801Vi, KF1901, securing fixing frame, MasterCool (Sketch) *Footnote

- Mark gap X on the inside of the furniture front.

- Remove the fixing frame from the appliance door and position it according to the markings on the furniture front.

- Pre-drill the holes.

- Screw the fixing frame to the furniture front

using at least one screw for each fixing point.

- Secure the fixing frame to the top of the furniture front

using at least 10 screws.

Descriptions

K1801Vi, K1901Vi, F1411Vi, F1811Vi, F1911Vi, KF1801Vi, KF1901Vi, inserting angle trims, MasterCool (Sketch)

Descriptions

Laying of cabling, MasterCool (installation drawing)

Descriptions

KFP1140ss, KFP1080ss, KFP1090ss, dimensions of furniture front, MasterCool (Sketch) *Footnote

KFP 1080 ss: K1801Vi / F1811Vi: A = 2029 mm

B = 756 mm

KFP 1090 ss: K1901Vi / F1911Vi: A = 2029 mm

B = 908 mm

KFP 1140 ss: F1411Vi: A = 2029 mm

B = 451 mm

Descriptions

Opening angle 115°, MasterCool (Sketch) with footnote

A) Appliance door width

K 1801 Vi

KF 1801 Vi: 829 mm

K 1901 Vi

KF 1901 Vi: 982 mm

KWT 1601 Vi: 677 mm

KWT 1602 Vi: 677 mm

B) Furniture front (max. 38 mm)

C) Door handle

D) Distance between appliance door and the wall (excluding furniture front and door handle)

K 1801 Vi

KF 1801 Vi: 363 mm

K 1901 Vi

KF 1901 Vi: 428 mm

KWT 1601 Vi: 299 mm
