DA 3366
£499.00
1 . All product prices include 20% VAT

DA 3366

Slimline cooker hood with energy-efficient LED lighting and sliding switch for simple operation.
  • Elegant design - slim 595 mm extractor canopy
  • Powerful - 430 m3/h on the booster setting
  • Efficient filtration- 10-ply stainless-steel grease filter
  • Safe and easy to clean - Miele CleanCover
  • Suitable for every home - for extraction or recirculation

Your exclusive advantages

Features depend on model – images are only examples and used for explanation purposes

What’s included

  • Non-return flap
  • Adapter to reduce ducting diameter from 150 mm to 125 mm Ø

Product data sheet

Construction type
Slimline cooker hood
Design
ColourStainless steel
Variable height available as customisation on request
Variable width available as customisation on request
Operating modes
Type of air guideConvertible
Recirculation conversion kit (order separately)DUU 151
Active charcoal filter (order separately)DKF13-1
User convenience
Mechanical controls
Slide switch
Power levels (number without Booster level)3
Booster level
Cleaning convenience
Easy-to-clean canopy interior – CleanCover
Efficiency and sustainability
Annual energy consumption in kWh/year61.40
Filter system
Number of dishwasher safe stainless-steel grease filters (10-ply)1
Lighting
LED
Number x W2 x 3 W
Light intensity in Lx320 Lux
Colour temperature in K3000 K
Blower
Dual-action blower
AC motor
Air throughput with max. duct diameter in vented mode (not for external version)
Air throughput in setting 1 (cfm)150
Air throughput in setting 2 (cfm)240
Air throughput in setting 3 (cfm)320
Air throughput in Intensive setting (cfm)430
Sound power in setting 1 (dB(A) re 1 pW)44.00
Sound power in setting 2 (dB(A) re 1 pW)47.00
Sound power in setting 3 (dB(A) re 1 pW)51.00
Sound power in Intensive setting (dB(A) re 1 pW)58.00
Sound pressure in setting 1 (dB(A) re 20 µPa)32.00
Sound pressure in setting 2 (dB(A) re 20 µPa)35.00
Sound pressure in setting 3 (dB(A) re 20 µPa)38.00
Sound pressure in Intensive setting (dB(A) re 20 µPa)45.00
Air throughput in recirculation mode
Air throughput in setting 1 (cfm)80
Air throughput in setting 2 (cfm)150
Air throughput in setting 3 (cfm)200
Air throughput in Intensive setting (cfm)300
Sound power in setting 1 (dB(A) re 1 pW)52.00
Sound power in setting 2 (dB(A) re 1 pW)58.00
Sound power in setting 3 (dB(A) re 1 pW)61.00
Sound power in Intensive setting (dB(A) re 1 pW)67.00
Sound pressure in setting 1 (dB(A) re 20 µPa)40.00
Sound pressure in setting 2 (dB(A) re 20 µPa)45.00
Sound pressure in setting 3 (dB(A) re 20 µPa)49.00
Sound pressure in Intensive setting (dB(A) re 20 µPa)55.00
Technical data
Canopy width in in. (mm)595
Height of hood canopy in in. (mm)34
Depth of hood canopy in in. (mm)275
Minimum height above electric hobs in mm450
Minimum height above gas hobs (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm650
Net weight in kg12.00
Length of supply lead in m1.50
Standard plug fitted
Total rated load in kW0.12
Voltage in V230
Fuse rating in A10
Frequency in Hz50
Number of phases1
Installation notes
Extraction ducting connection at top
Diameter of extraction ducting connection in mm150
Show all technical details

Supplementary products and accessories

Reviews

Downloads, CAD & Apps
Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

Descriptions

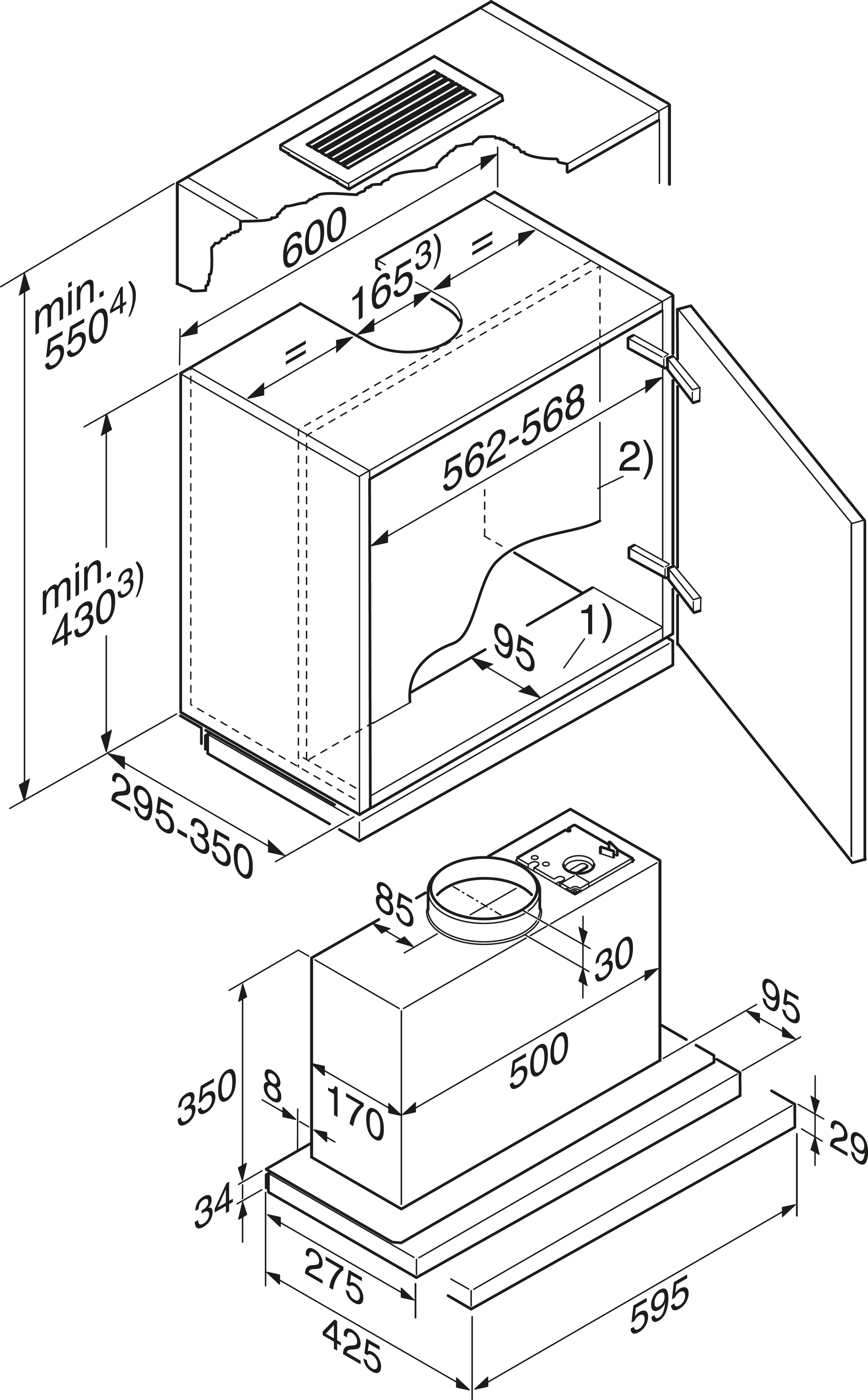

DA 3360, DA 3366 (Installation drawing) - VG AUS

1. A shelf must be fitted in the front of the wall unit to the depth of the partition wall.

If the cooker hood is fitted further back

e.g. to accomodate a front panel

the shelf will need to be deeper.

2. The partition wall in the wall unit must be removable.

3. Extration mode: when measuring for height of the wall unit and the cut-out

account must be taken of any accessories fitted

e.g. a silencer.

4. Recirculation mode: with conversion kit DDU 151
