CSDA 7000 FL
£1,399.00
1 . All product prices include 20% VAT

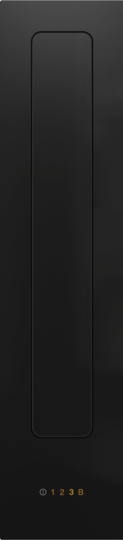

CSDA 7000 FL

SmartLine element as downdraft extractor for extraction or recirculation operation
  • Intuitive quick selection via number sequences – Smart Select
  • Elegant design – for flush or raised installation
  • Seamlessly integrates with any SmartLine element
  • Efficient filtration- 10-ply stainless-steel grease filter
  • Energy-efficient and quiet - powerful ECO motor

Your exclusive advantages

Features depend on model – images are only examples and used for explanation purposes

What’s included

  • Ducting system to the plinth fan

Product data sheet

Design
Flush
Frameless – surface-mounted
Operating modes
Type of air guideConvertible
Extraction mode
Recirculation mode
Installation notes
Plinth fan with vent connection
Dimensions of the exhaust ducting connector in mm222
Dimensions of the exhaust ducting connector in mm89
Safety
Safety switch-off
FlameGuard
Technical data
Dimensions in mm (width)120
Dimensions in mm (height)168
Dimensions in mm (depth)520
Casing height incl. connection box in mm168
Cutout dimensions in mm (width) with surface-mounted installation100
Cutout dimensions in mm (depth) with surface-mounted installation500
Inner cut-out dimensions in mm (width) with flush installation100
Inner cut-out dimensions in mm (depth) with flush installation500
Outer cut-out dimensions in mm (width) with flush installation124
Outer cut-out dimensions in mm (depth) with flush installation524
Weight in kg10.90
Total rated load in kW0.00
Voltage in V230
Fuse rating in A10
Number of phases1
Length of supply lead in m0
Extraction
Air throughput in Level 1 (m³/h) according to EN 6150
Air throughput in Level 1 (m³/h) according to EN 6150
Air throughput in Level 2 (m³/h) according to EN 6290
Air throughput in Level 3 (m³/h) according to EN 6440
Air throughput in Level 3 (m³/h) according to EN 6440
Air throughput in Booster level (m³/h) according t535
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-344
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-358.00
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-366
Sound power in Booster level (dB(A) re 1 pW) acc. to EN 60704-370
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-1329.00
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-1343.00
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-1351.00
Sound pressure in Booster level (dB(A) re 20 µPa) acc. to EN 60704-2-1355.00
Recirculation
Air throughput in Level 1 (m³/h) according to EN 6100
Air throughput in Level 2 (m³/h) according to EN 6235
Air throughput in Level 3 (m³/h) according to EN 6380
Air throughput in Booster level (m³/h) according t460
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-349.00
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-363.00
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-373.00
Sound power in Booster level (dB(A) re 1 pW) acc. to EN 60704-378.00
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-1334.00
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-1349.00
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-1358.00
Sound pressure in Booster level (dB(A) re 20 µPa) acc. to EN 60704-2-1363.00
Filter system
Number of dishwasher safe stainless-steel grease filters (10-ply)1
Efficiency and sustainability
Energy efficiency class (A++ – E)A+
ECO motor
Annual energy consumption in kWh/year29.30
Fluid dynamic efficiency classA
Lighting efficiency class-
Grease filtering efficiency classB
Cleaning convenience
Easy to clean ceramic glass
Easy-to-clean canopy interior – CleanCover
User convenience
Operation via sensor controlsSmart Select
Digital power level display
Display colourYellow
Optional accessories
Recirculation mode conversion kitDUU 1000-1
Active charcoal filter, can be reactivatedDKF 1000 R
Silencer for 150 mm Ø DASD 150
Wall vent for 150 mm Ø DMK 150
Show all technical details

Reviews

Downloads, CAD & Apps
Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

Descriptions

CSDA 7000 - flush (Installation drawing)

1) front

2) Fan (in the plinth lying on the floor)

3) Stepped cut-out

4) 12 mm wooden panel (not supplied as standard)

5) Air duct

6) E-box

Descriptions

CS 7000 FL, flush (Installation drawing)

*7+0

5 = CS7611 (Wok)

Descriptions

CS 7000 FL, flush (Installation drawing)

*7+0

5 = CS7611 (Wok)

Descriptions

CSDA 7000 - supported installation (Skizze)

1) front

2) Fan (in the plinth lying on the floor)

3) Air duct

4) E-Box

Descriptions

CS 7000 FL (Installation drawing)
