CS 7101 FL
£1,099.00
1 . All product prices include 20% VAT

CS 7101 FL

SmartLine element with a dual wok burner
  • Simple controls -single-handed operation via rotary dial control
  • Elegant design – for flush or raised installation
  • Seamlessly integrates with any SmartLine element
  • Broad performance spectrum - dual wok with up to 4.50 kW of power
  • Easy cleaning - dishwasher-safe ComfortClean pot rests

Your exclusive advantages

Features depend on model – images are only examples and used for explanation purposes

What’s included

  • Wok ring

Product data sheet

Construction type
SmartLine
Design
Elegant glass ceramic surface
Ceramic surface colourBlack
Flush
Frameless – surface-mounted
Cleaning convenience
Easy to clean ceramic glass
Dishwasher-proof pot rests
Technical data
Dimensions in mm (width)378
Dimensions in mm (height)92
Dimensions in mm (depth)520
Casing height incl. connection box in mm92
Cutout dimensions in mm (width) with surface-mounted installation358
Cutout dimensions in mm (depth) with surface-mounted installation500
Internal cutout dimensions in mm (width) with flush installation358
Internal cutout dimensions in mm (depth) with flush installation500
External cutout dimensions in mm (width) with flush installation382
External cutout dimensions in mm (depth) with flush installation524
Weight in kg8
Total rated load in kW4.50
Voltage in V230
Length of supply lead in m2.00
Safety
GasStop
Cooking zone
PositionCentred
TypeDual wok burner
Rating in W4500
User convenience
Operation via sensor controlsKnob
Operation via knobs
Electronic ignition with single-hand operation
Cooking zone details
Number of cooking zones1
Show all technical details

Supplementary products and accessories

Reviews

Downloads, CAD & Apps
Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

Descriptions

CS 7000 FL, flush (Installation drawing)

*7+0

5 = CS7611 (Wok)

Descriptions

CS 7000 FL, flush (Installation drawing)

*7+0

5 = CS7611 (Wok)

Descriptions

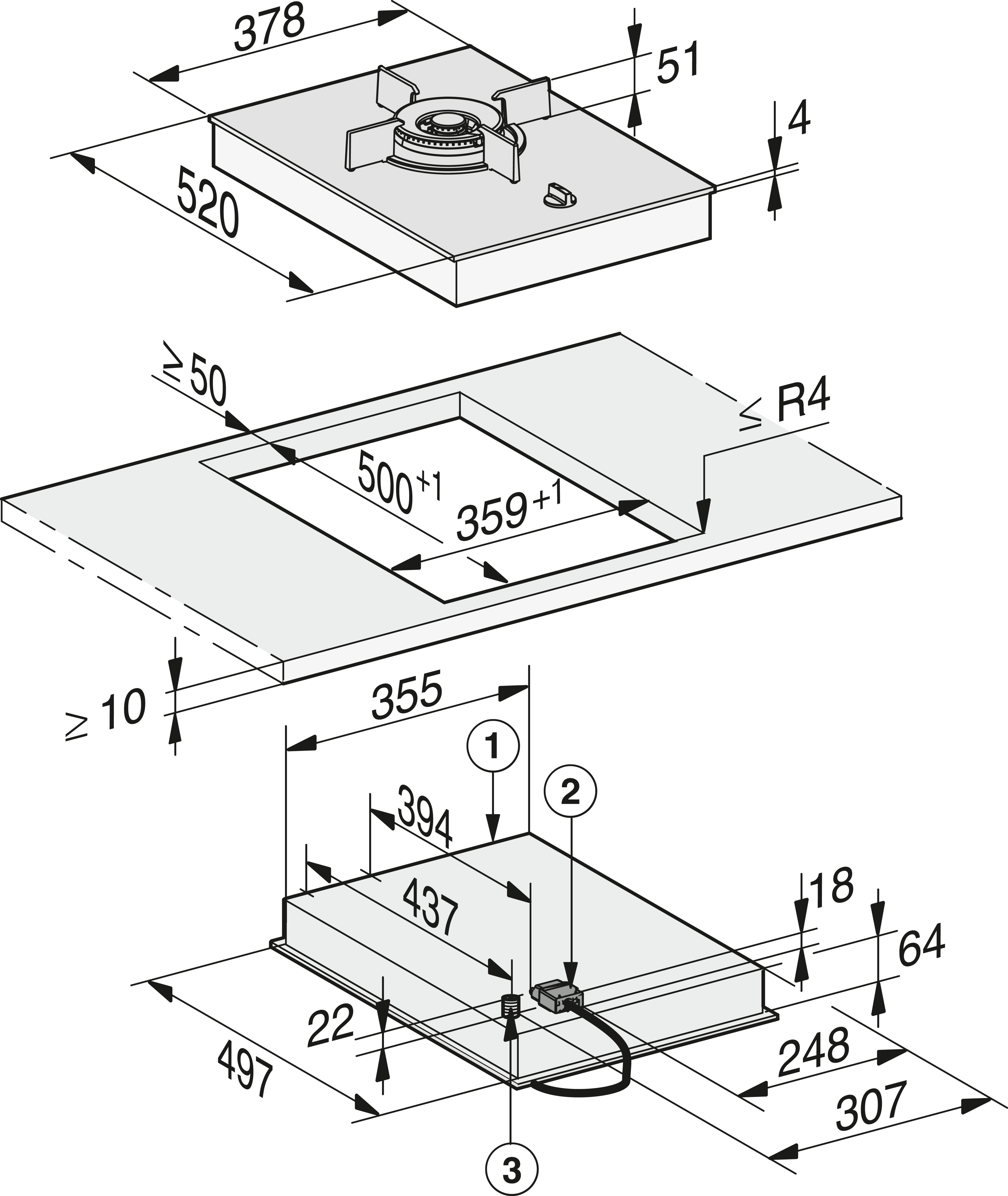

CS 7101 FL (installation drawing)

1) Front

2) Mains connection box with mains connection cable

L = 2000 mm

3) Gas connection R 1/2 - ISO 7-1 (DIN EN 10226)

Descriptions

CS 7101 FL flush (installation drawing)

1) Front

2) Mains connection box with mains connection cable

L = 2000 mm

3) Stepped cut-out

4) Wooden frame 12 mm (supplied loose)

5) Gas connection R 1/2 - ISO 7-1 (DIN EN 10226)

Descriptions

CS 7000 FL (Installation drawing)
