CVA 6805
1 . All product prices include 20% VAT

CVA 6805

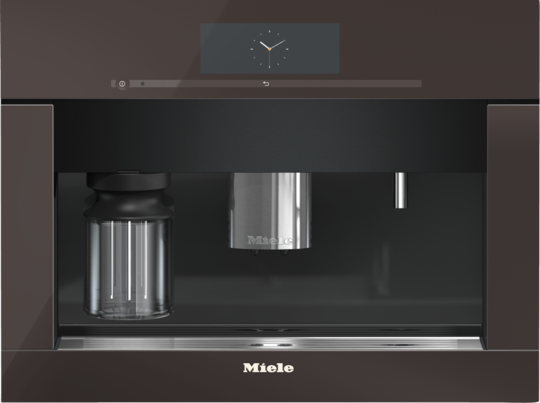

Built-in coffee machine with bean-to-cup system - the Miele all-rounder for the highest demands.
  • Perfect results and intense coffee flavour - AromaticSystem
  • Fully automatic perfection - OneTouch for Two
  • Unique automatic sensing of cup height - CupSensor
  • Innovative and convenient milk system - EasyClick milk system
  • Convenient cleaning for care and mainten. - Cleaning programmes

Your exclusive advantages

Features depend on model – images are only examples and used for explanation purposes

What’s included

  • Milk flask – glass
  • Milk flask – compact closure
  • Descaling agent
  • Cleaning tablets
  • Coffee spoon for ground coffee
  • Test strips to determine water hardness

Product data sheet

Long coffee
Hot milk
Coffee pot function
Milk froth
Latte macchiato
Caffè latte
Hot water
Convenience features
OneTouch for Two preparation
OneTouch preparation
Second type of coffee can be made using ground coffee
Programmable User profiles11
Selectable grinder setting
Programmable amount of coffee
Programmable amount of water
Programmable water temperature
Amount of milk can be programmed
Programmable amount of milk froth
Pre-brewing programmable
Construction type
Built-in bean-to-cup coffee machine
ColourHavana brown
Optional accessories
Milk pipework cleaner
Technical data
Min niche height in mm560
Max niche height in mm568
Min niche height in mm450
Max niche height in mm452
Niche depth in mm550
Appliance width in mm595
Appliance height in mm452
Appliance depth in mm496
Depth with door open in cm106.00
Total rated load in kW2.30
Fuse rating in A13
Number of phases1
Length of water inlet hose in m1.50
Length of supply lead in m2.00
Appliance networking
Accessories requiredXKM 3100 W
SuperVision display
System lock
Water protection system
Cleaning convenience
Automatic rinsing function
Convenient cleaning programmes
Removable brew unit
Automatic rinsing of milk line with water from the water container
Removable milk pipework
Programmable water hardness
Efficiency and sustainability
Energy-saving eco-mode selectable
Night switch-off
User convenience
Individual language selection
Mains water connection
Time of day display
Can be combined with warming drawer
Date display
Height adjustable central spout, range in cm8.30
Height adjustable central spout, range in cm16.50
Concealed door handle
Capacity of coffee bean container in g500
Removable coffee bean container
Capacity of water container in l2.30
Capacity of waste container in capsules15
Easily accessible containers
Programmable switch-on time
Programmable switch-off time
Programmable standby time
Clock buffer in h
Show all technical details

Supplementary products and accessories


Downloads, CAD & Apps
Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!


ESW 6129, ESW 6229 (Installation drawing)

* appliances with glass front

** Appliances with metal front


ESW 6114, ESW 6214 (Installation drawing)

* appliances with glass front

** Appliances with metal front


CVA5065, CVA6405, CVA6805, plumbed in water supply (installation drawings)


CVA5060, CVA5065, CVA6401, CVA6405, CVA6800, CVA6805, side view (installation drawings)

Monitor your Miele appliances while you are on the go.

With the Miele@mobile app for your smartphone or tablet you can now connect all your Miele appliances and benefit from its smart home features.
