KFN 37692 iDE
Built-in fridge-freezer combination For that special look in the kitchen thanks to Perfect fresh Pro and FlexiLight.
Your exclusive advantages
PerfectFresh Pro
Store food just like a professional
Our best freshness system: food stays fresh up to 5x longer with an ideal temperature and optimised humidity.
NoFrost
No more defrosting
Never defrost again: Cool air prevents ice from forming and saves you the trouble of defrosting.
DynaCool (dynamic cooling)
Perfect storage conditions for food and wine
Uniform distribution of temperature: a ventilator ensures excellent circulation and distribution of cold air.
Exclusive to Miele
FlexiLight
Individually adjustable glass shelf lighting
Glare-free and flexible: the individually adjustable LED glass shelf lighting.
Domestic appliance networking with Miele@home
Cleverly networked
Make your life smart: thanks to Miele@home*, you can cleverly network your domestic appliances – for more options.
Features depend on model – images are only examples and used for explanation purposes
User convenience (6)
Exclusive to Miele
ComfortClean
Dishwasher-proof shelves on the inside of the door
Easy to clean: the high-quality shelves on the inside of the door can be easily cleaned in the dishwasher.
SoftClose
Appliance door closes softly
Closes quietly and reliably: the self-closing door closes quietly and gently, and prevents items from falling out.
NoFrost
No more defrosting
Never defrost again: Cool air prevents ice from forming and saves you the trouble of defrosting.
DynaCool (dynamic cooling)
Perfect storage conditions for food and wine
Uniform distribution of temperature: a ventilator ensures excellent circulation and distribution of cold air.
Exclusive to Miele
FlexiLight
Individually adjustable glass shelf lighting
Glare-free and flexible: the individually adjustable LED glass shelf lighting.
Domestic appliance networking with Miele@home
Cleverly networked
Make your life smart: thanks to Miele@home*, you can cleverly network your domestic appliances – for more options.
Special features (2)
PerfectFresh Pro
Store food just like a professional
Our best freshness system: food stays fresh up to 5x longer with an ideal temperature and optimised humidity.
IceMaker
Ice cubes for cold drinks
Fresh ice, fully automatically: produces up to 100 ice cubes per day with ease thanks to mains water connection.
Product data sheet
Appliance category
| Fridge-freezer | • |
Construction type
| Built-in appliance | • |
| Integrated appliance | • |
| Door hinge | right |
| Convertible door hinging | • |
| Side-by-side enabled | • |
Appliance networking
| WiFiConn@ct | • |
| MobileControl | • |
Design
| Casing colour | No |
| Refrigeration section lighting | FlexiLight |
| PerfectFresh Pro LED lighting | • |
User convenience
| Networking with Miele@home | • |
| Freshness system | PerfectFresh Pro |
| IceMaker | • |
| Accessories required | XKS 3130 W |
| DuplexCool | • |
| NoFrost | • |
| DynaCool | • |
| ComfortClean | • |
| VarioRoom | • |
| SelfClose | • |
| SoftClose | • |
| Mains water connection | • |
Controls
| Operating concept | TouchControl |
| Fridge compartment can be switched off | Yes |
| Independent temperature regulation of fridge and freezer zones | • |
| Automatic SuperCool | • |
| SuperFreeze | • |
| Sabbath mode | • |
| No. of temperature zones | 3 |
Fridge/Fridge section
| Height-adjustable tempered glass shelves | • |
| No. of shelves | 3 |
| of which illuminated | 2 |
| No. of crisper drawers | 2 |
| Door shelves for jars | Yes |
| Door rack for bottles | 1 |
| Number of inner door racks for tinned food | 1 |
Efficiency and sustainability
| Energy efficiency class (A - G) | E |
| Energy efficiency class (A - F) | E |
| Annual energy consumption in kWh | 225.57 |
| Energy consumption per 100 l in 24 h in kWh | 0.62 |
Safety
| Lock function | • |
| Acoustic door alarm | • |
| Acoustic temperature alarm | • |
| Acoustic temperature alarm | • |
| Optical door alarm | • |
| Optical temperature alarm | • |
| Power cut indication for freezer section | • |
Technical data
| Niche width in mm min | 560 |
| Niche width in mm max | 570 |
| Niche height in mm min | 1772 |
| Niche height in mm max | 1788 |
| Niche depth in mm | 550 |
| Appliance width in mm | 559 |
| Appliance height in mm | 1770 |
| Appliance depth in mm | 544 |
| Weight in kg | 71.90 |
| Door hinge technology | Fixed door |
| Max. door front weight – refrigerator, in kg | 17 |
| Max. door front weight – freezer, in kg | 12 |
| Climate class | SN-ST |
| Refrigerator compartment in l | 180 |
| PerfectFresh zone in l | 67 |
| 4* freezer compartment in l | 68 |
| Total usable capacity in l | 233 |
| Sound power in dB(A) re1pW | 38 |
| Storage time in case of fault | 12 |
| Freezer capacity in kg/24 h | 5.26 |
| Noise class (A-D) | C |
| Current consumption (mA) | 1400 |
| Voltage in V | 220-240 |
| Fuse rating in A | 13 |
| Frequency in Hz | 50 |
| Length of supply lead in m | 2.10 |
What’s included
- Butter dish
- Egg tray
- Ice packs
Supplementary products and accessories
Downloads, CAD & Apps

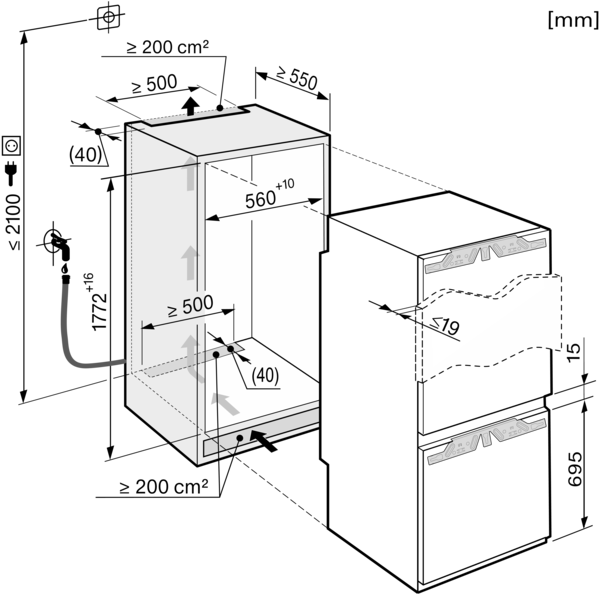

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!
Descriptions
KFN37692iDE, KFNS37692iDE (installation drawings)
Descriptions
FNS37492iE, KFN37692iDE, KFSN37692iDE, Water connection placement 2013 (installation drawings)
Monitor your Miele appliances while you are on the go.
With the Miele@mobile app for your smartphone or tablet you can now connect all your Miele appliances and benefit from its smart home features.
